Product Description
Technical Specification
Downloadable Files

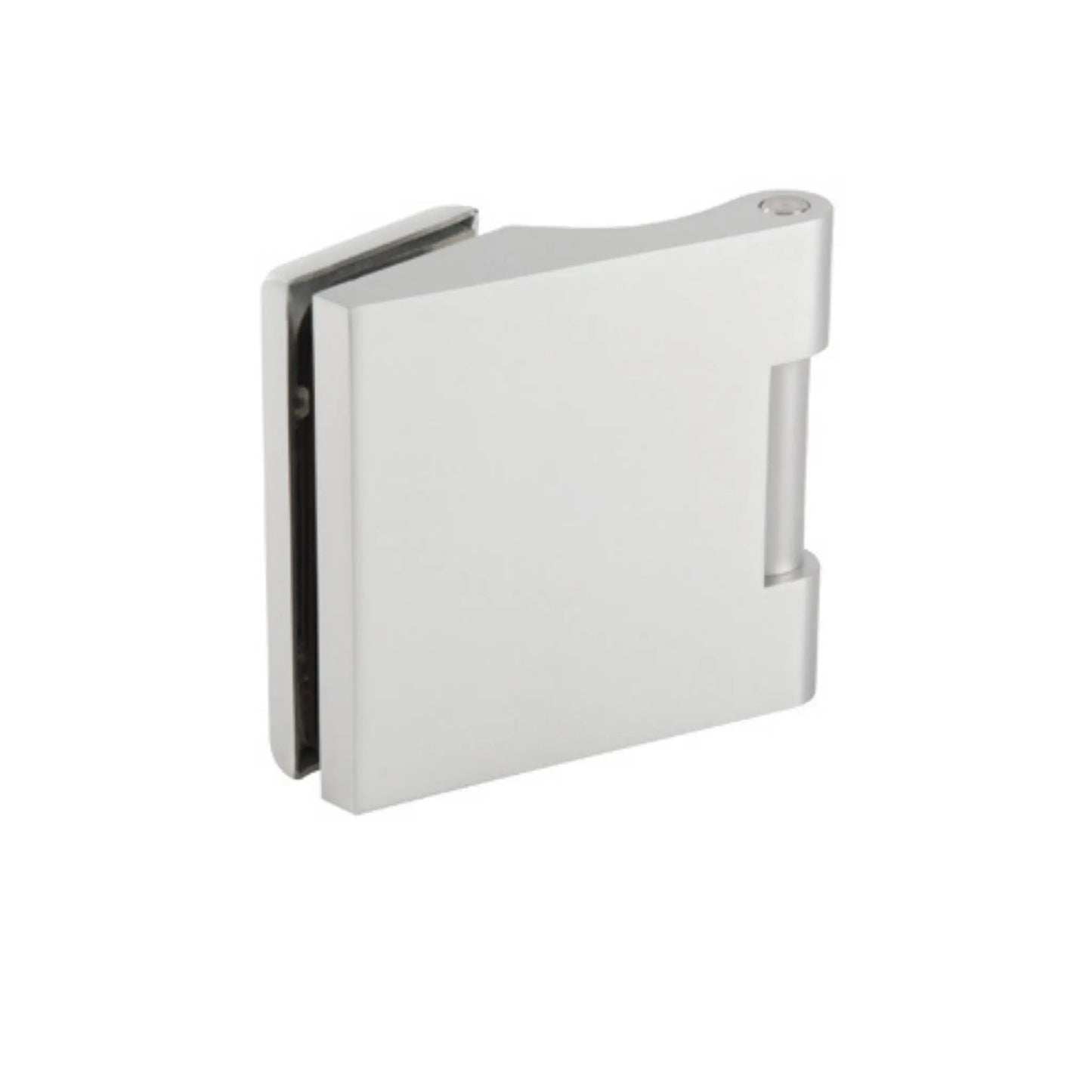

Sauna Glass Door Hinge 3-part with sleeve
- Glass door hinge with sleeve
- installation in frames according to DIN 18101 / 18111
- rebate depth 24 mm (for 8 mm) / 26 mm (for 10 mm)
- Please order the suitable frame pivot separately.
- Glass thickness tempered glass 8 - 10 mm, laminated glass 8.76 - 10.76 mm
Technical Data
Door type | Stopper |
Mounting | – |
Max. door weight per pair | 42 kg |
max. door height | – mm |
Max. door width | 1000 mm |
Hold position | – |
Self-closing function | no |
Line | Alea |
Material | aluminium |
2 hinges recommended per door.
Prices shown are per 1 item.
