Sauna Chimney Parts & Flue Kits
Any wood burning sauna heater requires a chimney or flue. With all Narvi, Aito and Kota wood burning sauna heaters, a T600 rated or greater flue kit should be used. The simplest and most cost effective solution for a wood burning sauna heater flue is a Flue Kit. These come with all the parts required for either single or two-storey buildings. Also in this section are stone cages, water tanks and heat shielding designed for sauna flues.
Showing 1 - 4 of 4 results
-
{"id":5626383815,"title":"Narvi Stone Cage Flue Cover","handle":"stone-cage-flue-cover","description":"\u003ch4\u003eProduct Description\u003c\/h4\u003e\n\u003cp\u003eThe Stone Cage Flue Cover increases the efficiency of the stove by better utilising the heat from the flue. The quickest way to an excellent \u003ci\u003elöyly\u003c\/i\u003e is to have a large stone capacity. The steam last longer and is softer on account of the water taking longer to cascade between the stones of the sauna heater. Using the Stone Cage Flue Cover also reduces the protective distances required from flammable material. The Stone Cage Flue Cover can be stacked to utilise the heat of the entire flue and produces a refined, stylish aesthetic. The stone cage is available in Black or Stainless Steel.\u003c\/p\u003e\n\u003cp\u003eThe Stone Cage makes a stylish addition to any wood burning sauna heater but particularly the large stone cage heaters such as the \u003ca title=\"Narvi Stony Wood Burning Sauna Heater | Finnmark\" href=\"https:\/\/www.finnmark.co.uk\/collections\/sauna-products\/products\/narvi-stony-wood-burning-sauna-heater\"\u003eNarvi Stony\u003c\/a\u003e, \u003ca title=\"Kota Inari Wood Burning Sauna Heater | Finnmark\" href=\"https:\/\/www.finnmark.co.uk\/collections\/sauna-products\/products\/kota-inari\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eKota Inari\u003c\/a\u003e and \u003ca title=\"Narvi Velvet Wood Burning Sauna Heater | Finnmark\" href=\"https:\/\/www.finnmark.co.uk\/collections\/sauna-products\/products\/narvi-velvet-wood-burning-sauna-heater\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eNarvi Velvet\u003c\/a\u003e.\u003c\/p\u003e\n\u003ch4\u003eProduct Specification\u003c\/h4\u003e\n\u003ctable width=\"278\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd width=\"158\"\u003e\u003cstrong\u003eModel\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd width=\"120\"\u003e\u003cstrong\u003eNarvi Stone Cage\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMeasurements and weight\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHeight\u003c\/td\u003e\n\u003ctd\u003e40 cm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDiameter\u003c\/td\u003e\n\u003ctd\u003e25 cm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTotal weight\u003c\/td\u003e\n\u003ctd\u003e1 kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eEncasing\u003c\/td\u003e\n\u003ctd\u003eStainless steel or Black\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch4\u003eAbout Narvi Oy\u003c\/h4\u003e\n\u003cp\u003e\u003ciframe width=\"560\" height=\"315\" src=\"https:\/\/www.youtube.com\/embed\/SkoehOKkd_8\" frameborder=\"0\" allow=\"autoplay; encrypted-media\" allowfullscreen=\"\"\u003e\u003c\/iframe\u003e\u003c\/p\u003e\n\u003ch4\u003e\n\u003cbr\u003eProduct Disclaimers\u003c\/h4\u003e\n\u003cp\u003eAll Narvi sauna equipment is CE tested and bear the Finnish Key Flag Symbol. This is awarded to sauna equipment that is made and designed in Finland, where over 95% or more of the production must be within Finland itself. There are many brands that claim to be made in Finland but are actually made in the Far East or Russia and merely assembled or labeled in Finland. Watch out for these symbols as a mark of an authentic, Finnish-made, safe, quality product:\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg alt=\"Finnish Key Flag and CE Marked\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/1191\/2400\/files\/symbols_88b586d4-ece2-4f78-92e8-5cae2bc9e5b5_small.jpg?v=1514905752\" style=\"float: none;\"\u003e\u003c\/p\u003e\n\u003cp\u003eAs part of Finnmark Sauna's\u003cspan\u003e \u003c\/span\u003e\u003cem\u003eEndurance Ethos\u003c\/em\u003e, we only deal in products that are market leaders in quality. We commit ourselves to search exhaustively for the highest quality authentic Finnish sauna products.\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003ePlease note, we recommend that sauna heaters and flues should be installed by a suitably qualified builder\/plumber\/fitter. Finnmark Limited accepts no liability for loss or injury caused by the incorrect installation or misuse of your sauna heater. Please \u003c\/span\u003e\u003ca title=\"Finnmark Contact Us\" href=\"https:\/\/www.finnmark.co.uk\/pages\/contact-us\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eContact Us\u003c\/a\u003e\u003cspan\u003e if you require information on our recommended fitters.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e","published_at":"2016-03-15T21:02:00+00:00","created_at":"2016-03-15T21:44:04+00:00","vendor":"Narvi","type":"Sauna Parts","tags":["Narvi Sauna Parts"],"price":10800,"price_min":10800,"price_max":10800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":17775811655,"title":"Stainless Steel","option1":"Stainless Steel","option2":null,"option3":null,"sku":"N1077","requires_shipping":true,"taxable":true,"featured_image":{"id":10399242375,"product_id":5626383815,"position":1,"created_at":"2016-03-15T21:44:06+00:00","updated_at":"2019-01-22T17:55:01+00:00","alt":"Narvi Stone Cage Flue Cover Stainless Steel Sauna Parts Finnmark Sauna","width":2048,"height":2048,"src":"https:\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/Kivikori_181_m.jpg?v=1548179701","variant_ids":[17775811655]},"available":true,"name":"Narvi Stone Cage Flue Cover - Stainless Steel","public_title":"Stainless Steel","options":["Stainless Steel"],"price":10800,"weight":6300,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"6418530821349"},{"id":17775811783,"title":"Matte Black","option1":"Matte Black","option2":null,"option3":null,"sku":"N1076","requires_shipping":true,"taxable":true,"featured_image":{"id":10399243207,"product_id":5626383815,"position":2,"created_at":"2016-03-15T21:44:09+00:00","updated_at":"2019-01-22T17:55:02+00:00","alt":"Narvi Stone Cage Flue Cover Matte Black Sauna Parts Finnmark Sauna","width":2048,"height":2048,"src":"https:\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/Kivikori_182_m.jpg?v=1548179702","variant_ids":[17775811783]},"available":true,"name":"Narvi Stone Cage Flue Cover - Matte Black","public_title":"Matte Black","options":["Matte Black"],"price":10800,"weight":10000,"compare_at_price":null,"inventory_quantity":-1,"inventory_management":null,"inventory_policy":"deny","barcode":"6418530821424"}],"images":["\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/Kivikori_181_m.jpg?v=1548179701","\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/Kivikori_182_m.jpg?v=1548179702","\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/narvilogo_be2ca9b9-7854-47b5-8931-78b86f636909.jpg?v=1548179703","\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/symbols_7d43e076-69e6-4237-a4f7-9267a0d03ac1.jpg?v=1548179704"],"featured_image":"\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/Kivikori_181_m.jpg?v=1548179701","options":["Finish"],"content":"\u003ch4\u003eProduct Description\u003c\/h4\u003e\n\u003cp\u003eThe Stone Cage Flue Cover increases the efficiency of the stove by better utilising the heat from the flue. The quickest way to an excellent \u003ci\u003elöyly\u003c\/i\u003e is to have a large stone capacity. The steam last longer and is softer on account of the water taking longer to cascade between the stones of the sauna heater. Using the Stone Cage Flue Cover also reduces the protective distances required from flammable material. The Stone Cage Flue Cover can be stacked to utilise the heat of the entire flue and produces a refined, stylish aesthetic. The stone cage is available in Black or Stainless Steel.\u003c\/p\u003e\n\u003cp\u003eThe Stone Cage makes a stylish addition to any wood burning sauna heater but particularly the large stone cage heaters such as the \u003ca title=\"Narvi Stony Wood Burning Sauna Heater | Finnmark\" href=\"https:\/\/www.finnmark.co.uk\/collections\/sauna-products\/products\/narvi-stony-wood-burning-sauna-heater\"\u003eNarvi Stony\u003c\/a\u003e, \u003ca title=\"Kota Inari Wood Burning Sauna Heater | Finnmark\" href=\"https:\/\/www.finnmark.co.uk\/collections\/sauna-products\/products\/kota-inari\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eKota Inari\u003c\/a\u003e and \u003ca title=\"Narvi Velvet Wood Burning Sauna Heater | Finnmark\" href=\"https:\/\/www.finnmark.co.uk\/collections\/sauna-products\/products\/narvi-velvet-wood-burning-sauna-heater\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eNarvi Velvet\u003c\/a\u003e.\u003c\/p\u003e\n\u003ch4\u003eProduct Specification\u003c\/h4\u003e\n\u003ctable width=\"278\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd width=\"158\"\u003e\u003cstrong\u003eModel\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd width=\"120\"\u003e\u003cstrong\u003eNarvi Stone Cage\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMeasurements and weight\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHeight\u003c\/td\u003e\n\u003ctd\u003e40 cm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDiameter\u003c\/td\u003e\n\u003ctd\u003e25 cm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTotal weight\u003c\/td\u003e\n\u003ctd\u003e1 kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eEncasing\u003c\/td\u003e\n\u003ctd\u003eStainless steel or Black\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch4\u003eAbout Narvi Oy\u003c\/h4\u003e\n\u003cp\u003e\u003ciframe width=\"560\" height=\"315\" src=\"https:\/\/www.youtube.com\/embed\/SkoehOKkd_8\" frameborder=\"0\" allow=\"autoplay; encrypted-media\" allowfullscreen=\"\"\u003e\u003c\/iframe\u003e\u003c\/p\u003e\n\u003ch4\u003e\n\u003cbr\u003eProduct Disclaimers\u003c\/h4\u003e\n\u003cp\u003eAll Narvi sauna equipment is CE tested and bear the Finnish Key Flag Symbol. This is awarded to sauna equipment that is made and designed in Finland, where over 95% or more of the production must be within Finland itself. There are many brands that claim to be made in Finland but are actually made in the Far East or Russia and merely assembled or labeled in Finland. Watch out for these symbols as a mark of an authentic, Finnish-made, safe, quality product:\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg alt=\"Finnish Key Flag and CE Marked\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/1191\/2400\/files\/symbols_88b586d4-ece2-4f78-92e8-5cae2bc9e5b5_small.jpg?v=1514905752\" style=\"float: none;\"\u003e\u003c\/p\u003e\n\u003cp\u003eAs part of Finnmark Sauna's\u003cspan\u003e \u003c\/span\u003e\u003cem\u003eEndurance Ethos\u003c\/em\u003e, we only deal in products that are market leaders in quality. We commit ourselves to search exhaustively for the highest quality authentic Finnish sauna products.\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003ePlease note, we recommend that sauna heaters and flues should be installed by a suitably qualified builder\/plumber\/fitter. Finnmark Limited accepts no liability for loss or injury caused by the incorrect installation or misuse of your sauna heater. Please \u003c\/span\u003e\u003ca title=\"Finnmark Contact Us\" href=\"https:\/\/www.finnmark.co.uk\/pages\/contact-us\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eContact Us\u003c\/a\u003e\u003cspan\u003e if you require information on our recommended fitters.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e"}
£ 108.00 GBP
Product Description The Stone Cage Flue Cover increases the efficiency of the stove by better utilising the heat from the flue. The quickest way to an excellent löyly is to have a large stone capacity. The steam last longer and is softer on account of the water taking longer to cascade between the stones of the sauna heater. Using the Stone Cage Flue Cover also reduces the protective distances required from flammable material. The Stone Cage Flue Cover can be stacked to utilise the heat of the entire flue and produces a refined, stylish aesthetic. The stone cage is available in Black or Stainless Steel. The Stone Cage makes a stylish addition to any wood burning sauna heater but particularly the large stone cage heaters such as the Narvi Stony, Kota Inari and Narvi Velvet. Product Specification Model Narvi Stone Cage Measurements and weight Height 40 cm Diameter 25 cm Total...
Product Description The Stone Cage Flue Cover increases the efficiency of the stove by better utilising the heat from the...
-
{"id":121222627347,"title":"Kota Insulated Steel Flue \/ Chimney Kit 15 D-125mm \u0026 Extension Tubes","handle":"kota-15-insulated-steel-sauna-chimney-flue-kit","description":"\u003ch4\u003eProduct Description\u003c\/h4\u003e\n\u003cp\u003e\u003cstrong\u003eNew simple, complete and installation-ready flue kits\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003eKota Steel Chimney Flue Kit 15 D-125 (Diameter 125 mm) is a high-quality and safe choice for sauna heaters and other heating installations. This well designed, modular kit can be installed simply and easily. Particular attention has been paid with regard to fire-safety and insulation of the flue around the ceiling feed-through. The modular design of the steel flue enables the flue to be installed with a consideration for the specific conditions of a particular building.\u003c\/p\u003e\n\u003cp\u003eThe outer casing of the flue is made of zinc-coated steel finished with black heat-resistant paint. The external diameter of the flue is 255 mm. The main flue pipe is insulated with fire-resistant mineral wool. The inner tube with a diameter of 125 mm is made of stainless steel. The flue is also equipped with a permanently installed damper. The Kota Steel Flue Kit is CE-marked confirming that the flue fulfills the requirements of the European fire safety class T600 regulations. \u003c\/p\u003e\n\u003cp\u003eThe kit includes all parts and accessories needed for installation and connection of the flue.\u003c\/p\u003e\n\u003ch4\u003eProduct Specification\u003c\/h4\u003e\n\u003cp\u003e\u003cstrong\u003eThe length of the insulated section of the Kota Steel Flue 15 is 1500 mm and it includes all parts needed for installation:\u003cspan\u003e \u003c\/span\u003e\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e(The maximum size of the main kit without extension sections is approximately 2500 mm.)\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003e1200 mm insulated damper section and 300 mm flue section (inner diameter of the pipe is 125 mm)\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e1000 mm non-insulated, stainless steel connection pipe (inner diameter 120 mm)\u003c\/li\u003e\n\u003cli\u003eFastening ring\u003c\/li\u003e\n\u003cli\u003eFeed-through flange 0–22°\u003c\/li\u003e\n\u003cli\u003eVapour barrier flange 0–22° and vapour barrier tape\u003c\/li\u003e\n\u003cli\u003eFeed-through insulation 200 mm\u003c\/li\u003e\n\u003cli\u003eFeed-through cover, height 400 mm \u003c\/li\u003e\n\u003cli\u003eCarrier ring of the flue with perforated band\u003c\/li\u003e\n\u003cli\u003eSupport of the base\u003c\/li\u003e\n\u003cli\u003eRubber sealing of the roof\u003c\/li\u003e\n\u003cli\u003eRainfall cover of the flue\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cspan\u003e\u003cstrong\u003e \u003c\/strong\u003e\u003c\/span\u003e\u003cspan\u003e\u003cstrong\u003eExtension sections 300 mm and 600 mm of Kota Steel Flue 15:\u003c\/strong\u003e\u003c\/span\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eBy using the main kit parts and insulated extension sections you can adapt and build a flue to the exact height requirements needed for your installation.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv\u003e\n\u003cul\u003e\u003c\/ul\u003e\n\u003ch4\u003eProduct Disclaimers\u003c\/h4\u003e\n\u003cp\u003eAll Kota sauna chimney and flue products are CE tested and bear the Finnish Key Flag Symbol. This is awarded to sauna equipment that is made and designed in Finland, where over 95% or more of the production must be within Finland itself. There are many brands that claim to be made in Finland but are actually made in the Far East or Russia and merely assembled or labeled in Finland. Watch out for these symbols as a mark of an authentic, Finnish-made, safe, quality product:\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg alt=\"Finnish Key Flag and CE Marked\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/1191\/2400\/files\/symbols_88b586d4-ece2-4f78-92e8-5cae2bc9e5b5_small.jpg?v=1514905752\" style=\"float: none;\"\u003e\u003c\/p\u003e\n\u003cp\u003eAs part of Finnmark Sauna's\u003cspan\u003e \u003c\/span\u003e\u003cem\u003eEndurance Ethos\u003c\/em\u003e, we only deal in products that are market leaders in quality. We commit ourselves to search exhaustively for the highest quality authentic Finnish sauna products.\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003ePlease note\u003c\/span\u003e\u003cspan\u003e, we recommend that\u003c\/span\u003e\u003cspan\u003e \u003c\/span\u003e\u003cspan\u003esauna heater\u003c\/span\u003e\u003cspan\u003es and flue systems should \u003c\/span\u003e\u003cspan\u003ebe installed by a suitably qualified electrician\/builder\/plumber\u003c\/span\u003e\u003cspan\u003e\/\u003c\/span\u003e\u003cspan\u003efitter. Finnmark Limited accepts no liability for loss or injury caused by the incorrect installation of your sauna heater. Please \u003c\/span\u003e\u003cspan\u003e\u003c\/span\u003e\u003ca href=\"https:\/\/www.finnmark.co.uk\/pages\/contact-us\" target=\"_blank\" title=\"Finnmark Contact Us\" rel=\"noopener noreferrer\"\u003eContact Us\u003c\/a\u003e\u003cspan\u003e if you require information on our recommended fitters.\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/div\u003e","published_at":"2016-04-26T13:38:00+01:00","created_at":"2018-01-05T16:34:47+00:00","vendor":"Kota","type":"Flue parts, adapters \u0026 flanges","tags":["Flue Kits \u0026 Parts","Kota Sauna Parts"],"price":14000,"price_min":14000,"price_max":74400,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":847407185939,"title":"Kota Steel Flue Kit 15 D-125mm (Diameter 125mm)","option1":"Kota Steel Flue Kit 15 D-125mm (Diameter 125mm)","option2":null,"option3":null,"sku":"N1065","requires_shipping":true,"taxable":true,"featured_image":{"id":456444444691,"product_id":121222627347,"position":1,"created_at":"2018-01-05T16:37:45+00:00","updated_at":"2019-01-22T17:50:33+00:00","alt":"Kota Insulated Steel Flue \/ Chimney Kit 15 D-125mm \u0026amp; Extension Tubes Kota Steel Flue Kit 15 D-125mm (Diameter 125mm) Flue parts, adapters \u0026amp; flanges Finnmark Sauna","width":2048,"height":2048,"src":"https:\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/Kota_15_Flue_Chimney_Kit_24ab08fa-cfcf-4019-be81-3851cfeb6db6.png?v=1548179433","variant_ids":[847407185939]},"available":true,"name":"Kota Insulated Steel Flue \/ Chimney Kit 15 D-125mm \u0026 Extension Tubes - Kota Steel Flue Kit 15 D-125mm (Diameter 125mm)","public_title":"Kota Steel Flue Kit 15 D-125mm (Diameter 125mm)","options":["Kota Steel Flue Kit 15 D-125mm (Diameter 125mm)"],"price":74400,"weight":40900,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"6418530060403"},{"id":847407218707,"title":"Extension Tube for Insulated Section 300mm (Diameter 125mm)","option1":"Extension Tube for Insulated Section 300mm (Diameter 125mm)","option2":null,"option3":null,"sku":"N1068","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kota Insulated Steel Flue \/ Chimney Kit 15 D-125mm \u0026 Extension Tubes - Extension Tube for Insulated Section 300mm (Diameter 125mm)","public_title":"Extension Tube for Insulated Section 300mm (Diameter 125mm)","options":["Extension Tube for Insulated Section 300mm (Diameter 125mm)"],"price":14000,"weight":4900,"compare_at_price":null,"inventory_quantity":-1,"inventory_management":null,"inventory_policy":"deny","barcode":"6418530061608"},{"id":847407251475,"title":"Extension Tube for Insulated Section 600mm (Diameter 125mm)","option1":"Extension Tube for Insulated Section 600mm (Diameter 125mm)","option2":null,"option3":null,"sku":"N1069","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kota Insulated Steel Flue \/ Chimney Kit 15 D-125mm \u0026 Extension Tubes - Extension Tube for Insulated Section 600mm (Diameter 125mm)","public_title":"Extension Tube for Insulated Section 600mm (Diameter 125mm)","options":["Extension Tube for Insulated Section 600mm (Diameter 125mm)"],"price":28000,"weight":9800,"compare_at_price":null,"inventory_quantity":1,"inventory_management":null,"inventory_policy":"deny","barcode":"6417810061802"},{"id":847556575251,"title":"Extension Tube for Insulated Section 1200mm (Diameter 125mm)","option1":"Extension Tube for Insulated Section 1200mm (Diameter 125mm)","option2":null,"option3":null,"sku":"N1070","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kota Insulated Steel Flue \/ Chimney Kit 15 D-125mm \u0026 Extension Tubes - Extension Tube for Insulated Section 1200mm (Diameter 125mm)","public_title":"Extension Tube for Insulated Section 1200mm (Diameter 125mm)","options":["Extension Tube for Insulated Section 1200mm (Diameter 125mm)"],"price":34100,"weight":19500,"compare_at_price":null,"inventory_quantity":1,"inventory_management":null,"inventory_policy":"deny","barcode":"6418530061707"}],"images":["\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/Kota_15_Flue_Chimney_Kit_24ab08fa-cfcf-4019-be81-3851cfeb6db6.png?v=1548179433","\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/kotalogo_5172c1ad-e06d-45f8-8d03-a9c628556b77.png?v=1548179434","\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/symbols_c9b52cbf-66f4-4275-8a3b-8bbf41cce4dd.png?v=1548179435"],"featured_image":"\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/Kota_15_Flue_Chimney_Kit_24ab08fa-cfcf-4019-be81-3851cfeb6db6.png?v=1548179433","options":["Product"],"content":"\u003ch4\u003eProduct Description\u003c\/h4\u003e\n\u003cp\u003e\u003cstrong\u003eNew simple, complete and installation-ready flue kits\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003eKota Steel Chimney Flue Kit 15 D-125 (Diameter 125 mm) is a high-quality and safe choice for sauna heaters and other heating installations. This well designed, modular kit can be installed simply and easily. Particular attention has been paid with regard to fire-safety and insulation of the flue around the ceiling feed-through. The modular design of the steel flue enables the flue to be installed with a consideration for the specific conditions of a particular building.\u003c\/p\u003e\n\u003cp\u003eThe outer casing of the flue is made of zinc-coated steel finished with black heat-resistant paint. The external diameter of the flue is 255 mm. The main flue pipe is insulated with fire-resistant mineral wool. The inner tube with a diameter of 125 mm is made of stainless steel. The flue is also equipped with a permanently installed damper. The Kota Steel Flue Kit is CE-marked confirming that the flue fulfills the requirements of the European fire safety class T600 regulations. \u003c\/p\u003e\n\u003cp\u003eThe kit includes all parts and accessories needed for installation and connection of the flue.\u003c\/p\u003e\n\u003ch4\u003eProduct Specification\u003c\/h4\u003e\n\u003cp\u003e\u003cstrong\u003eThe length of the insulated section of the Kota Steel Flue 15 is 1500 mm and it includes all parts needed for installation:\u003cspan\u003e \u003c\/span\u003e\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e(The maximum size of the main kit without extension sections is approximately 2500 mm.)\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003e1200 mm insulated damper section and 300 mm flue section (inner diameter of the pipe is 125 mm)\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e1000 mm non-insulated, stainless steel connection pipe (inner diameter 120 mm)\u003c\/li\u003e\n\u003cli\u003eFastening ring\u003c\/li\u003e\n\u003cli\u003eFeed-through flange 0–22°\u003c\/li\u003e\n\u003cli\u003eVapour barrier flange 0–22° and vapour barrier tape\u003c\/li\u003e\n\u003cli\u003eFeed-through insulation 200 mm\u003c\/li\u003e\n\u003cli\u003eFeed-through cover, height 400 mm \u003c\/li\u003e\n\u003cli\u003eCarrier ring of the flue with perforated band\u003c\/li\u003e\n\u003cli\u003eSupport of the base\u003c\/li\u003e\n\u003cli\u003eRubber sealing of the roof\u003c\/li\u003e\n\u003cli\u003eRainfall cover of the flue\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cspan\u003e\u003cstrong\u003e \u003c\/strong\u003e\u003c\/span\u003e\u003cspan\u003e\u003cstrong\u003eExtension sections 300 mm and 600 mm of Kota Steel Flue 15:\u003c\/strong\u003e\u003c\/span\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eBy using the main kit parts and insulated extension sections you can adapt and build a flue to the exact height requirements needed for your installation.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv\u003e\n\u003cul\u003e\u003c\/ul\u003e\n\u003ch4\u003eProduct Disclaimers\u003c\/h4\u003e\n\u003cp\u003eAll Kota sauna chimney and flue products are CE tested and bear the Finnish Key Flag Symbol. This is awarded to sauna equipment that is made and designed in Finland, where over 95% or more of the production must be within Finland itself. There are many brands that claim to be made in Finland but are actually made in the Far East or Russia and merely assembled or labeled in Finland. Watch out for these symbols as a mark of an authentic, Finnish-made, safe, quality product:\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg alt=\"Finnish Key Flag and CE Marked\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/1191\/2400\/files\/symbols_88b586d4-ece2-4f78-92e8-5cae2bc9e5b5_small.jpg?v=1514905752\" style=\"float: none;\"\u003e\u003c\/p\u003e\n\u003cp\u003eAs part of Finnmark Sauna's\u003cspan\u003e \u003c\/span\u003e\u003cem\u003eEndurance Ethos\u003c\/em\u003e, we only deal in products that are market leaders in quality. We commit ourselves to search exhaustively for the highest quality authentic Finnish sauna products.\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003ePlease note\u003c\/span\u003e\u003cspan\u003e, we recommend that\u003c\/span\u003e\u003cspan\u003e \u003c\/span\u003e\u003cspan\u003esauna heater\u003c\/span\u003e\u003cspan\u003es and flue systems should \u003c\/span\u003e\u003cspan\u003ebe installed by a suitably qualified electrician\/builder\/plumber\u003c\/span\u003e\u003cspan\u003e\/\u003c\/span\u003e\u003cspan\u003efitter. Finnmark Limited accepts no liability for loss or injury caused by the incorrect installation of your sauna heater. Please \u003c\/span\u003e\u003cspan\u003e\u003c\/span\u003e\u003ca href=\"https:\/\/www.finnmark.co.uk\/pages\/contact-us\" target=\"_blank\" title=\"Finnmark Contact Us\" rel=\"noopener noreferrer\"\u003eContact Us\u003c\/a\u003e\u003cspan\u003e if you require information on our recommended fitters.\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/div\u003e"}
£ 140.00 GBP
Product Description New simple, complete and installation-ready flue kits Kota Steel Chimney Flue Kit 15 D-125 (Diameter 125 mm) is a high-quality and safe choice for sauna heaters and other heating installations. This well designed, modular kit can be installed simply and easily. Particular attention has been paid with regard to fire-safety and insulation of the flue around the ceiling feed-through. The modular design of the steel flue enables the flue to be installed with a consideration for the specific conditions of a particular building. The outer casing of the flue is made of zinc-coated steel finished with black heat-resistant paint. The external diameter of the flue is 255 mm. The main flue pipe is insulated with fire-resistant mineral wool. The inner tube with a diameter of 125 mm is made of stainless steel. The flue is also equipped with a permanently installed damper. The Kota Steel Flue Kit is CE-marked...
Product Description New simple, complete and installation-ready flue kits Kota Steel Chimney Flue Kit 15 D-125 (Diameter 125 mm) is...
-
{"id":5670770055,"title":"Individual Flue Parts, Adapters \u0026 Flanges","handle":"individual-flue-parts-adapters-flanges","description":"\u003cp\u003eThese individual connective flues are fabricated from 2 mm thick sheet steel and are finished with black heat proof paint. In order to select the correct model required, please check the dimensions on the diagram below and select the model number (e.g. #302016). All measurements below are given in millimetres.\u003cimg src=\"\/\/cdn.shopify.com\/s\/files\/1\/1191\/2400\/files\/yhdyshormimitat_2048x2048.jpg?13297598350705511855\" alt=\"Kota Flue Parts with product #\"\u003e\u003c\/p\u003e\n\u003ctable width=\"458\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd width=\"82\"\u003e302010\u003c\/td\u003e\n\u003ctd width=\"376\"\u003eConnection tube 50 cm expand. Diameter 122 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e302012\u003c\/td\u003e\n\u003ctd\u003eConnection tube 100 cm expand. Diameter 122 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e302014\u003c\/td\u003e\n\u003ctd\u003eConnection tube 20 cm expand. Diameter 122 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e302015\u003c\/td\u003e\n\u003ctd\u003eConnection tube 60 deg. Diameter 122 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e302016\u003c\/td\u003e\n\u003ctd\u003eConnection tube 90 deg. Diameter 122 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e302017\u003c\/td\u003e\n\u003ctd\u003eConnecting part\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e302025\u003c\/td\u003e\n\u003ctd\u003eRaincover, round\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e302019\u003c\/td\u003e\n\u003ctd\u003eMasonry ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e302020\u003c\/td\u003e\n\u003ctd\u003eDamper\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch4\u003eProduct Disclaimers\u003c\/h4\u003e\n\u003cp\u003eAll Kota flue parts are CE tested and bear the Finnish Key Flag Symbol. This is awarded to sauna equipment that is made and designed in Finland, where over 95% or more of the production must be within Finland itself. There are many brands that claim to be made in Finland but are actually made in the Far East or Russia and merely assembled or labeled in Finland. Watch out for these symbols as a mark of an authentic, Finnish-made, safe, quality product:\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg alt=\"Finnish Key Flag and CE Marked\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/1191\/2400\/files\/symbols_88b586d4-ece2-4f78-92e8-5cae2bc9e5b5_small.jpg?v=1514905752\" style=\"float: none;\"\u003e\u003c\/p\u003e\n\u003cp\u003eAs part of Finnmark Sauna's\u003cspan\u003e \u003c\/span\u003e\u003cem\u003eEndurance Ethos\u003c\/em\u003e, we only deal in products that are market leaders in quality. We commit ourselves to search exhaustively for the highest quality authentic Finnish sauna products.\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003ePlease note\u003c\/span\u003e\u003cspan\u003e, we recommend that\u003c\/span\u003e\u003cspan\u003e \u003c\/span\u003e\u003cspan\u003eflue\/chimney products\u003c\/span\u003e\u003cspan\u003e should\u003c\/span\u003e\u003cspan\u003e be installed by a suitably qualified builder\/plumber\u003c\/span\u003e\u003cspan\u003e\/\u003c\/span\u003e\u003cspan\u003efitter. Finnmark Limited accepts no liability for loss or injury caused by the incorrect installation of your flue equipment. Please \u003c\/span\u003e\u003cspan\u003e\u003c\/span\u003e\u003ca title=\"Finnmark Contact Us\" href=\"https:\/\/www.finnmark.co.uk\/pages\/contact-us\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eContact Us\u003c\/a\u003e\u003cspan\u003e if you require information on our recommended fitters.\u003c\/span\u003e\u003c\/p\u003e","published_at":"2016-03-18T09:31:00+00:00","created_at":"2016-03-18T09:38:29+00:00","vendor":"Kota","type":"Flue parts, adapters \u0026 flanges","tags":["Flue Kits \u0026 Parts","Kota Sauna Parts"],"price":2300,"price_min":2300,"price_max":6300,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":17946584263,"title":"#302015","option1":"#302015","option2":null,"option3":null,"sku":"6418530320156","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Individual Flue Parts, Adapters \u0026 Flanges - #302015","public_title":"#302015","options":["#302015"],"price":5300,"weight":5000,"compare_at_price":null,"inventory_quantity":1,"inventory_management":null,"inventory_policy":"deny","barcode":"6418530320156"},{"id":17946679303,"title":"#302016","option1":"#302016","option2":null,"option3":null,"sku":"6418530320163","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Individual Flue Parts, Adapters \u0026 Flanges - #302016","public_title":"#302016","options":["#302016"],"price":5300,"weight":5000,"compare_at_price":null,"inventory_quantity":1,"inventory_management":null,"inventory_policy":"deny","barcode":"6418530320163"},{"id":17946679367,"title":"#302014","option1":"#302014","option2":null,"option3":null,"sku":"6418530320149","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Individual Flue Parts, Adapters \u0026 Flanges - #302014","public_title":"#302014","options":["#302014"],"price":2300,"weight":5000,"compare_at_price":null,"inventory_quantity":1,"inventory_management":null,"inventory_policy":"deny","barcode":"6418530320149"},{"id":17946679431,"title":"#302010","option1":"#302010","option2":null,"option3":null,"sku":"6418530320101","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Individual Flue Parts, Adapters \u0026 Flanges - #302010","public_title":"#302010","options":["#302010"],"price":3400,"weight":5000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"6418530320101"},{"id":17946679495,"title":"#302012","option1":"#302012","option2":null,"option3":null,"sku":"6418530320125","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Individual Flue Parts, Adapters \u0026 Flanges - #302012","public_title":"#302012","options":["#302012"],"price":5000,"weight":5000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"6418530320125"},{"id":17946679559,"title":"#302025","option1":"#302025","option2":null,"option3":null,"sku":"6418530320255","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Individual Flue Parts, Adapters \u0026 Flanges - #302025","public_title":"#302025","options":["#302025"],"price":5600,"weight":5000,"compare_at_price":null,"inventory_quantity":1,"inventory_management":null,"inventory_policy":"deny","barcode":"6418530320255"},{"id":17946679623,"title":"#302017","option1":"#302017","option2":null,"option3":null,"sku":"6418530320170","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Individual Flue Parts, Adapters \u0026 Flanges - #302017","public_title":"#302017","options":["#302017"],"price":2300,"weight":5000,"compare_at_price":null,"inventory_quantity":1,"inventory_management":null,"inventory_policy":"deny","barcode":"6418530320170"},{"id":17946679687,"title":"#302020","option1":"#302020","option2":null,"option3":null,"sku":"6418530320200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Individual Flue Parts, Adapters \u0026 Flanges - #302020","public_title":"#302020","options":["#302020"],"price":6300,"weight":5000,"compare_at_price":null,"inventory_quantity":1,"inventory_management":null,"inventory_policy":"deny","barcode":"6418530320200"},{"id":17946679751,"title":"#302019","option1":"#302019","option2":null,"option3":null,"sku":"6418530320194","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Individual Flue Parts, Adapters \u0026 Flanges - #302019","public_title":"#302019","options":["#302019"],"price":2500,"weight":5000,"compare_at_price":null,"inventory_quantity":1,"inventory_management":null,"inventory_policy":"deny","barcode":"6418530320194"}],"images":["\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/yhdyshormimitat.png?v=1548179384","\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/kotalogo_01f775e5-19fc-4db9-b64e-48c65398da20.jpg?v=1548179385","\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/symbols_ec49c233-122d-4096-bdb2-670fa1e1760d.jpg?v=1548179386"],"featured_image":"\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/yhdyshormimitat.png?v=1548179384","options":["Model Number"],"content":"\u003cp\u003eThese individual connective flues are fabricated from 2 mm thick sheet steel and are finished with black heat proof paint. In order to select the correct model required, please check the dimensions on the diagram below and select the model number (e.g. #302016). All measurements below are given in millimetres.\u003cimg src=\"\/\/cdn.shopify.com\/s\/files\/1\/1191\/2400\/files\/yhdyshormimitat_2048x2048.jpg?13297598350705511855\" alt=\"Kota Flue Parts with product #\"\u003e\u003c\/p\u003e\n\u003ctable width=\"458\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd width=\"82\"\u003e302010\u003c\/td\u003e\n\u003ctd width=\"376\"\u003eConnection tube 50 cm expand. Diameter 122 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e302012\u003c\/td\u003e\n\u003ctd\u003eConnection tube 100 cm expand. Diameter 122 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e302014\u003c\/td\u003e\n\u003ctd\u003eConnection tube 20 cm expand. Diameter 122 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e302015\u003c\/td\u003e\n\u003ctd\u003eConnection tube 60 deg. Diameter 122 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e302016\u003c\/td\u003e\n\u003ctd\u003eConnection tube 90 deg. Diameter 122 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e302017\u003c\/td\u003e\n\u003ctd\u003eConnecting part\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e302025\u003c\/td\u003e\n\u003ctd\u003eRaincover, round\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e302019\u003c\/td\u003e\n\u003ctd\u003eMasonry ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e302020\u003c\/td\u003e\n\u003ctd\u003eDamper\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch4\u003eProduct Disclaimers\u003c\/h4\u003e\n\u003cp\u003eAll Kota flue parts are CE tested and bear the Finnish Key Flag Symbol. This is awarded to sauna equipment that is made and designed in Finland, where over 95% or more of the production must be within Finland itself. There are many brands that claim to be made in Finland but are actually made in the Far East or Russia and merely assembled or labeled in Finland. Watch out for these symbols as a mark of an authentic, Finnish-made, safe, quality product:\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg alt=\"Finnish Key Flag and CE Marked\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/1191\/2400\/files\/symbols_88b586d4-ece2-4f78-92e8-5cae2bc9e5b5_small.jpg?v=1514905752\" style=\"float: none;\"\u003e\u003c\/p\u003e\n\u003cp\u003eAs part of Finnmark Sauna's\u003cspan\u003e \u003c\/span\u003e\u003cem\u003eEndurance Ethos\u003c\/em\u003e, we only deal in products that are market leaders in quality. We commit ourselves to search exhaustively for the highest quality authentic Finnish sauna products.\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003ePlease note\u003c\/span\u003e\u003cspan\u003e, we recommend that\u003c\/span\u003e\u003cspan\u003e \u003c\/span\u003e\u003cspan\u003eflue\/chimney products\u003c\/span\u003e\u003cspan\u003e should\u003c\/span\u003e\u003cspan\u003e be installed by a suitably qualified builder\/plumber\u003c\/span\u003e\u003cspan\u003e\/\u003c\/span\u003e\u003cspan\u003efitter. Finnmark Limited accepts no liability for loss or injury caused by the incorrect installation of your flue equipment. Please \u003c\/span\u003e\u003cspan\u003e\u003c\/span\u003e\u003ca title=\"Finnmark Contact Us\" href=\"https:\/\/www.finnmark.co.uk\/pages\/contact-us\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eContact Us\u003c\/a\u003e\u003cspan\u003e if you require information on our recommended fitters.\u003c\/span\u003e\u003c\/p\u003e"}
£ 23.00 GBP

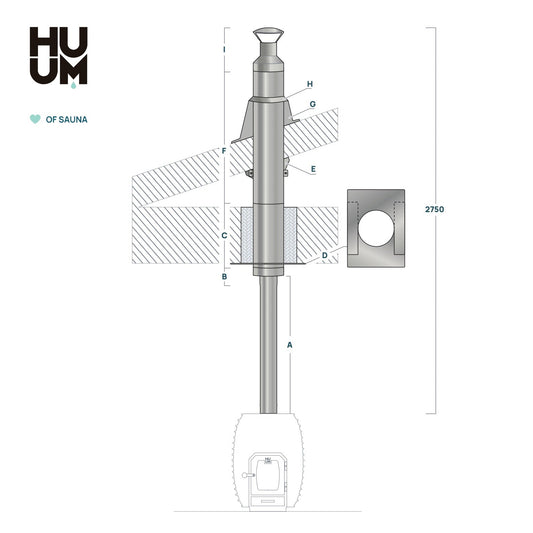

These individual connective flues are fabricated from 2 mm thick sheet steel and are finished with black heat proof paint. In order to select the correct model required, please check the dimensions on the diagram below and select the model number (e.g. #302016). All measurements below are given in millimetres. 302010 Connection tube 50 cm expand. Diameter 122 mm 302012 Connection tube 100 cm expand. Diameter 122 mm 302014 Connection tube 20 cm expand. Diameter 122 mm 302015 Connection tube 60 deg. Diameter 122 mm 302016 Connection tube 90 deg. Diameter 122 mm 302017 Connecting part 302025 Raincover, round 302019 Masonry ring 302020 Damper Product Disclaimers All Kota flue parts are CE tested and bear the Finnish Key Flag Symbol. This is awarded to sauna equipment that is made and designed in Finland, where over 95% or more of the production must be within Finland itself. There are many brands that...
These individual connective flues are fabricated from 2 mm thick sheet steel and are finished with black heat proof paint....
-
{"id":6271198471,"title":"Kota Insulated Steel Flue \/ Chimney Kit 24 D-150mm \u0026 Extension Tubes","handle":"kota-24-insulated-steel-sauna-chimney-flue-kit","description":"\u003ch4\u003eProduct Description\u003c\/h4\u003e\n\u003cp\u003e\u003cstrong\u003eNew simple, complete and installation-ready flue kit\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003eKota Steel Flue Kit 24 is a high-quality and safe choice for sauna heaters and other heat installation units. The kit includes all necessary parts and accessories required for installation and connection of the flue. During the products design, particular attention has been paid to fire-safety and insulation of the flue around the ceiling feed-through. The modular design of the steel flue enables the flue to be installed simply, with consideration for the specific conditions of a particular building.\u003c\/p\u003e\n\u003cp\u003eThe outer casing of the flue is made of zinc-coated steel finished with black heat-resistant paint. The diameter of the flue is 280 mm. The flue is insulated with fire-resistant mineral wool. The inner tube with a diameter of 150 mm is made of stainless steel. The flue is also equipped with a permanently installed damper. The Kota Steel Flue Kit is CE-marked, confirming that the flue complies with the requirements of European fire safety class T600 regulations.\u003c\/p\u003e\n\u003cp\u003eThe kit includes all parts and accessories needed for installation and connection of the flue!\u003c\/p\u003e\n\u003ch4\u003eProduct Specification\u003c\/h4\u003e\n\u003cp\u003e\u003cstrong\u003eThe length of the insulated section of the Kota Steel Flue 24 is 2400 mm and it includes all parts needed for installation: \u003cbr\u003e\u003c\/strong\u003eThe maximum size of the main kit without extension sections is approximately 2530 mm.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003e1200 mm insulated damper section and 1200 mm flue section (inner diameter of the pipe is 150 mm).\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003eProtective ring.\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003e130 mm non-insulated, stainless steel connection pipe (inner diameter 150 mm).\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003eFastening ring.\u003c\/li\u003e\n\u003cli\u003eFeedthrough flange 0–22°.\u003c\/li\u003e\n\u003cli\u003eVapour barrier flange 0–22° and vapour barrier tape.\u003c\/li\u003e\n\u003cli\u003eFeedthrough insulation 200 mm.\u003c\/li\u003e\n\u003cli\u003eFeedthrough cover, height 400 mm.\u003c\/li\u003e\n\u003cli\u003eCarrier ring of the flue with perforated band.\u003c\/li\u003e\n\u003cli\u003eSupport of the base.\u003c\/li\u003e\n\u003cli\u003eRubber sealing of the roof.\u003c\/li\u003e\n\u003cli\u003eRainfall cover of the flue.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv\u003e\u003cstrong\u003e \u003c\/strong\u003e\u003c\/div\u003e\n\u003cdiv\u003e\u003cstrong\u003eExtension sections 600 mm and 1200 mm of Kota Steel Flue 24:\u003c\/strong\u003e\u003c\/div\u003e\n\u003cdiv\u003e\n\u003cul\u003e\n\u003cli\u003eBy using the modular flue kit and insulated extension sections you can build a flue with the exact height requirements your build needs.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch4\u003eProduct Disclaimers\u003c\/h4\u003e\n\u003cp\u003eAll Kota sauna chimney and flue products are CE tested and bear the Finnish Key Flag Symbol. This is awarded to sauna equipment that is made and designed in Finland, where over 95% or more of the production must be within Finland itself. There are many brands that claim to be made in Finland but are actually made in the Far East or Russia and merely assembled or labeled in Finland. Watch out for these symbols as a mark of an authentic, Finnish-made, safe, quality product:\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg alt=\"Finnish Key Flag and CE Marked\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/1191\/2400\/files\/symbols_88b586d4-ece2-4f78-92e8-5cae2bc9e5b5_small.jpg?v=1514905752\" style=\"float: none;\"\u003e\u003c\/p\u003e\n\u003cp\u003eAs part of Finnmark Sauna's\u003cspan\u003e \u003c\/span\u003e\u003cem\u003eEndurance Ethos\u003c\/em\u003e, we only deal in products that are market leaders in quality. We commit ourselves to search exhaustively for the highest quality authentic Finnish sauna products.\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003ePlease note\u003c\/span\u003e\u003cspan\u003e, we recommend that\u003c\/span\u003e\u003cspan\u003e \u003c\/span\u003e\u003cspan\u003esauna heater\u003c\/span\u003e\u003cspan\u003es and flue systems should\u003c\/span\u003e\u003cspan\u003e be installed by a suitably qualified electrician\/builder\/plumber\u003c\/span\u003e\u003cspan\u003e\/\u003c\/span\u003e\u003cspan\u003efitter. Finnmark Limited accepts no liability for loss or injury caused by the incorrect installation of your sauna heater. Please \u003c\/span\u003e\u003cspan\u003e\u003c\/span\u003e\u003ca href=\"https:\/\/www.finnmark.co.uk\/pages\/contact-us\" target=\"_blank\" title=\"Finnmark Contact Us\" rel=\"noopener noreferrer\"\u003eContact Us\u003c\/a\u003e\u003cspan\u003e if you require information on our recommended fitters.\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/div\u003e","published_at":"2016-04-26T13:38:00+01:00","created_at":"2016-04-26T13:58:37+01:00","vendor":"Kota","type":"Flue parts, adapters \u0026 flanges","tags":["Flue Kits \u0026 Parts","Kota Sauna Parts"],"price":33200,"price_min":33200,"price_max":134200,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":20013964487,"title":"Kota Steel Flue Kit 24 D-150mm (Diameter 150mm)","option1":"Kota Steel Flue Kit 24 D-150mm (Diameter 150mm)","option2":null,"option3":null,"sku":"N1071","requires_shipping":true,"taxable":true,"featured_image":{"id":456602976275,"product_id":6271198471,"position":1,"created_at":"2018-01-05T16:47:40+00:00","updated_at":"2019-01-22T17:50:36+00:00","alt":"Kota Insulated Steel Flue \/ Chimney Kit 24 D-150mm \u0026amp; Extension Tubes Kota Steel Flue Kit 24 D-150mm (Diameter 150mm) Flue parts, adapters \u0026amp; flanges Finnmark Sauna","width":2048,"height":2048,"src":"https:\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/Kota_24_Flue_Chimney_Kit.png?v=1548179436","variant_ids":[20013964487]},"available":true,"name":"Kota Insulated Steel Flue \/ Chimney Kit 24 D-150mm \u0026 Extension Tubes - Kota Steel Flue Kit 24 D-150mm (Diameter 150mm)","public_title":"Kota Steel Flue Kit 24 D-150mm (Diameter 150mm)","options":["Kota Steel Flue Kit 24 D-150mm (Diameter 150mm)"],"price":134200,"weight":49000,"compare_at_price":null,"inventory_quantity":1,"inventory_management":null,"inventory_policy":"deny","barcode":"6418530060403"},{"id":20014101895,"title":"Extension Tube 60 cm (Diameter 150 mm)","option1":"Extension Tube 60 cm (Diameter 150 mm)","option2":null,"option3":null,"sku":"N1072","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kota Insulated Steel Flue \/ Chimney Kit 24 D-150mm \u0026 Extension Tubes - Extension Tube 60 cm (Diameter 150 mm)","public_title":"Extension Tube 60 cm (Diameter 150 mm)","options":["Extension Tube 60 cm (Diameter 150 mm)"],"price":33200,"weight":11800,"compare_at_price":null,"inventory_quantity":1,"inventory_management":null,"inventory_policy":"deny","barcode":"6417810061802"},{"id":20014101959,"title":"Extension Tube 100 cm (Diameter 150 mm) Stainless Steel","option1":"Extension Tube 100 cm (Diameter 150 mm) Stainless Steel","option2":null,"option3":null,"sku":"N1073","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kota Insulated Steel Flue \/ Chimney Kit 24 D-150mm \u0026 Extension Tubes - Extension Tube 100 cm (Diameter 150 mm) Stainless Steel","public_title":"Extension Tube 100 cm (Diameter 150 mm) Stainless Steel","options":["Extension Tube 100 cm (Diameter 150 mm) Stainless Steel"],"price":57700,"weight":23500,"compare_at_price":null,"inventory_quantity":1,"inventory_management":null,"inventory_policy":"deny","barcode":"6418530061707"}],"images":["\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/Kota_24_Flue_Chimney_Kit.png?v=1548179436","\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/kotalogo_8c39f6da-170b-4642-89a5-5686c0020cf0.png?v=1548179436","\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/symbols_50157e32-26ef-4b08-9337-4e263456ae3e.png?v=1548179437"],"featured_image":"\/\/cdn2.shopify.com\/s\/files\/1\/1191\/2400\/products\/Kota_24_Flue_Chimney_Kit.png?v=1548179436","options":["Product"],"content":"\u003ch4\u003eProduct Description\u003c\/h4\u003e\n\u003cp\u003e\u003cstrong\u003eNew simple, complete and installation-ready flue kit\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003eKota Steel Flue Kit 24 is a high-quality and safe choice for sauna heaters and other heat installation units. The kit includes all necessary parts and accessories required for installation and connection of the flue. During the products design, particular attention has been paid to fire-safety and insulation of the flue around the ceiling feed-through. The modular design of the steel flue enables the flue to be installed simply, with consideration for the specific conditions of a particular building.\u003c\/p\u003e\n\u003cp\u003eThe outer casing of the flue is made of zinc-coated steel finished with black heat-resistant paint. The diameter of the flue is 280 mm. The flue is insulated with fire-resistant mineral wool. The inner tube with a diameter of 150 mm is made of stainless steel. The flue is also equipped with a permanently installed damper. The Kota Steel Flue Kit is CE-marked, confirming that the flue complies with the requirements of European fire safety class T600 regulations.\u003c\/p\u003e\n\u003cp\u003eThe kit includes all parts and accessories needed for installation and connection of the flue!\u003c\/p\u003e\n\u003ch4\u003eProduct Specification\u003c\/h4\u003e\n\u003cp\u003e\u003cstrong\u003eThe length of the insulated section of the Kota Steel Flue 24 is 2400 mm and it includes all parts needed for installation: \u003cbr\u003e\u003c\/strong\u003eThe maximum size of the main kit without extension sections is approximately 2530 mm.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003e1200 mm insulated damper section and 1200 mm flue section (inner diameter of the pipe is 150 mm).\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003eProtective ring.\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003e130 mm non-insulated, stainless steel connection pipe (inner diameter 150 mm).\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003eFastening ring.\u003c\/li\u003e\n\u003cli\u003eFeedthrough flange 0–22°.\u003c\/li\u003e\n\u003cli\u003eVapour barrier flange 0–22° and vapour barrier tape.\u003c\/li\u003e\n\u003cli\u003eFeedthrough insulation 200 mm.\u003c\/li\u003e\n\u003cli\u003eFeedthrough cover, height 400 mm.\u003c\/li\u003e\n\u003cli\u003eCarrier ring of the flue with perforated band.\u003c\/li\u003e\n\u003cli\u003eSupport of the base.\u003c\/li\u003e\n\u003cli\u003eRubber sealing of the roof.\u003c\/li\u003e\n\u003cli\u003eRainfall cover of the flue.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv\u003e\u003cstrong\u003e \u003c\/strong\u003e\u003c\/div\u003e\n\u003cdiv\u003e\u003cstrong\u003eExtension sections 600 mm and 1200 mm of Kota Steel Flue 24:\u003c\/strong\u003e\u003c\/div\u003e\n\u003cdiv\u003e\n\u003cul\u003e\n\u003cli\u003eBy using the modular flue kit and insulated extension sections you can build a flue with the exact height requirements your build needs.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch4\u003eProduct Disclaimers\u003c\/h4\u003e\n\u003cp\u003eAll Kota sauna chimney and flue products are CE tested and bear the Finnish Key Flag Symbol. This is awarded to sauna equipment that is made and designed in Finland, where over 95% or more of the production must be within Finland itself. There are many brands that claim to be made in Finland but are actually made in the Far East or Russia and merely assembled or labeled in Finland. Watch out for these symbols as a mark of an authentic, Finnish-made, safe, quality product:\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg alt=\"Finnish Key Flag and CE Marked\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/1191\/2400\/files\/symbols_88b586d4-ece2-4f78-92e8-5cae2bc9e5b5_small.jpg?v=1514905752\" style=\"float: none;\"\u003e\u003c\/p\u003e\n\u003cp\u003eAs part of Finnmark Sauna's\u003cspan\u003e \u003c\/span\u003e\u003cem\u003eEndurance Ethos\u003c\/em\u003e, we only deal in products that are market leaders in quality. We commit ourselves to search exhaustively for the highest quality authentic Finnish sauna products.\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003ePlease note\u003c\/span\u003e\u003cspan\u003e, we recommend that\u003c\/span\u003e\u003cspan\u003e \u003c\/span\u003e\u003cspan\u003esauna heater\u003c\/span\u003e\u003cspan\u003es and flue systems should\u003c\/span\u003e\u003cspan\u003e be installed by a suitably qualified electrician\/builder\/plumber\u003c\/span\u003e\u003cspan\u003e\/\u003c\/span\u003e\u003cspan\u003efitter. Finnmark Limited accepts no liability for loss or injury caused by the incorrect installation of your sauna heater. Please \u003c\/span\u003e\u003cspan\u003e\u003c\/span\u003e\u003ca href=\"https:\/\/www.finnmark.co.uk\/pages\/contact-us\" target=\"_blank\" title=\"Finnmark Contact Us\" rel=\"noopener noreferrer\"\u003eContact Us\u003c\/a\u003e\u003cspan\u003e if you require information on our recommended fitters.\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/div\u003e"}
£ 332.00 GBP
Product Description New simple, complete and installation-ready flue kit Kota Steel Flue Kit 24 is a high-quality and safe choice for sauna heaters and other heat installation units. The kit includes all necessary parts and accessories required for installation and connection of the flue. During the products design, particular attention has been paid to fire-safety and insulation of the flue around the ceiling feed-through. The modular design of the steel flue enables the flue to be installed simply, with consideration for the specific conditions of a particular building. The outer casing of the flue is made of zinc-coated steel finished with black heat-resistant paint. The diameter of the flue is 280 mm. The flue is insulated with fire-resistant mineral wool. The inner tube with a diameter of 150 mm is made of stainless steel. The flue is also equipped with a permanently installed damper. The Kota Steel Flue Kit is...
Product Description New simple, complete and installation-ready flue kit Kota Steel Flue Kit 24 is a high-quality and safe choice...
