Narvi NC Domestic Electric Sauna Heater

Translation missing: en.products.product.price.regular_price £ 730.80 GBP
Translation missing: en.products.product.price.sale_price £ 730.80 GBP Translation missing: en.products.product.price.regular_price
Tax included.

Learn more about finance
Product Description

Wall Mountable Narvi NC Domestic Electric Sauna Heater.
Next Day Delivery on some models, call for latest stock!

The Narvi NC Electric is our most popular electric sauna heater. Its elegance and class set this quality heater apart from its competitors. The large stone capacity creates an impressive löyly for a heater of this size.

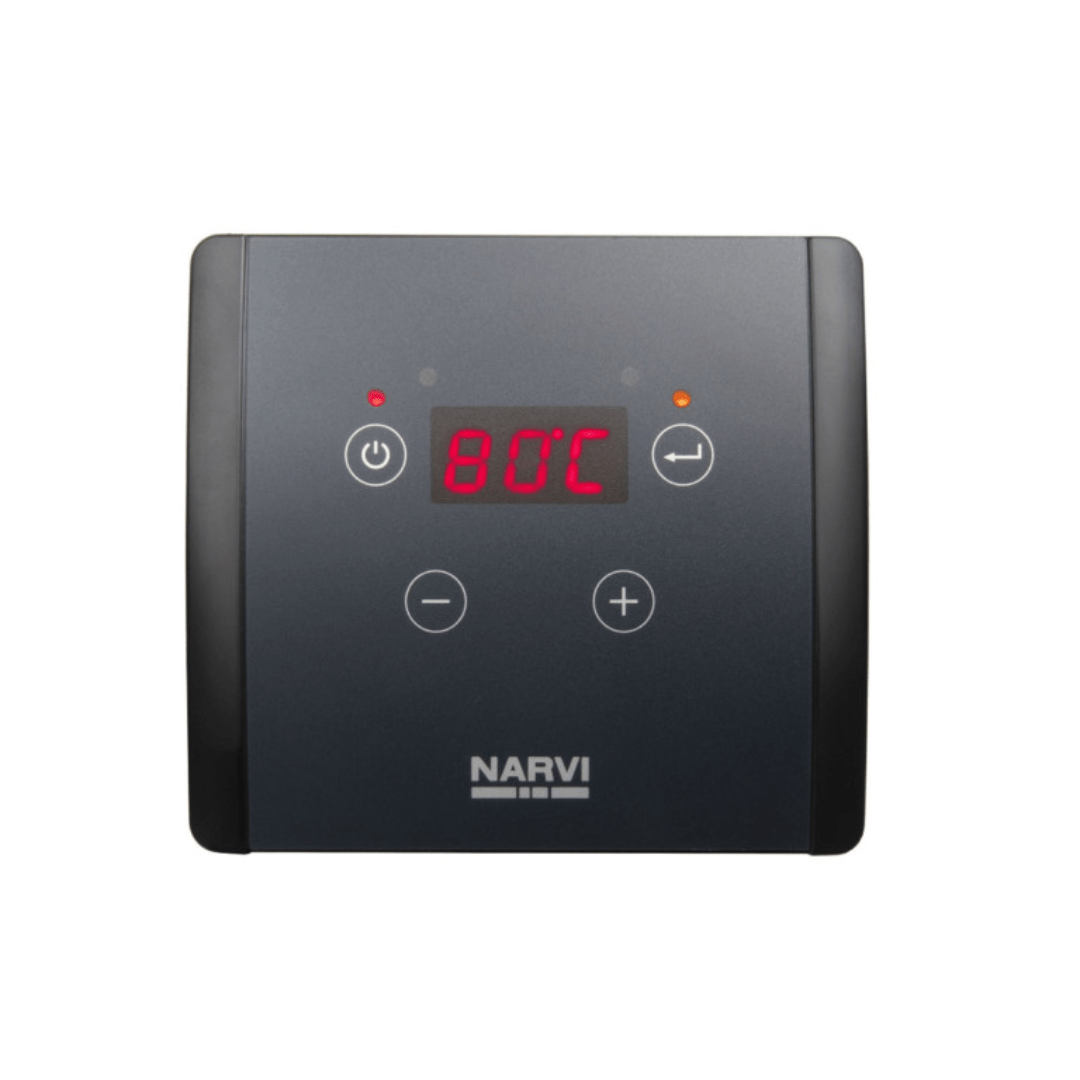

The NC electric comes with a digital control unit that can be installed inside or outside the sauna for accurate temperature and timing adjustments. The control unit comes with 3 metres of cable.

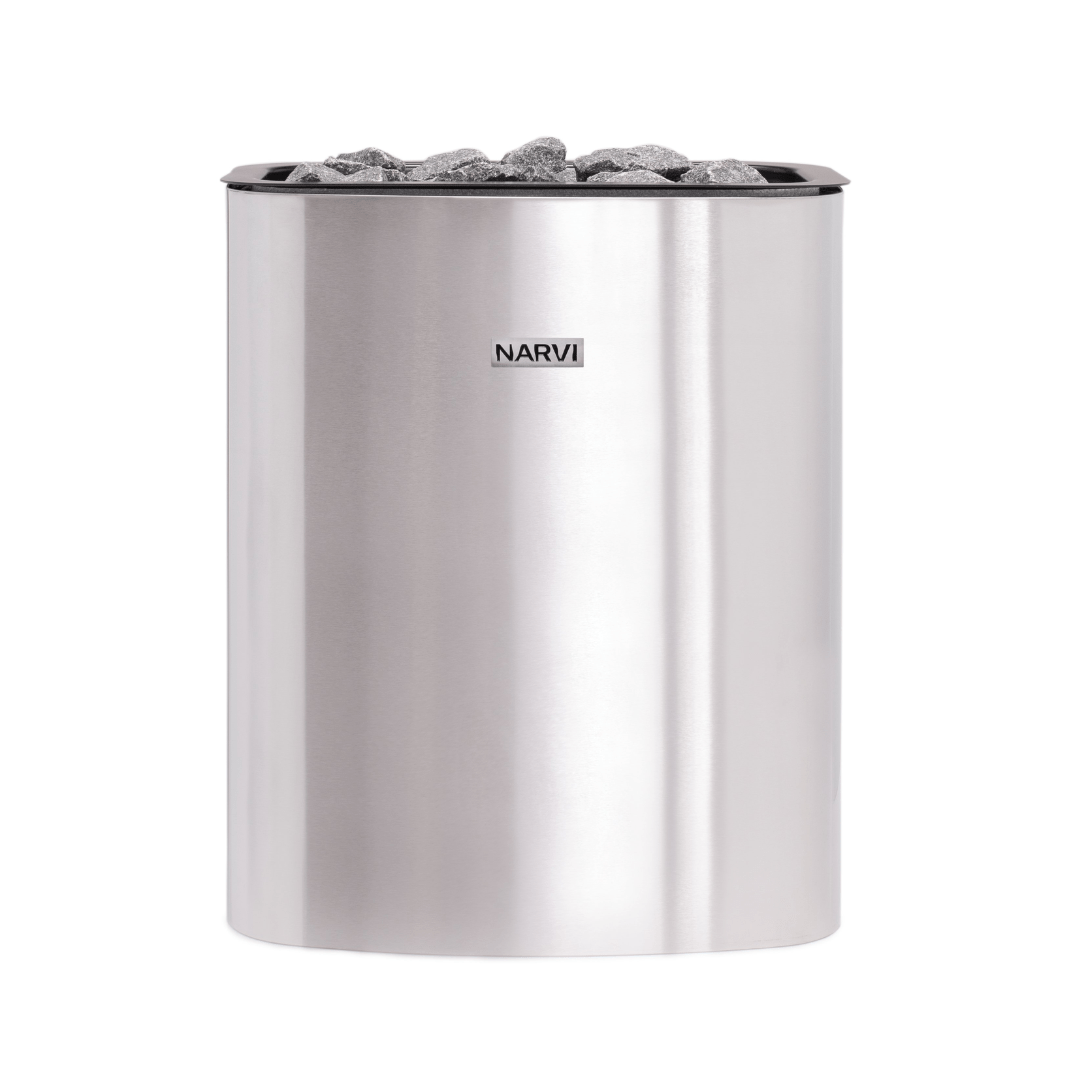

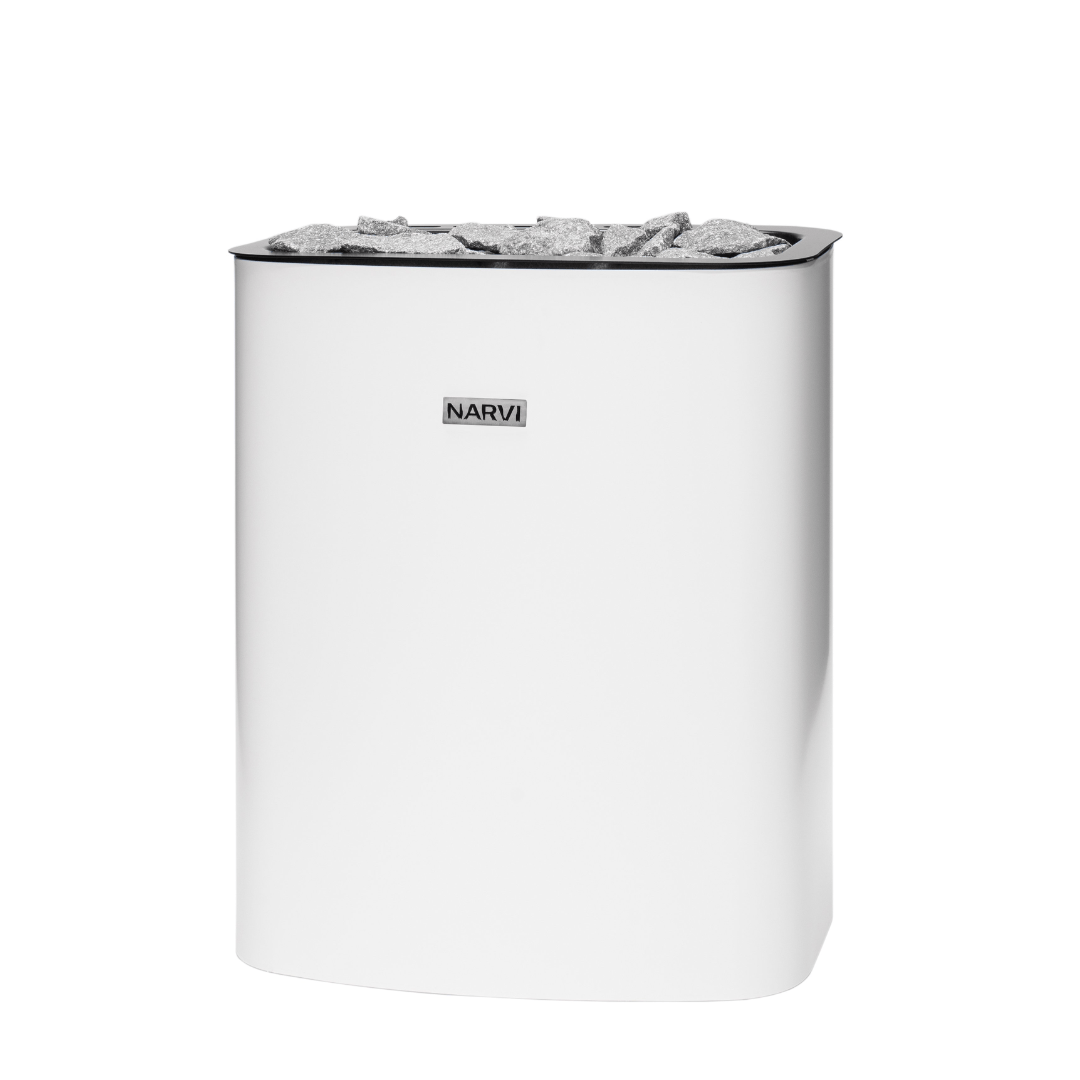

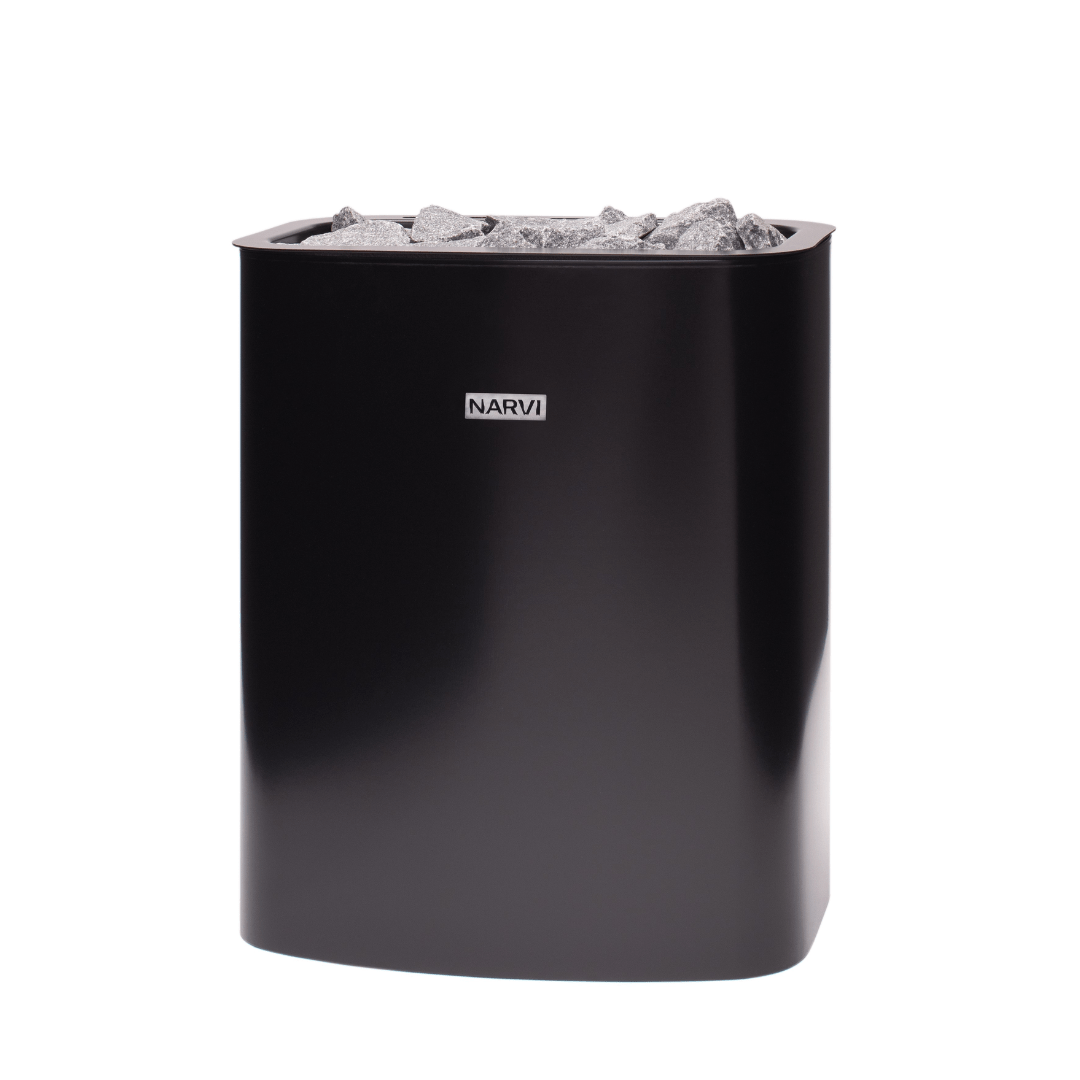

The stylish design of the NC Electric is complemented by a range of colour options, including white, black and stainless steel, making choosing a heater to suit the aesthetic of your sauna an easy task. The 8.5 mm diameter heating coils warm the sauna very quickly and have an exceedingly long lifespan and low risk of overheating. The heater comes in 6 kW and 9 kW options depending on the size of your sauna.

This heater must be installed by a qualified electrician and can be easily installed on both single phase 240v and three phase 400v power supplies

Correct connection of your Narvi electrical sauna heater in the UK -

*Installation and maintenance must be done by a certified electrician

*Electricity supply must be isolated and/or switched off from the fuse panel prior to any installation or servicing work

*In accordance with European standard IEC 60364-7-703 part 703.412.5 an electrical sauna heater does not have to be connected through a Residual Current Device (RCD). This is also in accordance with BS7671:2018 part 703.411.3.3.

*For reliable operation, Narvi strongly recommends that the power supply should not be connected through a Residual Current Device (RCD)

*Other electrical devices in a sauna room should be connected through a Residual Current Device (RCD)

*The power supply cable must comply with BS7671:2018

*The instruction manual of the product and local electrical regulations must be followed

To learn more about installing electrical heaters on domestic power supplies, see our "How to choose the right sauna heater" page.

Product Specification

Model

Narvi NC Electric 6 kW

Narvi NC Electric 9 kW

Capacity of the sauna

6–9 m³

9–15 m³

Power

6 kW

9 kW

Measurements and weight

Height

52 cm

52 cm

Width

44 cm

44 cm

Depth

32 cm

32 cm

Heater weight / Amount of stones

15 kg / 25 kg

15 kg / 25 kg

Fuse

3 x 10 A

3 x 16 A

Connecting cable

5 x 1.5

5 x 2.5

Encasing

painted black or white

painted black or white

Safety distances*

To the sides

50 mm

100 mm

In front

80 mm

100 mm

Upwards

1150 mm

1150 mm

To the rear

30 mm

30 mm

To the floor

120 mm

120 mm

Safety distances are to combustible materials.



Single Phase 230V Power Supply Three Phase 400V Power Supply
Heater Power Rating
Recommended Cable Specification Recommended MCB specification Recommended Cable Specification Recommended MCB specification
3 Core Single Pole 5 Core Triple Pole
(kW) (mm²) (A) (mm²) (A)
4.5 2.5 20 1.5 10
6 6 32 1.5 10
6.8 6 32 1.5 10
9 10 40 2.5 16
10.5 N/A N/A 2.5 16



Warranty

The warranty on this Narvi Sauna Heater is 2 years in private use. The heating elements have a 12-month warranty.

About Narvi Oy

You can browse our wider Narvi collection here


Product Disclaimers

All Narvi sauna heaters are CE tested and bear the Finnish Key Flag Symbol. This is awarded to sauna heaters that are made and designed in Finland, where over 95% or more of the production must be within Finland itself. There are many brands that claim to be made in Finland but are actually made in the Far East or Russia and merely assembled or labeled in Finland. Watch out for these symbols as a mark of an authentic, Finnish-made, safe, quality product:

Finnish Key Flag and CE Marked

As part of Finnmark Sauna's Endurance Ethos, we only deal in products that are market leaders in quality. We commit ourselves to search exhaustively for the highest quality authentic Finnish sauna products.

Please note, we recommend that sauna heaters should be installed by a suitably qualified electrician/builder/fitter. Finnmark Limited accepts no liability for loss or injury caused by the incorrect installation or misuse of your sauna heater. Please Contact Us if you require information on our recommended fitters.
