Biloba Series Glass-to-Wall Self-Closing Sauna Door Hinge
Biloba Series Glass-to-Wall Self-Closing Sauna Door Hinge
Couldn't load pickup availability
Description
Description

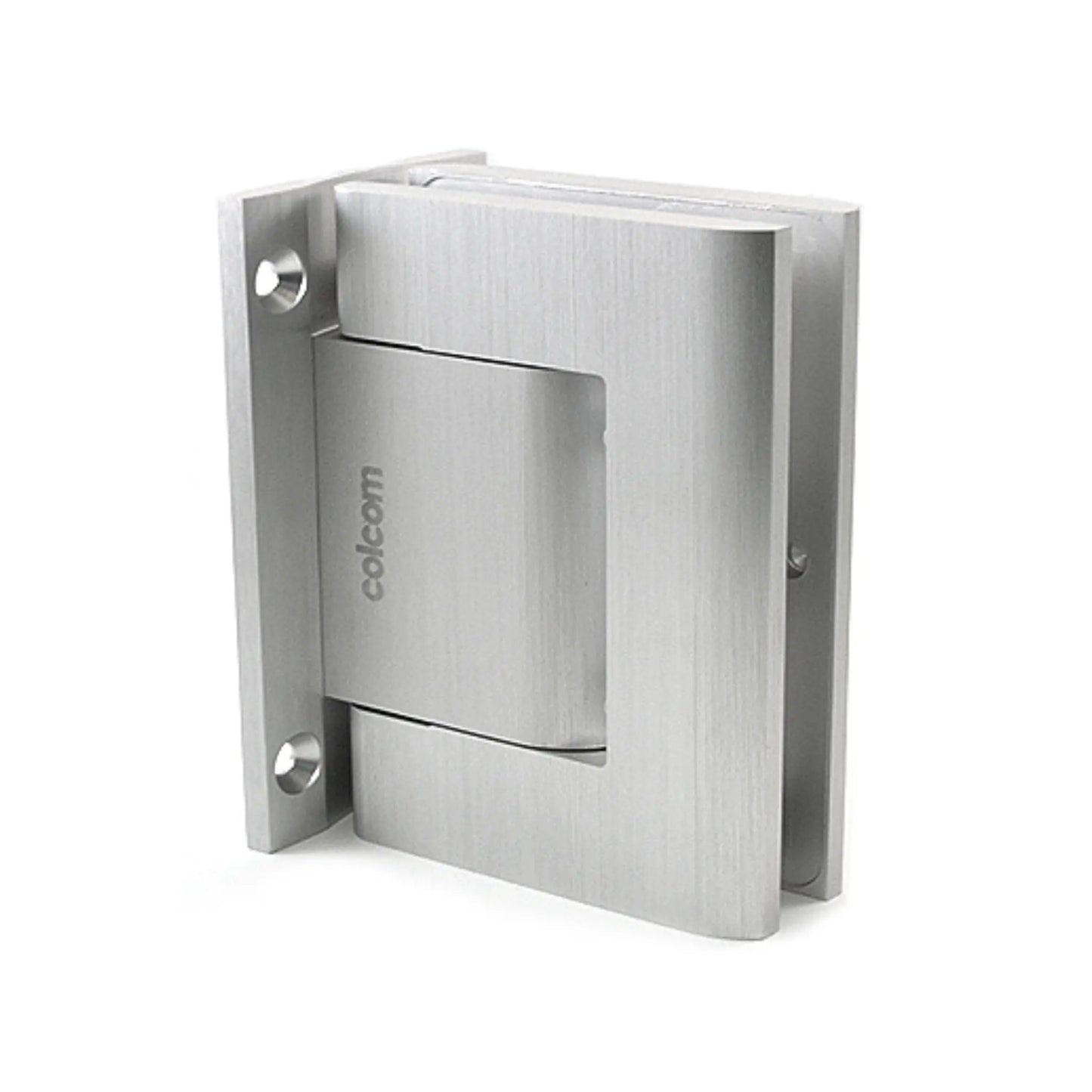

The Colcom Biloba 8010BT22 is a self-closing hydraulic hinge for all-glass sauna doors, fixing the glass to the wall with a double-side fixing. The closing speed is adjustable, and the hinge holds the door at 0°, +90° and -90°. Conceived for damp, high-temperature environments, it pairs an aluminium body in a special deep-oxidation 22-micron finish with an INOX AISI 420 stainless steel pin and Viton O-rings, allowing operation at up to +100°C. Two hinges carry a door of up to 100 kg and 1000 mm wide, and each hinge is priced individually.
Features
Technical Specification
| Specification | |
| Model | Colcom Biloba 8010BT22 |
| Mounting | Glass to wall, double-side fixing |
| Door type | All-glass doors |
| Closing action | Automatic hydraulic, adjustable closing speed |
| Stop positions | 0°, +90°, -90° |
| Maximum door weight (2 hinges) | 100 kg |
| Maximum door width (2 hinges) | 1000 mm |
| Body | Aluminium, special deep-oxidation 22-micron finish |
| Pin | INOX AISI 420 stainless steel with Viton O-rings |
| Maximum operating temperature | +100°C |
| Pricing | Per hinge (prices shown are per 1 item) |
Application
The Biloba BT series was conceived for damp, high-temperature environments such as saunas. The pin is mounted in INOX AISI 420 stainless steel with Viton O-rings, so the hinge resists much higher temperatures than a standard glass door hinge, up to +100°C.
