Controller for Quinetic Dimmable Kinetic Wireless Switch
Controller for Quinetic Dimmable Kinetic Wireless Switch
Couldn't load pickup availability
Description
Description
This Quinetic wireless controller is the receiver that lets a Quinetic kinetic switch, sold separately, operate your lighting circuit. Three versions are available: a 1 amp trailing edge dimmer, a 5 amp relay and a 6 amp non-dimmable controller, all running on a 200–240V 50/60Hz supply with in-rush current suppression and integrated push-in terminals. Pairing is flexible: one controller can be operated by up to ten separate switches, and one switch can pair with an unlimited number of controllers. A waterproof box is required if the controller is used outdoors.
Features
Technical Specification
| General | |
| Input voltage range | 200–240V 50/60Hz |
| Pairing | One controller: up to 10 switches; one switch: unlimited controllers |
| Terminals | Integrated push-in terminals |
| Outdoor use | Waterproof box required |

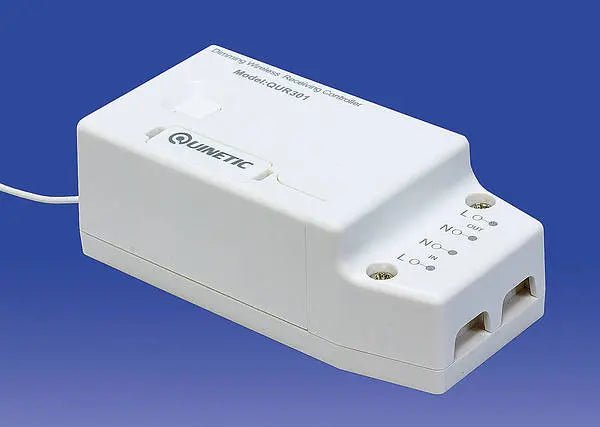

| 1 Amp (QUR301) | |
| Type | Trailing edge dimmer |
| Rated | 1.0A |
| Max loads | LED: 100W; Other: 200W |

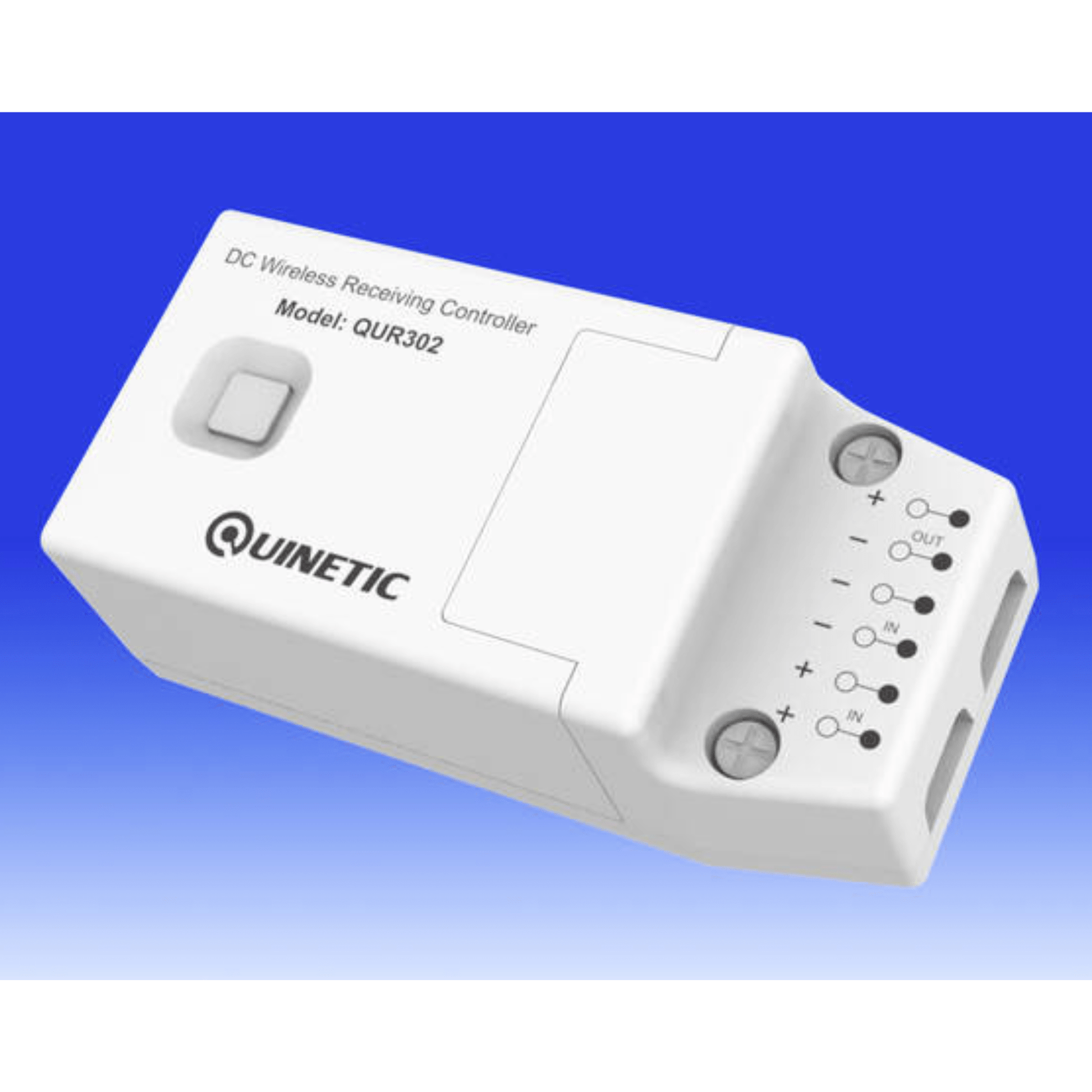

| 5 Amp (QUR302) | |
| Type | 5A relay |
| Rated | 5A |
| Max loads | LED (@10V–24V): 20W–100W; Other: 150W |
| DC | <0.5W |

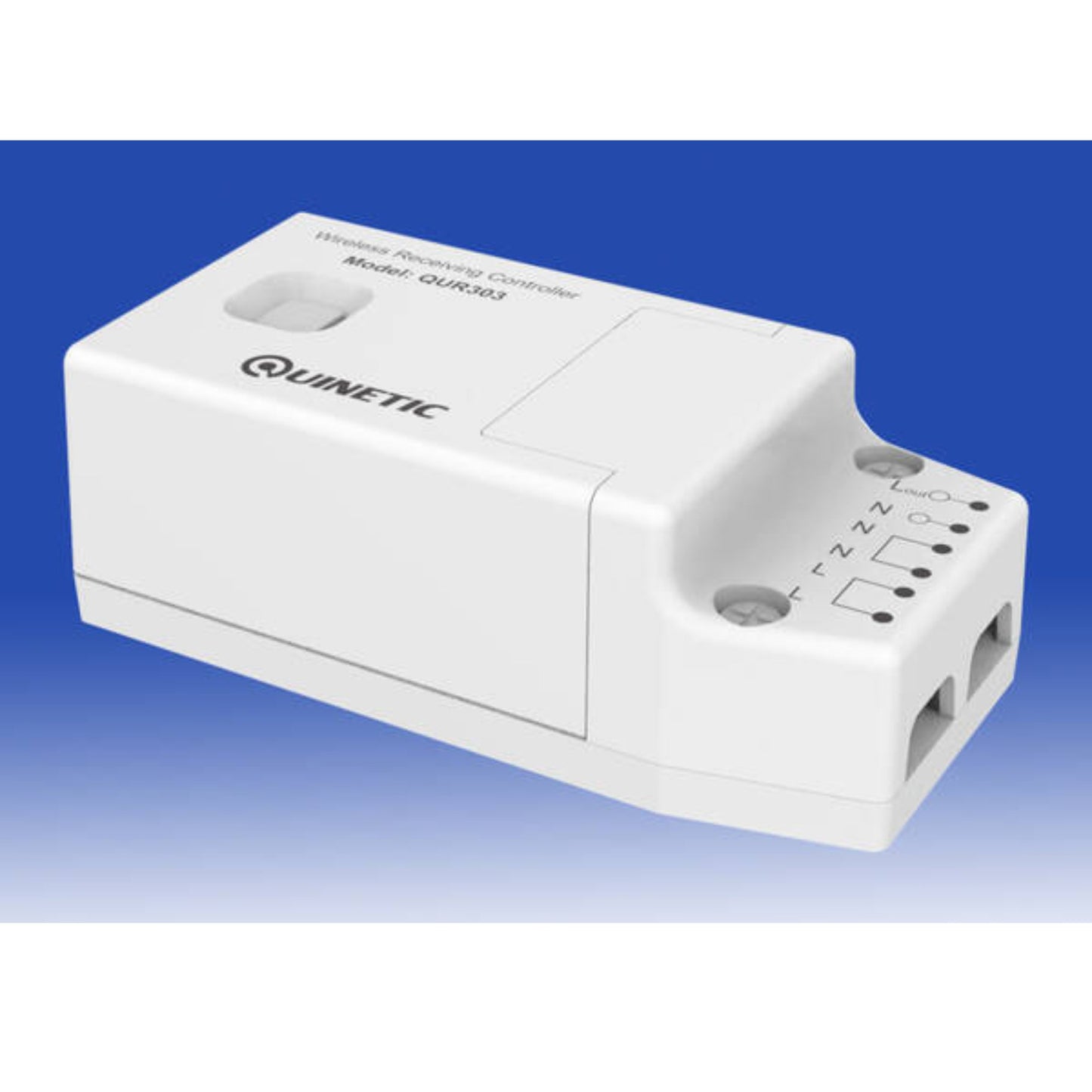

| 6 Amp (QUR303) | |
| Type | Non-dimmable |
| Rated | 6A |
| Max loads | LED: 500W; Other: 1100W |
| Wireless range | Indoor: 30 metres; Outdoor: 160 metres (approx.) |
Using the controller
The wireless Quinetic energy switch and wireless receiving controller can be paired in any combination: a controller can be controlled by a maximum of ten separate switches, and a switch can pair with an unlimited number of controllers.
Ordering
If you are unsure which version suits your installation, contact support@finnmarksauna.com before ordering.
