HUUM

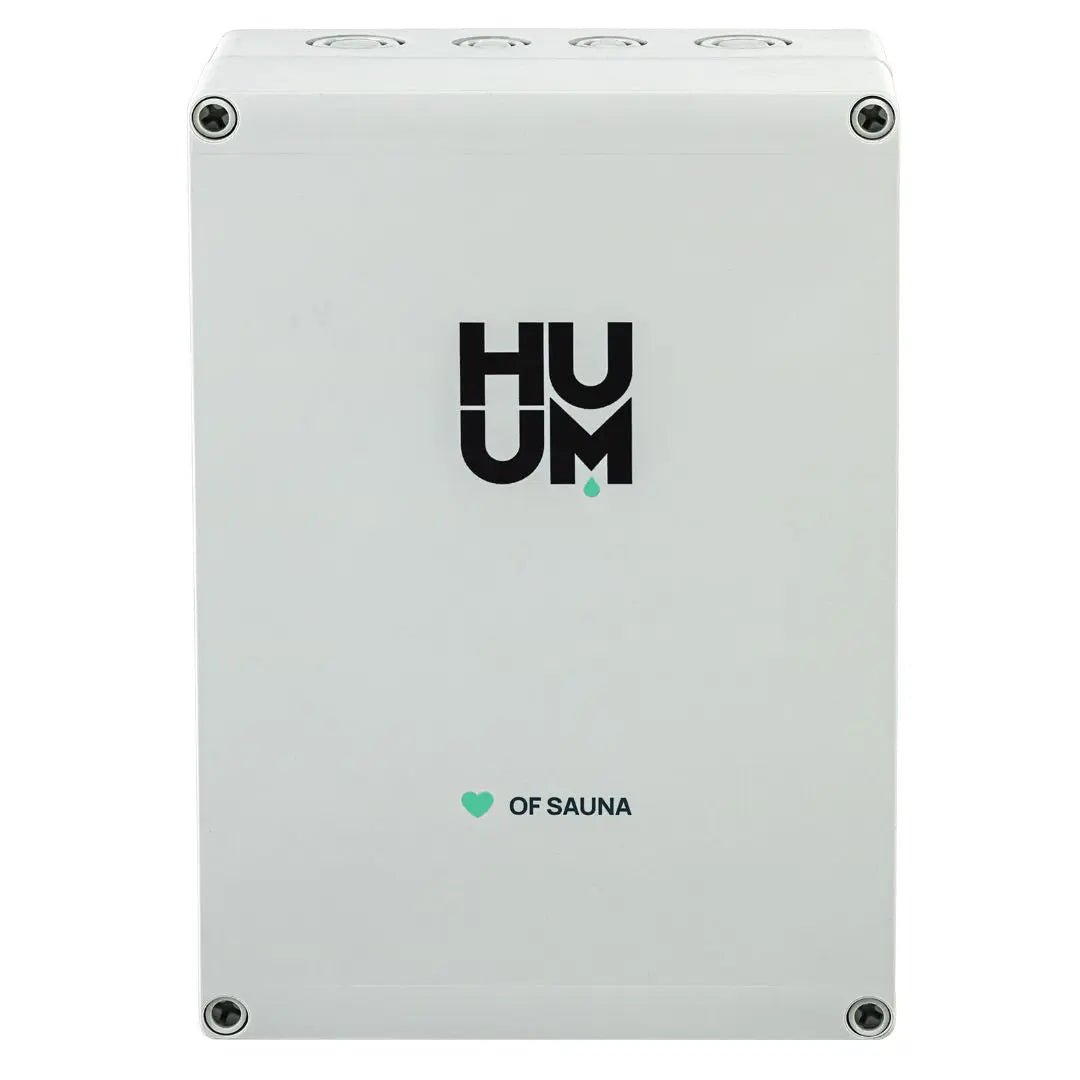

Extension Module for UKU Sauna Control System

Extension Module for UKU Sauna Control System

Free UK Delivery Over £1500*
Regular price £ 418.00
Sale price £ 418.00 Regular price
View full details
Description

Description

The extension module for the UKU sauna control system extends the capacity of the UKU main module, which on its own switches electric sauna heaters up to 18 kW. It is required when the heater’s output exceeds that limit and is suitable for heaters up to 38 kW, with the wiring scheme written for HUUM’s HIVE heaters above 18 kW. The module works only with the UKU Wi-Fi, UKU Local and UKU GSM control systems, runs on a 400 V 3N supply with 2 × 63 A protection, and must sit on a separate circuit breaker from the main module. It mounts outside the steam room, close to the main module, and extends an existing UKU system rather than replacing it; the control system itself is sold separately.

Features

  • Higher-output control: Extends the UKU control system beyond its standard 18 kW limit, for heaters up to 38 kW.
  • Designed for HIVE heaters: The wiring scheme covers HUUM HIVE models whose output exceeds 18 kW.
  • UKU compatibility: Works only with the UKU Wi-Fi, UKU Local and UKU GSM control systems.
  • Separate circuit protection: Runs on a 400 V 3N supply with 2 × 63 A protection, on a separate circuit breaker from the main module.
  • Straightforward placement: Fixes to the wall with four screws, outside the steam room and close to the UKU main module.
  • Control system sold separately: The module extends an existing UKU system; it does not replace the main module or control panel.
Technical Specification
Compatible control systemsUKU Wi-Fi, UKU Local, UKU GSM
Designed forHUUM HIVE heaters above 18 kW
Maximum heater power38 kW
Electrical supply400 V 3N~, 50 Hz
Circuit protection2 × 63 A; separate circuit breaker from the main module
MountingWall-mounted with four screws, outside the steam room, near the main module
SKUH2003011

Installation

The extension box must be installed outside the steam room, close to the UKU main module, and fixed to the wall with four screws. The main module and the extension box must be connected under separate circuit breakers, and the wiring drawing supplied with the extension box replaces the installation drawing in the UKU manual. Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated before any work begins. The installation manual in the Downloads tab and local wiring regulations must be followed.

Brand

HUUM is an Estonian sauna brand that pairs age-old sauna knowledge with modern Nordic design. Its DROP heater won the Red Dot Award for Product Design in 2015.

Warranty

The warranty card is available in the Downloads tab.

Ordering note

Check your heater model, heater power and controller generation (UKU 4.1 or 4.2) before ordering. Electrical installation must be carried out by a certified electrician.
