Kastor Front Frame for Saga Tunnel Wood Burning Sauna Stove
Kastor Front Frame for Saga Tunnel Wood Burning Sauna Stove
This product has a lead time, enquire for more information.
Couldn't load pickup availability
Add to Compare
Please note: oversized items including doors and timber may require specialist delivery, which can incur additional charges beyond standard shipping. Our team will contact you after checkout to confirm the final delivery cost before proceeding.
View full details
Description

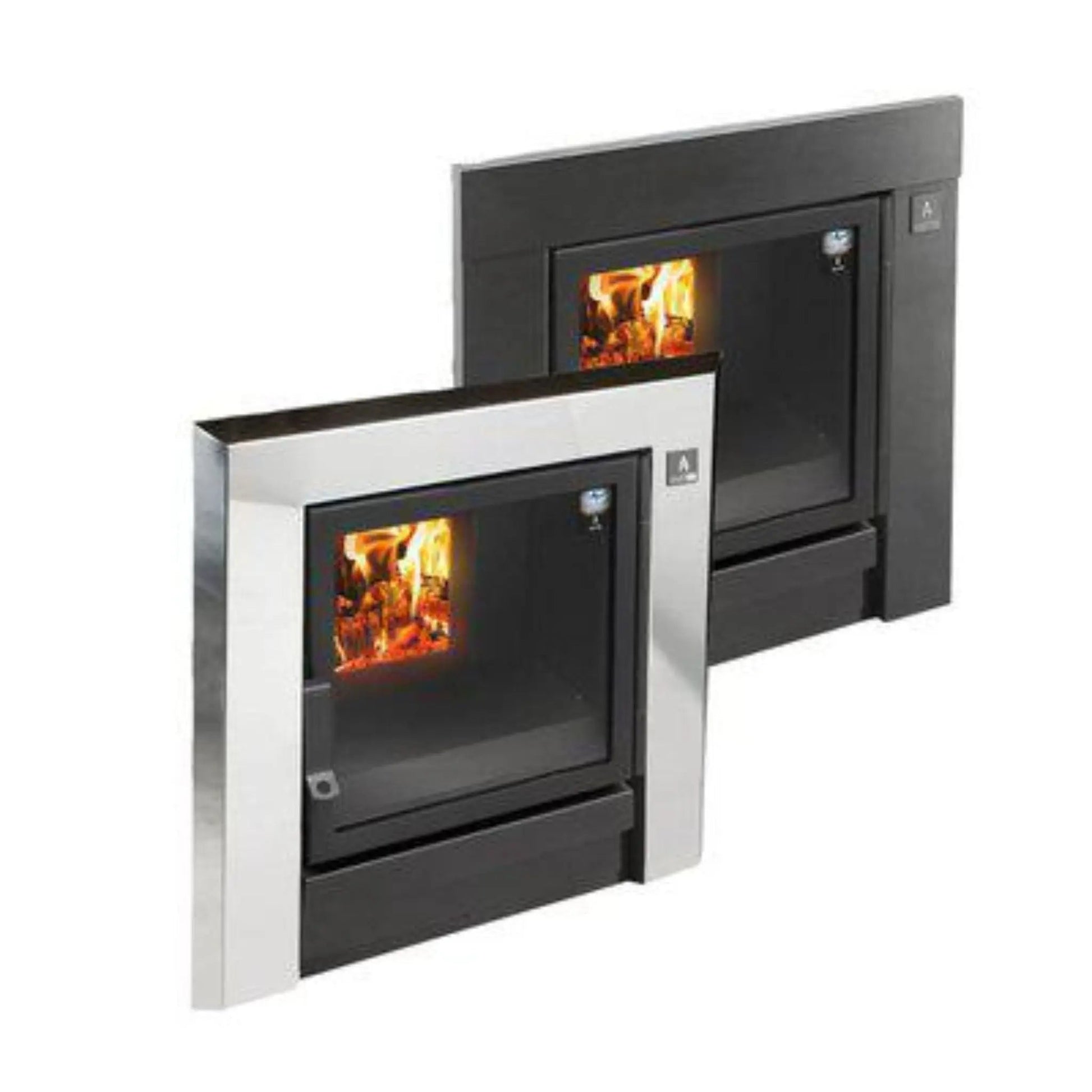

Front frame for Kastor Saga Tunnel wood burning sauna stove. The T-model is a tunnel design sauna stove that works simultaneously as a fireplace opening up to an adjacent room.
Specification
Colour: Stainless steel or black (choose the correct colour in the drop-down)
Dimensions (W x H x D): 695 x 670 x 60 mm
Weight: 4.21 kg
Technical Specification
Kastor Saga Wood Burning Sauna Stove Specification
|
Model: |
Saga 22 |
Saga 30 |
Saga 22 T |
Saga 30 T |
|
Power |
16kW |
18kW |
16kW |
18kW |
|
Sauna room size (m3) |
12-22m3 |
20-30m3 |
12-22m3 |
20-30m3 |
|
Safety Distances: |
|
|
|
|
|
To the sides |
250mm |
250mm |
250mm |
250mm |
|
To the front |
500mm |
500mm |
500mm |
500mm |
|
To the back |
250mm |
250mm |
50mm |
50mm |
|
Upwards |
1400mm |
1300mm |
1400mm |
1300mm |
|
Dimensions: |
|
|
|
|
|
Width |
600mm |
675mm |
600mm |
675mm |
|
Height |
825mm |
930mm |
825mm |
930mm |
|
Depth |
585mm |
585mm |
585mm |
585mm |
|
Weight without stones |
84kg |
109kg |
109kg |
134kg |
|
Stone capacity |
120-130kg |
180-190kg |
130-140kg |
180-190kg |
