Helo
Helo Contactor Box WE 53
Helo Contactor Box WE 53
Couldn't load pickup availability
Description
Description

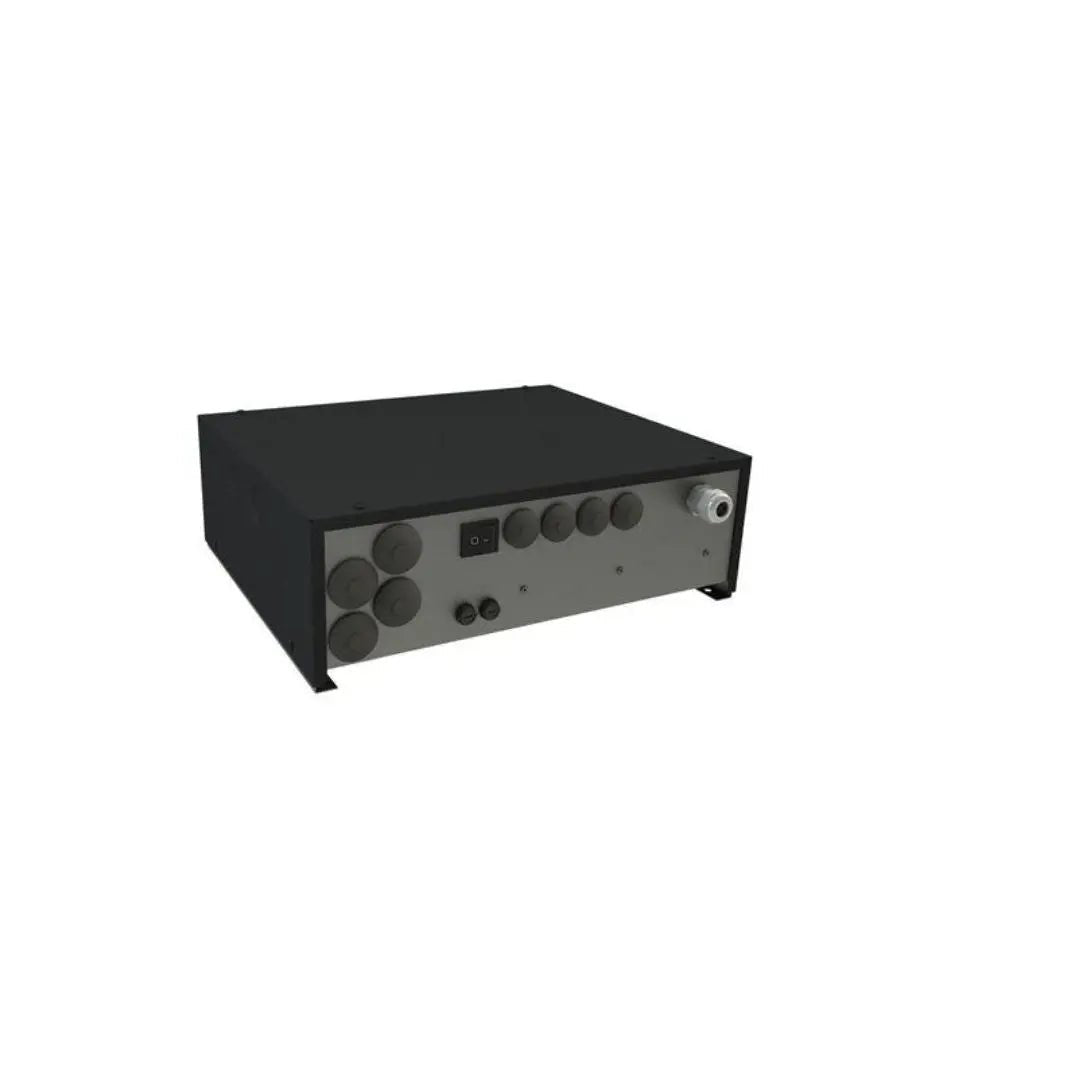

The Helo WE 53 is a contactor box for professional installations that combine an electric sauna heater with infrared panels, switching both from a single Elite Free control panel. It is compatible with the SKLE, Laava and Octa commercial heaters and carries two supply feeds: one for the heater, rated 4.5–15 kW at 400–415 V 3N~ or 4.5–9 kW at 230 V 3~, and one for the infrared panels, rated up to 16.2 kW (a maximum of eighteen 900 W panels) at 400–415 V 3N~ or 9 kW at 230 V 3~. The infrared function is activated from the Elite panel and runs between 40 and 60 °C, with the heater and panels working together or the panels alone at the lowest setting. The box is best placed outside the sauna room; the Elite Free control panel, heater and infrared panels are all sold separately.
Features
Technical Specification
| Contactor box | |
| Colour | Black |
| Weight | 6.3 kg |
| Dimensions (W × H × D) | 450 × 150 × 370 mm |
| Compatible control panel | Helo Elite Free (required for heater plus infrared use) |
| Compatible heaters | SKLE, Laava and Octa commercial electric sauna heaters |
| Placement | Outside the sauna room |
| Supply feeds (per manual) | |
| Sauna heater feed | 4.5–15 kW at 400–415 V 3N~; 4.5–9 kW at 230 V 3~ |
| Infrared panel feed | Max 16.2 kW (18 × 900 W) at 400–415 V 3N~; max 9.0 kW at 230 V 3~ |
| Infrared temperature range | 40–60 °C, ten setting levels |
Installation
Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated before any work begins. The heater and the infrared panels are wired to separate feeds within the box, the IR function is then activated in the Elite panel settings, and the DIP switch positions in the manual must be set for the heater and panel combination. All Helo D-body electric heaters paired with the WE 53 must be installed on a three-phase power supply. The installation and user manual and local wiring regulations must be followed.
Brand
Helo, founded in 1919, was the first manufacturer of electric sauna heaters, and its heaters and controls are made in Hanko, Finland. The company is part of the Sauna360 group.
Ordering note
Check your heater model, heater power and controller generation before ordering, and confirm that the matching control panel or contactor box is in place. Electrical installation must be carried out by a certified electrician.
