HUUM Chimney Set for Wood Burning Sauna Heater (Through the Ceiling)
NOTE:
This product has a lead time, please get in touch for more specific timescales
HUUM Chimney Set for Wood Burning Sauna Heater (Through the Ceiling)
HUUM Chimney set for wood burning sauna heaters (through the ceiling)
About this HUUM flue set
*stones & wood burning heater to be purchased separately*
The HUUM chimney set is designed for through the ceiling installations.
The HUUM chimney set is designed for wood burning sauna heater installations that require the flue to go straight up through the ceiling. The chimney set is compatible with all HUUM wood burning sauna heaters.

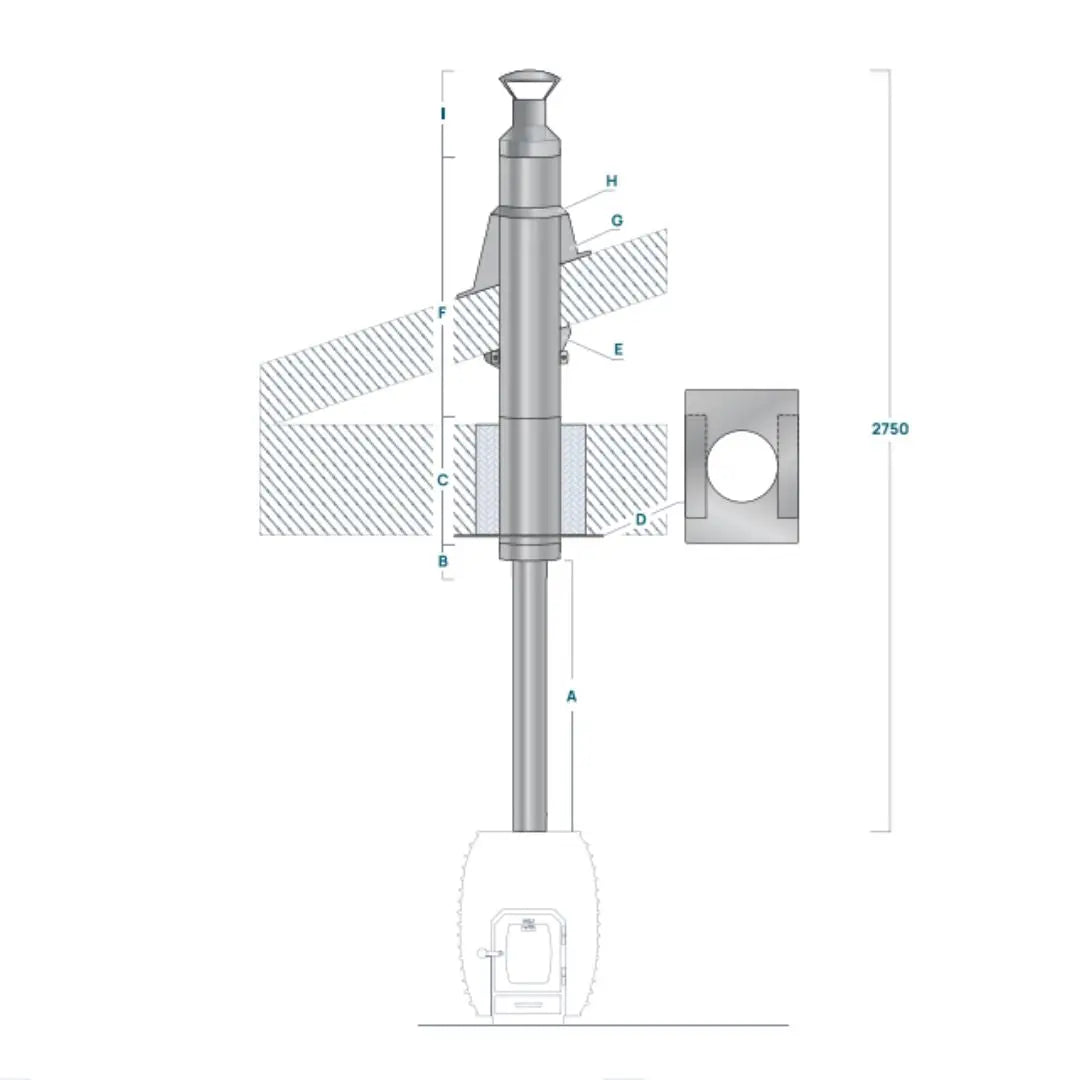

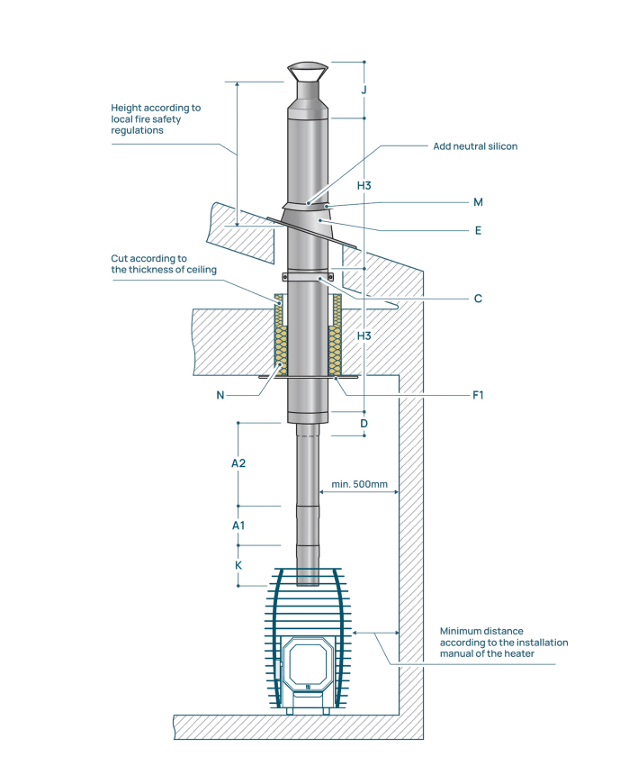

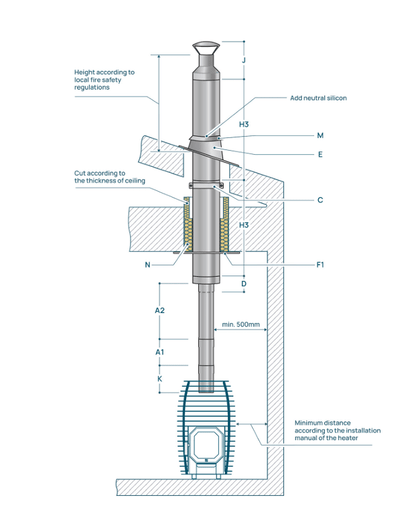

The set includes everything you need for a through the ceiling flue installation. You can find a technical drawing by clicking on the “Downloadable Files” tab above.
*Please note that the HUUM sauna stove and flue must be installed by a chimney specialist.

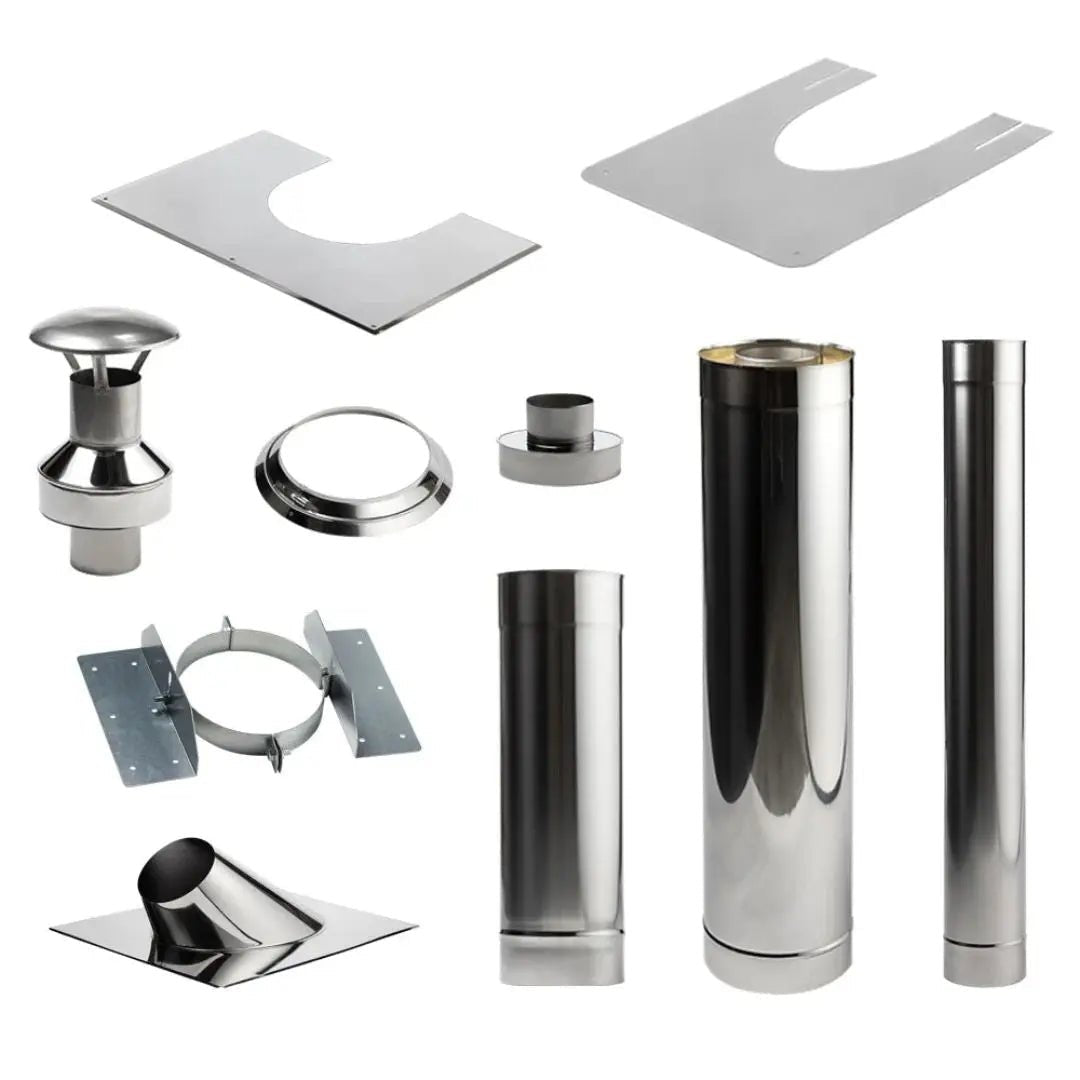

Included in the chimney set
- Single-wall chimney (1m)
- Chimney base, welded
- Double-wall chimney (0.5m)
- Cover plate for penetration of sloped ceiling, double wall
- Roof rafter attachment to the chimney
- Roof penetration (inclination 0-20 degrees)
- Rain collar
- Chimney cap
Connecting the sauna stove with the chimney flue
- The sauna stove must be connected to the chimney by a specialist
- Flue gas outlet is on the top of the sauna stove. The sauna stove is connected to the chimney flue with special flue pipes that may be caulked with heat-resistant sealing rope, when necessary
- Curves of the elbows of the connection pipes must be smooth to minimize draught loss.
- The pipe is inserted though the wall of the chimney and then sealed with mineral wool.
- The flue gases of the stove must be directed into a separate flue. It is forbidden to use a common flue that is utilized with other furnaces.
*As specified by HUUM, utilization of forced extract ventilation might cause problems with air exchange of the room and insufficiency of furnace combustion air; therefore, designing and constructing such ventilation systems is permitted only on the sole responsibility of a licensed specialist.
About HUUM
HUUM is the leading manufacturer when it comes to unique designs and technology. HUUM has been awarded for their innovative and stylish sauna products. In 2015, the DROP sauna heater won the Red Dot Award for Product Design. The inspiration for the HUUM products come from nature. Combined with age-old sauna knowledge, smart technology and modern Nordic design, the HUUM heaters are a stylish and robust choice for any sauna. The amount of stones in HUUM heaters are optimized for the perfect, soft steam experience. The innovative HUUM heaters are easy to use and have all been UK CA- certified.
If you want to learn more about our HUUM heaters and explore more options, click on the following link: Our HUUM sauna heater collection.
