HUUM Chimney Set for Wood Burning Sauna Heater (Through the Wall)
HUUM Chimney Set for Wood Burning Sauna Heater (Through the Wall)
Couldn't load pickup availability
Description
Description

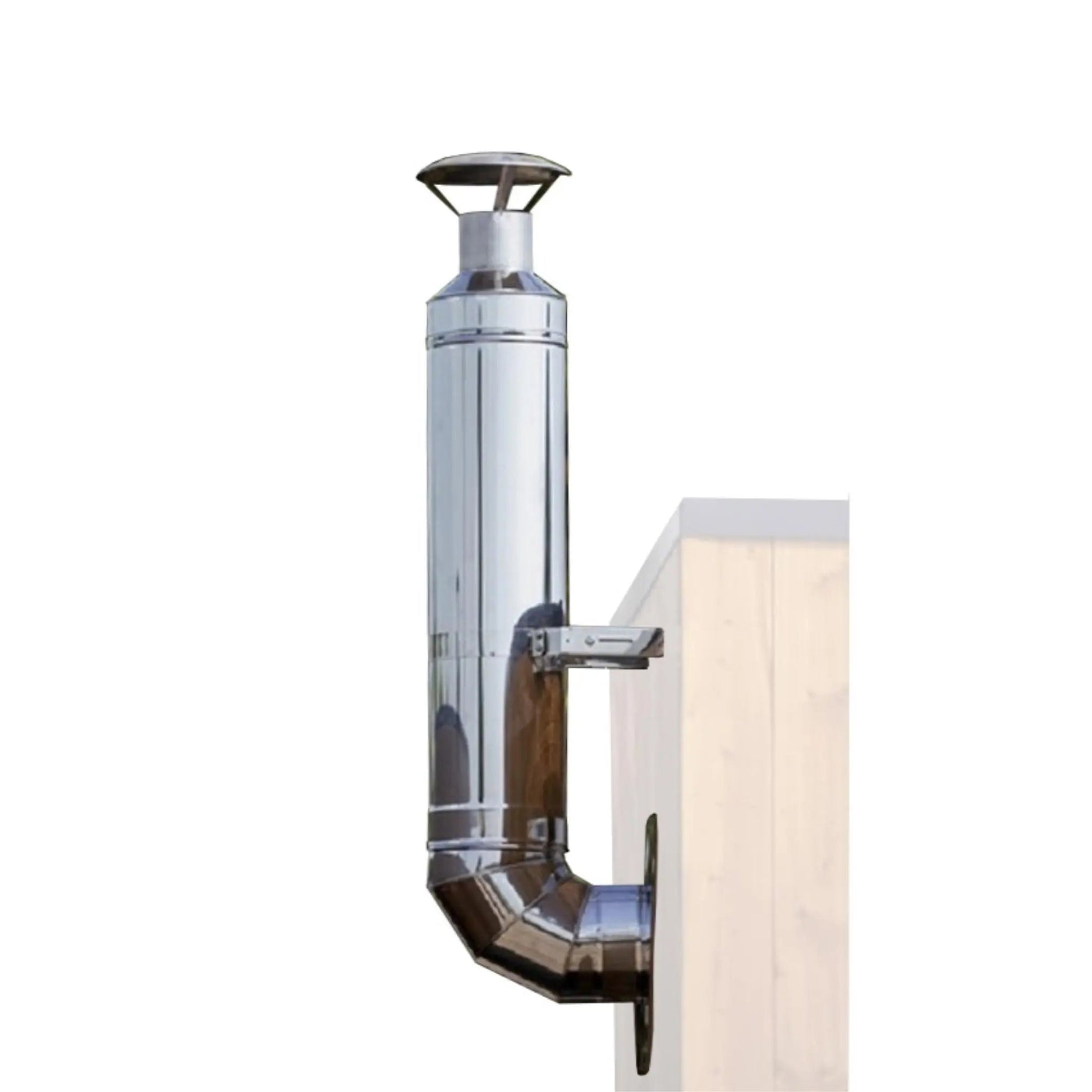

The HUUM chimney set for through the wall installations takes the flue from the top of a HUUM wood burning sauna heater, out through the wall and then up the outside of the building. Compatible with all HUUM wood burning heaters, the 115 mm diameter set includes the full run: single-wall sections, a 90 degree single-wall elbow with cleaning hatch, a double-wall welded chimney base, double-wall sections and elbow, a two-part wall cover plate, an adjustable wall bracket and a chimney cap. The heater and sauna stones are sold separately, and HUUM requires the stove and flue to be installed by a chimney specialist.
Features
Technical Specification
| Specification | |
| Installation type | Through the wall |
| Diameter | 115 mm |
| Compatibility | All HUUM wood burning sauna heaters |
Included in the chimney set
- Single-wall chimney (1 m)
- 90 degree single-wall elbow with cleaning hatch
- Single-wall chimney (0.25 m)
- Double-wall welded chimney base
- Double-wall chimney (0.5 m)
- Cover plate for wall (two parts)
- 90 degree double-wall elbow
- Double-wall pipe (1 m)
- Adjustable wall bracket (50–150 mm)
- Chimney cap
Connecting the stove to the chimney
The sauna stove must be connected to the chimney by a specialist. The flue gas outlet is on the top of the stove.
The stove is connected to the chimney with special flue pipes, which may be caulked with heat-resistant sealing rope where necessary. Curves in the connection elbows must be smooth to minimise draught loss, and the pipe is inserted through the wall of the chimney and sealed with mineral wool. The flue gases must be directed into a separate flue; it is forbidden to use a common flue shared with other furnaces.
As specified by HUUM, forced extract ventilation might cause problems with the air exchange of the room and the sufficiency of combustion air for the furnace; designing and constructing such ventilation systems is permitted only on the sole responsibility of a licensed specialist.
Installation

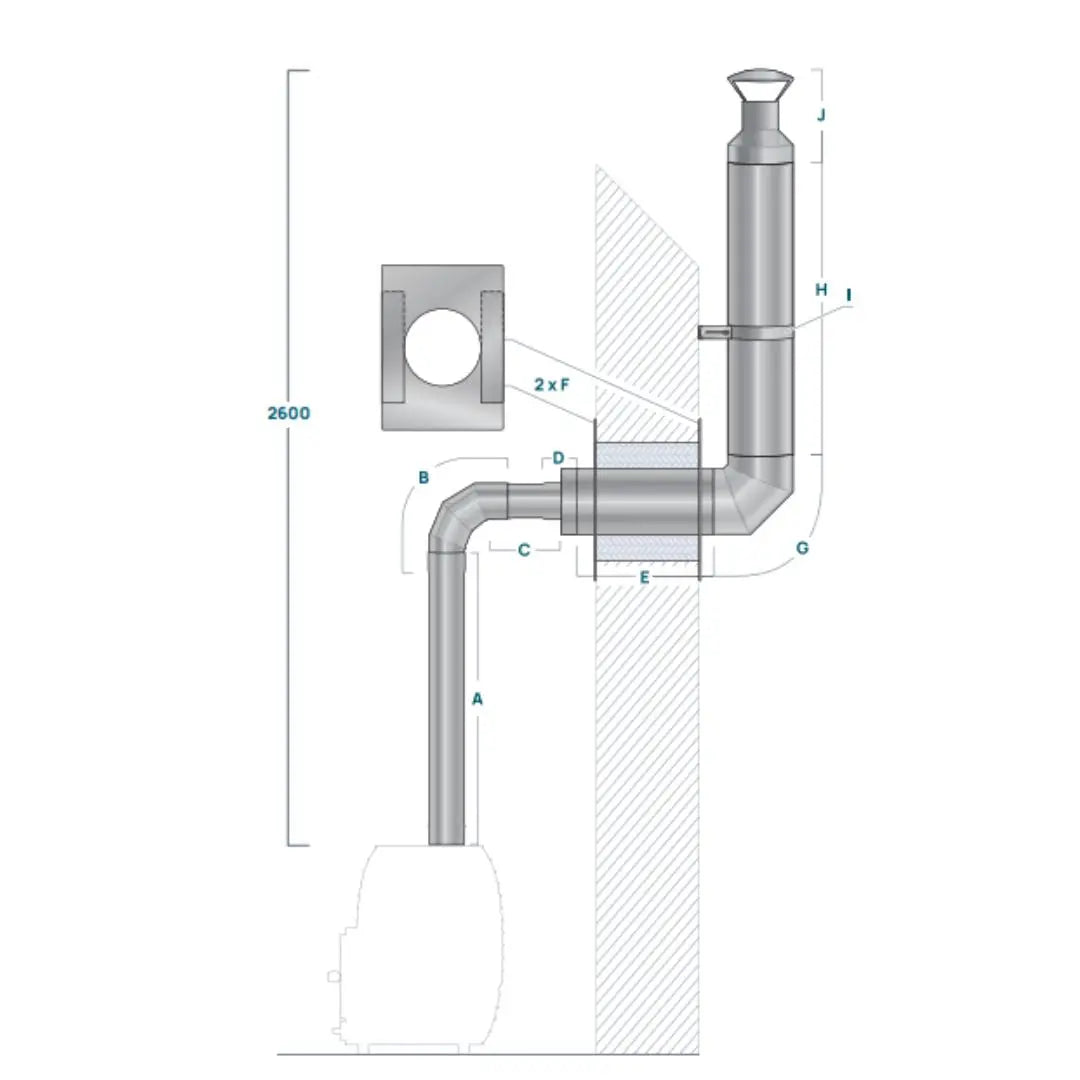

The HUUM sauna stove and flue must be installed by a chimney specialist. A technical drawing is available under the Downloadable Files tab on this page.
Brand
HUUM combines age-old sauna knowledge, smart technology and modern Nordic design; its DROP heater won the Red Dot Award for Product Design in 2015, and HUUM heaters are UKCA certified.
Ordering
If you are unsure this part fits your heater, contact support@finnmarksauna.com with your heater model before ordering.
