HUUM Chimney Set for Wood Burning Sauna Heaters (Through the back)
HUUM Chimney Set for Wood Burning Sauna Heaters (Through the back)
Couldn't load pickup availability
Description
About this HUUM flue set
stones & wood burning heater to be purchased separately

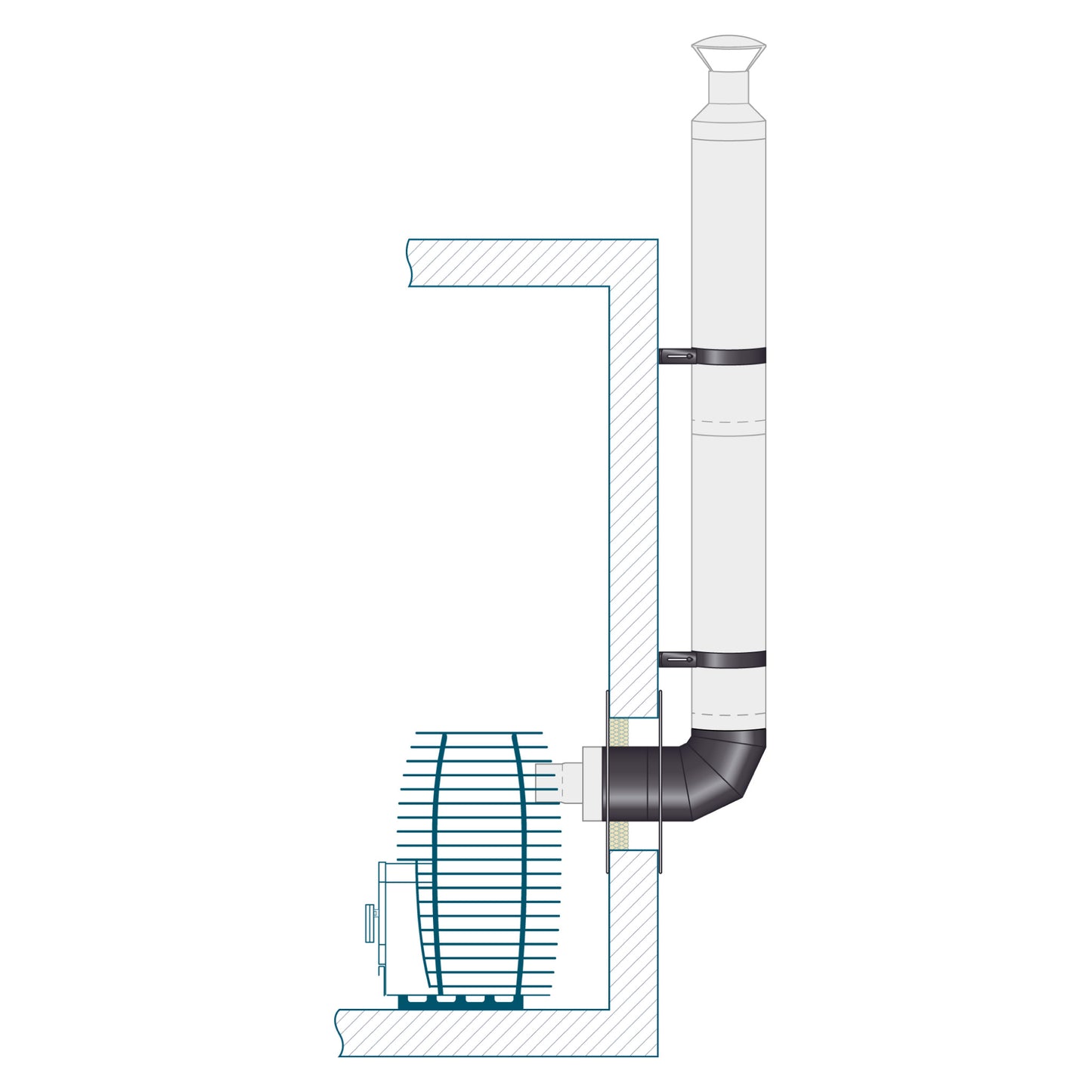

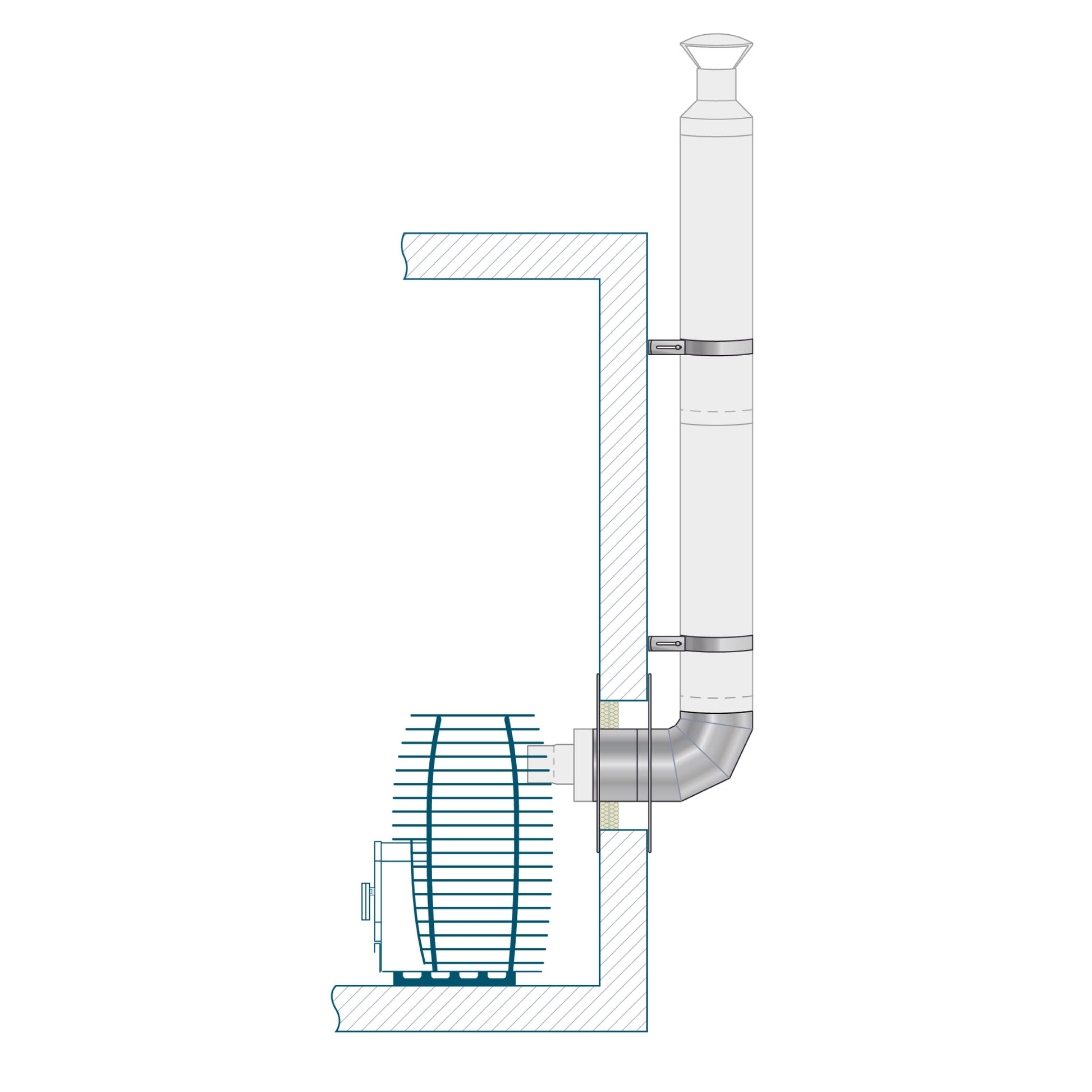

The HUUM chimney set is designed for rear-connection installations, where the flue is taken from the back of the heater, run through the wall, and then up.
This is HUUM's backside connection (rear exit) configuration. It suits wood burning sauna heater installations where the flue leaves the back of the stove and passes through the wall before rising on the outside. Because the flue exits at the rear rather than the top, the set uses a short, cuttable single-wall adapter in place of the taller single-wall run and elbow found in our standard through the wall set, which makes it a tidy choice for more compact rooms. On the heater itself, the top spigot used for a vertical connection is interchangeable with the blanking plate on the rear, allowing the flue outlet to be moved from the top to the back of the heater for this rear-exit configuration. The chimney set is compatible with all HUUM wood burning sauna heaters.
The set includes everything you need for a rear-connection through the wall flue installation. You can find a technical drawing by clicking on the "Downloadable Files" tab above.
Please note that the HUUM sauna stove and flue must be installed by a chimney specialist.
Included in the chimney set
- Single-wall chimney adapter, cuttable (150-250mm)
- Double-wall welded chimney base
- Double-wall chimney (0.25m)
- 90 degree double-wall elbow
- Cover plate for wall (two parts)
- T600 insulation plate for wall and ceiling
- Double-wall chimney (1m)
- Adjustable wall bracket (50-150mm)
- Chimney cap
- Diameter: 115mm
Connecting the sauna stove with the chimney flue
The sauna stove must be connected to the chimney by a specialist. In this configuration the flue is connected at the rear of the sauna stove. When the rear connection is made with the HIVE Flow and HIVE Wood heaters, a section of the stone cage needs to be cut to make room for the connection. The sauna stove is connected to the chimney flue with special flue pipes that may be caulked with heat-resistant sealing rope, when necessary.
Curves of the elbows of the connection pipes must be smooth to minimise draught loss. The pipe is inserted through the wall of the chimney and then sealed with mineral wool. The flue gases of the stove must be directed into a separate flue. It is forbidden to use a common flue that is utilised with other furnaces.
As specified by HUUM, utilisation of forced extract ventilation might cause problems with air exchange of the room and insufficiency of furnace combustion air; therefore, designing and constructing such ventilation systems is permitted only on the sole responsibility of a licensed specialist.
About HUUM
HUUM is the leading manufacturer when it comes to unique designs and technology. HUUM has been awarded for their innovative and stylish sauna products. In 2015, the DROP sauna heater won the Red Dot Award for Product Design. The inspiration for the HUUM products come from nature. Combined with age-old sauna knowledge, smart technology and modern Nordic design, the HUUM heaters are a stylish and robust choice for any sauna. The amount of stones in HUUM heaters are optimised for the perfect, soft steam experience. The innovative HUUM heaters are easy to use and have all been UK CA-certified.
If you want to learn more about our HUUM heaters and explore more options, click on the following link: Our HUUM sauna heater collection.
