Description
Description

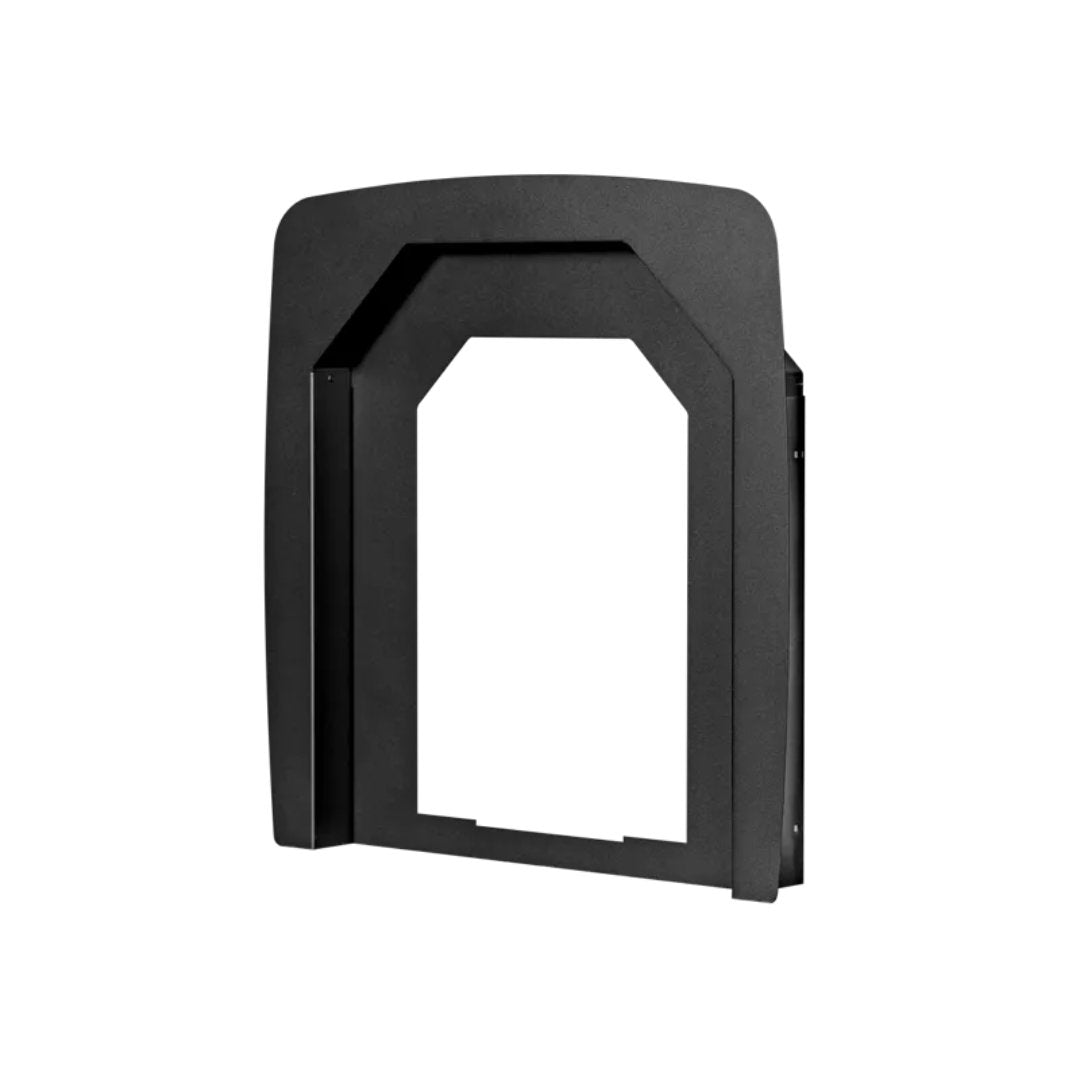

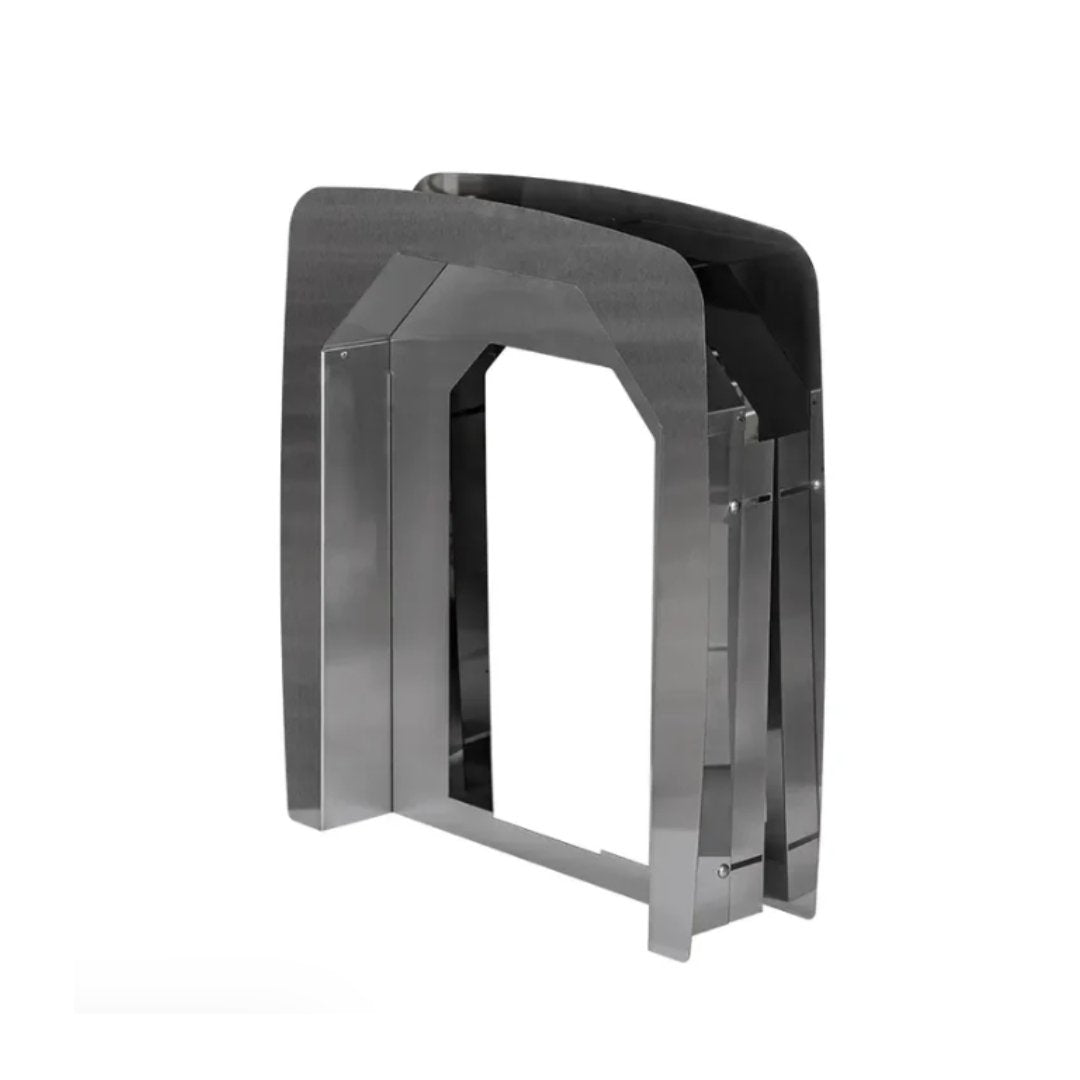

The HUUM mounting collar gives a HIVE Flow LS (Tunnel) wood-burning sauna heater a clean, finished junction where the firebox tunnel passes through the wall. It is designed for installation through a non-combustible wall and adjusts to suit wall thicknesses from 100 mm to 150 mm. The set includes the inner and outer flanges, a cover for the sauna-room side and a plinth plate, which is needed only when the heater stands on the HUUM protective bedding. Two finishes are available: 2 mm stainless steel and black heat-resistant coated aluminium.
Features
Technical Specification
| Compatibility | HUUM HIVE Flow LS (Tunnel) wood-burning sauna heaters |
| Finishes | 2 mm stainless steel; black heat-resistant coated aluminium |
| Wall type | Non-combustible walls only |
| Wall thickness adjustment | 100–150 mm |
| Set includes | Inner flange, outer flange, sauna-room-side cover, plinth plate (needed only with the HUUM protective bedding) |
| Part numbers | H3016021 (Stainless Steel); H3016031 (Black) |
Installation
The collar is assembled by fitting the inner flange inside the outer flange with the supplied fasteners, then adjusting the depth to the wall: the minimum position suits a 100 mm wall and the maximum position a 150 mm wall. It is designed solely for installation through a non-combustible wall, and the minimum wall and opening dimensions for the HIVE Flow LS and Flow Mini LS are set out in the fitting guide in the Downloads tab. The collar is fixed with a heat-resistant silicone compound (not included) or screwed to the wall material, and the sauna-room cover is fitted last, once the heater sits in its final position with the door moving and locking freely. Solid-fuel installations must follow the heater manual and building regulations.
Brand
HUUM is an Estonian sauna manufacturer known for minimalist design and smart heater technology; its DROP heater won the Red Dot Award for Product Design in 2015.
Ordering note
Check your heater model before ordering: the fitting guide gives different collar and wall-opening dimensions for the HIVE Flow LS and the HIVE Flow Mini LS, so confirm which tunnel model you own.
