Kastor Karhu T Wood- Burning Sauna Stove (Through-the-Wall)
NOTE:
This product has a lead time, please get in touch for more specific timescales

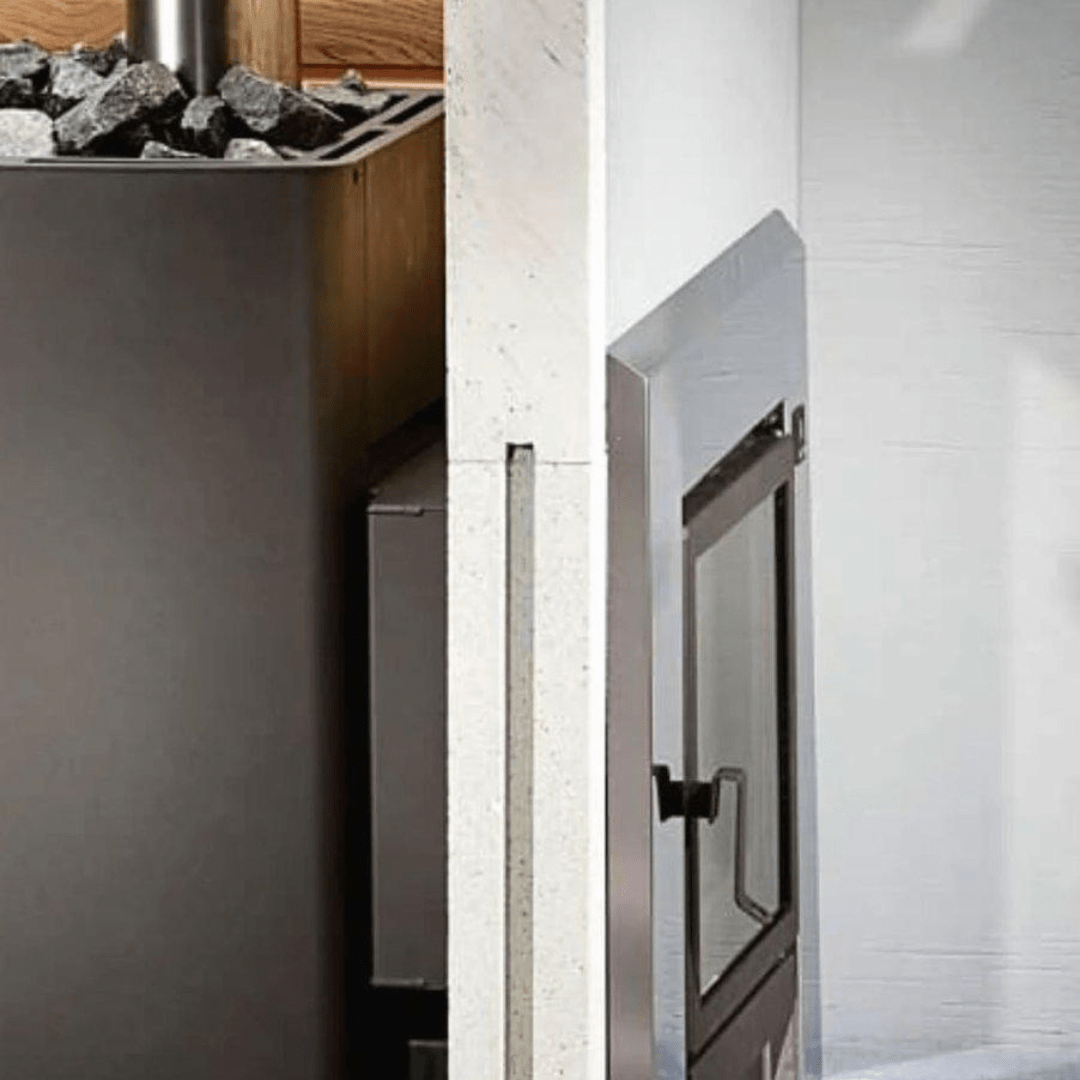

The atmospheric Kastor Karhu T, “Bear”, tunnel wood- burning sauna heater - also known as a fireplace-style sauna heater- seamlessly combines the ambience of a traditional wood-burning sauna with the inviting glow of a fireplace. Ingeniously designed, the heater unit is positioned within the sauna, while the fireplace door opens into an adjacent room - whether that's a dressing room, relaxation lounge, or a living area.
This refined configuration allows you to enjoy the invigorating "löyly" (sauna steam) before transitioning to the warmth and atmosphere of the fireplace. Beyond creating a multi-sensory experience, the Kastor Karhu T also provides efficient secondary heating for the adjoining space, while keeping your sauna floor pristine by ensuring any wood debris remains outside the sauna.
Meticulously crafted with clean, elegant lines, the Kastor Karhu T complements both modern and traditional sauna interiors. Its expertly engineered firebox and optimised stone compartment deliver lightweight handling without compromising on superior heat performance and longevity.
Each Kastor Karhu T heater is CE-marked for safety, equipped with adjustable legs for effortless installation and features a 115mm internal flue diameter. Available in models designed for sauna volumes ranging from 12m³ to 30 m³, it offers tailored heating solutions for various sauna sizes.
Please note: The front frame is sold separately.
*Suitable amount of sauna stones, flue kit, front frame and heat shielding to be purchased separately.
Browse our sauna flue kits and chimney parts.
Please find the dimensions, recommended stone capacity and technical details in the downloadable files tab, p.32 in the Karhu Home Installation Manual.
Model: |
Recommended Sauna Size: |
Kastor Karhu 22-T |
12-22m3 |
Kastor Karhu 30-T |
20-30m3 |
Kastor Karhu 40-T |
30-40m3 |
Please see the Technical Specification tab above for detailed dimensions.
About our Supplier Helo
Helo has brought health and wellbeing to people all over the world for over 100 years. Founded in 1919, it was the first manufacturer of electric sauna heaters. With innovative technology, smart functionality and stylish design, Helo sauna products upgrade the everyday sauna experience.
Helo electric sauna heaters are made of high-quality materials and handcrafted in Hanko, Finland. True to their Finnish origin, the company is creating opportunities for everyone to experience the Nordic sauna no matter where you are in the world.
Helo is a part of the global Sauna360 group, creating top quality sauna products to be a part of everyday healthy living. The incorporated brands of Sauna360 represent traditional Nordic sauna, steam and infrared wellness experiences for a modern lifestyle.
If you want to browse our wider selection of the Helo Sauna Heaters, click on the following link: Helo Wood Burning Sauna Stoves Collection
Click on the technical specification tab to learn more about the Kastor Karhu models.
Kastor Karhu Wood Burning Sauna Stove Specification
Model: |
Karhu 22 |
Karhu 30 |
Karhu 40 |
Power |
14kW |
17kW |
15kW |
Sauna room size (m3) |
12-22m3 |
20-30m3 |
30-40m3 |
Safety Distances: |
|
|
|
To the sides |
300mm |
300mm |
300mm |
To the front |
500mm |
500mm |
500mm |
To the back |
300mm |
300mm |
300mm |
Upwards |
1240mm |
1310mm |
1300mm |
Dimensions: |
|
|
|
Width |
450mm |
490mm |
580mm |
Height |
785mm |
915mm |
925mm |
Depth |
485mm |
485mm |
585mm |
Weight without stones |
64.5kg |
89kg |
129kg |
Stone capacity |
25-30kg |
35-40kg |
50-55kg |
Kastor Karhu V Wood Burning Sauna Stove with Integrated Water Tank Specification
Model: |
Karhu 22 V |
Karhu 30 V |
Karhu 40 V |
Power |
14kW |
17kW |
15kW |
Sauna room size (m3) |
12-22m3 |
20-30m3 |
30-40m3 |
Safety Distances: |
|
|
|
To the sides |
300mm |
300mm |
300mm |
To the front |
500mm |
500mm |
500mm |
To the back |
300mm |
300mm |
300mm |
Upwards |
1240mm |
1310mm |
1300mm |
Dimensions: |
|
|
|
Width |
620mm |
660mm |
740mm |
Height |
785mm |
915mm |
925mm |
Depth |
485mm |
485mm |
585mm |
Weight without stones |
71kg |
90kg |
131kg |
Stone capacity |
25-30kg |
35-40kg |
50-55kg |
Kastor Karhu T Wood Burning Sauna Stove Tunnel Model Specification
Model: |
Karhu 22 T |
Karhu 30 T |
Karhu 40 T |
Power |
14kW |
17kW |
15kW |
Sauna room size (m3) |
12-22m3 |
20-30m3 |
30-40m3 |
Safety Distances: |
|
|
|
To the sides |
300mm |
300mm |
300mm |
To the front |
500mm |
500mm |
500mm |
To the back |
50mm |
50mm |
50mm |
Upwards |
1240mm |
1310mm |
1300mm |
Dimensions: |
|
|
|
Width |
450mm |
490mm |
580mm |
Height |
785mm |
915mm |
925mm |
Depth |
485mm |
485mm |
585mm |
Weight without stones |
91kg |
116kg |
156kg |
Stone capacity |
25-30kg |
35-40kg |
50-55kg |
Kastor Karhu Pata Wood Burning Water Tank Specification
Model: |
Karhu Pata Water Tank 60 |
Power |
15kW |
Sauna room size (m3) |
- |
Safety Distances: |
|
To the sides |
500mm |
To the front |
500mm |
To the back |
500mm |
Upwards |
|
Dimensions: |
|
Width |
410mm |
Height |
775mm |
Depth |
570mm |
Weight without stones |
42kg |
Stone capacity |
- |
