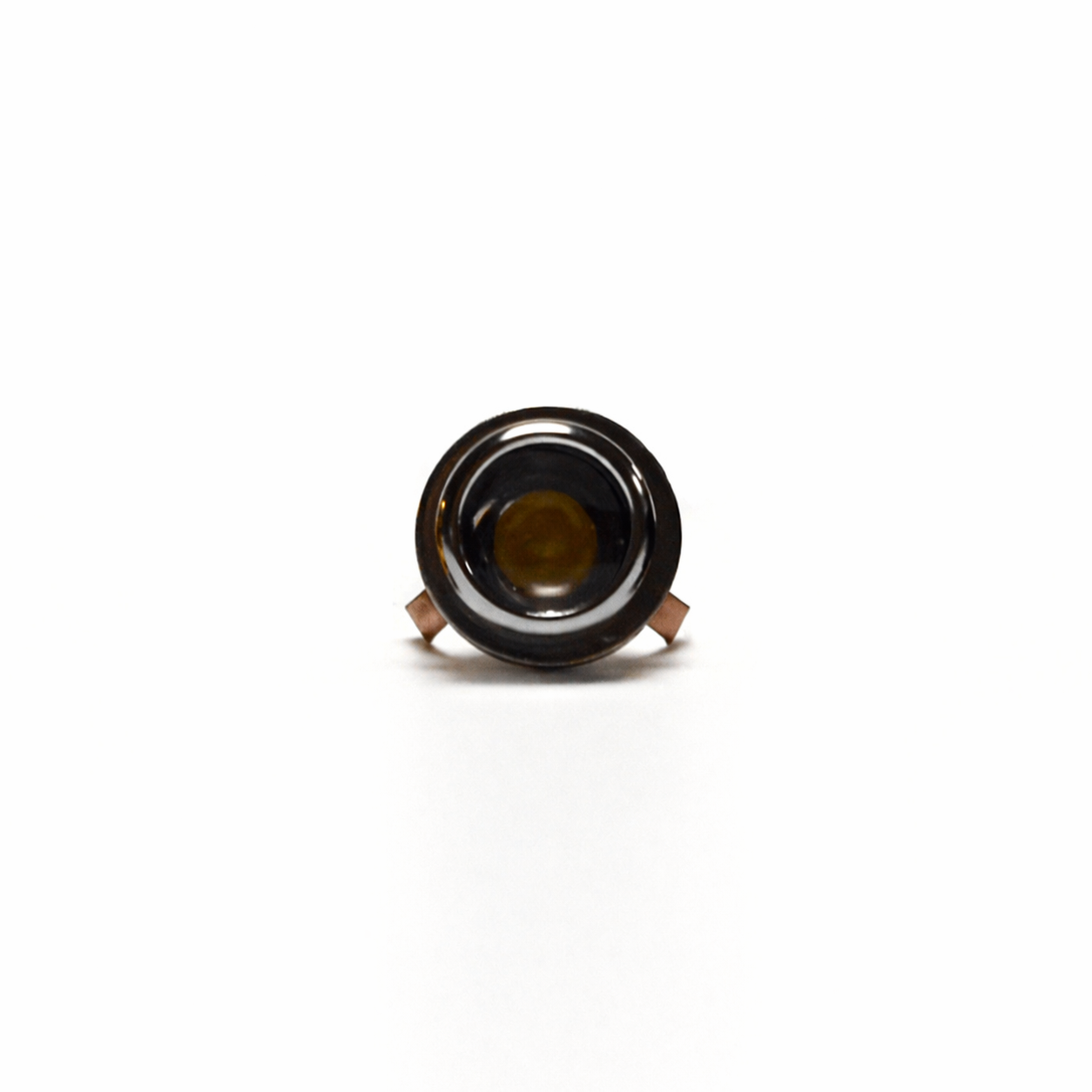

LEDIFY KiuasLED Sauna Heater Spot Light

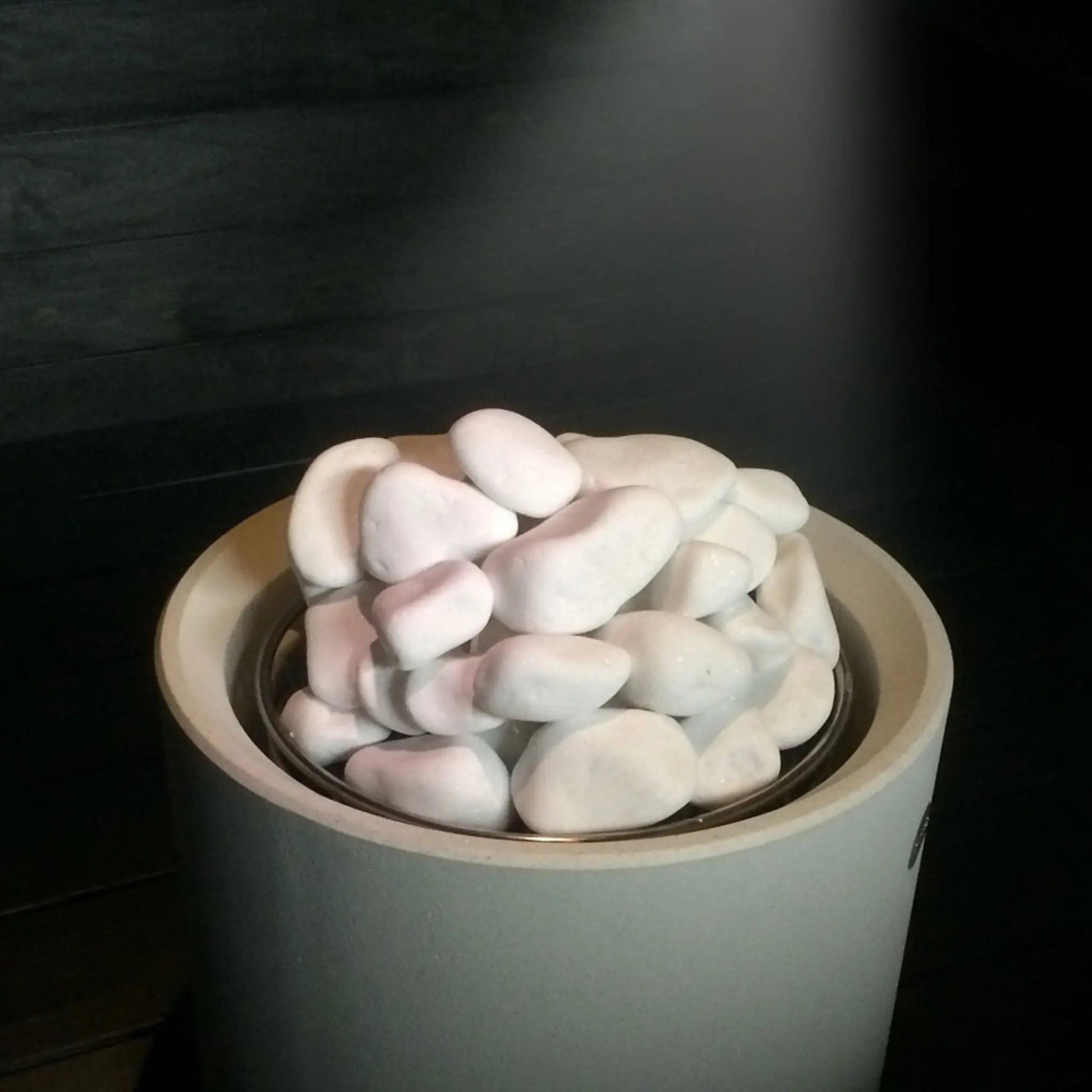

Made in Finland by sauna lighting specialists LEDIFY the KiuasLED is suitable for installation in both wood and electric saunas. The KiuasLED easily withstands the steam and heat rising from the sauna heater making it a superb choice for illuminating areas such as stone walls behind heaters. The beam angle of the KiuasLED is a narrow 15° meaning the illumination is applied beautifully to your desired area. The KiuasLED has a light colour of 3000K meaning it is the same warm and atmospheric shade as the others in the  LEDIFY SaunaLED series. The LEDIFY KiuasLED comes with its own 5m long cable and if necessary, you can connect a total of 10 meters of wire (2 x 5m), allowing reach for large rooms. The KiuasLED is also fully suitable for use with solar panels, because of its 12V voltage.

Technical specifications

• KiuasLED luminaire
• Voltage 12 V
• Power 0,35 W/LED
• Colour temperature 3000K warm white
• Protection rating IP54
• Mounting hole 12mm5 m connecting cable

Installation Instructions

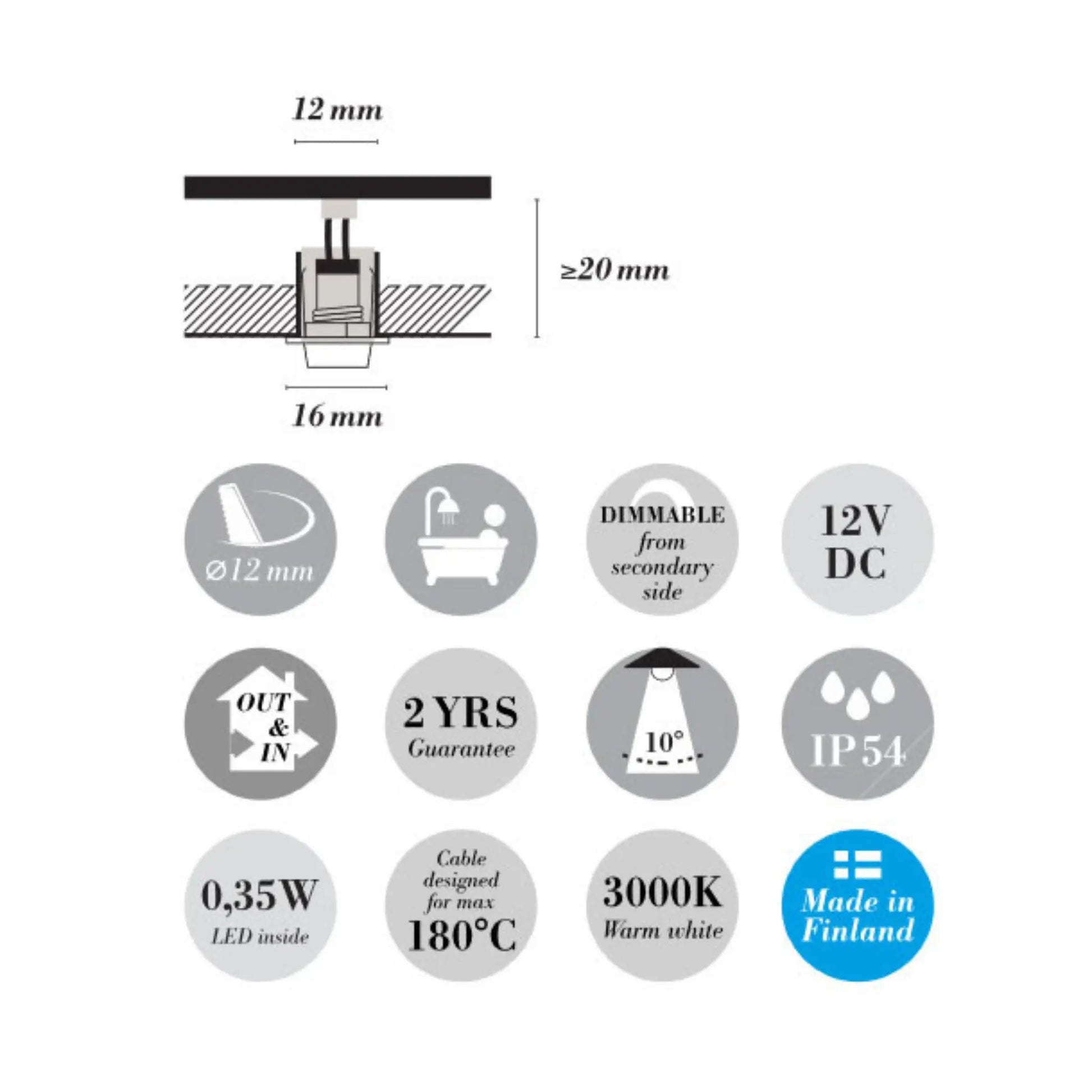

The installation of LEDIFY KiuasLED is quick and easy for a professional. The mounting hole for each lamp is Ø 12 mm. The KiuasLED lamp is attached to this hole by its springs which will open up. Each lamp has a 15cm-long cable with quick coupling, which can be easily be attached to 5m connecting cable with quick coupling as well. The cables of KiuasLED are heat resistant up to +180°C so they are suitable to use in sauna installation according to all the requirements. The KiuasLED lamp can be replaced with a new one even after years of use because of the easy quick couplings. (The exchange is done by pulling out the old lamp from the mounting hole, disconnect the wiring quick couplings, connect the new lamp with the old cable and insert a new lamp into place.)

KiuasLED wiring should be mounted behind the sauna wall or behind of the roof structures. The 5m connecting cables will be attached to the 16-pin connector of SaunaLED series with quick connector. 16-pin connector is IP20 and therefore it has to be placed in a dry place. It can be placed behind the wall structures. 5m-long cable attaches 16-pin connector to the transformer with a plug.

SaunaLED IP20 transformer should be placed in a dry place with normal room temperature, e.g. in the ceiling of shower room or in the dressing room behind sauna. If the transformer is installed in the sauna room, it has to be placed max. 1 m in height. In the sauna room or outdoors the transformer has to be protected from water and moisture and cased in order to achieve minimum of IP44 protection rating.
