Kota Insulated Steel Flue / Chimney Kit 24 D-150mm & Extension Tubes
New simple, complete and installation-ready flue kit
Kota Steel Flue Kit 24 is a high-quality and safe choice for sauna heaters and other heat installation units. The kit includes all necessary parts and accessories required for installation and connection of the flue. During the products design, particular attention has been paid to fire-safety and insulation of the flue around the ceiling feed-through. The modular design of the steel flue enables the flue to be installed simply, with consideration for the specific conditions of a particular building.
The outer casing of the flue is made of zinc-coated steel finished with black heat-resistant paint. The diameter of the flue is 280 mm. The flue is insulated with fire-resistant mineral wool. The inner tube with a diameter of 150 mm is made of stainless steel. The flue is also equipped with a permanently installed damper. The Kota Steel Flue Kit is CE-marked, confirming that the flue complies with the requirements of European fire safety class T600 regulations.
The kit includes all parts and accessories needed for installation and connection of the flue!

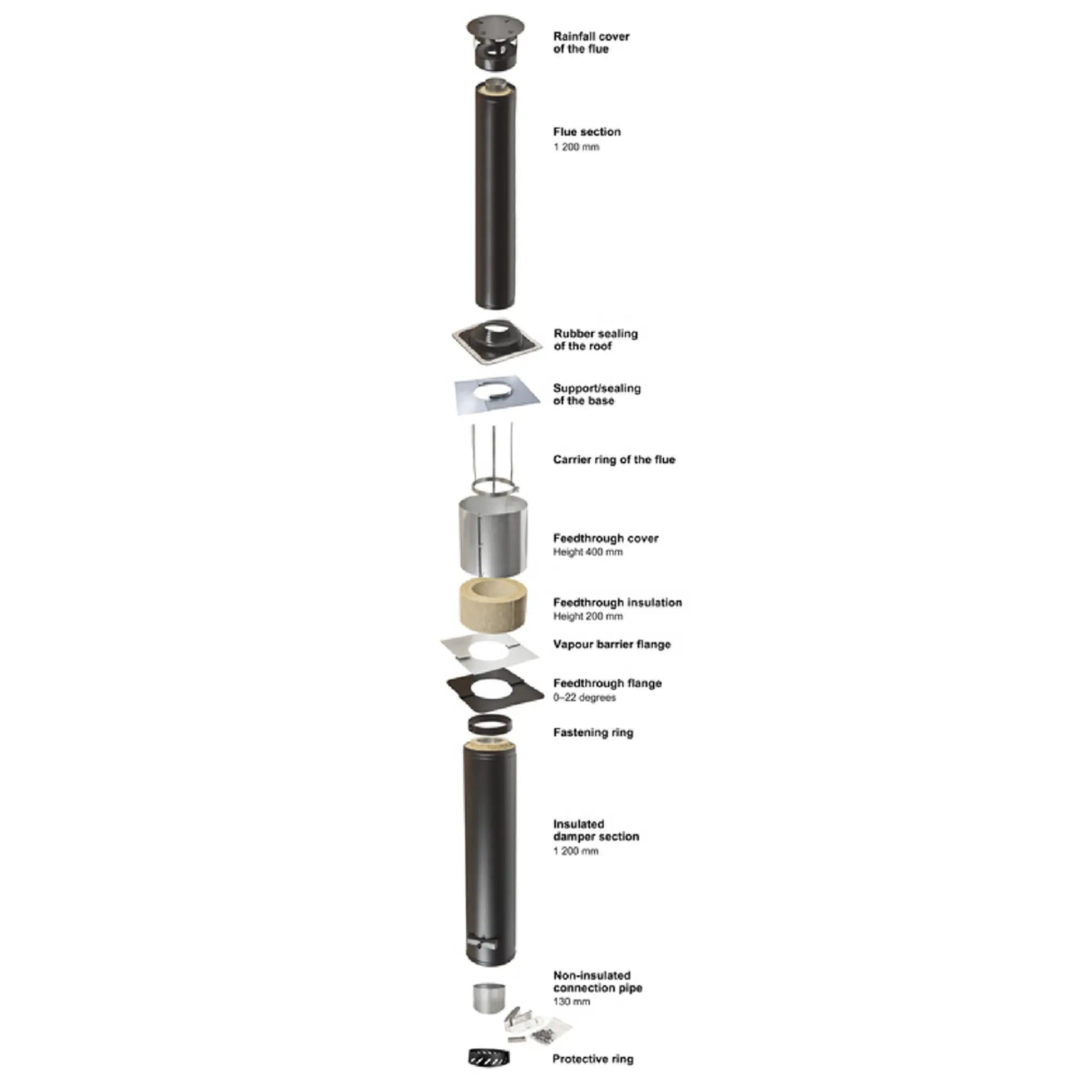

The length of the insulated section of the Kota Steel Flue 24 is 2400 mm and it includes all parts needed for installation:
The maximum size of the main kit without extension sections is approximately 2530 mm.
1200 mm insulated damper section and 1200 mm flue section (inner diameter of the pipe is 150 mm).
- Protective ring.
130 mm non-insulated, stainless steel connection pipe (inner diameter 150 mm).
- Fastening ring.
- Feedthrough flange 0–22°.
- Vapour barrier flange 0–22° and vapour barrier tape.
- Feedthrough insulation 200 mm.
- Feedthrough cover, height 400 mm.
- Carrier ring of the flue with perforated band.
- Support of the base.
- Rubber sealing of the roof.
- Rainfall cover of the flue.
- By using the modular flue kit and insulated extension sections you can build a flue with the exact height requirements your build needs.
All Kota sauna chimney and flue products are CE tested and bear the Finnish Key Flag Symbol. This is awarded to sauna equipment that is made and designed in Finland, where over 95% or more of the production must be within Finland itself. There are many brands that claim to be made in Finland but are actually made in the Far East or Russia and merely assembled or labeled in Finland. Watch out for these symbols as a mark of an authentic, Finnish-made, safe, quality product:
As part of Finnmark Sauna's Endurance Ethos, we only deal in products that are market leaders in quality. We commit ourselves to search exhaustively for the highest quality authentic Finnish sauna products.
Please note, we recommend that sauna heaters and flue systems should be installed by a suitably qualified electrician/builder/plumber/fitter. Finnmark Limited accepts no liability for loss or injury caused by the incorrect installation of your sauna heater. Please Contact Us if you require information on our recommended fitters.
