Description
Description

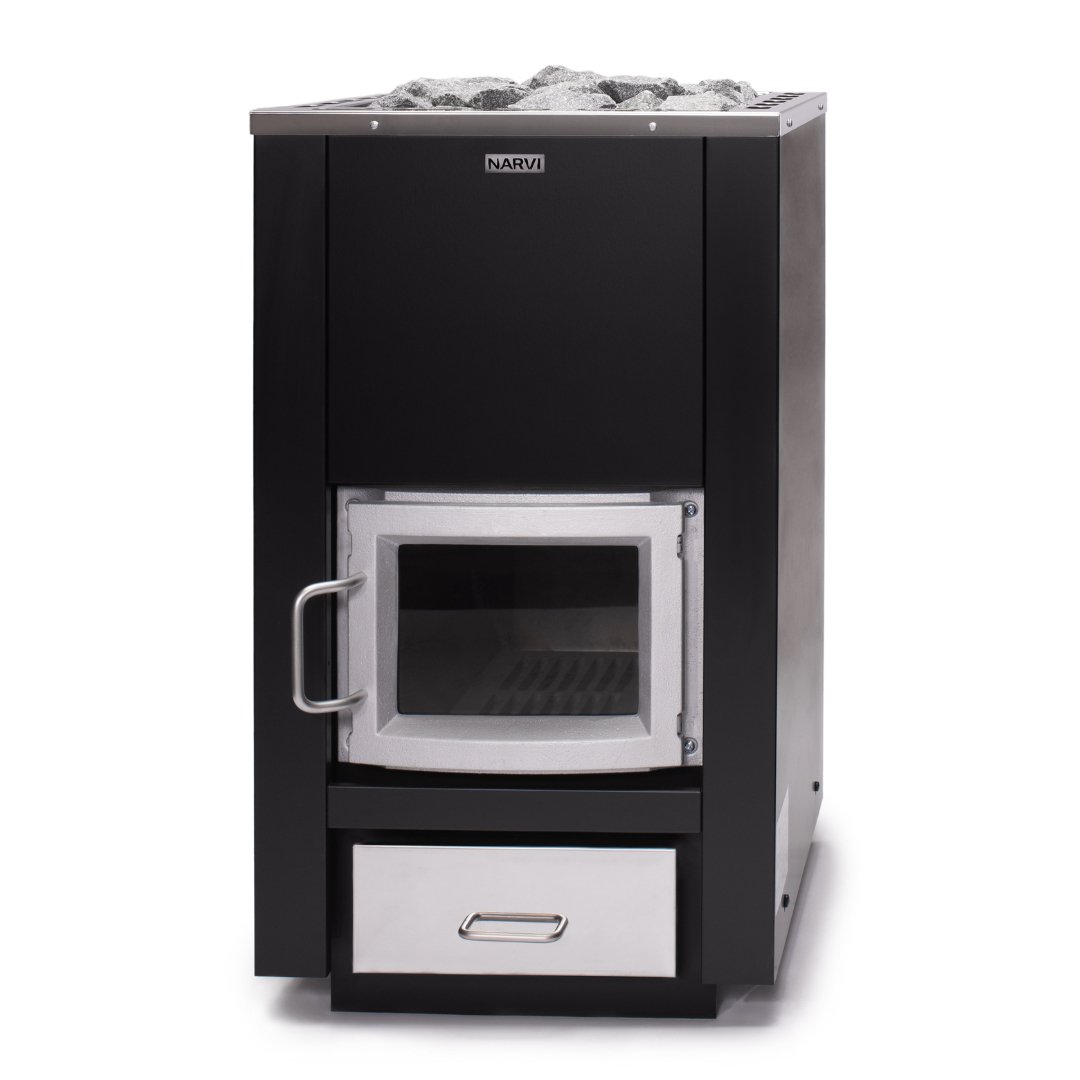

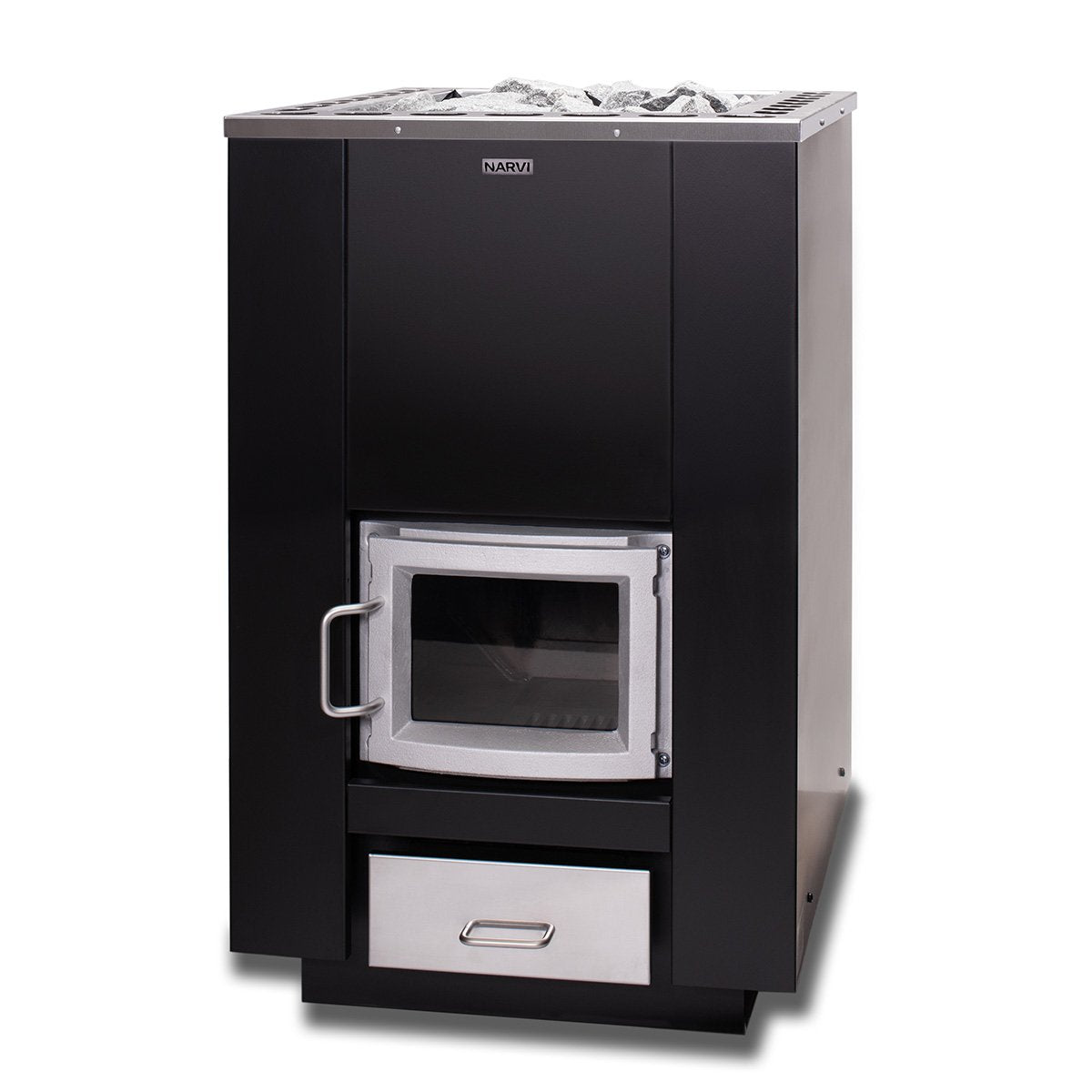

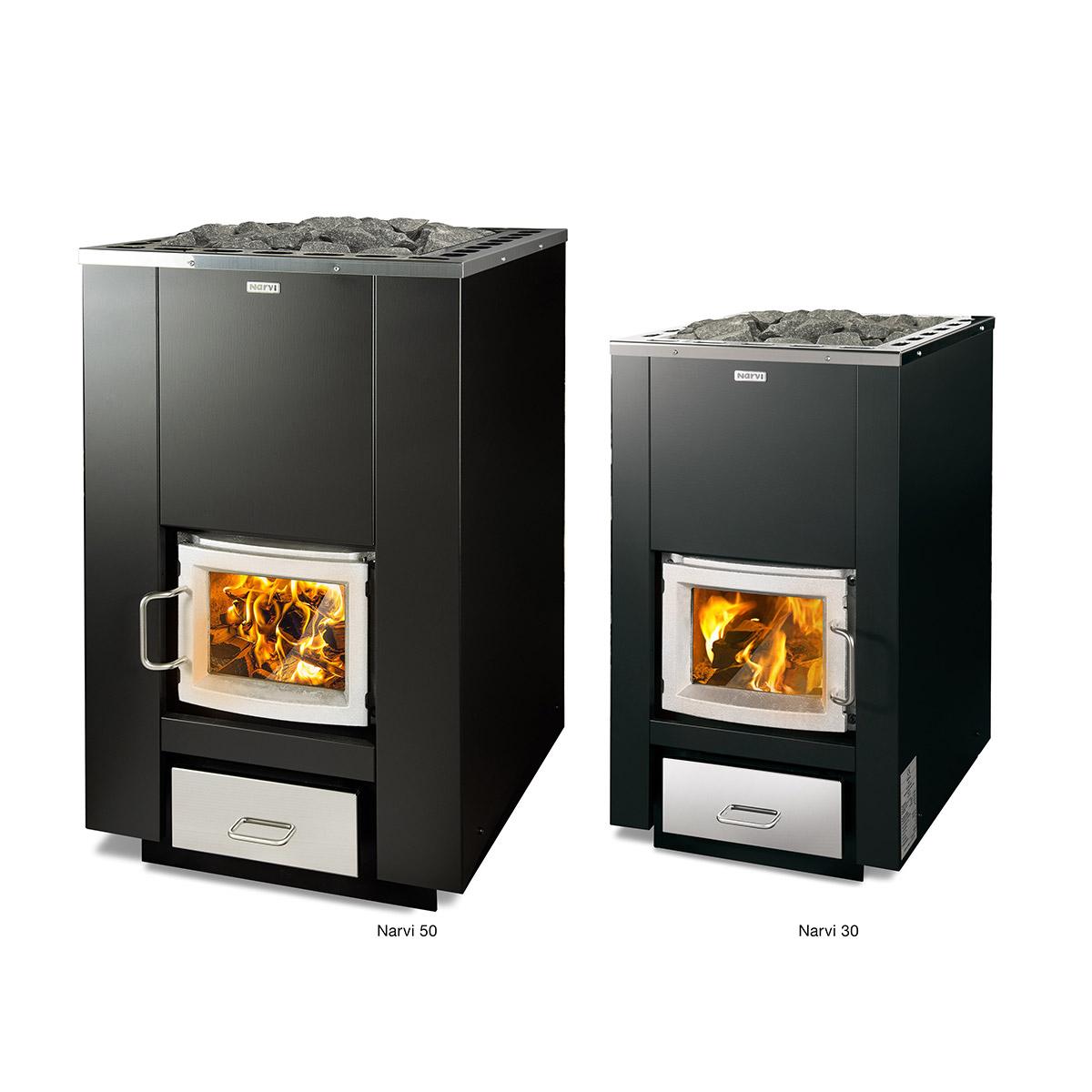

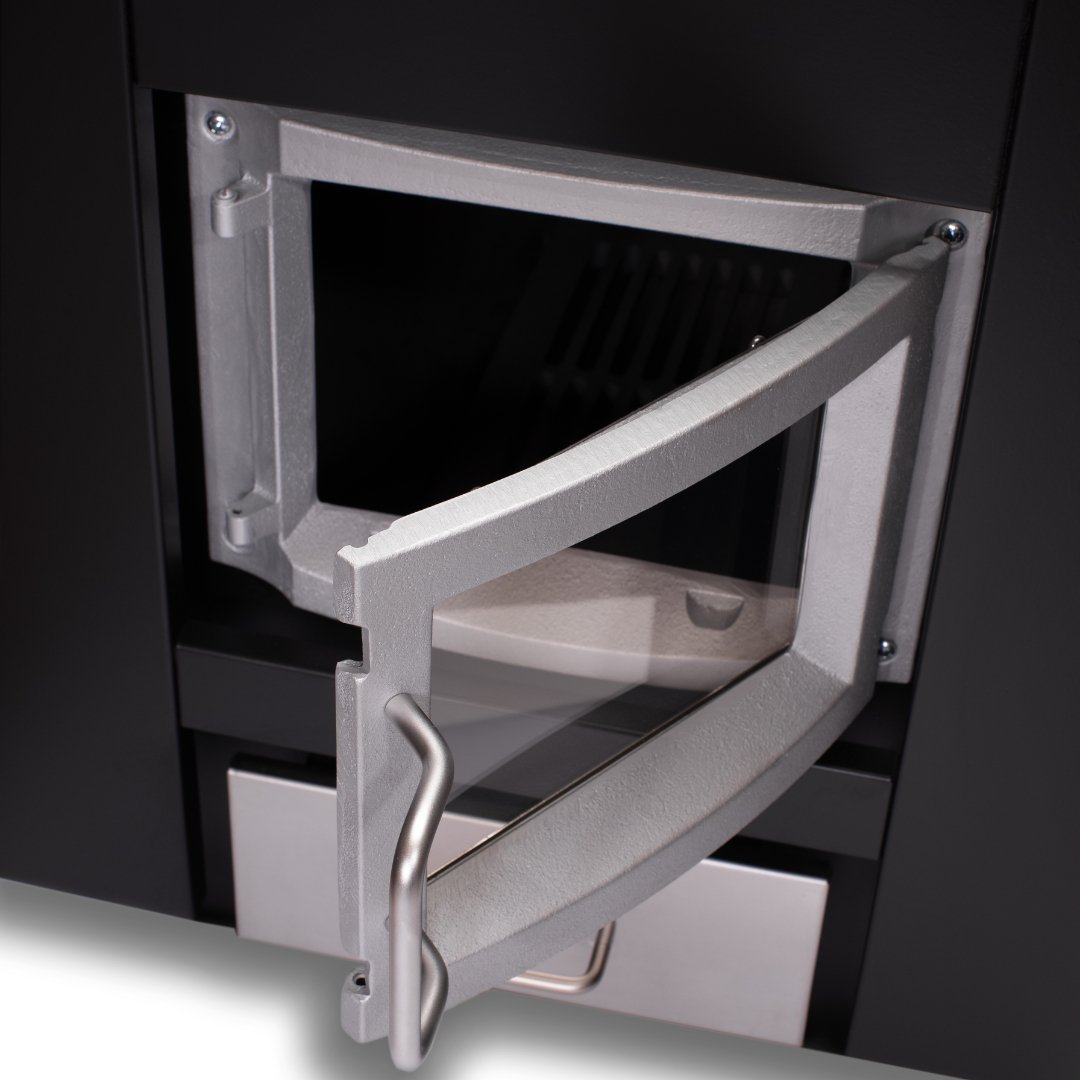

The Narvi 30 and Narvi 50 are Narvi’s largest wood-burning sauna heaters, built for big domestic and commercial saunas where size must not compromise the quality of the löyly. The Narvi 30 serves steam rooms of 20–30 m³ (and is suitable up to 35 m³), while the Narvi 50 heats 45–70 m³, their 65 kg and 100 kg stone capacities holding the steady heat these spaces demand. A wide door aperture makes loading fuel easy, the cast iron glazed door shows the flames and spreads an even burn, and wooden handles with a cast iron latch stay pleasantly cool in use. The firebox cover is 10 mm steel on the 30 and 15 mm on the 50, in keeping with Narvi’s quality-first ethos and low-emissions record; the Narvi 50 is supplied with the stove chimney adapter (part no. 6180). Both models are also available as tunnel versions, listed separately, and a suitable flue kit and 65–100 kg of sauna stones are purchased separately.
Features
Technical Specification
| All models | |
| Casing | Black painted steel |
| Chimney connection | Top of heater |
| Recommended stones | 65–100 kg of 10–15 cm olivine dolerite or vulcanite, sold separately |
| Narvi 30 | |
| Steam room volume | 20–30 m³ (suitable up to 35 m³) |
| Dimensions (H × W × D) | 950 × 535 × 670 mm |
| Weight (without stones) | 150 kg |
| Stone capacity (Ø 10–15 cm) | 65 kg |
| Connective flue outer diameter | 119 mm |
| Flue connection height from floor | 710 mm |
| Firebox cover thickness | 10 mm |
| Maximum firewood length | 500 mm |
| Safety clearances (sides / front / above / rear) | 350 / 500 / 1,250 / 350 mm (1,000 mm maintenance area recommended in front) |
| Narvi 50 | |
| Steam room volume | 45–70 m³ |
| Dimensions (H × W × D) | 1,100 × 670 × 850 mm |
| Weight (without stones) | 275 kg |
| Stone capacity (Ø 10–15 cm) | 100 kg |
| Connective flue outer diameter | 145 mm |
| Flue connection height from floor | 1,740 mm (top connection, 60° connection pipe included) |
| Firebox cover thickness | 15 mm |
| Maximum firewood length | 650 mm |
| Safety clearances (sides / front / above / rear) | 500 / 1,000 / 1,250 / 500 mm |
| Included with Narvi 50 | Stove chimney adapter, part no. 6180 |
Installation
The heater connects to the chimney from the top via a 119 mm (Narvi 30) or 145 mm (Narvi 50) connective flue; the Narvi 50 includes a 60° connection pipe. The smoke flue must meet class T600, a modular flue must be CE-marked with a minimum 120 mm diameter, and the recommended minimum draught is 12 Pa. The heater may stand directly on a concrete floor at least 50 mm thick; combustible or tiled floors, or floors with underfloor heating, require an installation base with a metal plate extending 400 mm in front of the firebox. Safety clearances can be reduced with single or double protective screens as set out in the manual. Installation must follow the installation manual in the Downloads tab and local building regulations, and we recommend that the heater is fitted by a suitably qualified installer.
Sauna stones
Use 10–15 cm olivine dolerite or vulcanite sauna stones, sold separately: 65 kg for the Narvi 30 and 100 kg for the Narvi 50, washed before use and stacked loosely so air moves freely between them. Regular-shaped, light or ceramic stones must not be used.
Brand
Narvi Oy is a Finnish maker of wood-burning sauna heaters. Narvi heaters are CE tested and carry the Finnish Key Flag, awarded to products designed and made in Finland.
Warranty
The warranty on this wood-burning sauna heater is 1 year.
