Description
Description

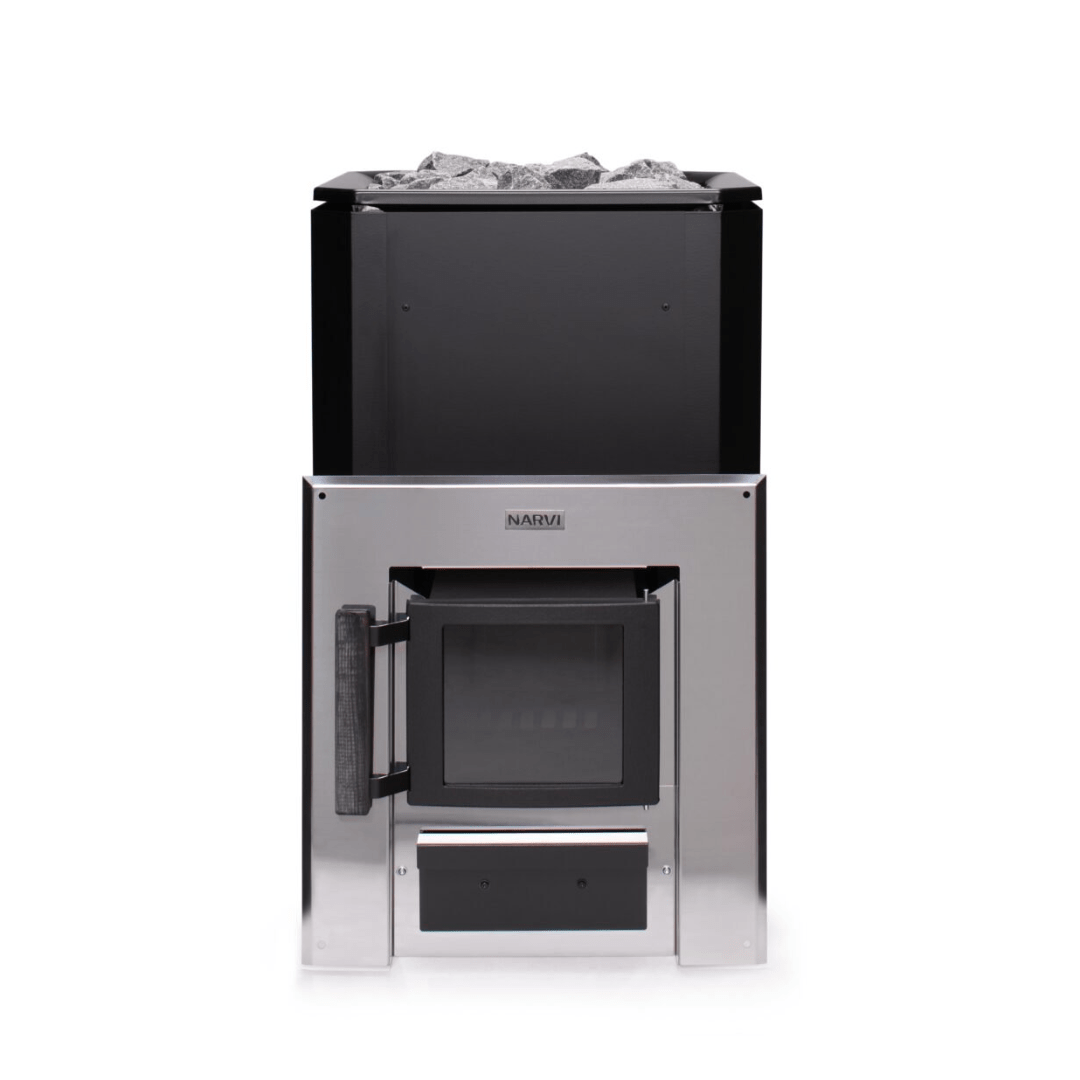

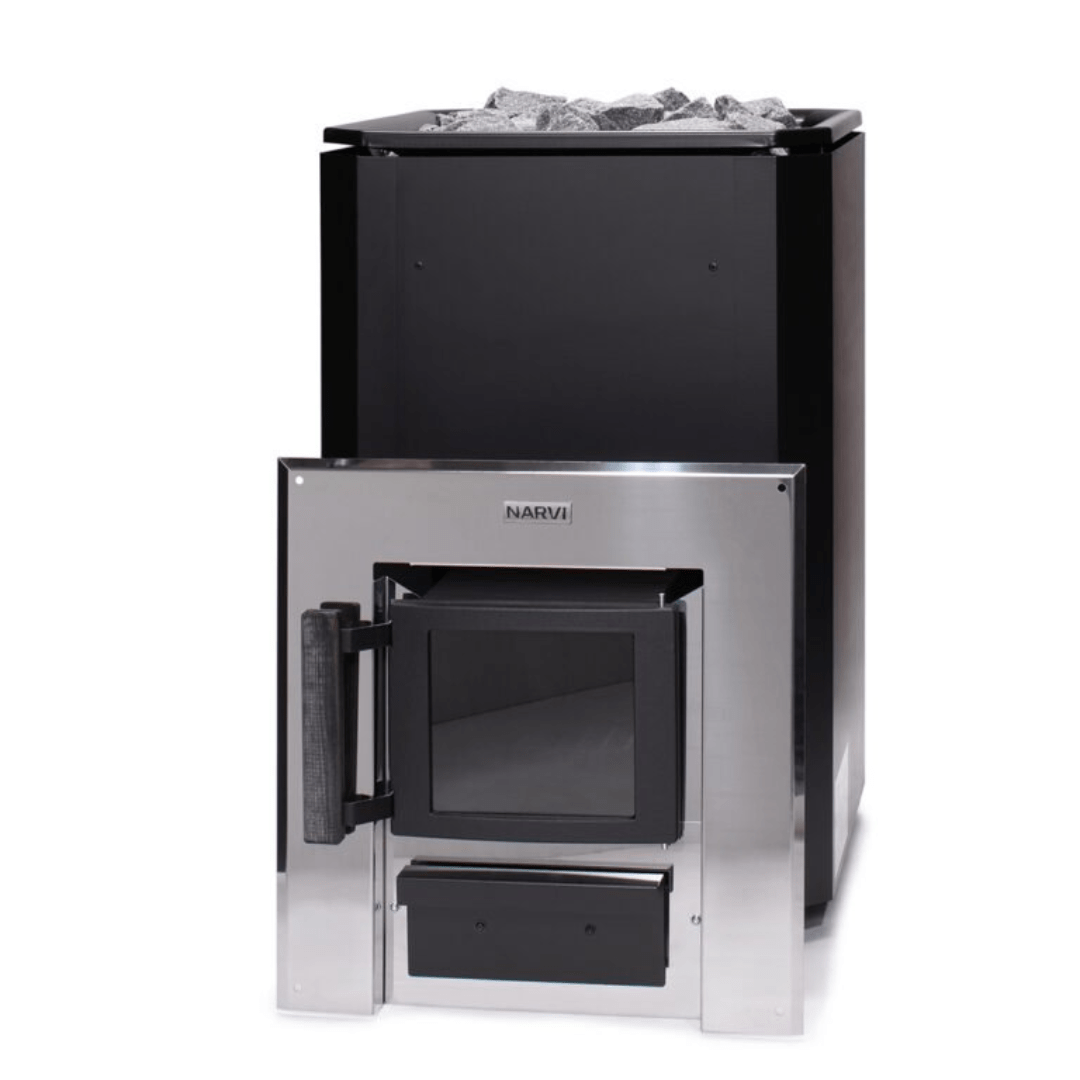

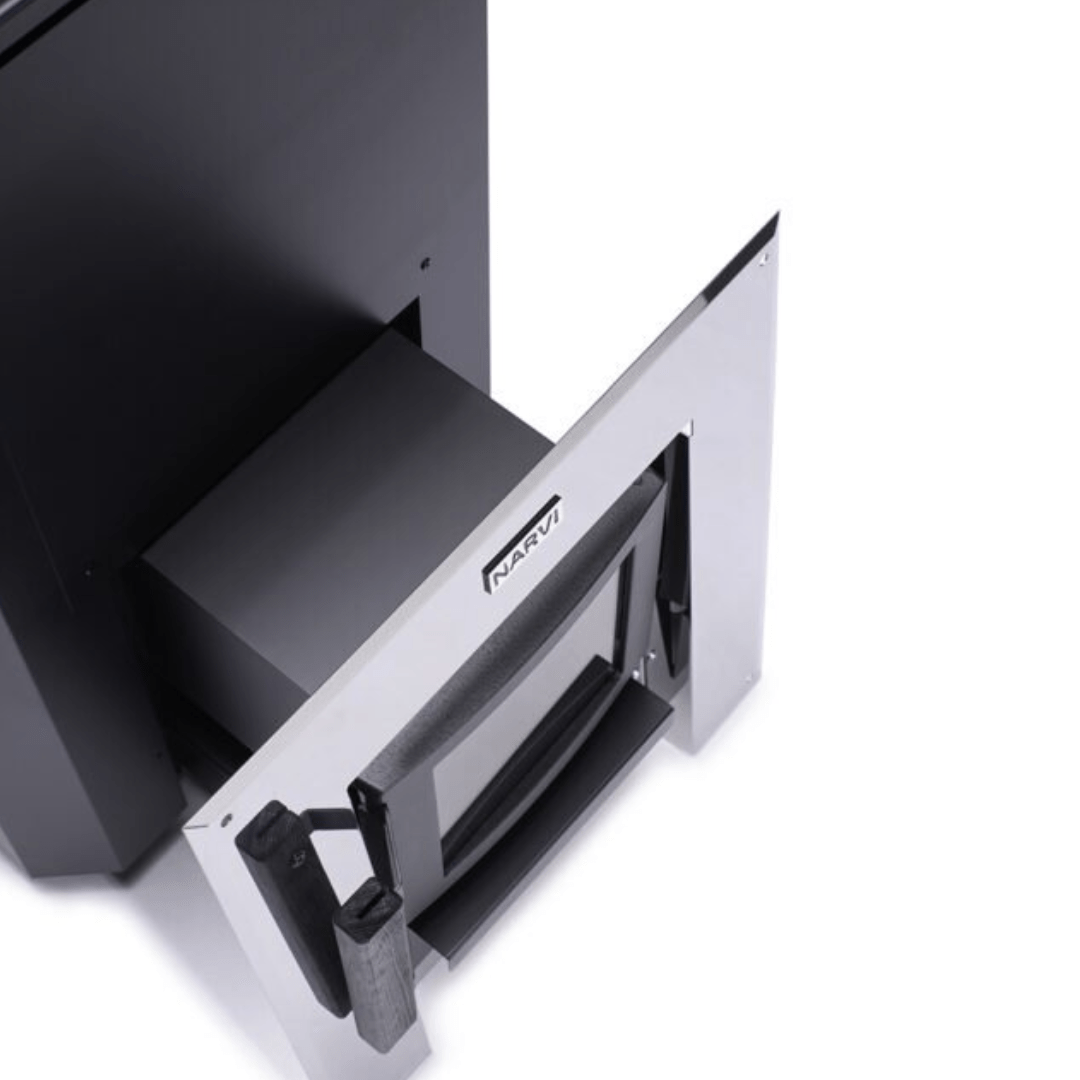

The Narvi Black 20 ST is the through-the-wall version of Narvi’s Black 20, fired from the adjoining room through a tunnel section so the sauna itself stays clean and uncluttered while the glazed door warms the room next door. Suited to sauna rooms of 10–20 m³, it holds 60 kg of stones for a long, consistent löyly, with a full-width fire grate and secondary air directed beneath the ash pan for a cleaner, more efficient burn. The firebox is topped with a 10 mm stainless steel roof, the door is glazed cast iron, and adjustable legs make levelling straightforward. The flue kit and sauna stones are sold separately; we recommend the Kota insulated steel chimney kit and 10–15 cm olivine diabase or vulcanite stones.
Features
Technical Specification
| Model | Narvi Black 20 ST (through-the-wall tunnel model) |
| Recommended sauna room volume | 10–20 m³ |
| Nominal heating output | 21 kW (EN 15821:2010) |
| Total efficiency | 68% |
| Dimensions (H × W × D) | 760 × 480 × 500 mm |
| Depth of tunnel section | 171 mm |
| Height adjustment (legs) | ±15 mm |
| Weight without stones | 65 kg |
| Stone capacity | 60 kg (10–15 cm stones) |
| Flue outlet diameter | 119 mm |
| Flue connection | Top; 680 mm from the floor |
| Recommended flue draught | 12 Pa |
| Maximum firewood consumption | 7 kg per hour |
| Safety clearances | |
| To the sides | 300 mm |
| To the front | 500 mm (a 1,000 mm maintenance area in front is recommended) |
| Above the heater | 1,270 mm |
| To the rear | 200 mm |
Installation
Installation should be carried out by a suitably qualified installer and must follow the installation manual in the Downloads tab and local building regulations. For the through-the-wall installation the wall opening is lined and the floor in front of the stoking door is protected with non-combustible material extending at least 100 mm to both sides of the door and 400 mm in front. Firewood should be dry split logs of around 5 cm diameter and 33 cm length.
Sauna stones
Sauna stones are purchased separately. This heater takes 60 kg, and Narvi recommends 10–15 cm olivine diabase or vulcanite stones.
Brand
Narvi is a Finnish maker of wood-burning sauna heaters. All Narvi heaters are CE tested and carry the Finnish Key Flag, awarded to products designed and made in Finland.
Warranty
The warranty on this heater is 2 years in private use.
