Narvi Minex Domestic Electric Sauna Heater
Narvi Minex Domestic Electric Sauna Heater
Couldn't load pickup availability
Buy together with:
Description
Description

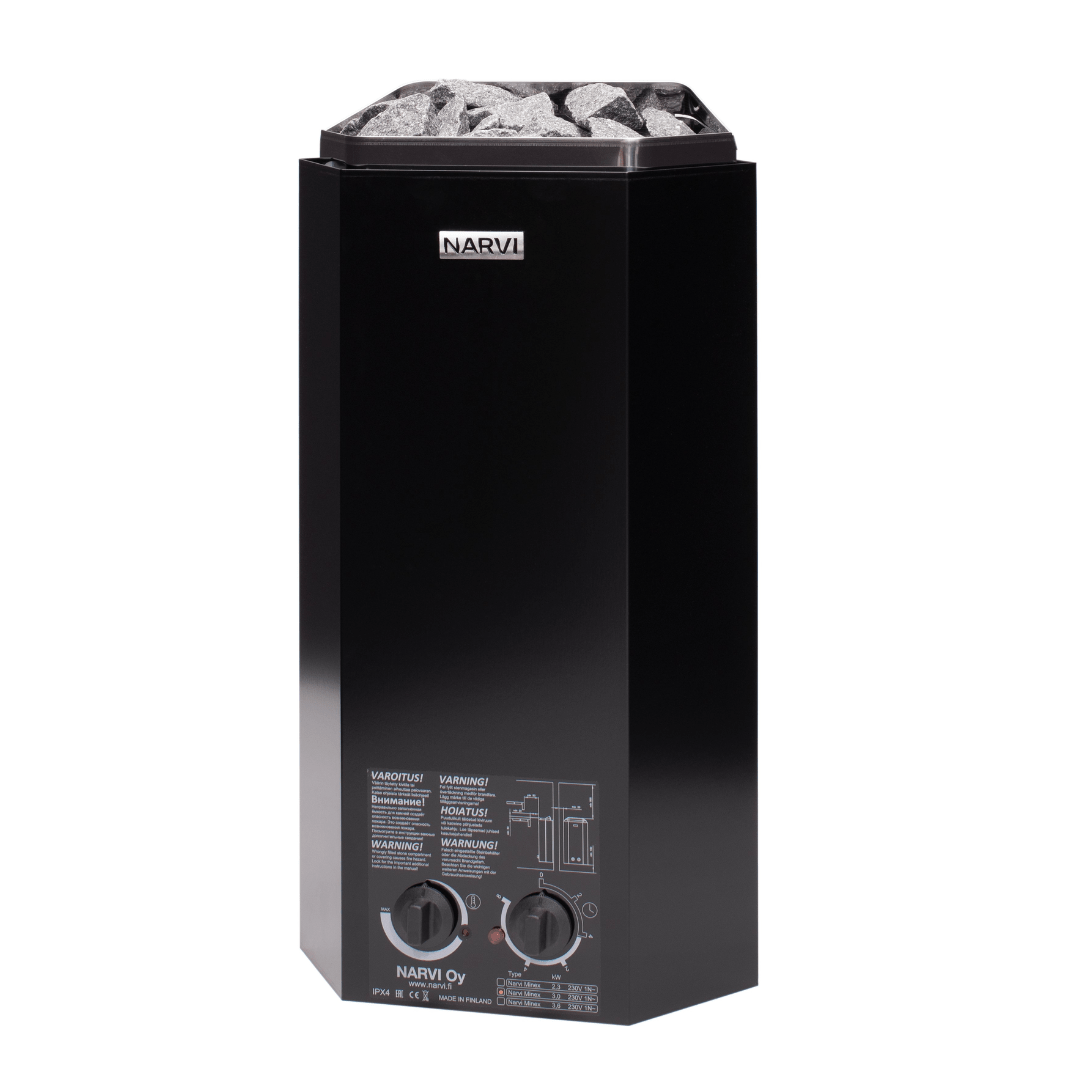

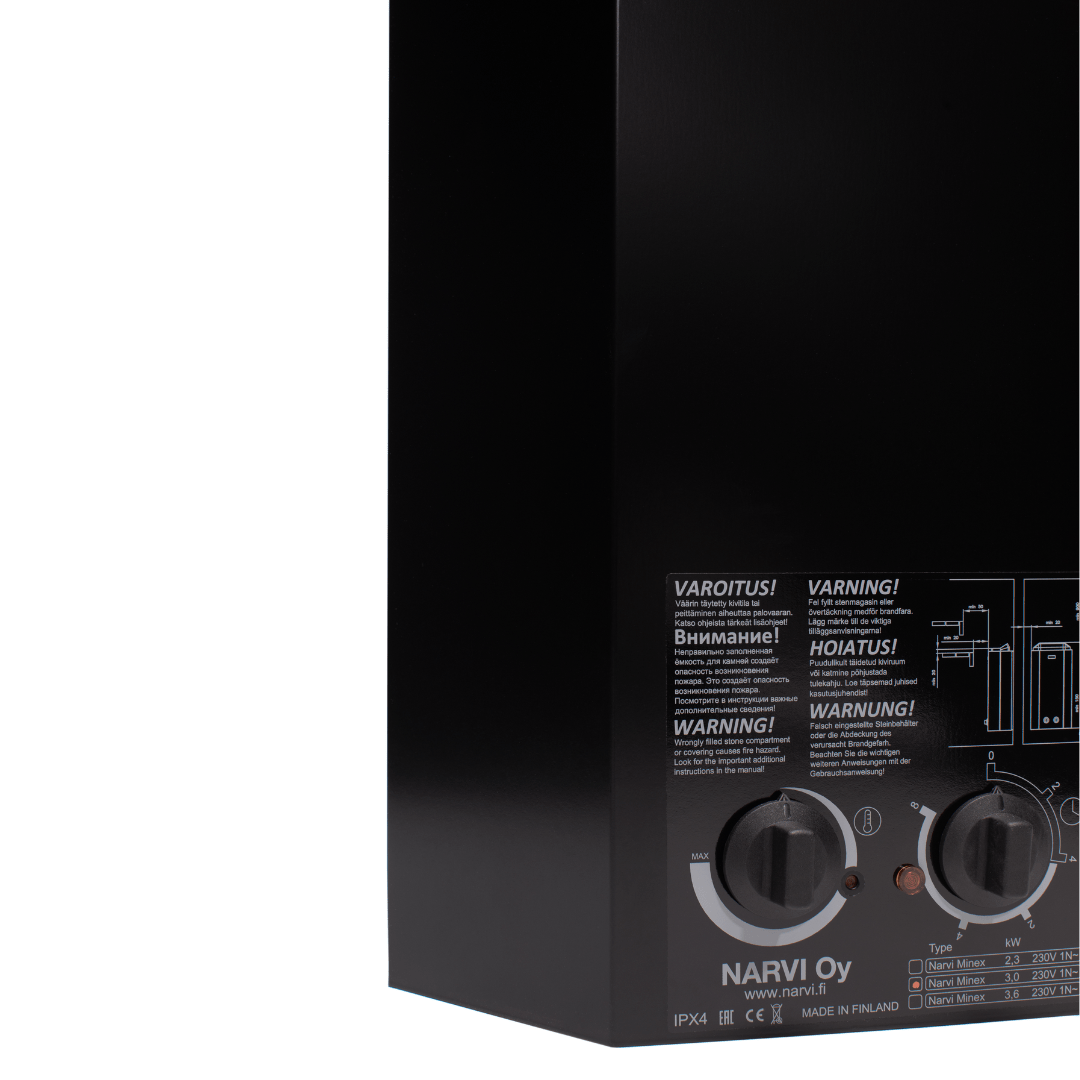

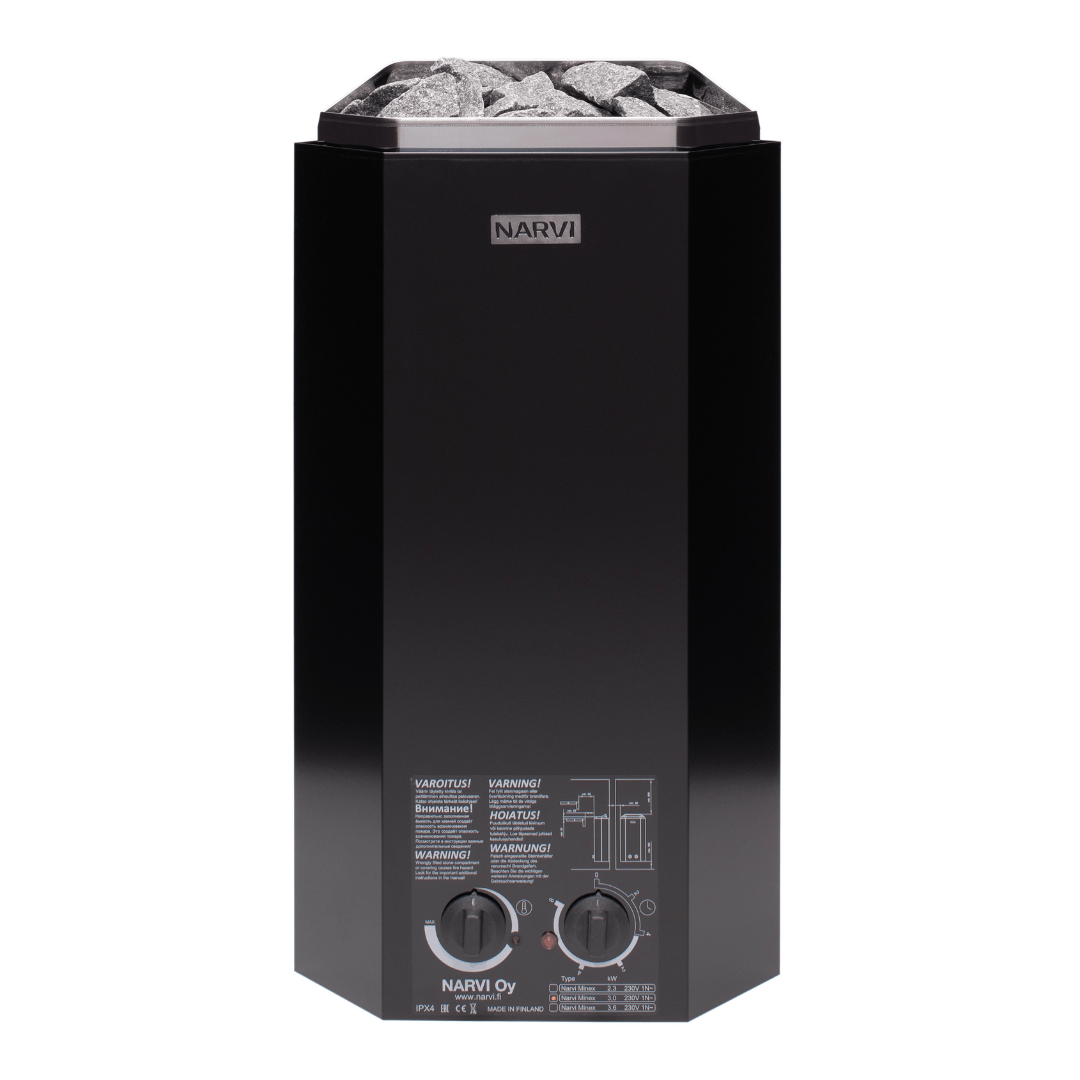

The Narvi Minex is a compact, wall-mounted electric sauna heater made in Finland for micro saunas and small cabins, with the 3 kW model suiting rooms of 2–3 m³ and the 3.6 kW model rooms of 2–4 m³. Despite its small footprint it carries up to 15 kg of stones, an unusually large capacity for a heater of this size, so water thrown on the stones produces a soft, pleasant löyly rather than harsh radiated heat. Temperature and timing are set with simple dials on the front of the unit, and Narvi’s 8.5 mm heating elements give a long service life with a low risk of overheating. The heater is supplied in a painted black finish and connects to a 230 V single-phase supply on a 16 A fuse; sauna stones are purchased separately.
Features
Technical Specification
| All models | |
| Installation | Wall-mounted |
| Dimensions (H × W × D) | 630 × 330 × 200 mm |
| Weight (without stones) | 7 kg |
| Stone capacity | 15 kg (5–10 cm stones) |
| Outer casing | Painted black |
| Electrical connection (230 V 1N~) | 3-core 2.5 mm² H07RN-F, 1 × 16 A fuse |
| Minimum sauna height | 1,900 mm |
| Safety distance to sides | 20 mm |
| Safety distance to front | 50 mm |
| Safety distance to ceiling | 900 mm |
| Safety distance to floor | 150 mm |
| Minex 3 kW | |
| Sauna room volume | 2–3 m³ |
| Minex 3.6 kW | |
| Sauna room volume | 2–4 m³ |
Safety distances are to combustible materials.
Installation
Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated at the fuse panel before any work begins. Under IEC 60364-7-703 and BS 7671:2018 an electric sauna heater does not have to be connected through an RCD, and for reliable operation the manufacturer recommends that the heater supply is not run through one; other electrical devices in the sauna room should be RCD protected. A local point of isolation covering all live conductors is recommended. The installation manual in the Downloads tab and local wiring regulations must be followed.
Sauna stones

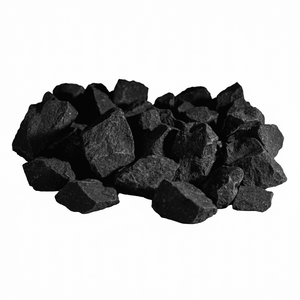

This heater requires up to 15 kg of sauna stones, purchased separately. We recommend 5–10 cm olivine diabase or vulcanite stones for the best performance.
Brand
Narvi Oy is a Finnish sauna heater manufacturer, and every Narvi heater is CE tested and carries the Finnish Key Flag symbol, awarded to products designed and made in Finland.
Warranty
The warranty on this Narvi sauna heater is 2 years in private use, and the heating elements carry a 12-month warranty.
