Description
Description

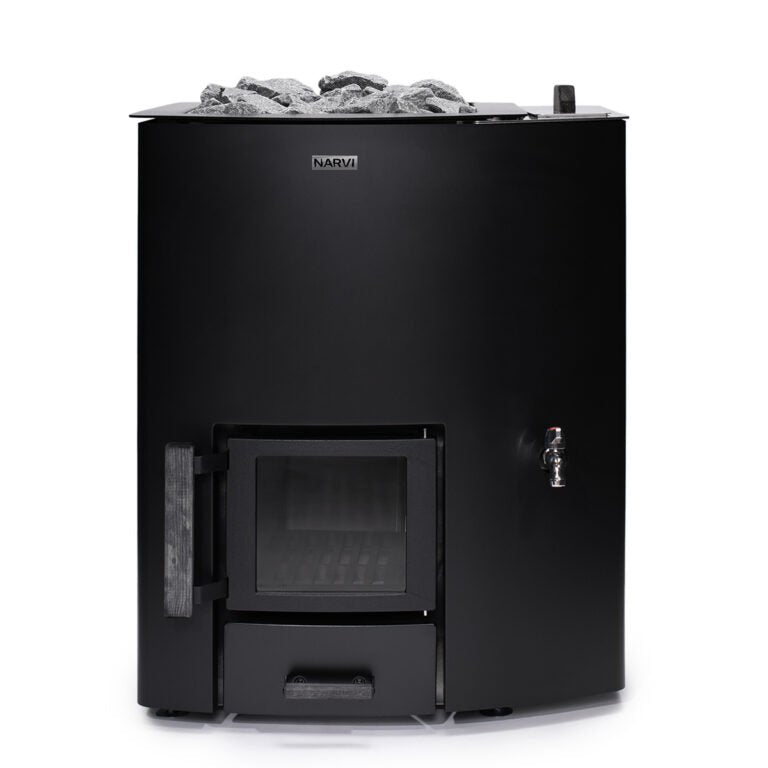

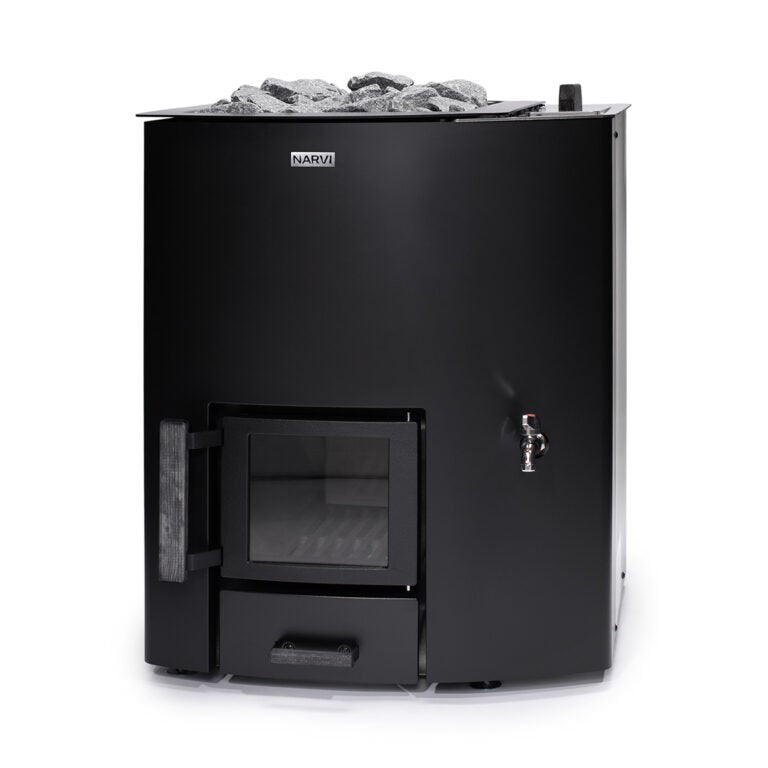

The Narvi NC 20 Water Tank is a Finnish wood-burning sauna stove with a built-in 23-litre water tank, made for sauna rooms of 10–20 m³ and particularly suited to cabins in remote locations. The tank heats with the stove, so ample warm washing water is ready by the time the sauna is, and it can be ordered with the tank on the left or the right to suit the room. A 50 kg stone load gives a soft, even löyly, the firebox is made from 10 mm steel for a long working life, and a redesigned fire chamber burns more efficiently and cleanly. The casing is aluminium-galvanised steel in painted black, the glazed door brings a warm glow to the room, and wooden handles with a cast iron latch keep handling cool and safe; adjustable legs make installation straightforward. A suitable flue kit and sauna stones are purchased separately.
Features
Technical Specification
| Narvi NC 20 WT | |
| Sauna room volume | 10–20 m³ |
| Dimensions (H × W × D) | 740 × 590 × 570 mm |
| Weight (without stones) | 80 kg |
| Stone capacity | 50 kg |
| Recommended stone size | 10–15 cm |
| Water tank capacity | 23 litres |
| Water tank position | Left or right (chosen at purchase) |
| Connective flue outer diameter | 119 mm |
| Flue bottom edge from floor | 545 mm |
| Fire chamber cover thickness | 10 mm |
| Flue gas mass flow | 16.1 g/s |
| Leg adjustment range | ±15 mm |
| Casing | Painted black, aluminium-galvanised steel |
| Safety distance to sides | 150 mm |
| Safety distance in front | 500 mm (1,000 mm maintenance area recommended) |
| Safety distance above | 1,200 mm |
| Safety distance to rear | 150 mm |
| Certification | CE tested; Finnish Key Flag |
Installation
Safety distances are to combustible materials and must be observed in full; rear and side distances can be shortened with Narvi protective wall shields. The stove connects to the chimney from the top or the rear using the supplied connection pipe; the connective flue has an outer diameter of 119 mm. The chimney must meet class T600 requirements, with a minimum recommended draught of 12 Pa and a minimum modular flue diameter of 120 mm. On combustible floors, tiled floors or underfloor heating a Narvi installation base must be used. Installation must follow the installation manual in the Downloads tab and local building regulations, and we recommend using a suitably qualified builder, plumber or fitter.

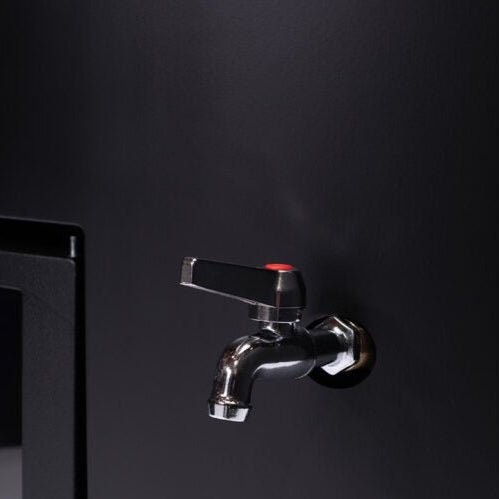

Water heating
The 23-litre tank heats with the stove and must be filled with clean water before firing. In a stove with a water tank, firewood should be placed entirely on the grate of the firebox rather than in its front part.

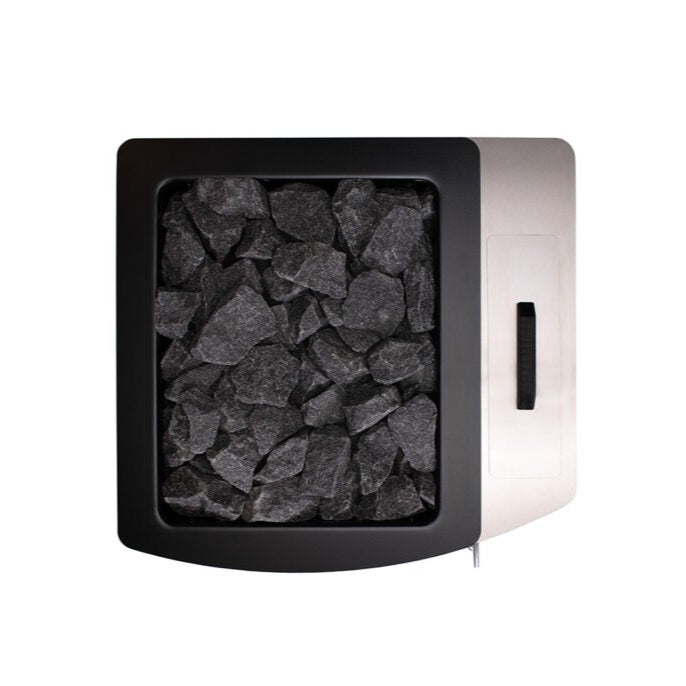

Sauna stones
This stove takes 50 kg of 10–15 cm stones, sold separately; we recommend olivine diabase or vulcanite sauna stones. Wash the stones before use, place larger stones at the bottom and stack loosely so air can circulate.
Brand
Narvi Oy is a Finnish specialist in wood-burning sauna heaters, manufacturing in Lappi, Finland. Every Narvi heater is CE tested and carries the Finnish Key Flag, awarded to products designed and made in Finland.
Warranty
The warranty on this Narvi heater is two years in private use.
