Description
Description

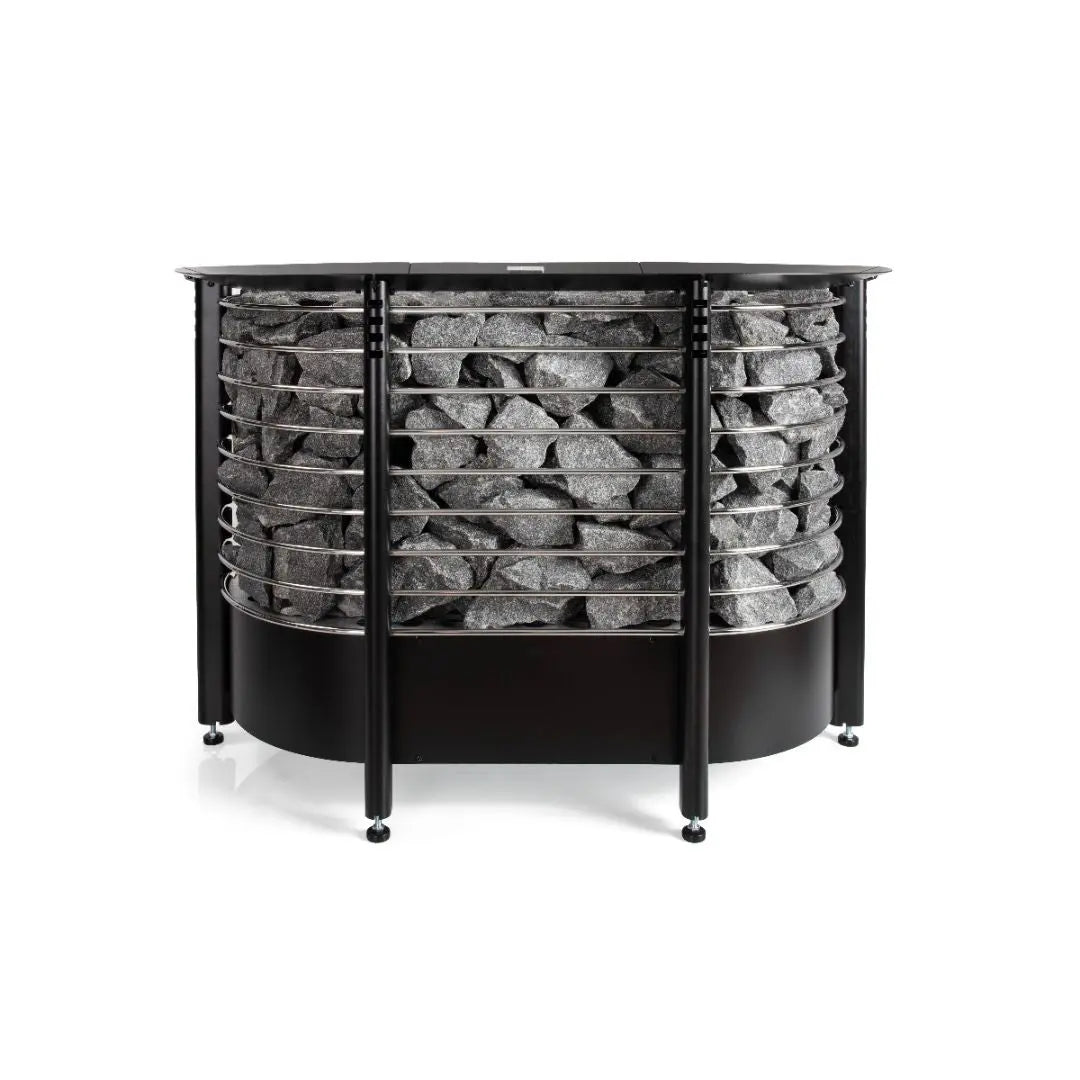

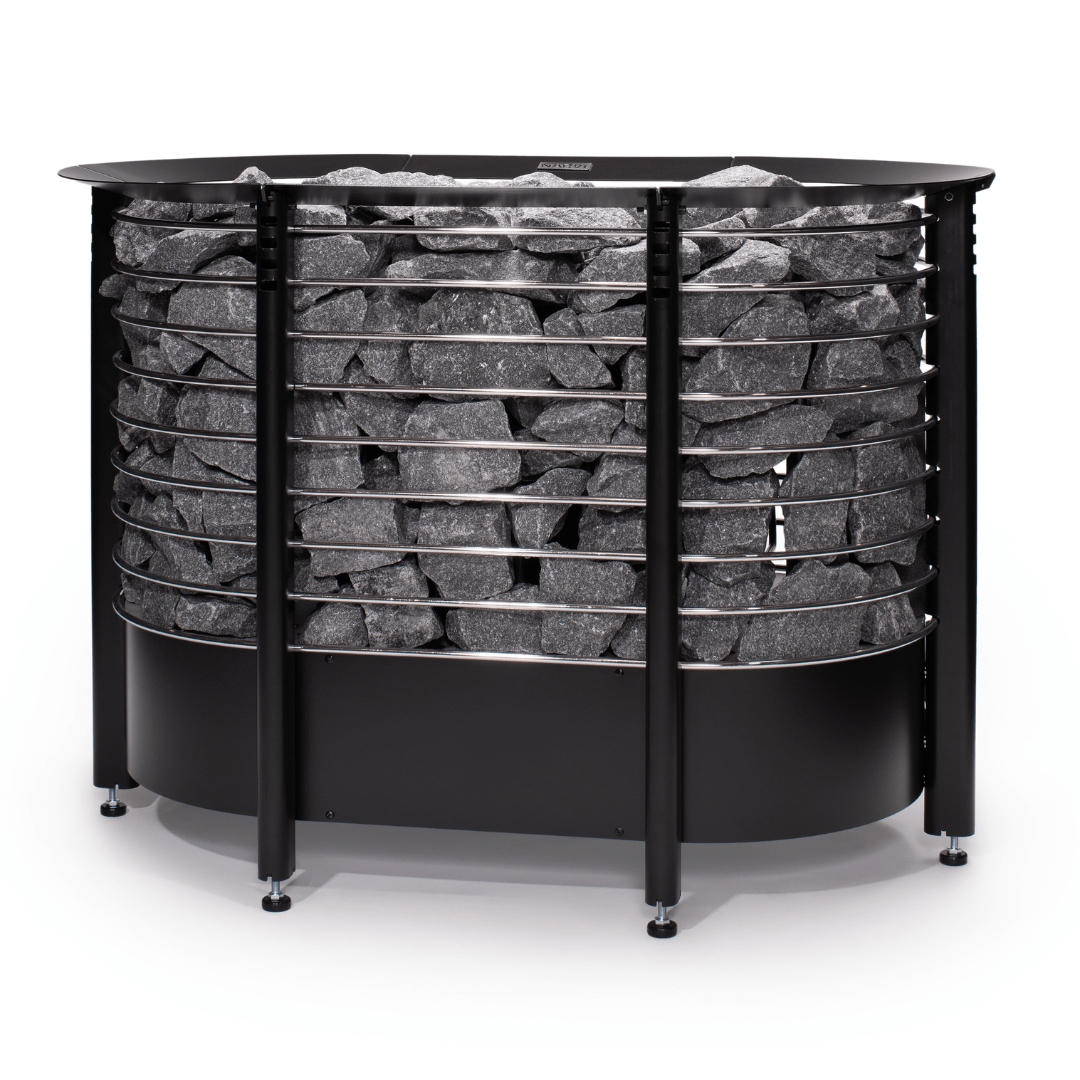

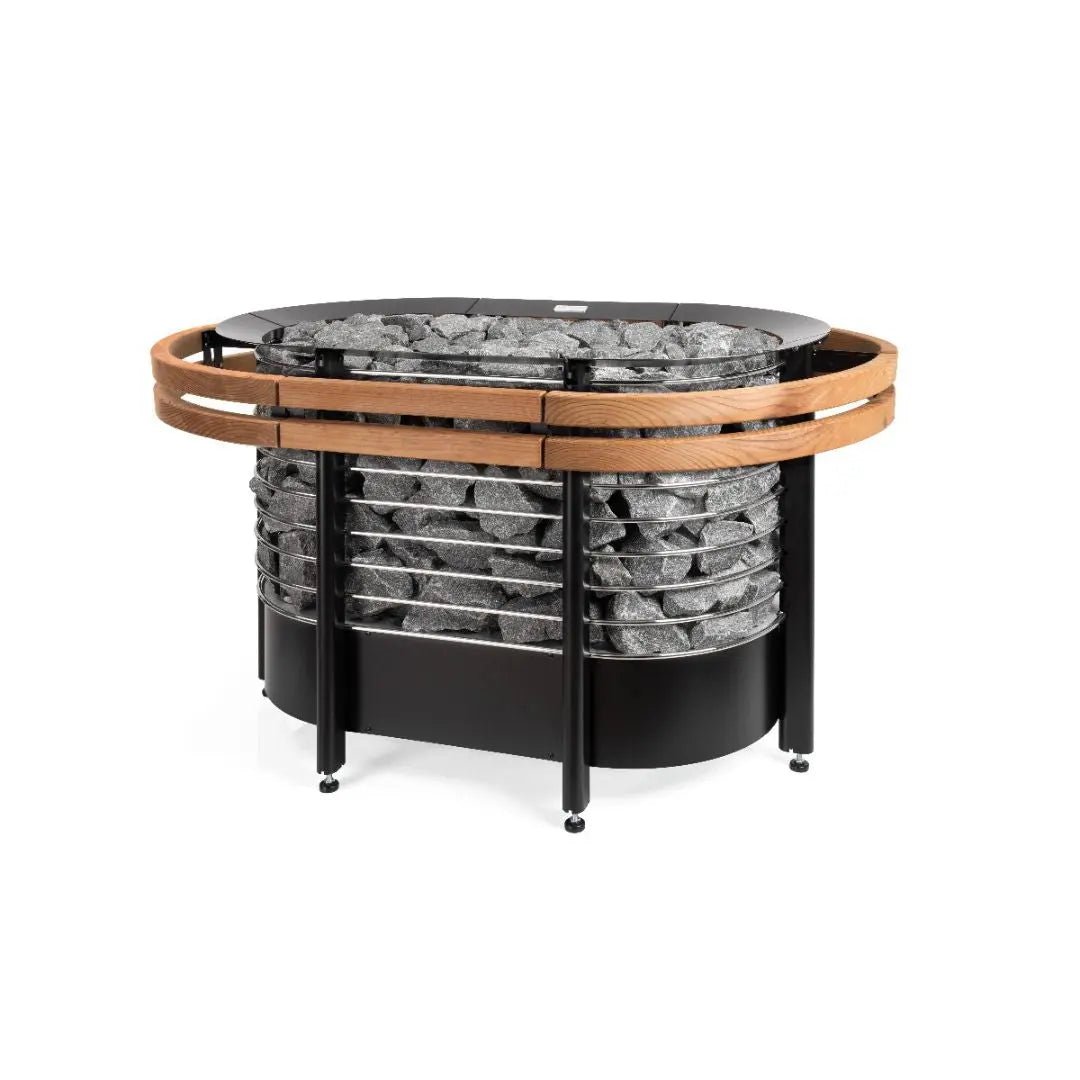

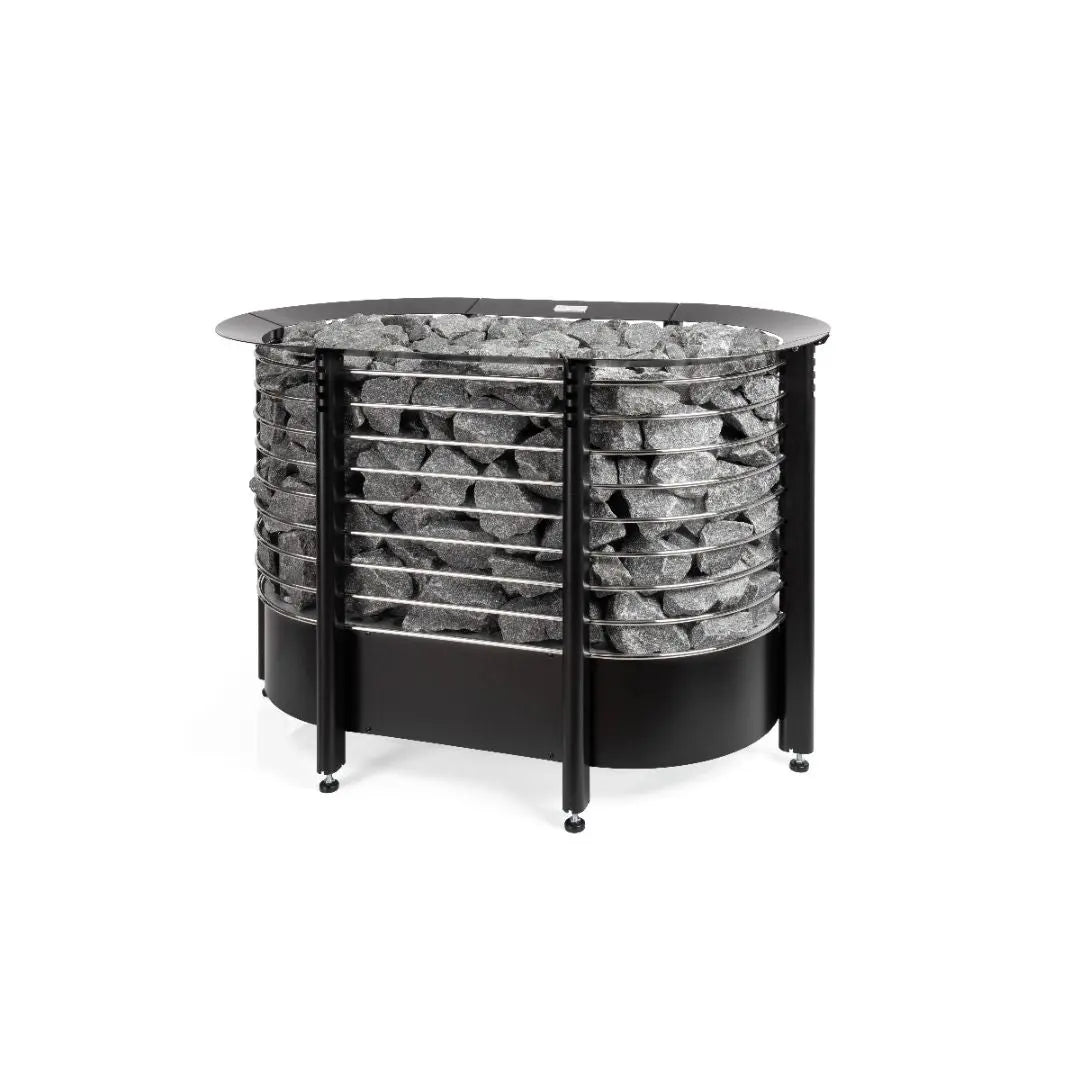

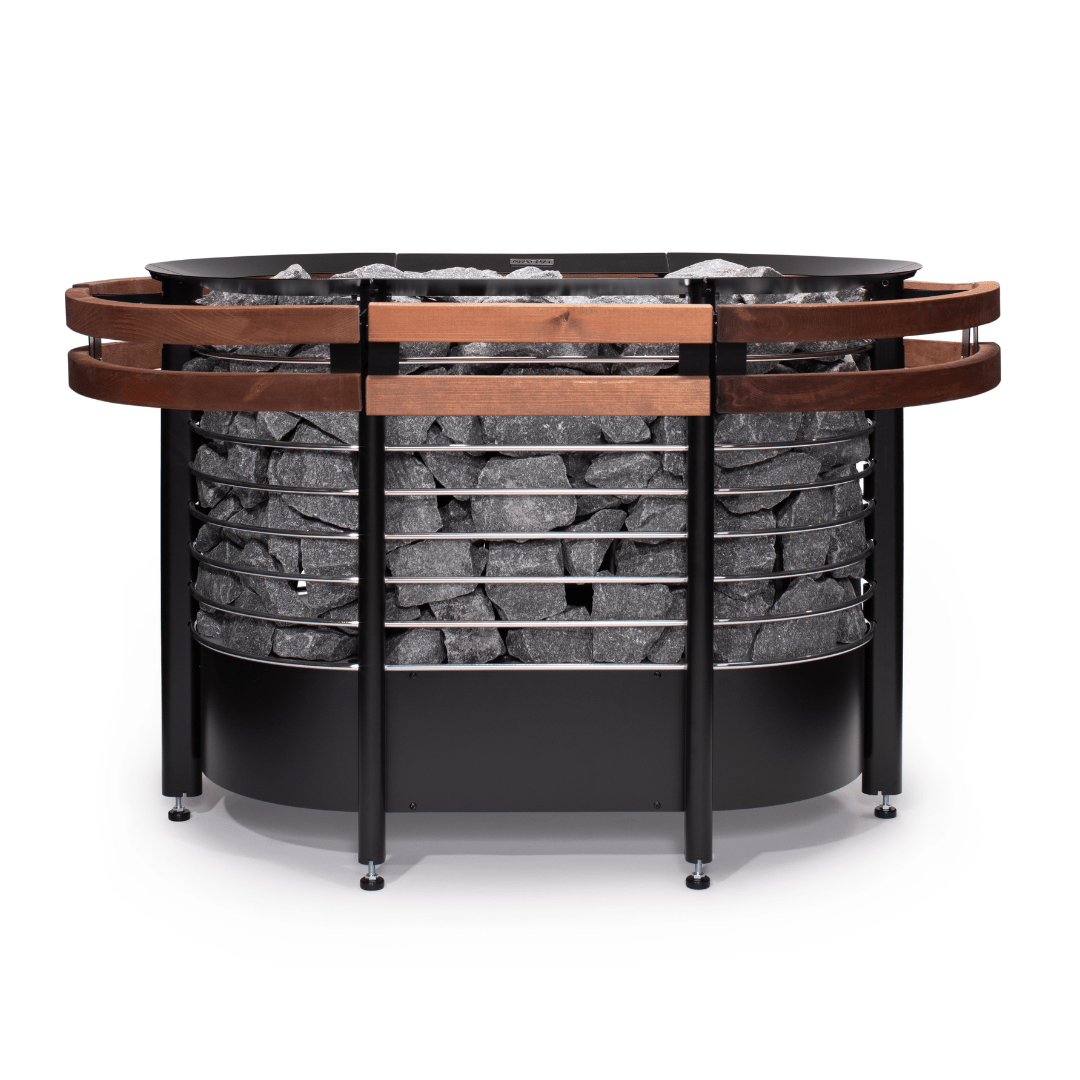

The Narvi Peak Big is a Finnish-made commercial electric sauna heater built to last in demanding settings such as health clubs, spas and gyms, its oval, floor-standing form sitting easily within different sauna designs. An exceptional 180 kg stone capacity underpins a dense, soft löyly through continuous daily use, and three three-phase outputs are offered: 18 kW for rooms of 15–24 m³, 24 kW for 20–32 m³ and 30 kW for 26–40 m³. The heater must be run from a separate control system, the C-2003 control unit and F-2003 power unit for heaters of 18–33 kW, and the controller, sauna stones and the purpose-made thermo-pine heater guard are all sold separately. Please note that our Narvi commercial heaters above 12 kW are made to order in Finland, so once your order is confirmed it cannot be cancelled or returned.
Features
Technical Specification
| All models | |
| Installation | Floor-standing, fixed to the floor |
| Dimensions (H × W × D) | 690 × 950 × 585 mm |
| Weight (without stones) | 49 kg |
| Stone capacity | 180 kg (60 kg of 5–10 cm and 120 kg of 10–15 cm stones) |
| Outer casing | Painted black, chromium-plated |
| Power supply | 400 V 3N~ (three-phase) |
| Control | C-2003 control unit and F-2003 power unit (18–33 kW), sold separately |
| Minimum sauna height | 2,200 mm |
| Safety distance to sides | 150 mm |
| Safety distance to front | 150 mm |
| Safety distance to ceiling | 1,500 mm |
| Peak Big 18 (9 kW + 9 kW) | |
| Sauna room volume | 15–24 m³ |
| Supply cable to power unit | 5-core 10 mm² |
| Front fuses | 3 × 35 A |
| Heating group cables | 2 × 5-core 2.5 mm² |
| Heating group fuses | 2 × 3 × 16 A |
| Peak Big 24 (12 kW + 12 kW) | |
| Sauna room volume | 20–32 m³ |
| Supply cable to power unit | 5-core 16 mm² |
| Front fuses | 3 × 50 A |
| Heating group cables | 2 × 5-core 4 mm² |
| Heating group fuses | 2 × 3 × 25 A |
| Peak Big 30 (15 kW + 15 kW) | |
| Sauna room volume | 26–40 m³ |
| Supply cable to power unit | 5-core 16 mm² |
| Front fuses | 3 × 50 A |
| Heating group cables | 2 × 5-core 6 mm² |
| Heating group fuses | 2 × 3 × 25 A |
Safety distances are to combustible materials. Cable specifications are H07RN-F rubber cable or equivalent, the manufacturer’s minimum requirement.
Installation
Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated at the fuse panel before any work begins. Under IEC 60364-7-703 and BS 7671:2018 an electric sauna heater does not have to be connected through an RCD, and for reliable operation the manufacturer recommends that the heater supply is not run through one; other electrical devices in the sauna room should be RCD protected. A local point of isolation covering all live conductors is recommended. The installation manual in the Downloads tab and local wiring regulations must be followed. The Peak Big is fixed to the floor and must be connected through an external sauna control system meeting EN 60335-2-53, with a separate temperature sensor and overheat protection; Narvi specifies the C-2003 control unit with the F-2003 power unit, both sold separately.
Sauna stones
This heater requires up to 180 kg of sauna stones, purchased separately. We recommend a mix of 60 kg of 5–10 cm and 120 kg of 10–15 cm olivine diabase or vulcanite stones for the best performance.
Brand
Narvi Oy is a Finnish sauna heater manufacturer, and every Narvi heater is CE tested and carries the Finnish Key Flag symbol, awarded to products designed and made in Finland.
Warranty
The warranty on this Narvi sauna heater is 2 years, and the heating elements carry a 6-month warranty.
