Description

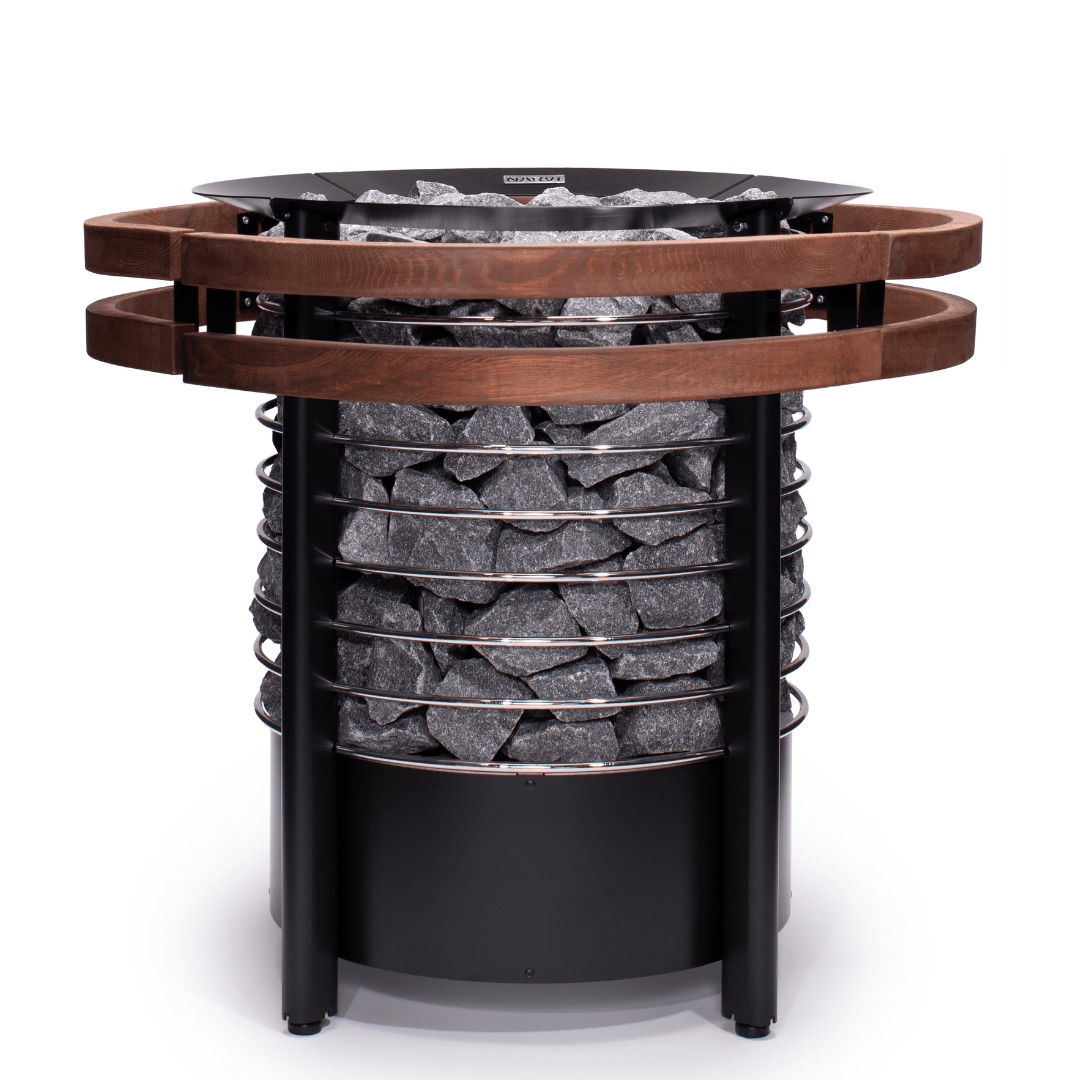

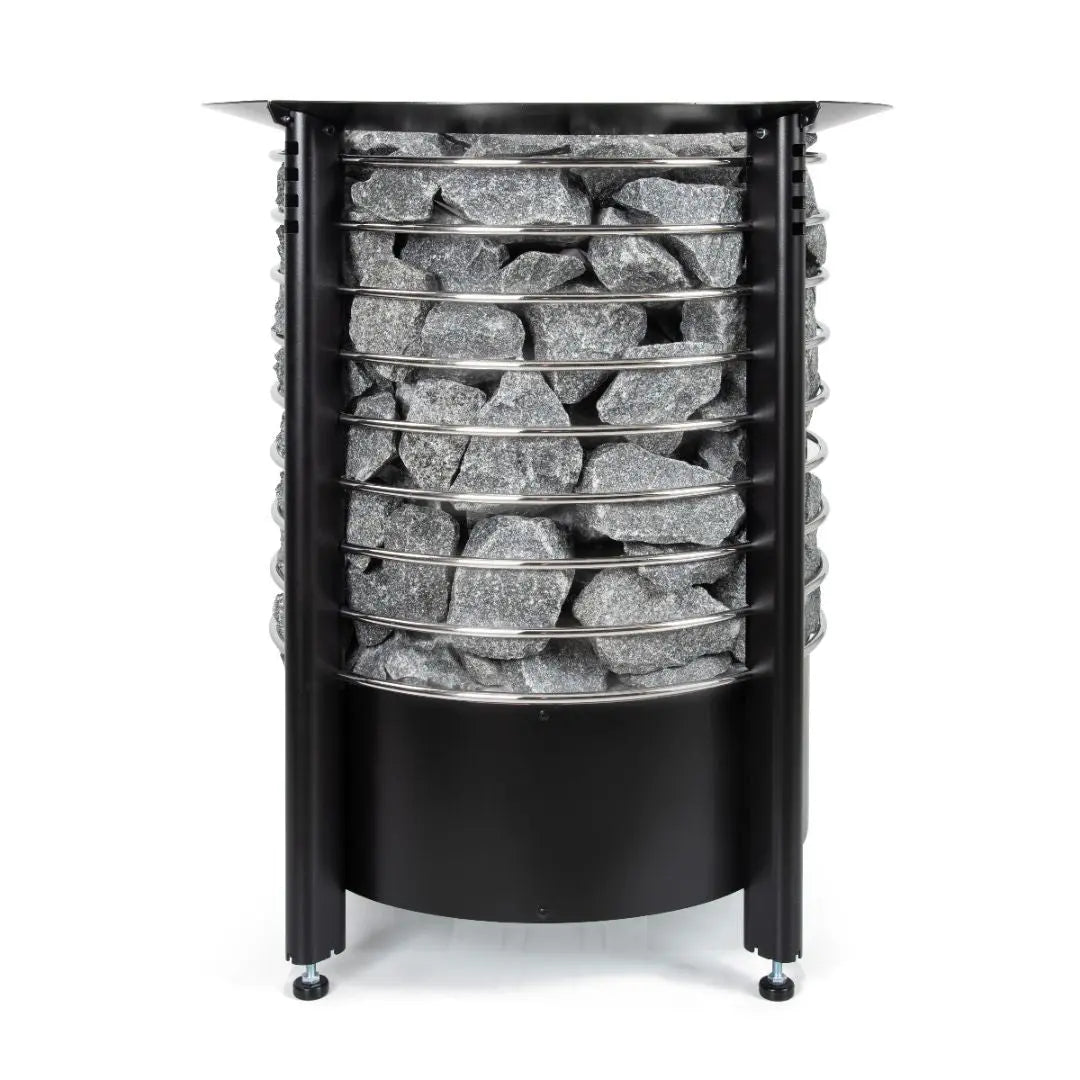

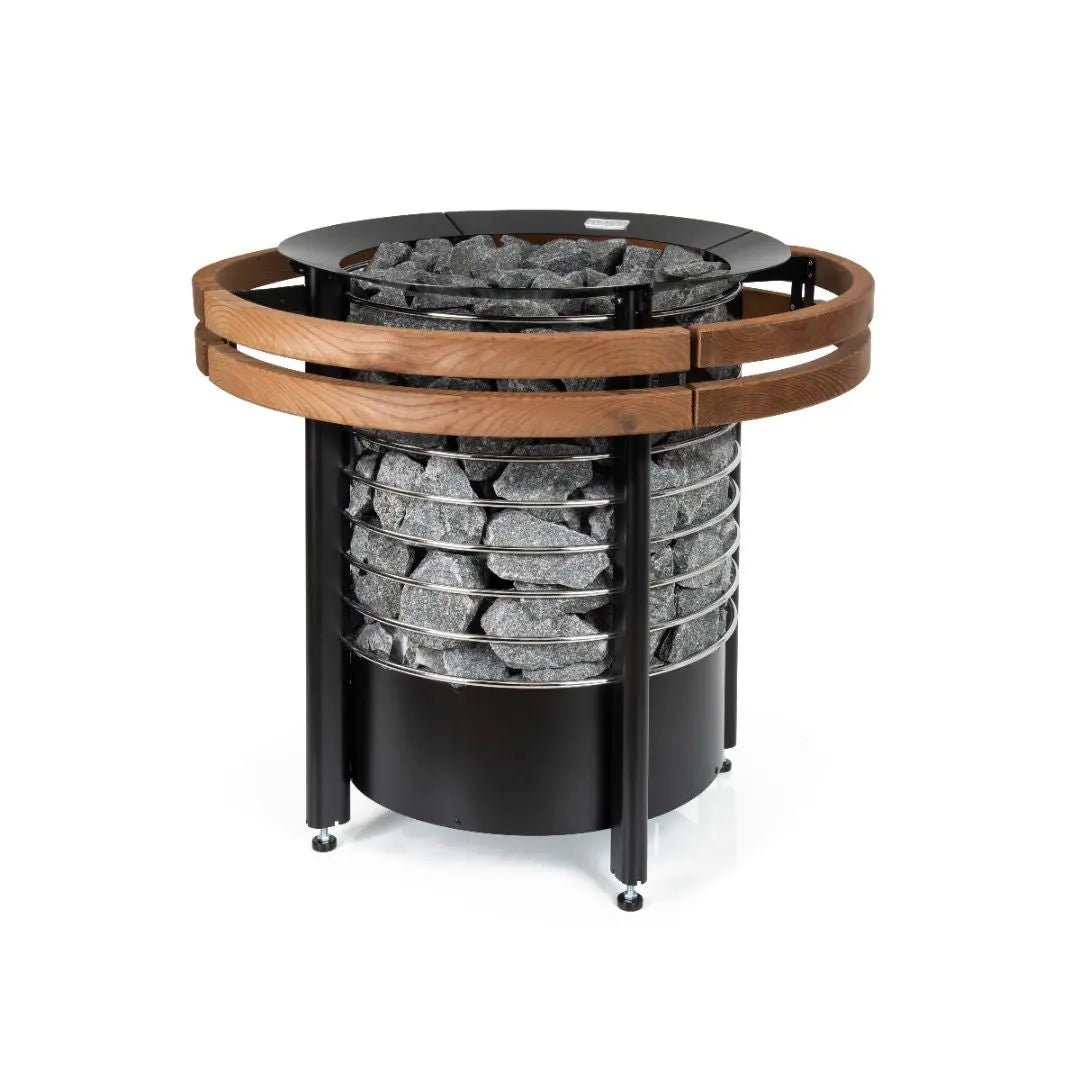

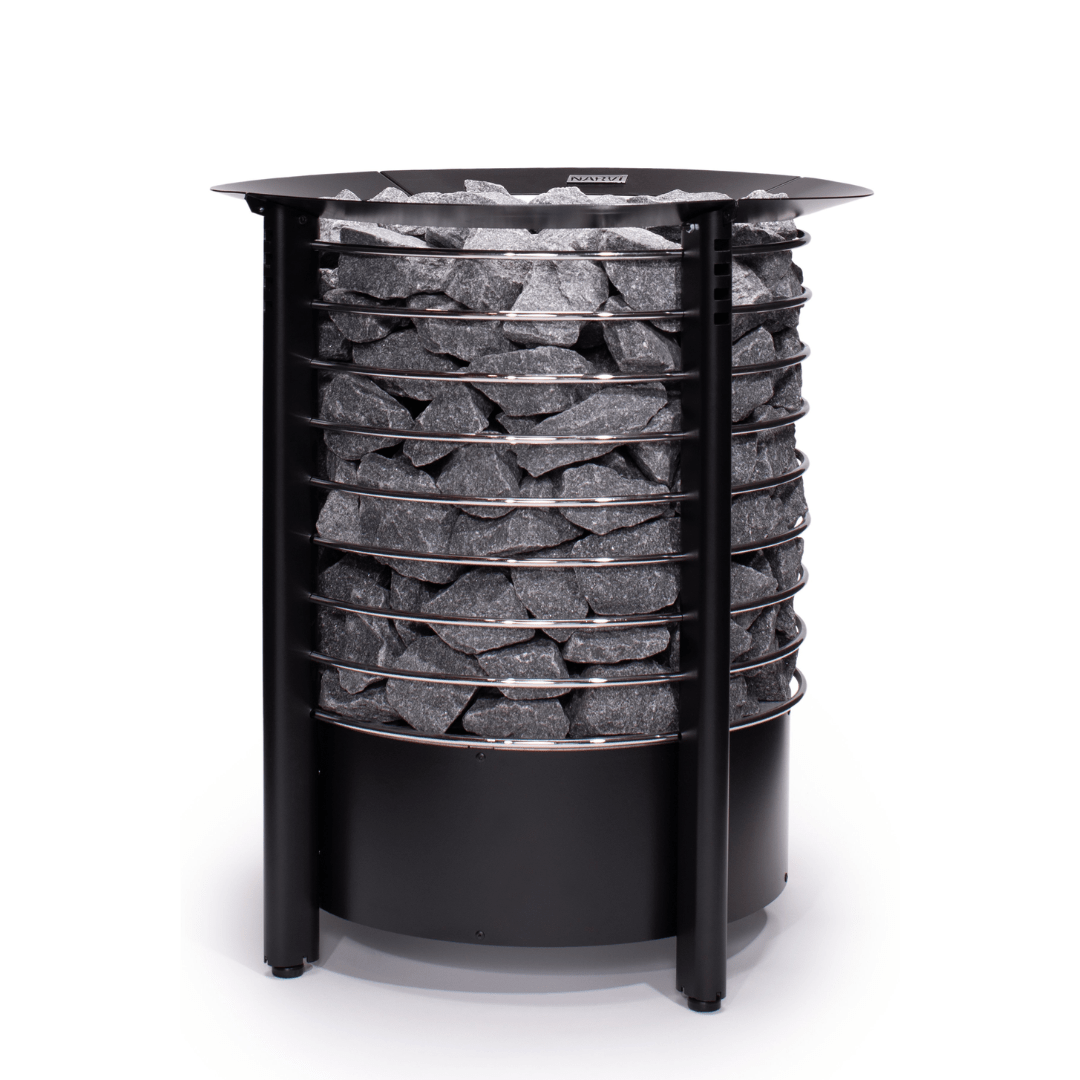

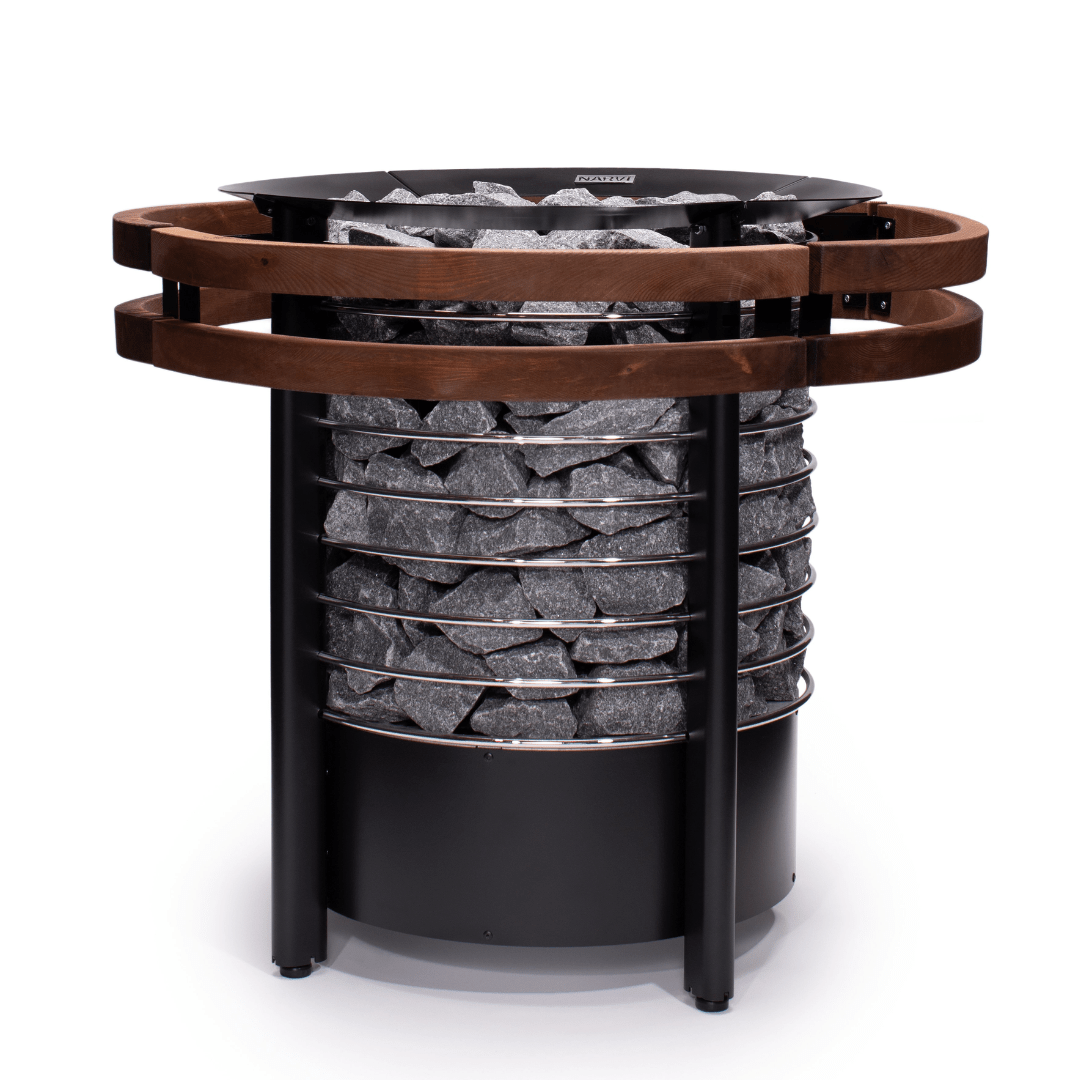

The Narvi Peak is a Finnish-made commercial electric sauna heater with a round, floor-standing form that allows flexible placement within the sauna room. Its painted black, chromium-plated casing holds 100 kg of stones, a stone mass that produces the soft, generous löyly of a true Finnish sauna and stands up to the demands of spas, gyms, community saunas and larger private saunas. The Peak is offered in 10.5 kW, 12 kW and 15 kW outputs for sauna rooms of 9–20 m³, and every output requires a three-phase supply. Heating and timing are managed from a separate Narvi control unit (Ultra T-2003 or B-2003 for any output; N2014E or Narvi Basic for the 10.5 kW model), and the control unit, sauna stones and thermo pine heater guard are all sold separately. Narvi commercial heaters above 12 kW are made to order in Finland, so once confirmed these orders cannot be cancelled or returned.
Features
Technical Specification
| All models | |
| Finish | Painted black, chromium plated |
| Dimensions (H × W × D) | 690 × 585 × 585 mm |
| Weight (without stones) | 26 kg |
| Stone capacity | 100 kg (40 kg of 5–10 cm and 60 kg of 10–15 cm stones) |
| Minimum sauna room height | 2,100 mm |
| Clearance to the ceiling | 1,400 mm |
| Supply | 400 V 3N~ (three-phase) |
| Connection cable type | H07RN-F rubber cable or equivalent |
| Compatible control units (sold separately) | Ultra T-2003 (daily timer) or Ultra B-2003 (weekly timer) for 6–15 kW heaters; N2014E or Narvi Basic for the 10.5 kW model only |
| Certification | CE tested; Finnish Key Flag |
| Peak 10.5 kW | |
| Sauna room volume | 9–15 m³ |
| Clearance to the sides | 100 mm |
| Clearance to the front | 100 mm |
| Supply cable | 5-core 2.5 mm² |
| Fuses | 3 × 16 A |
| Peak 12 kW | |
| Sauna room volume | 10–18 m³ |
| Clearance to the sides | 120 mm |
| Clearance to the front | 150 mm |
| Supply cable | 5-core 4 mm² |
| Fuses | 3 × 20 A |
| Peak 15 kW | |
| Sauna room volume | 14–20 m³ |
| Clearance to the sides | 160 mm |
| Clearance to the front | 150 mm |
| Supply cable | 5-core 6 mm² |
| Fuses | 3 × 25 A |
Installation
Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated at the fuse panel before any work begins. Under IEC 60364-7-703 and BS 7671:2018 an electric sauna heater does not have to be connected through an RCD, and for reliable operation the manufacturer recommends that the heater supply is not run through one; other electrical devices in the sauna room should be RCD protected. A local point of isolation covering all live conductors is recommended. The installation manual in the Downloads tab and local wiring regulations must be followed. The Peak is floor-standing. The external control unit must be designed for sauna use and equipped with a separate temperature sensor and overheating protection in accordance with EN 60335-2-53.
Sauna stones

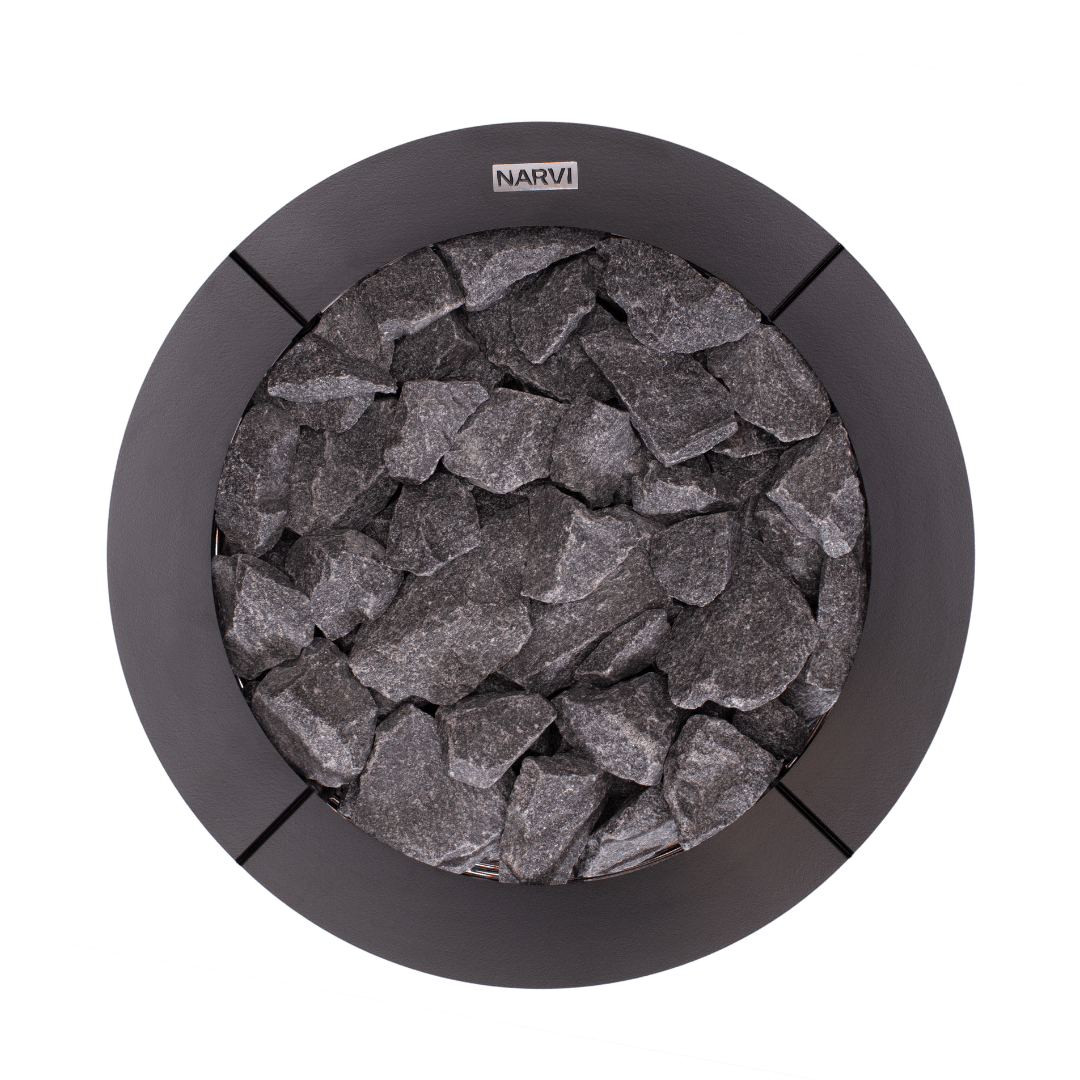

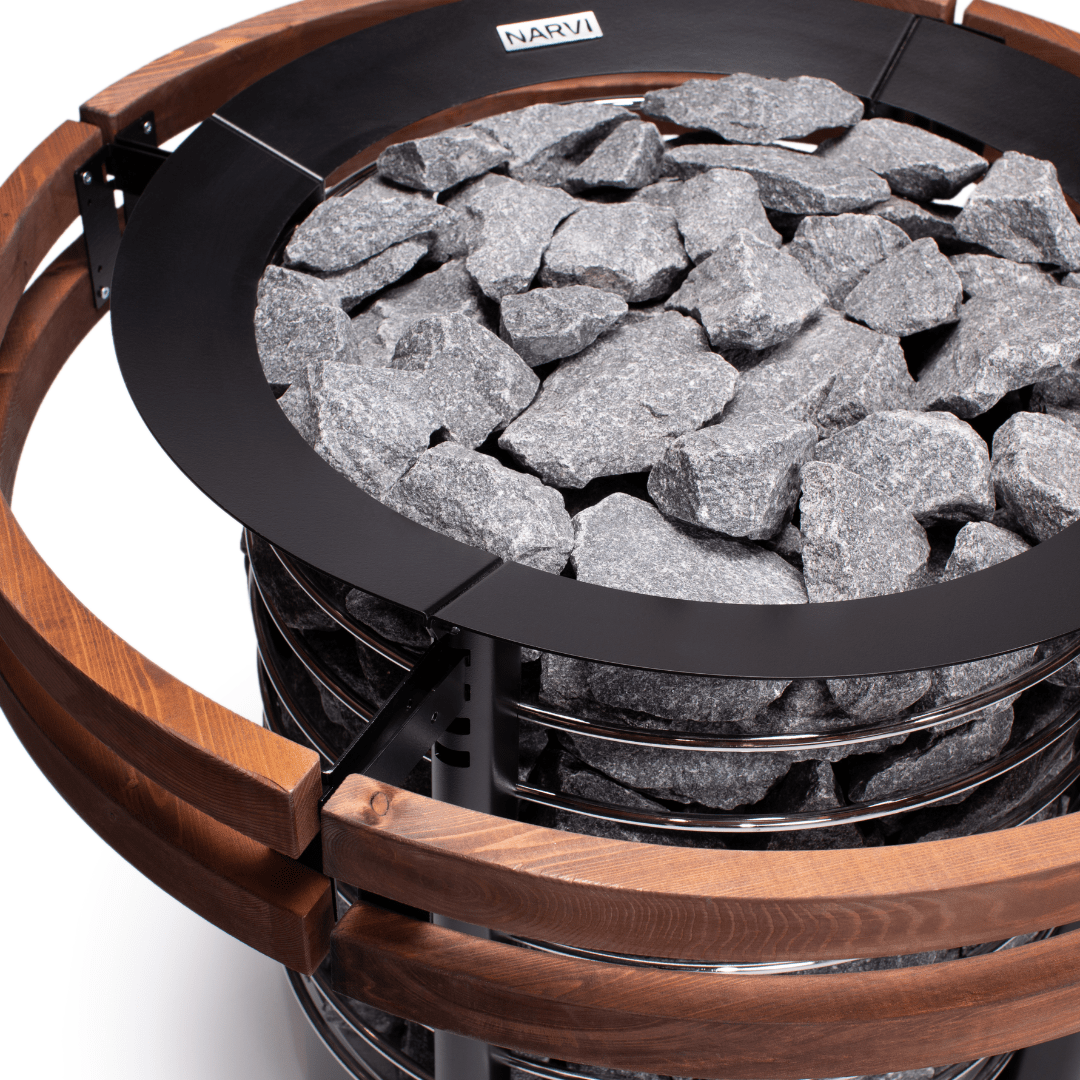

The Peak takes up to 100 kg of stones: 40 kg of 5–10 cm stones and 60 kg of 10–15 cm stones, and we recommend Olivine Diabase or Vulcanite sauna stones, sold separately. The stones must cover the heating elements completely, ceramic stones must not be used, and the stones should be replaced every six months.
Brand
Narvi is a Finnish maker of sauna heaters, and every Narvi heater is CE tested and carries the Finnish Key Flag, awarded to products designed and made in Finland.
Warranty
The warranty on this heater is 2 years, with a 6-month warranty on the heating elements.
