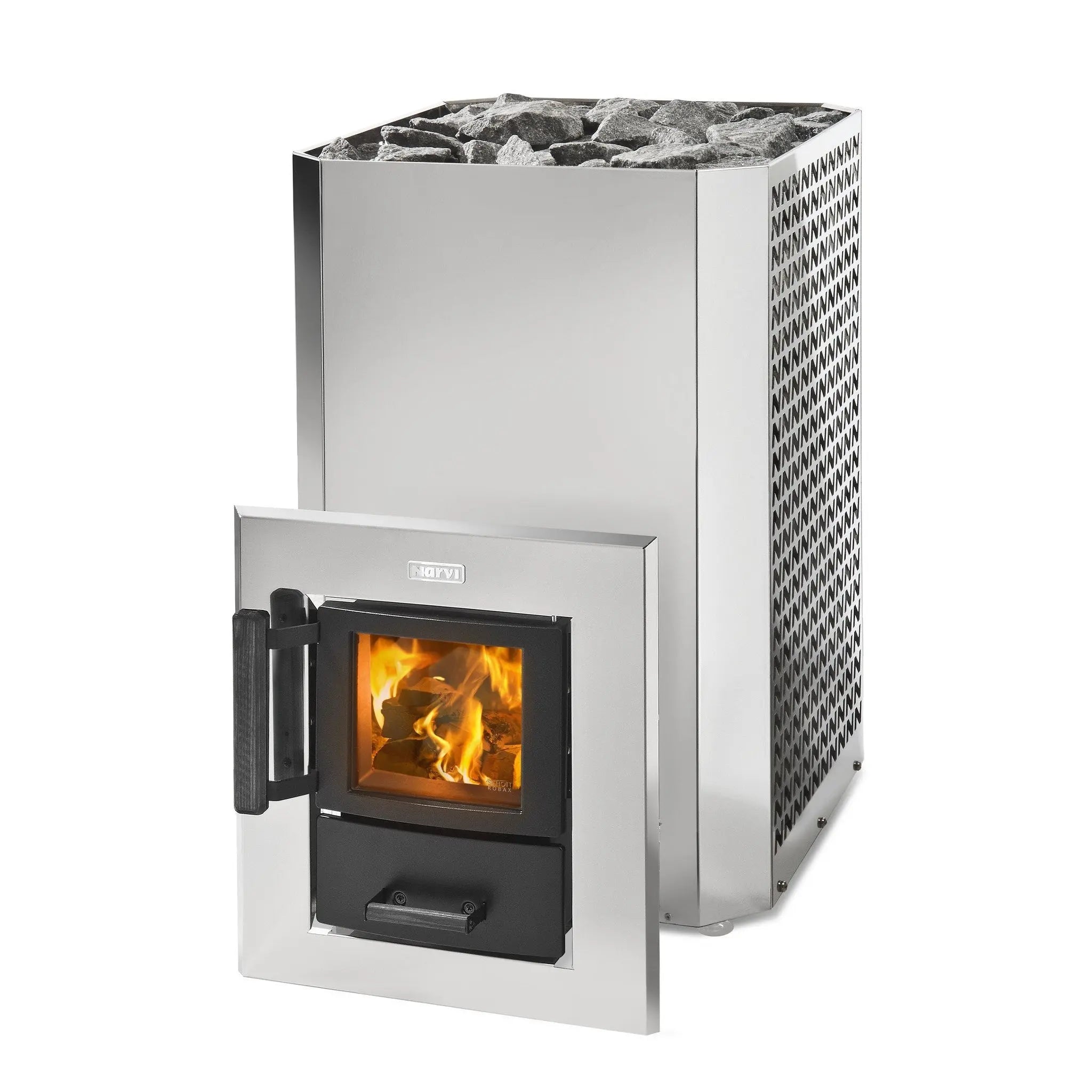

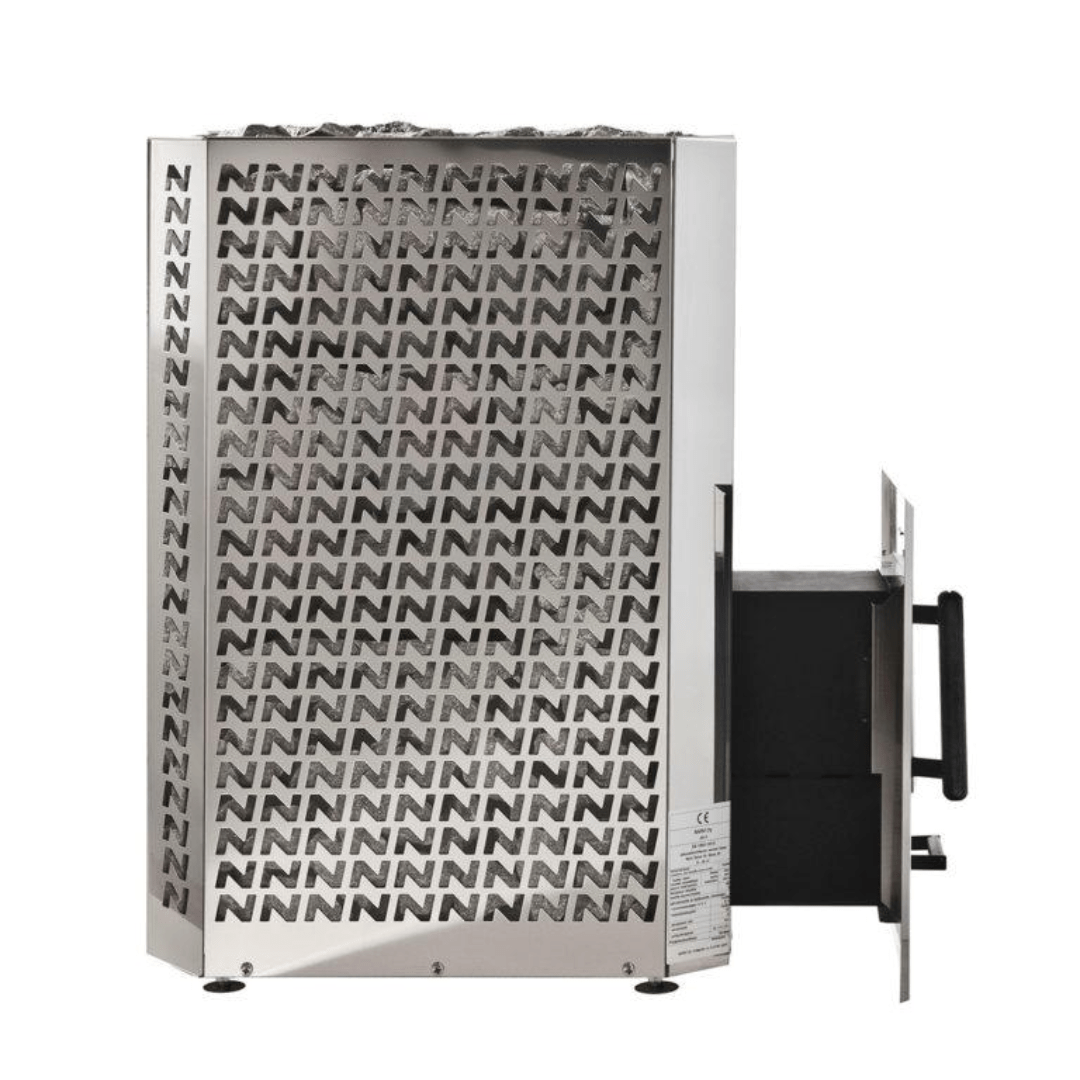

The Narvi Stony 20 Through-the-Wall is a Finnish wood-burning sauna heater that is fired from outside the sauna, keeping the steam room calm and undisturbed, and it suits rooms of 8–20 m³. Its defining feature is a stone mass of up to 210 kg, which gives a löyly reminiscent of a traditional Finnish smoke sauna and rewards long, unhurried bathing. The casing is elegant stainless steel, the twin-layered adjustable base eases installation and limits heat transfer to the floor, and the glazed firebox hatch spreads the flame evenly while adding a cosy glow to the stoking side. Wooden handles and a cast iron latch keep handling cool and safe, and the firebox is made from 10 mm steel for a long working life between services. A floor-standing version is sold separately as the Narvi Stony Wood Burning Sauna Heater, and a suitable flue kit and sauna stones are purchased separately.
Features
Technical Specification
| Narvi Stony 20 Tunnel | |
| Sauna room volume | 8–20 m³ |
| Dimensions (H × W × D) | 810 × 520 × 770 mm |
| Weight (without stones) | 75 kg |
| Stone capacity | Up to 210 kg |
| Recommended stone size | 10–15 cm |
| Connective flue outer diameter | 119 mm |
| Flue bottom edge from floor | 620 mm |
| Fire chamber cover thickness | 10 mm |
| Casing | Stainless steel |
| Safety distance to sides | 150 mm |
| Safety distance in front | 500 mm (1,000 mm maintenance area recommended) |
| Safety distance above | 1,220 mm |
| Safety distance to rear | 200 mm |
| Certification | CE tested; Finnish Key Flag |
Installation
Safety distances are to combustible materials and must be observed in full; rear and side distances can be shortened with Narvi protective wall shields. The connective flue has an outer diameter of 119 mm; the chimney must meet class T600 requirements, with a minimum recommended draught of 12 Pa and a minimum modular flue diameter of 120 mm. The tunnel firebox passes through the sauna wall so the heater is fed from the adjacent room; firewood must be placed entirely on the grate of the firebox rather than in the tunnel extension. The twin-layered base reduces heat transfer to the floor, but on combustible floors, tiled floors or underfloor heating the heat resistance of the floor structure must be verified and a Narvi installation base used where needed, with a sheet metal plate in front of the firebox opening. Installation must follow the installation manual in the Downloads tab and local building regulations, and we recommend using a suitably qualified builder, plumber or fitter.
Sauna stones
This heater takes up to 210 kg of stones, sold separately; we recommend 10–15 cm olivine diabase or vulcanite sauna stones. Wash the stones before use, place larger stones at the bottom and stack loosely so air can circulate.
Brand
Narvi Oy is a Finnish specialist in wood-burning sauna heaters, manufacturing in Lappi, Finland. Every Narvi heater is CE tested and carries the Finnish Key Flag, awarded to products designed and made in Finland.
Warranty
The warranty on this Narvi heater is two years in private use.
