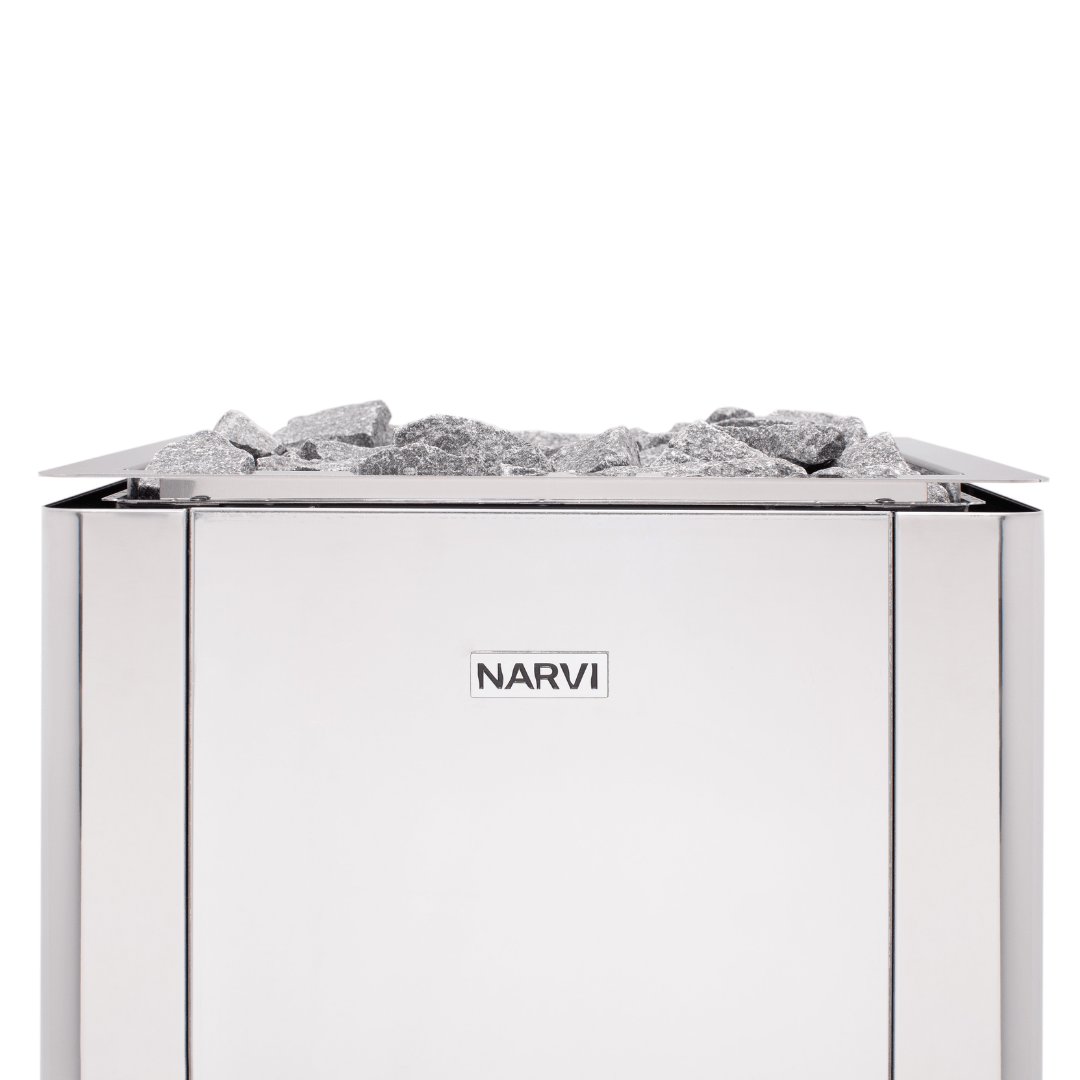

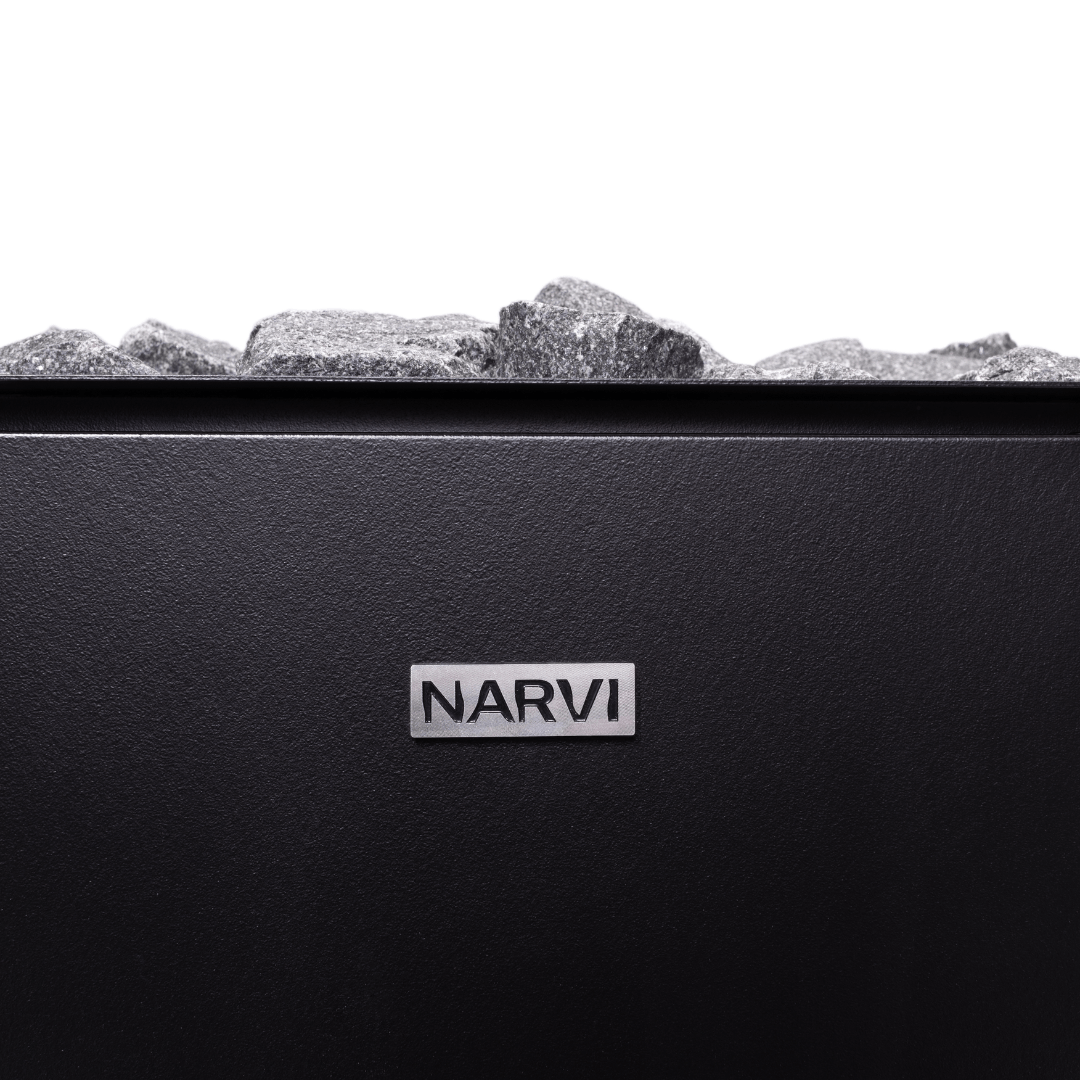

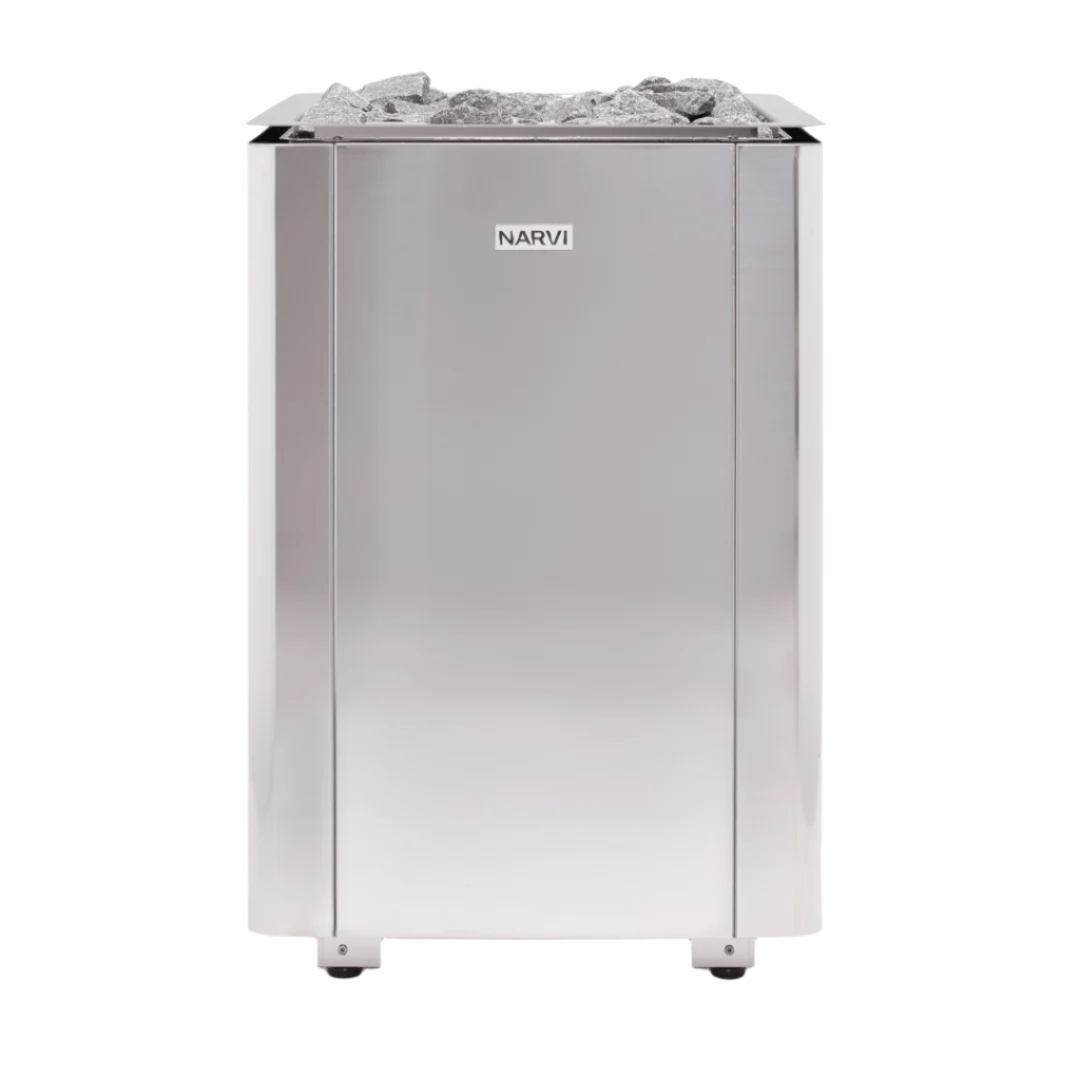

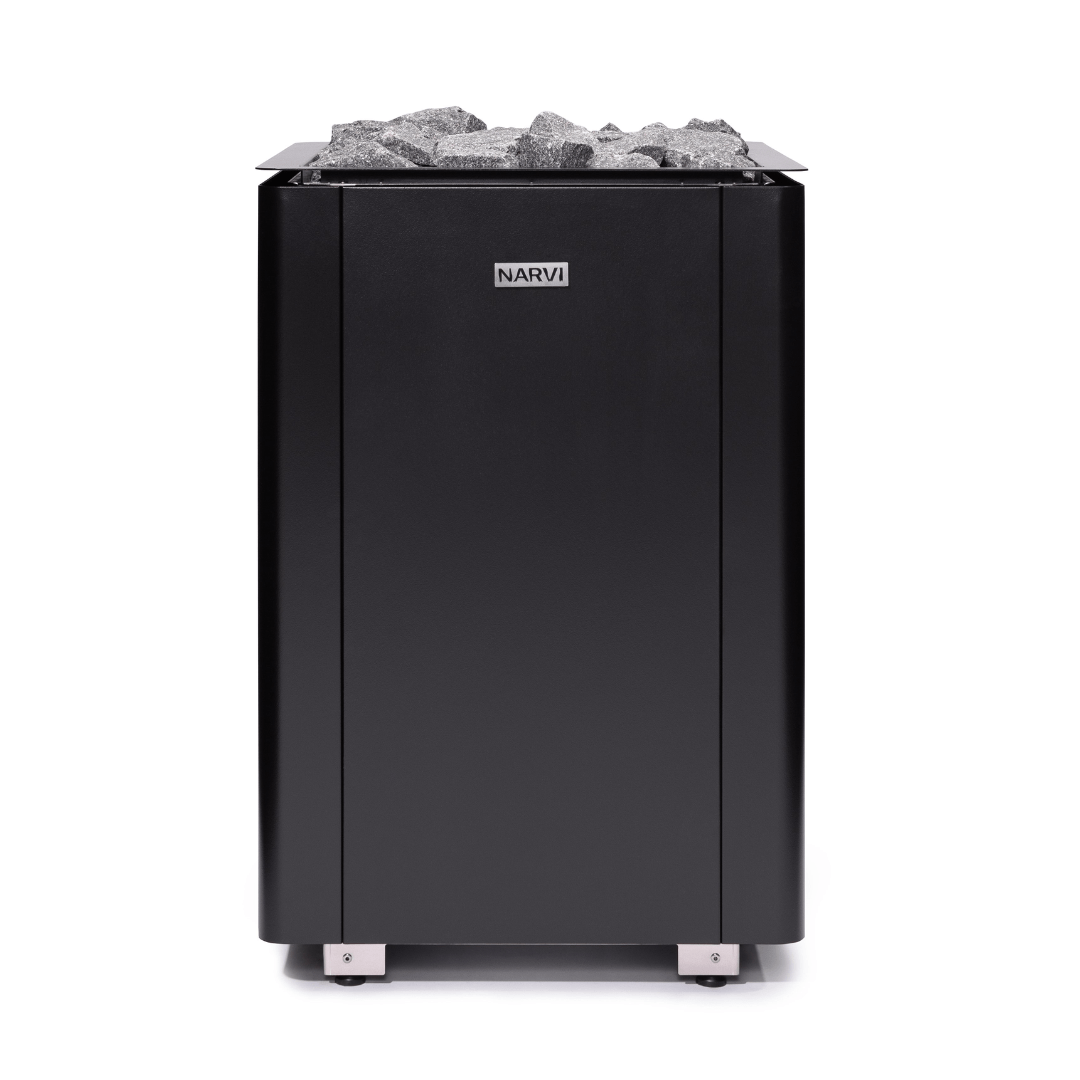

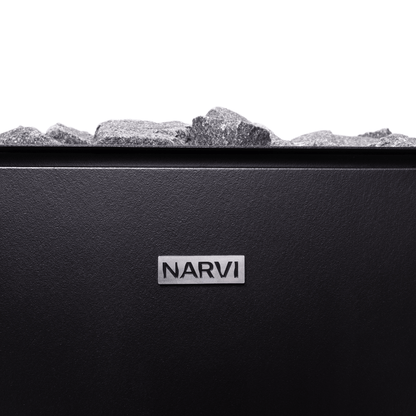

The Narvi Ultra is a Finnish-made commercial electric sauna heater for saunas in gyms, spas, hotels and wellness retreats, and equally suited to large private or group saunas in daily use. It is stainless steel inside and out, with some of the highest material thicknesses on the market, and its heating elements are of a thickness and grade that welcome frequent water over the 50 kg stone mass for a genuinely soft löyly. The Ultra comes in 10.5 kW, 12 kW and 15 kW outputs for sauna rooms of 9–20 m³, each in a painted black or stainless steel finish on a three-phase supply. Heating and timing are managed from a separate Narvi control panel: choose the T-2003 daily timer or B-2003 weekly timer at checkout (each includes the power supply unit and heater cabling), or take the heater alone if you already have a suitable controller. Sauna stones are sold separately, and Narvi commercial heaters above 12 kW are made to order in Finland, so once confirmed these orders cannot be cancelled or returned.
Features
Technical Specification
| All models | |
| Finish | Painted black or stainless steel |
| Construction | Stainless steel inside and out, with some of the highest material thicknesses on the market |
| Dimensions (H × W × D) | 680 × 440 × 490 mm |
| Weight (without stones) | 20 kg |
| Stone capacity | 50 kg (5–10 cm stones) |
| Minimum sauna room height | 2,100 mm |
| Clearance to the front | 150 mm |
| Clearance to the ceiling | 1,400 mm |
| Clearance to the floor | 68 mm |
| Supply | 400 V 3N~ (three-phase) |
| Connection cable type | H07RN-F rubber cable or equivalent |
| Control panel T-2003 (daily timer) | Temperature control 40–115 °C in 1 °C steps; display 20–125 °C; preset time up to 24 h; switching-on time 4, 6 or 12 h; sauna light control; external temperature sensor; includes power supply unit and heater cabling |
| Control panel B-2003 (weekly timer) | Temperature control 40–115 °C in 1 °C steps; display 20–125 °C; 7 switch-on memory locations, one per day; switching-on time 4, 6 or 12 h; sauna light control; external temperature sensor; includes power supply unit and heater cabling |
| Certification | CE tested; Finnish Key Flag |
| Ultra 10.5 kW | |
| Sauna room volume | 9–15 m³ |
| Clearance to the sides | 120 mm |
| Supply cable | 5-core 2.5 mm² |
| Fuses | 3 × 16 A |
| Ultra 12 kW | |
| Sauna room volume | 10–18 m³ |
| Clearance to the sides | 120 mm |
| Supply cable | 5-core 4 mm² |
| Fuses | 3 × 20 A |
| Ultra 15 kW | |
| Sauna room volume | 14–20 m³ |
| Clearance to the sides | 160 mm |
| Supply cable | 5-core 6 mm² |
| Fuses | 3 × 25 A |
Installation
Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated at the fuse panel before any work begins. Under IEC 60364-7-703 and BS 7671:2018 an electric sauna heater does not have to be connected through an RCD, and for reliable operation the manufacturer recommends that the heater supply is not run through one; other electrical devices in the sauna room should be RCD protected. A local point of isolation covering all live conductors is recommended. The installation manual in the Downloads tab and local wiring regulations must be followed. The Ultra is floor-standing. A separate thermostat unit maintains the set temperature alongside the chosen control panel.
Sauna stones

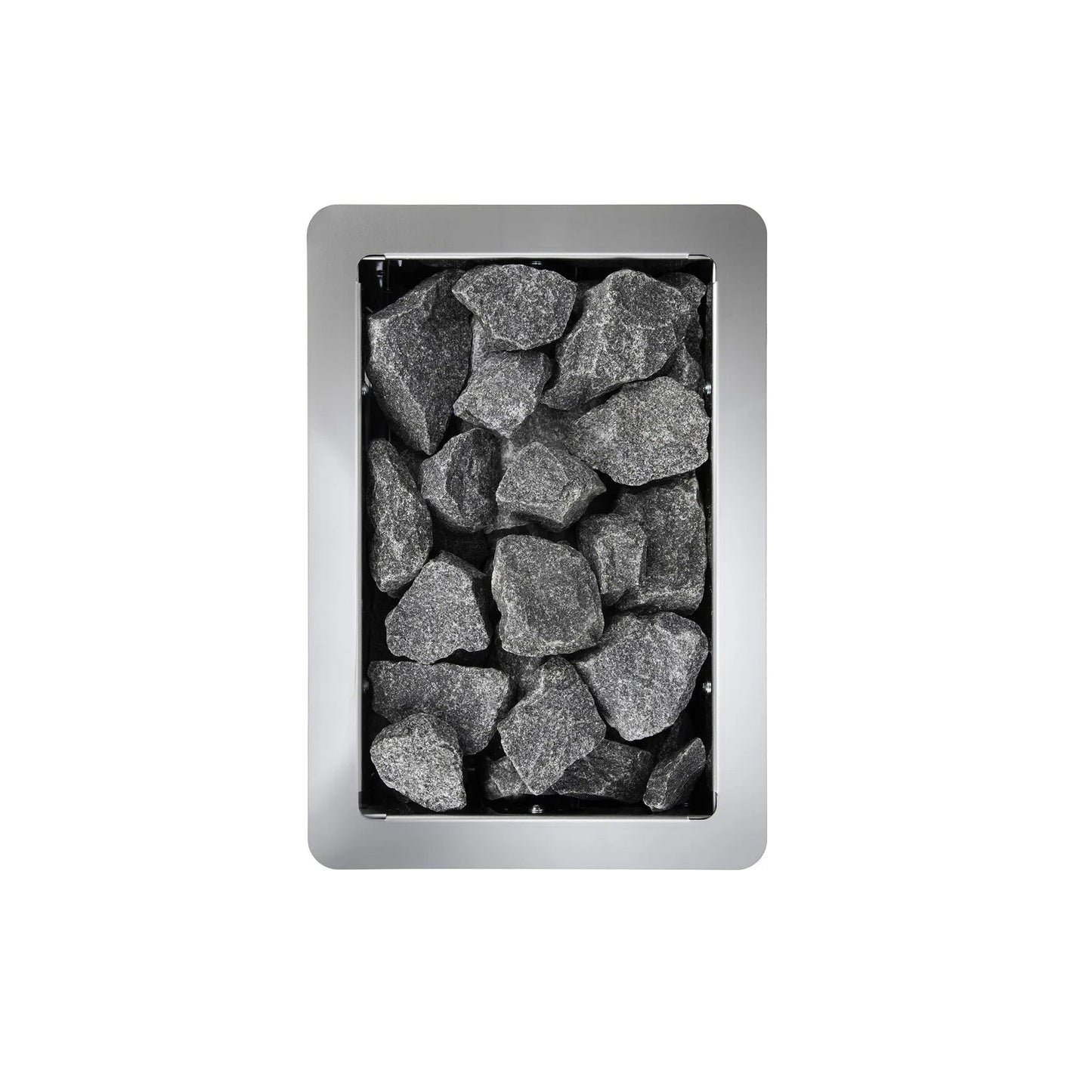

The Ultra takes up to 50 kg of 5–10 cm stones, and we recommend Olivine Diabase or Vulcanite sauna stones, sold separately. The stones must cover the heating elements completely and should be replaced every six months.
Brand
Narvi is a Finnish maker of sauna heaters, and every Narvi heater is CE tested and carries the Finnish Key Flag, awarded to products designed and made in Finland.
Warranty
The warranty on this heater is 2 years, with a 6-month warranty on the heating elements.
