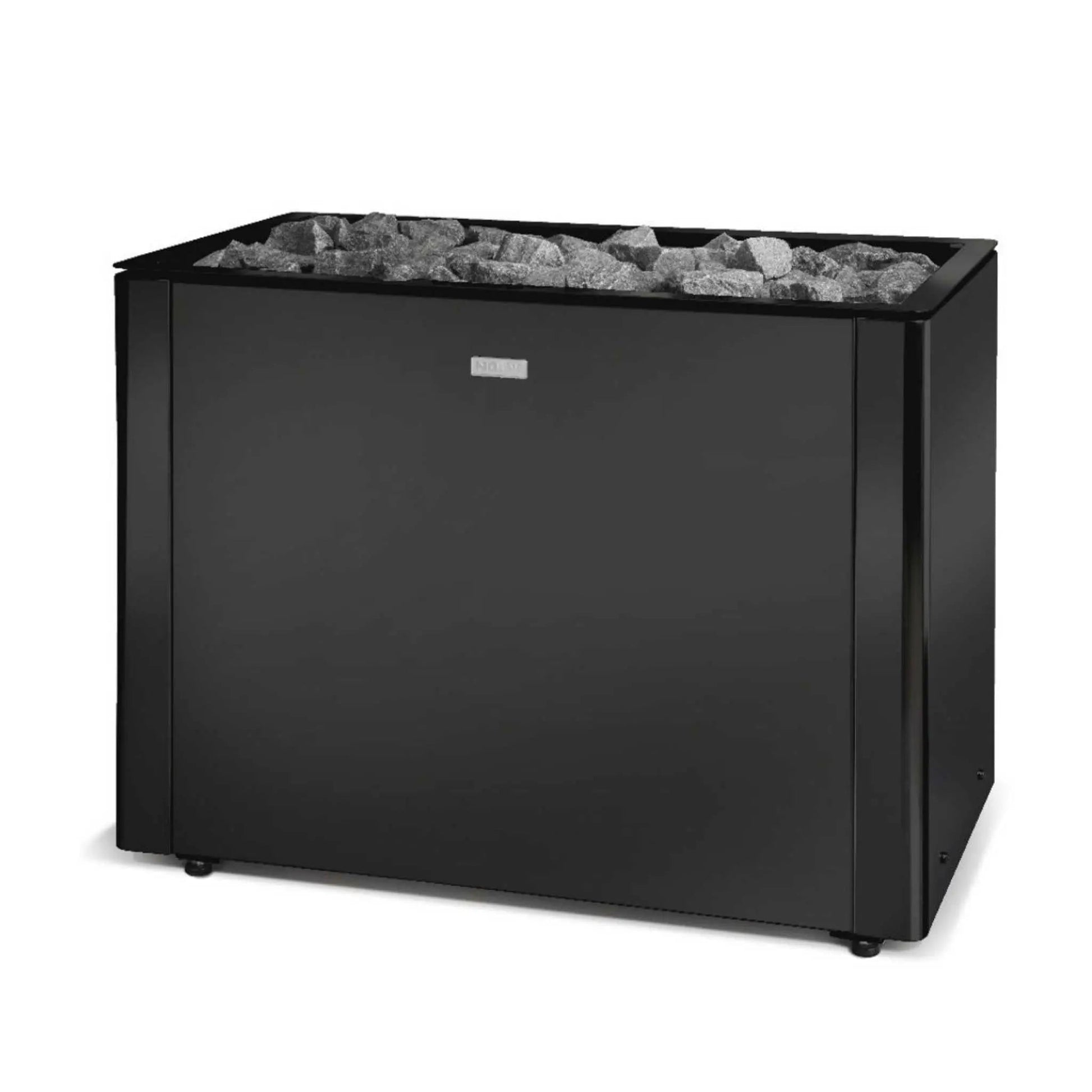

The Narvi Ultra Big is a Finnish-made commercial electric sauna heater for large saunas in gyms, spas, hotels and wellness retreats, and equally at home in large private or group saunas, built to run all day, every day. This version pairs a painted black casing with Narvi’s stainless steel construction and some of the highest material thicknesses on the market. Its 120 kg stone capacity is matched by heating elements of market-leading thickness and grade, so water can and should be poured over the stones for an authentic Finnish löyly that most stoneless commercial heaters cannot offer. The Ultra Big comes in 18 kW, 24 kW and 30 kW outputs (each arranged as two element groups) for sauna rooms of 15–40 m³, all on a three-phase supply. The heater is operated from the separate C-2003 control panel with its own thermostat unit, and the control panel, power supply unit and sauna stones are all sold separately. Narvi commercial heaters above 12 kW are made to order in Finland, so once confirmed these orders cannot be cancelled or returned.
Features
Technical Specification
| All models | |
| Finish | Painted black |
| Construction | Stainless steel, with some of the highest material thicknesses on the market |
| Dimensions (H × W × D) | 680 × 860 × 490 mm |
| Weight (without stones) | 50 kg |
| Stone capacity | 120 kg (5–10 cm stones) |
| Clearance to the front | 200 mm |
| Clearance to the floor | 68 mm |
| Supply | 400 V 3N~ (three-phase) |
| Control | C-2003 control panel and power supply unit, sold separately; separate thermostat unit maintains the set temperature |
| Control panel C-2003 | Temperature control 40–115 °C in 1 °C steps; display 20–125 °C; 14 memory locations with two switch-on times per day; switching-on time 6 h, 12 h, 18 h or continuous; sauna light control; external temperature sensor |
| Certification | CE tested; Finnish Key Flag |
| Ultra Big 18 kW (2 × 9 kW) | |
| Sauna room volume | 15–24 m³ |
| Minimum sauna room height | 2,100 mm |
| Clearance to the sides | 160 mm |
| Clearance to the ceiling | 1,400 mm |
| Supply cable (power unit) | 5-core 10 mm² SWA |
| Front fuse | 3 × 35 A |
| Group cables | 2 × 5-core 2.5 mm² H07RN-F |
| Group fuses | 2 × 3 × 16 A |
| Ultra Big 24 kW (2 × 12 kW) | |
| Sauna room volume | 20–32 m³ |
| Minimum sauna room height | 2,100 mm |
| Clearance to the sides | 160 mm |
| Clearance to the ceiling | 1,400 mm |
| Supply cable (power unit) | 5-core 16 mm² SWA |
| Front fuse | 3 × 50 A |
| Group cables | 2 × 5-core 4 mm² H07RN-F |
| Group fuses | 2 × 3 × 25 A |
| Ultra Big 30 kW (2 × 15 kW) | |
| Sauna room volume | 26–40 m³ |
| Minimum sauna room height | 2,200 mm |
| Clearance to the sides | 200 mm |
| Clearance to the ceiling | 1,500 mm |
| Supply cable (power unit) | 5-core 16 mm² SWA |
| Front fuse | 3 × 50 A |
| Group cables | 2 × 5-core 6 mm² H07RN-F |
| Group fuses | 2 × 3 × 25 A |
Installation
Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated at the fuse panel before any work begins. Under IEC 60364-7-703 and BS 7671:2018 an electric sauna heater does not have to be connected through an RCD, and for reliable operation the manufacturer recommends that the heater supply is not run through one; other electrical devices in the sauna room should be RCD protected. A local point of isolation covering all live conductors is recommended. The installation manual in the Downloads tab and local wiring regulations must be followed. The Ultra Big is floor-standing. The external control unit must be designed for sauna use, and the connecting cables are rubber-sheathed H07RN-F or equivalent, sized as shown above.
Sauna stones
The Ultra Big takes up to 120 kg of 5–10 cm stones, and we recommend Olivine Diabase or Vulcanite sauna stones, sold separately. The stones must cover the heating elements completely and should be replaced every six months.
Brand
Narvi is a Finnish maker of sauna heaters, and every Narvi heater is CE tested and carries the Finnish Key Flag, awarded to products designed and made in Finland.
Warranty
The warranty on this heater is 2 years, with a 6-month warranty on the heating elements.
