Narvi

Power Supply Unit for Narvi Ultra Big Commercial Sauna Heater

Power Supply Unit for Narvi Ultra Big Commercial Sauna Heater

Free UK Delivery Over £1500*
Regular price £ 1,501.00
Sale price £ 1,501.00 Regular price
View full details
Description

Description

The Narvi Ultra Big commercial sauna heater, with its 18–33 kW output, requires an independent power supply unit, and this listing covers the parts that run it: the F-2003 power supply unit, an external electrical cabinet that switches the heater’s full load, and the C-2003 control unit that commands it. Choose the power supply unit alone, the control unit alone, or both together as a set; the F-2003 only operates with a C-2003, and the C-2003 requires the F-2003 to switch the heater (neither is needed for the Ultra or Ultra Small, which use their own controls). The C-2003 is designed for public saunas, with a weekly clock holding 14 memory slots so two sessions can be programmed for each day, a lighting switch and an external temperature sensor, and it installs outside the sauna room, typically in a technical room or reception. Because commercial installations vary, no cabling is included, which leaves the installer free to specify runs to suit the site.

Features

  • Made for the Ultra Big: The 18–33 kW commercial heater requires this independent power supply unit; the Ultra and Ultra Small do not.
  • Three ways to order: Buy the F-2003 power supply unit alone, the C-2003 control unit alone, or both together as a set.
  • Each part needs the other: The C-2003 control unit only switches the heater through the F-2003, and the F-2003 is operated only by the C-2003.
  • Weekly programming: The C-2003 holds 14 memory slots, allowing two programmed sauna sessions for every day of the week.
  • Remote installation: The control unit installs outside the sauna room, typically in a technical room or reception office.
  • Lighting control: Sauna lighting of up to 100 W connects to the control unit and is switched from the panel.
  • Cabling specified on site: No cabling is included, giving commercial installers the flexibility to suit each building.
Technical Specification

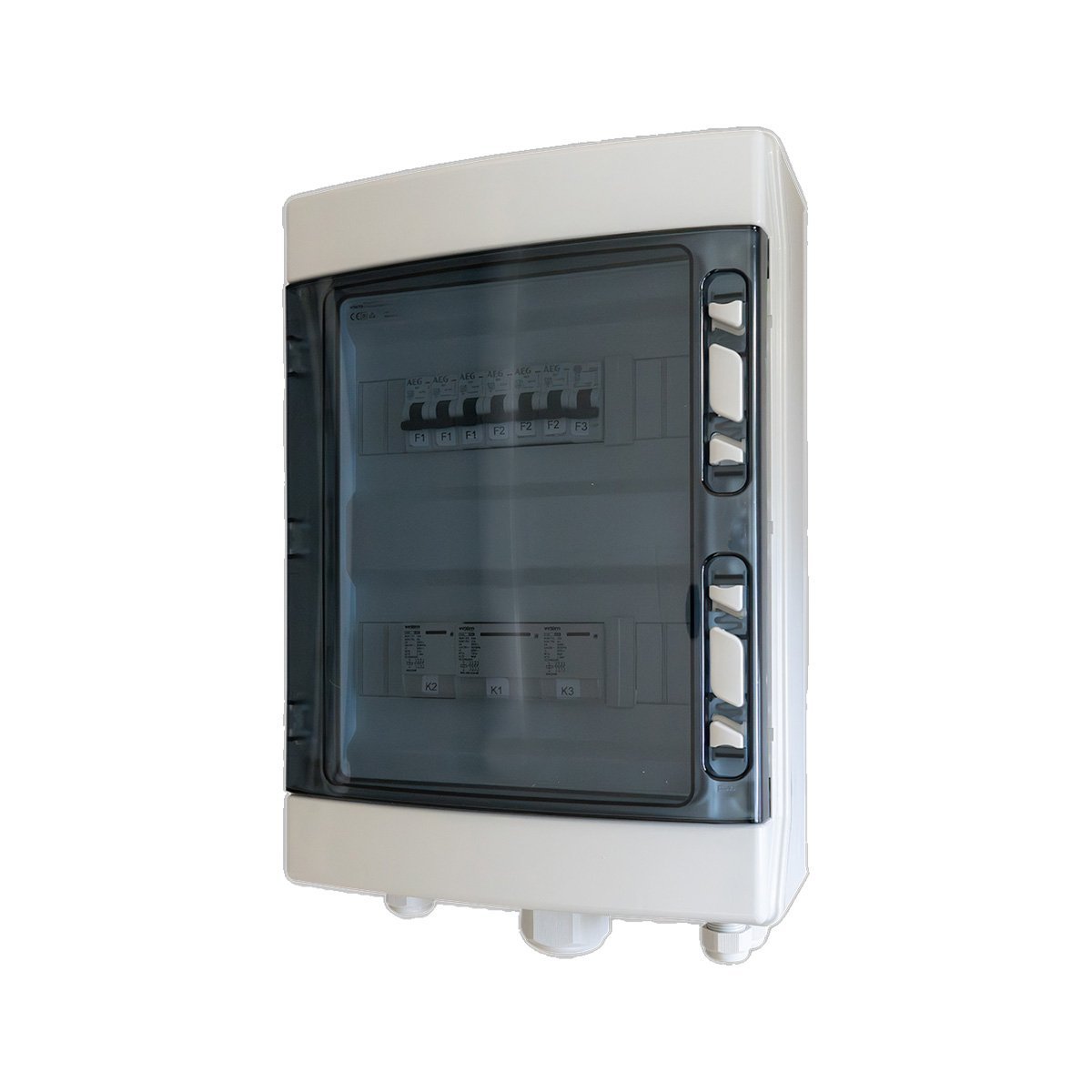

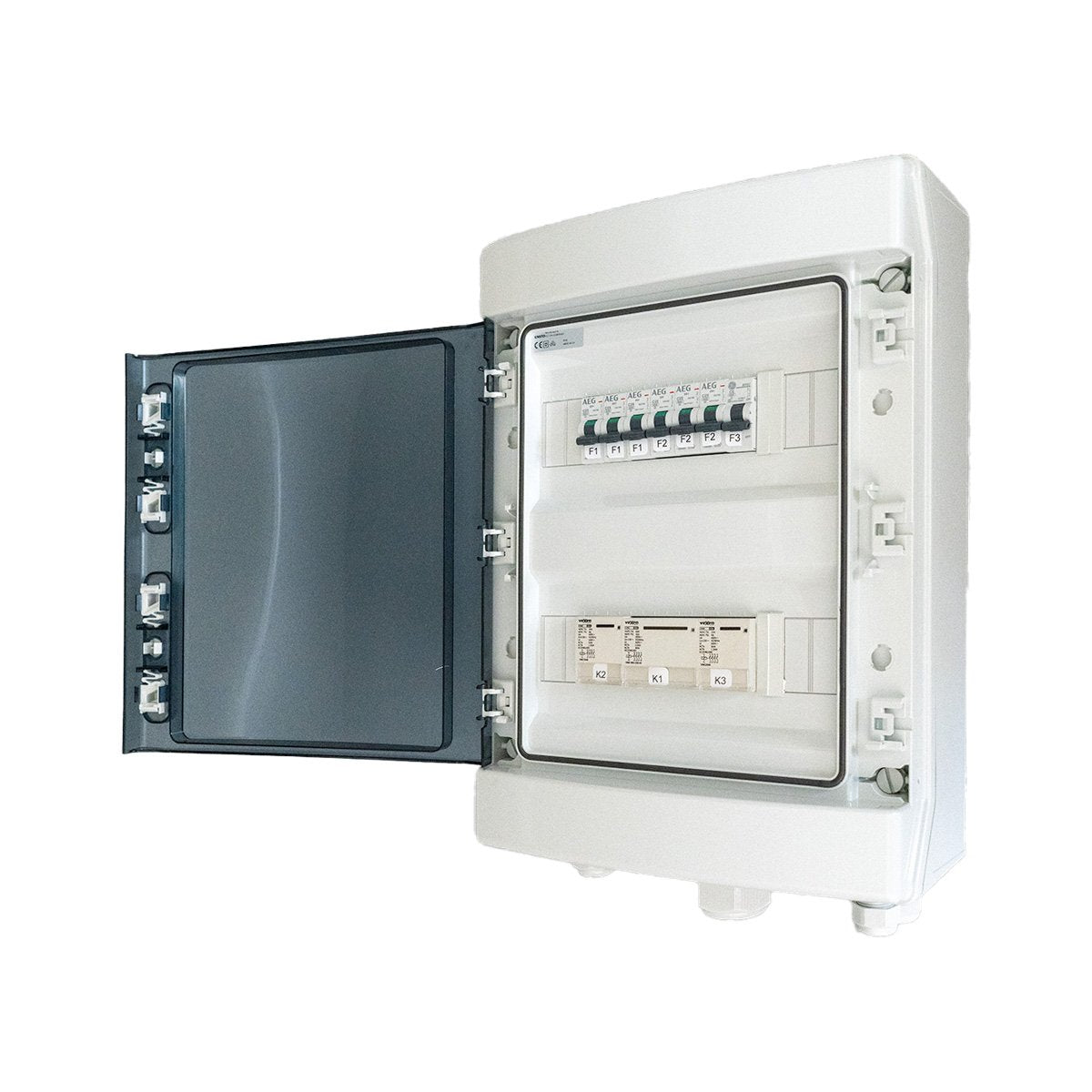

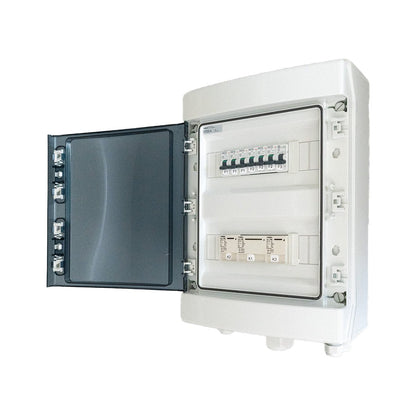

F-2003 power supply unit
Heater output range18–33 kW
FormatExternal electrical cabinet
Required control panelNarvi C-2003 (sold separately or as a set)

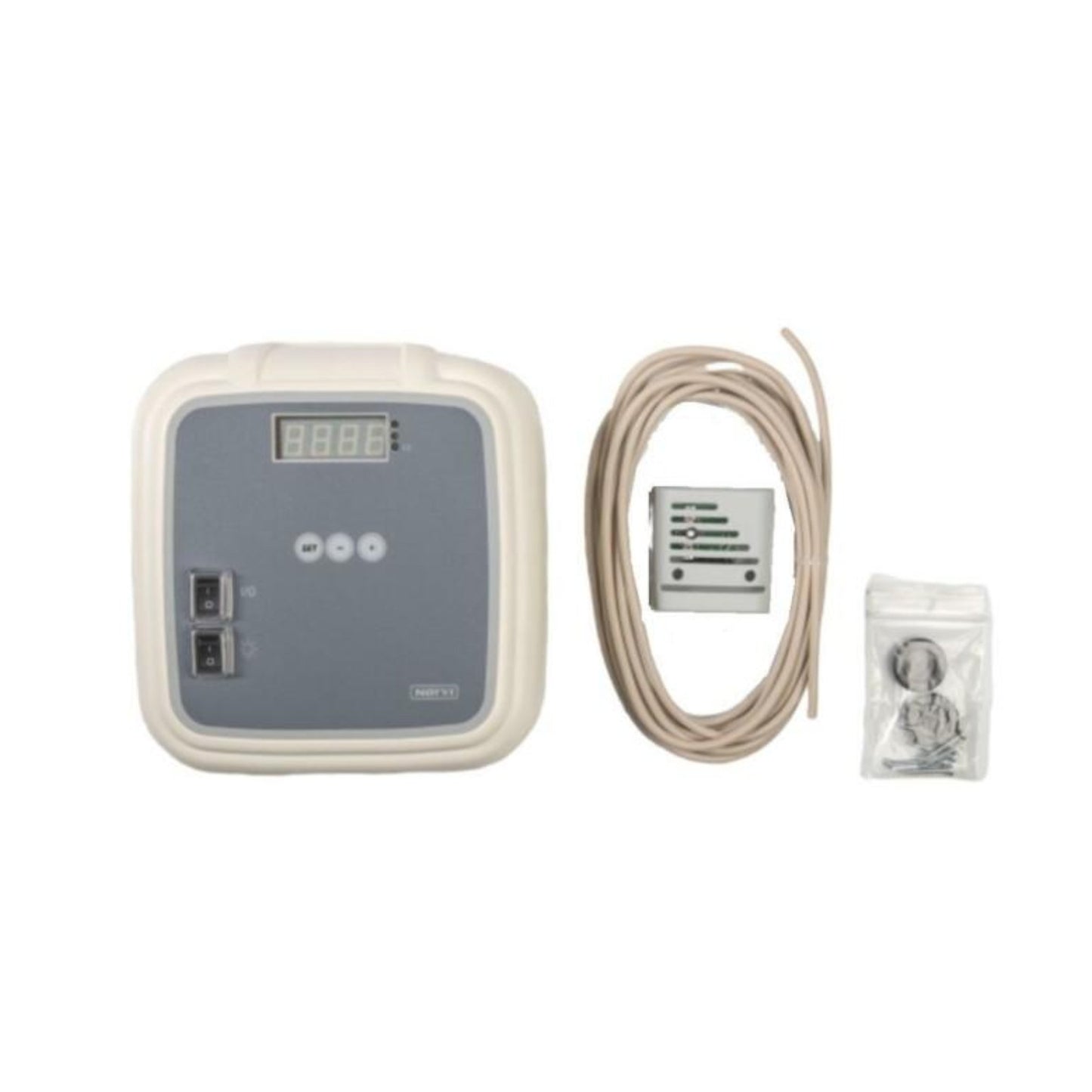

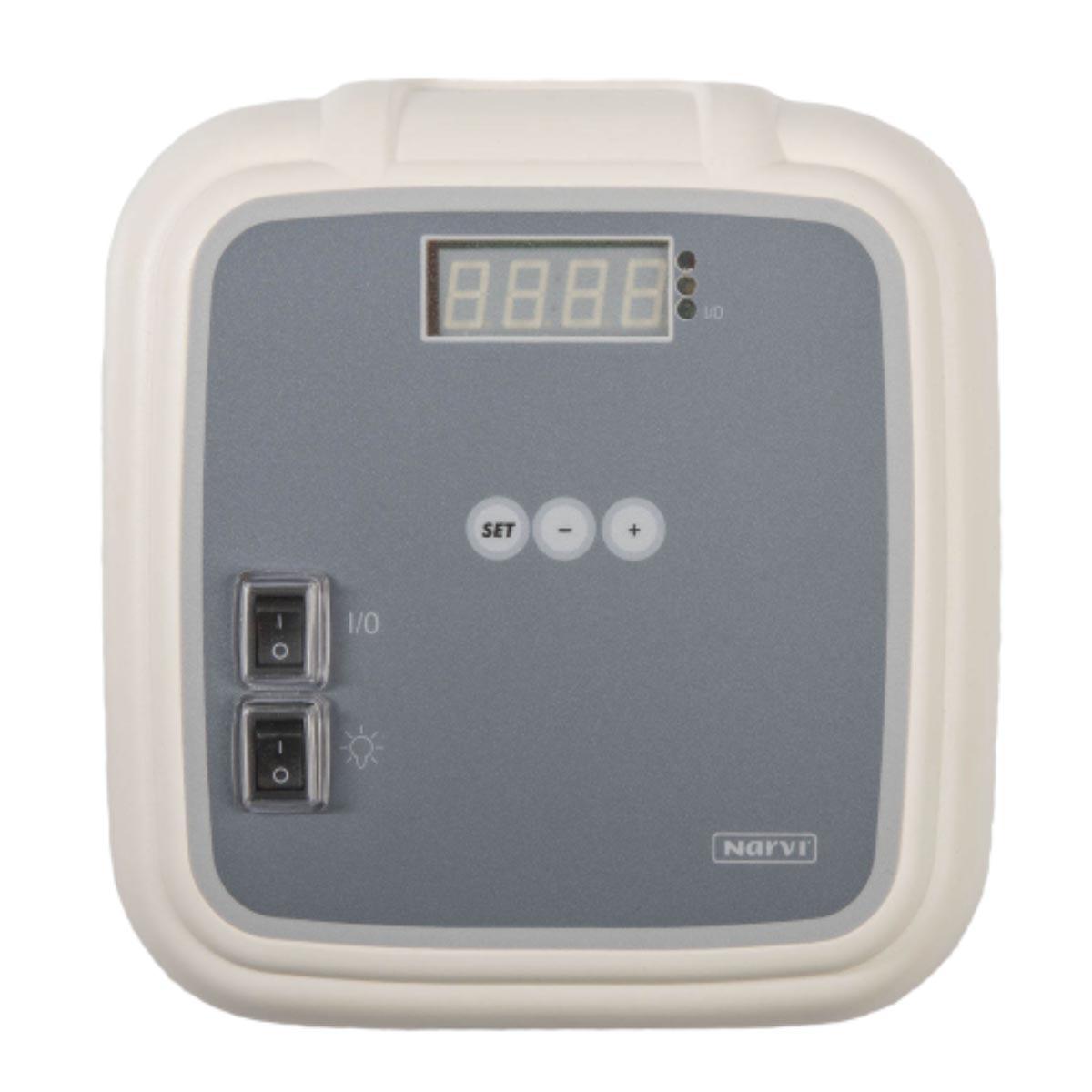

C-2003 control unit
For heaters18–33 kW, switched through the F-2003 power supply unit (required)
Intended usePublic saunas
Temperature adjustment range40–115°C, in 1°C steps
Temperature display range20–125°C
Pre-selection timerUp to 24 h
Weekly clock14 memory slots (two sessions per day)
Maximum switching-on time6, 12 or 18 h, or continuous, set by the installer
Lighting outputMax 100 W
Temperature sensorExternal sensor included
MountingSurface-mounted outside the sauna room; not suitable for flush mounting
All options
CablingNot included; specified by the installer

Installation

The C-2003 control unit must be installed outside the sauna room, surface-mounted and fixed to the wall with three screws, with the external sensor installed in the sauna as shown in the manual. The maximum switching-on time is set by the installer using the DIP switches inside the enclosure; in the continuous position the heater switches on as soon as the unit is powered. Electrical installation of the power supply unit and control unit must be carried out by a certified electrician, following the installation manual and local wiring regulations.

Brand

Narvi is a Finnish manufacturer of sauna heaters and control equipment, based in Lappi, Finland. Narvi equipment is CE tested and carries the Finnish Key Flag as a mark of genuine Finnish design and manufacture.

Ordering note

Check your heater model, its rated output and, where relevant, the controller generation before ordering. Electrical installation and replacement of control equipment must be carried out by a certified electrician.
