Narvi Ultra Small Commercial Electric Sauna Heater (Wi-Fi Controlled)
Narvi Ultra Small Commercial Electric Sauna Heater (Wi-Fi Controlled)
Couldn't load pickup availability
Buy together with:
Description
Description

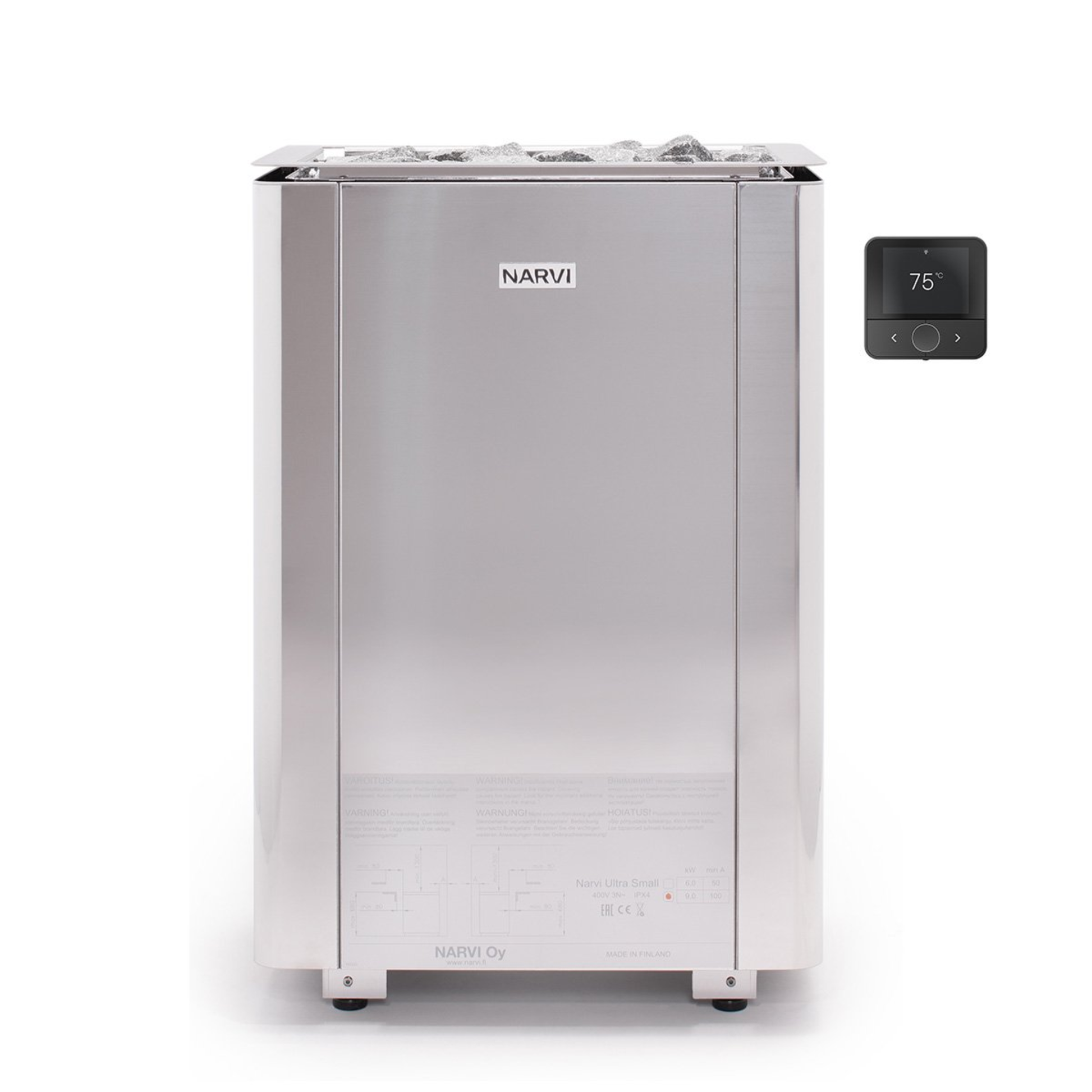

The Narvi Ultra Small (Wi-Fi Controlled) is a Finnish-made commercial electric sauna heater scaled for small commercial saunas in gyms, spas and hotels, and for domestic saunas in daily use, supplied complete with the Narvi Flow Wi-Fi controller. Like the rest of the Ultra series it is stainless steel inside and out, with some of the highest material thicknesses on the market, and elements of a thickness and grade that welcome generous water over the 30 kg stone mass. It is available in 6 kW and 9 kW outputs for sauna rooms of 5–14 m³, each in a painted black or stainless steel finish, and both outputs can be connected to a single-phase or three-phase supply. From the Flow controller you can start the heater, set the temperature and schedule heating times, with remote operation through the free Narvi Flow app. Sauna stones are sold separately.
Features
Technical Specification
| All models | |
| Finish | Painted black or stainless steel |
| Construction | Stainless steel inside and out, with some of the highest material thicknesses on the market |
| Dimensions (H × W × D) | 680 × 440 × 300 mm |
| Weight (without stones) | 15 kg |
| Stone capacity | 30 kg (5–10 cm stones) |
| Minimum sauna room height | 1,900 mm |
| Clearance to the front | 80 mm |
| Clearance to the ceiling | 1,300 mm |
| Clearance to the floor | 40 mm |
| Control | Narvi Flow Wi-Fi controller included |
| Certification | CE tested; Finnish Key Flag |
| Ultra Small 6 kW | |
| Sauna room volume | 5–8 m³ |
| Clearance to the sides | 50 mm |
| Electrical connection (400 V 3N~) | 5-core 1.5 mm² H07RN-F; fuses 3 × 10 A |
| Electrical connection (230 V 1N~) | 3-core 6 mm² H07RN-F; fuse 1 × 35 A |
| Ultra Small 9 kW | |
| Sauna room volume | 8–14 m³ |
| Clearance to the sides | 100 mm |
| Electrical connection (400 V 3N~) | 5-core 2.5 mm² H07RN-F; fuses 3 × 16 A |
| Electrical connection (230 V 1N~) | 3-core 10 mm² H07RN-F; fuse 1 × 40 A |
Installation
Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated at the fuse panel before any work begins. Under IEC 60364-7-703 and BS 7671:2018 an electric sauna heater does not have to be connected through an RCD, and for reliable operation the manufacturer recommends that the heater supply is not run through one; other electrical devices in the sauna room should be RCD protected. A local point of isolation covering all live conductors is recommended. The installation manual in the Downloads tab and local wiring regulations must be followed. The Ultra Small is floor-standing and can also be fastened to the wall as shown in the installation manual.
Sauna stones
The Ultra Small takes up to 30 kg of 5–10 cm stones, and we recommend Olivine Diabase or Vulcanite sauna stones, sold separately. The stones must cover the heating elements completely and should be replaced every six months.
Brand
Narvi is a Finnish maker of sauna heaters, and every Narvi heater is CE tested and carries the Finnish Key Flag, awarded to products designed and made in Finland.
Warranty
The warranty on this heater is 2 years, with a 6-month warranty on the heating elements.
