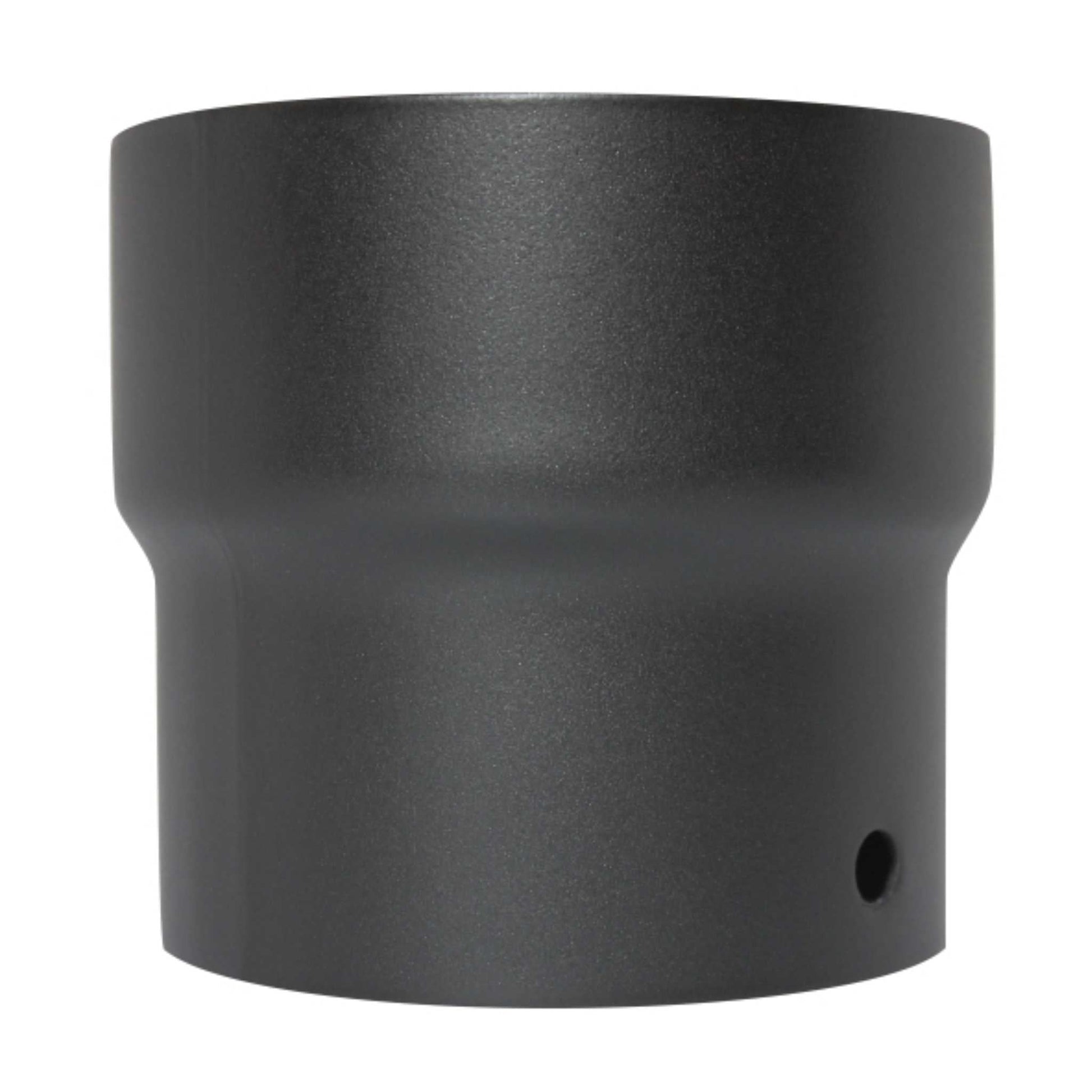

Wood-Burning Stove Adaptor Enamelled Steel Ø 125mm

APPLICATION
Suitable for gas, oil and solid fuel appliances with temperatures up to 600°.
This adaptor should only be used as a connecting pipe between your appliance and Flue Liner / Chimney Stack / Twin Wall Flue System.

This pipe should NOT be used to pass through ceilings or combustible walls.

CONSTRUCTION
This adaptor is part of a single skin connecting flue system manufactured in zero carbon steel with Powder vitreous enamel coating in a matt black finish.
Suitable for gas, oil and solid fuel appliances with temperatures up to 600°.

INSTALLATION
You should not install a piece within 375mm from combustible material, e.g. wood, plaster boards, etc. When installing make sure it is installed the correct way up - the smaller diameter should always be pointing downward. This is because all the condensates will stay within the flue system and not pass to the outside.

The adaptor is a friction fit joint so dose not require sealing of the joints, for extra security if desired each joint could be coated with a jointing compound (fire cement or high temperature silicone sealant).This makes sure that no condensate can escape and spoil the appearance of the pipe. It has been designed to be cut, but care must be taken to cover any exposed steel with high tempteture paint as this will rust over time.
When installing appropriate PPE should be worn at all times.

MAINTENANCE
You should make provision for inspecting and cleaning the chimney. This is particularly important on solid fuel applications. You can acheive this by installing it with an access doors at changes of direction. It is recommended that chimneys serving solid fuel appliances be swept and maintained as frequently as necessary but at least once a year.

Please note, we recommend that flue/chimney products should be installed by a suitably qualified builder/plumber/fitter. Finnmark Limited accepts no liability for loss or injury caused by the incorrect installation of your flue equipment. Please Contact Us if you require information on our recommended fitters.
