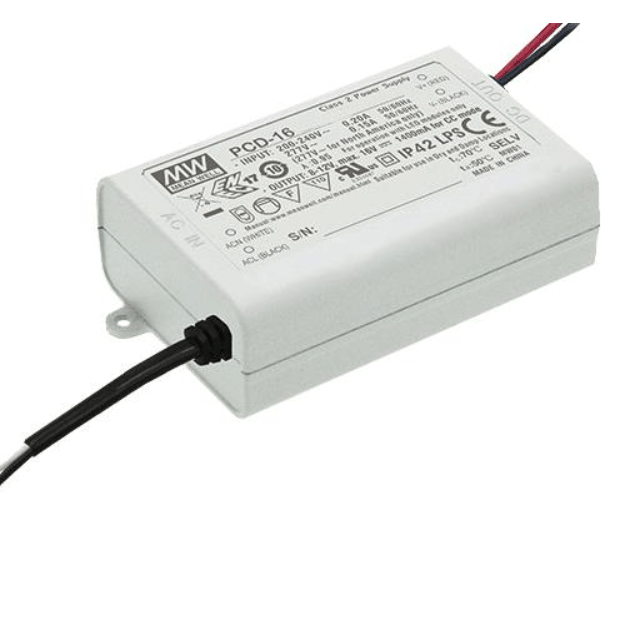

PCD-16-350B LED Driver (16.8W, 48V, 350mA)
PCD-16-350B LED Driver (16.8W, 48V, 350mA)
Couldn't load pickup availability
Description
Description
The PCD-16-350B is a single output AC dimmable LED power supply from the PCD-16 series, suitable for sauna lighting. It uses AC phase-cut dimming and works with both leading edge and trailing edge TRIAC dimmers, delivering a constant current of 350 mA across a 24–48 V operating output voltage range with 16.8 W of rated power. Short circuit and over temperature protections are built in, and the fully isolated plastic case is an IP42 design, class II with no FG.
Features
Technical Specification
| Specifications | |
| Series | PCD-16 single output AC dimmable LED power supply |
| Rated power | 16.8 W |
| Rated output current | 350 mA |
| Operating output voltage range | 24 ~ 48 V |
| Typical efficiency | 82% |
| Dimming | AC phase-cut; works with leading edge and trailing edge TRIAC dimmers |
| Output design | Constant current, built-in active PFC function |
| Protections | Short circuit / over temperature |
| Housing | IP42 design, class II power unit, no FG; fully isolated plastic case |
| Cooling | Free air convection |
| Working temperature range | -30 to +60 °C |
| Dimensions (L × W × H) | 84 mm × 57 mm × 29.5 mm |
| Testing | 100% full load burn-in test |
| SKU | 4206561 |
Ordering
If you are unsure this driver suits your sauna lighting installation, contact support@finnmarksauna.com with details of your setup before ordering.
