Pro-B3 Control Unit by IKI
Pro-B3 Control Unit by IKI
Couldn't load pickup availability
Description
Description

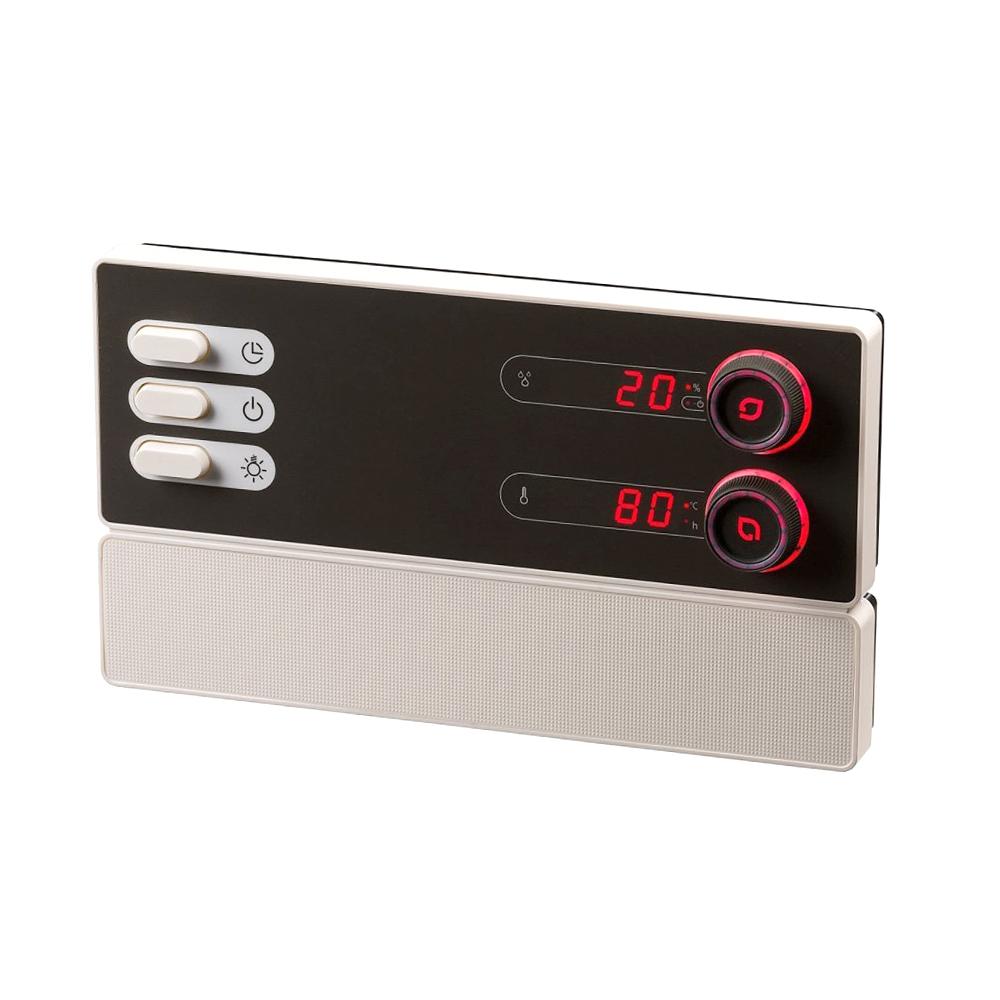

The Pro-B3 is IKI’s digital control unit for electric sauna heaters up to 10.5 kW, extended to larger heaters with S2-18 or S2-30 power boosters sold separately. Two illuminated dials and clear digital displays set the temperature between 30 and 110 °C and preset heating up to 24 hours ahead, while remote start terminals, door monitoring and an RS485 connection suit hotels and commercial saunas as well as the home. It runs on a 400 V three-phase supply, is wall-mounted outside the sauna room, and arrives with the heater sensor (F1) and installation material; a bench sensor (F2) and humidity sensor (FTS2) are optional extras. Combi mode and a post-drying programme support combi heaters with a vaporiser up to 3.5 kW, though IKI heaters are dry sauna heaters, so with them we recommend dry mode for the soft, generous löyly IKI is known for.
Features
Technical Specification
| Maximum heater output | 10.5 kW (18 or 30 kW with S2-18 / S2-30 power boosters) |
| Vaporiser capacity (combi mode) | 3.5 kW |
| Temperature range | 30–110 °C |
| Humidity setting range (combi mode) | 0–100% |
| Supply | 400 V 3N~, 50 Hz |
| Current rating per phase | 16 A |
| Power supply cable | min. 5 × 2.5 mm² |
| Heater supply cable | min. 2.5 mm², temperature-resistant to 150 °C |
| Sensor cables | min. 0.5 mm², temperature-resistant to 150 °C |
| Light output | 100 W (1 A T fuse) |
| Fan output | 100 W (1 A T fuse) |
| Heating period options | 6, 12, 18 or 24 hours |
| Overheat cut-out | 139 °C |
| Protection class | IPX4 |
| Dimensions | 307 × 175 × 57 mm |
| Ambient temperature | -10 °C to +40 °C |
| Storage temperature | -25 °C to +70 °C |
| Connectivity | RJ45 socket for RS485 and MySentio Wi-Fi |
| In the box | Control unit, heater sensor (F1) with overheat cut-out, installation material |
| Optional extras | Bench sensor (F2), humidity sensor (FTS2), S2-18 / S2-30 power boosters |
| Guarantee | 2 years in home use |
Installation
The Pro-B3 is wall-mounted outside the sauna room and connected to the mains supply as fixed wiring. The heater sensor is fitted 100 mm from the ceiling and 100–400 mm from the heater frame, at least 1,000 mm from an undirected air vent or 500 mm from a directed one. Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated before any work begins, and the installation manual in the Downloads tab and local wiring regulations must be followed.
Brand
IKI Kiuas builds open-structured, large-stone-mass sauna heaters, hand crafted in Pieksämäki, Finland.
Warranty
The Pro-B3 is covered by a two-year guarantee in home use.
Ordering note
Check your heater model, heater output and controller generation before ordering; heaters above 10.5 kW also need an S2-18 or S2-30 power booster, sold separately. Electrical installation must be carried out by a certified electrician.
