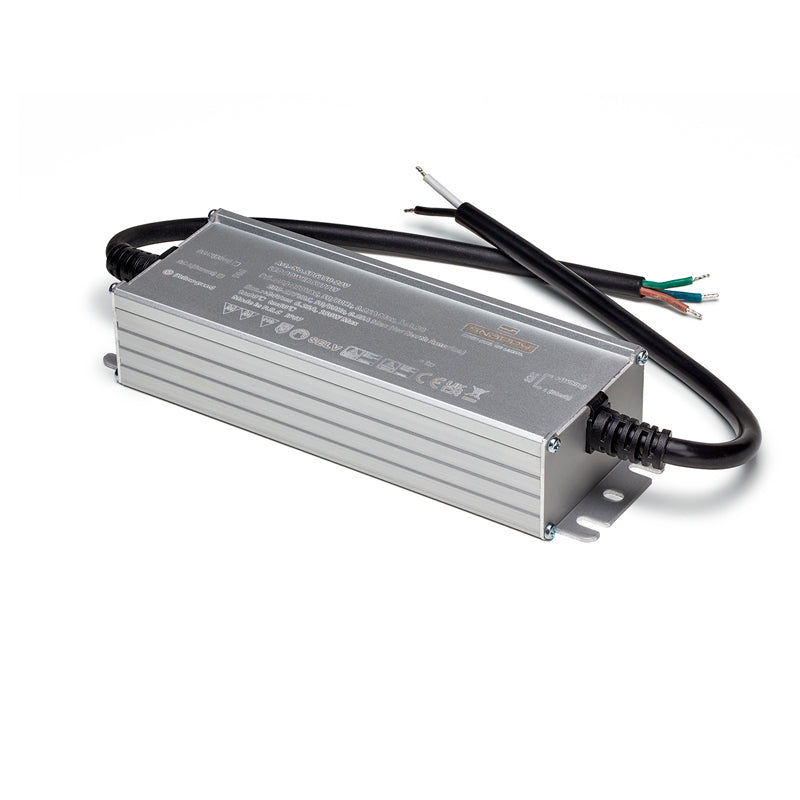

Sauna Lighting SAAS 150W 24V RGBW DMX Driver
Sauna Lighting SAAS 150W 24V RGBW DMX Driver
Available to purchase – Special order lead times apply.*
Couldn't load pickup availability
Description
This 150W 24V driver powers SAAS RGBW sauna lighting and takes its instructions over DMX, so the colour, white level and brightness set at the wall switch are carried through to the strip. It supplies the four RGBW channels from a single unit and is the power supply specified for the Creative Sauna Top View RGBW and Side View RGBW strips. The driver is installed outside the hot room in a dry, ventilated position by a qualified electrician.
- 150W output at 24V, sized for RGBW sauna strip installations
- Separate R, G, B and W outputs from one driver, keeping the wiring simple
- DMX control input (D+, D- and GND) for use with the SAAS EX4S RGBW touch switch
- Mains input on L and N, with the low-voltage side feeding the strip
- Specified for the SAAS Creative Sauna Top View RGBW and Side View RGBW strips
- Fitted outside the hot room in a dry, ventilated location
- Installation should be carried out by a qualified electrician
Technical Specification
| Product number | 10002488 |
| Type | Constant voltage LED driver, RGBW |
| Power rating | 150 W |
| Output voltage | 24 V |
| Outputs | LED (+), R, G, B, W |
| Control | DMX (D+, D-, GND) |
| Mains input | L and N |
| Model reference | G4K3 |
Compatibility
For use with the SAAS Creative Sauna Top View RGBW and SAAS Creative Sauna Side View RGBW strips, controlled by the SAAS EX4S RGBW touch switch. The strip and the switch are sold separately.
Installation
The DMX controller connects to the driver using D+, D- and GND. Mains supply connects to L and N, and the RGBW strip connects to the driver outputs (R, G, B, W and -). All connections should be checked before the system is powered up, and the work should be carried out by a qualified electrician.
Downloads
The technical specification sheet is available under the Downloadable Files tab on this page.
Brand
SAAS Instruments has spent three decades making high-quality lighting, including LED components built for the demanding environment of the sauna. The components are compact, robust and straightforward to install.
Ordering
If you are unsure how this part fits your lighting design, contact support@finnmarksauna.com with the details of your sauna and your SAAS setup before ordering.
