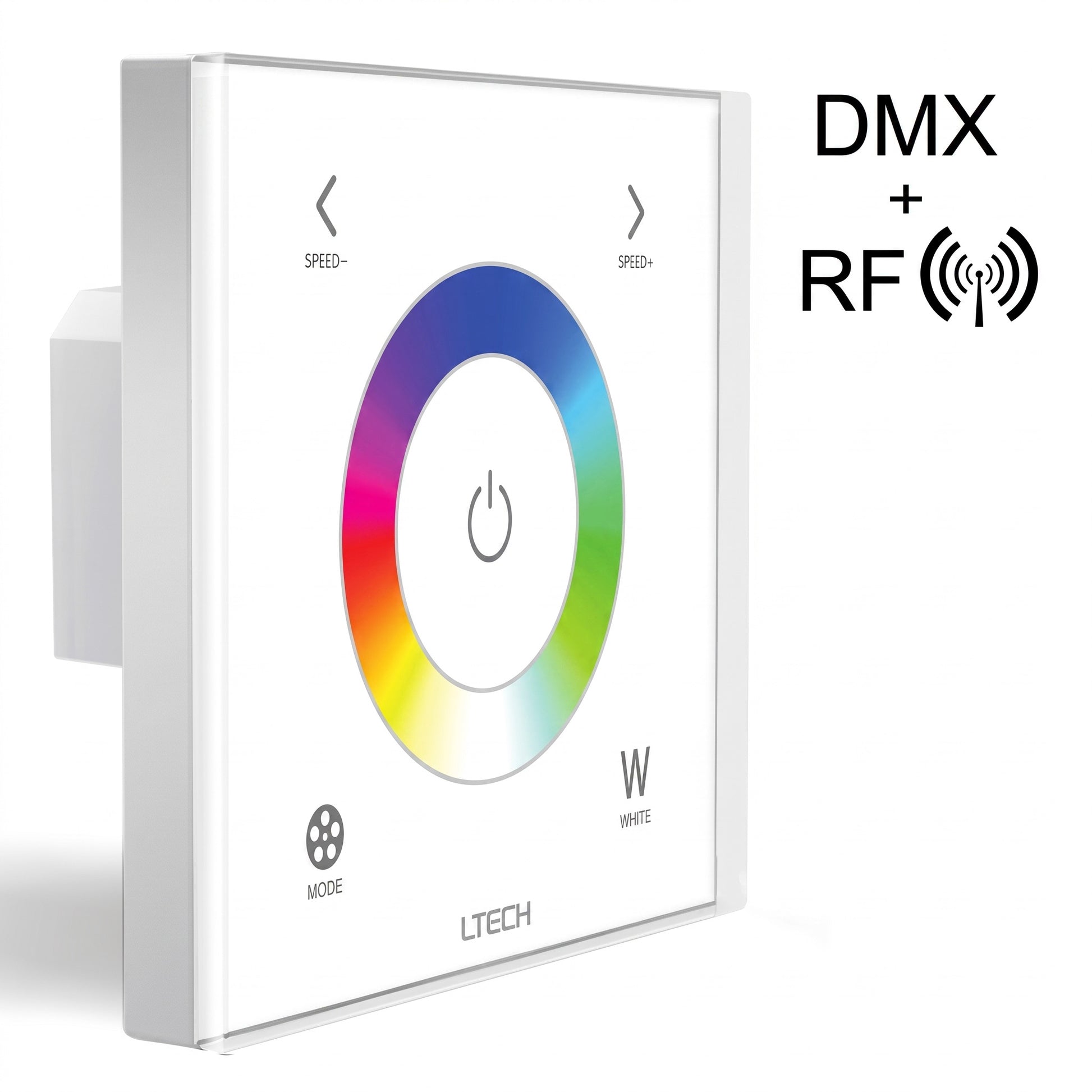

Sauna Lighting SAAS EX4S RGBW Touch Switch
Sauna Lighting SAAS EX4S RGBW Touch Switch
Available to purchase – Special order lead times apply.*
Couldn't load pickup availability
Description
The SAAS EX4S is the wall switch for SAAS RGBW sauna lighting. A touch colour wheel sets the colour, with separate controls for white intensity, dimming and a saved favourite setting, plus twelve pre-programmed colour modes. It sends its signal to the driver over DMX and fits a standard Euro or 86 type junction box, which is not included. The switch is mounted outside the hot room, where temperatures stay within its -25°C to +50°C range.
- Touch colour wheel for setting colour, with a dedicated white button for intensity
- Dimming through the B/SPD button, which also sets the speed of the colour modes
- Save button stores a favourite colour setting and recalls it with a short press
- Twelve pre-programmed modes, from static colours to jumping and gradient sequences
- Optional sound indicators for clearer feedback when using the touch panel
- Compact 86 x 86 x 36mm panel that fits a Euro or 86 type junction box, sold separately
- Controls SAAS RGBW strip lighting over DMX through a 24V RGBW driver
Technical Specification
| Product number | 10005642 |
| Model | SAAS EX4S RGBW wall switch |
| Control type | Touch panel with colour wheel |
| Output | DMX (D+, D-, GND) |
| Dimensions | 86 mm x 86 mm x 36 mm |
| Mounting | Euro junction box or 86 type junction box, not included |
| Operating temperature | -25°C to +50°C |
| Controls | On/off, colour wheel, white, B/SPD (dim and speed), mode, save |
| Pre-programmed modes | 12 |
What you also need
The switch is used with a 24V RGBW power supply with DMX and a SAAS RGBW strip. We recommend the SAAS 150W 24V RGBW DMX Driver with the SAAS Creative Sauna Side View RGBW or Top View RGBW strip. A junction box is not included with this switch.
Using the switch
A short press of the on/off button powers the light up or turns it off. Pressing a point on the colour wheel changes the colour, holding the white button adjusts colour intensity, and holding B/SPD dims the light. Holding the save button stores a preferred setting, which a short press then recalls. A short press of the mode button steps through the pre-programmed modes, which run in this order: static red, green, blue, yellow, purple, cyan and white, then RGB jumping, 7 colour jumping, RGB gradient, 7 colour gradient and static black.
Installation
The switch is fitted outside the hot room and wired to the driver over DMX. Installation should be carried out by a qualified electrician.
Downloads
The technical specification sheet is available under the Downloadable Files tab on this page.
Brand
SAAS Instruments has spent three decades making high-quality lighting, including LED components built for the demanding environment of the sauna. The components are compact, robust and straightforward to install.
Ordering
If you are unsure how this part fits your lighting design, contact support@finnmarksauna.com with the details of your sauna and your SAAS setup before ordering.
