Tulikivi
Tulikivi Complete Wi-Fi Control System
Tulikivi Complete Wi-Fi Control System
Couldn't load pickup availability
Description
Description

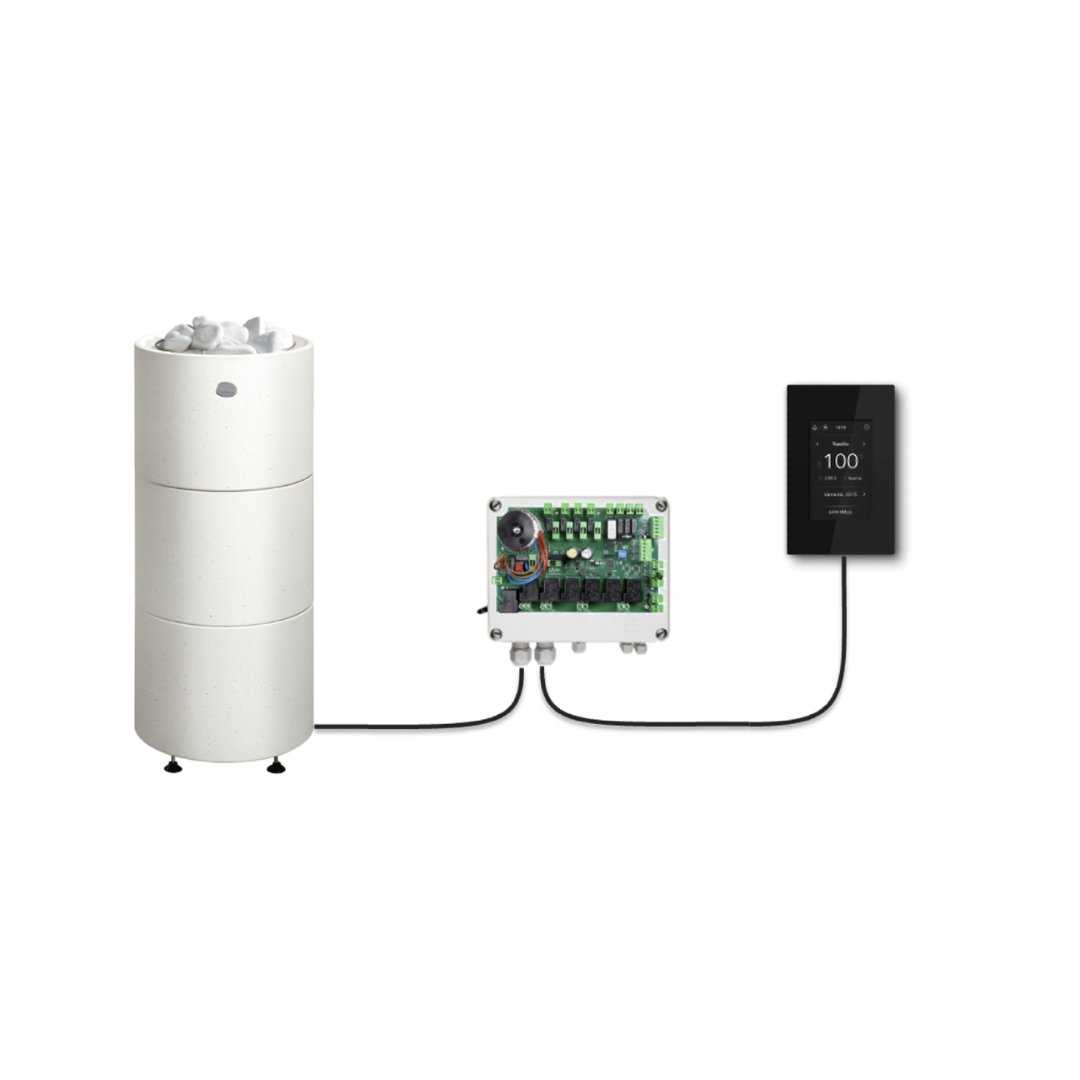

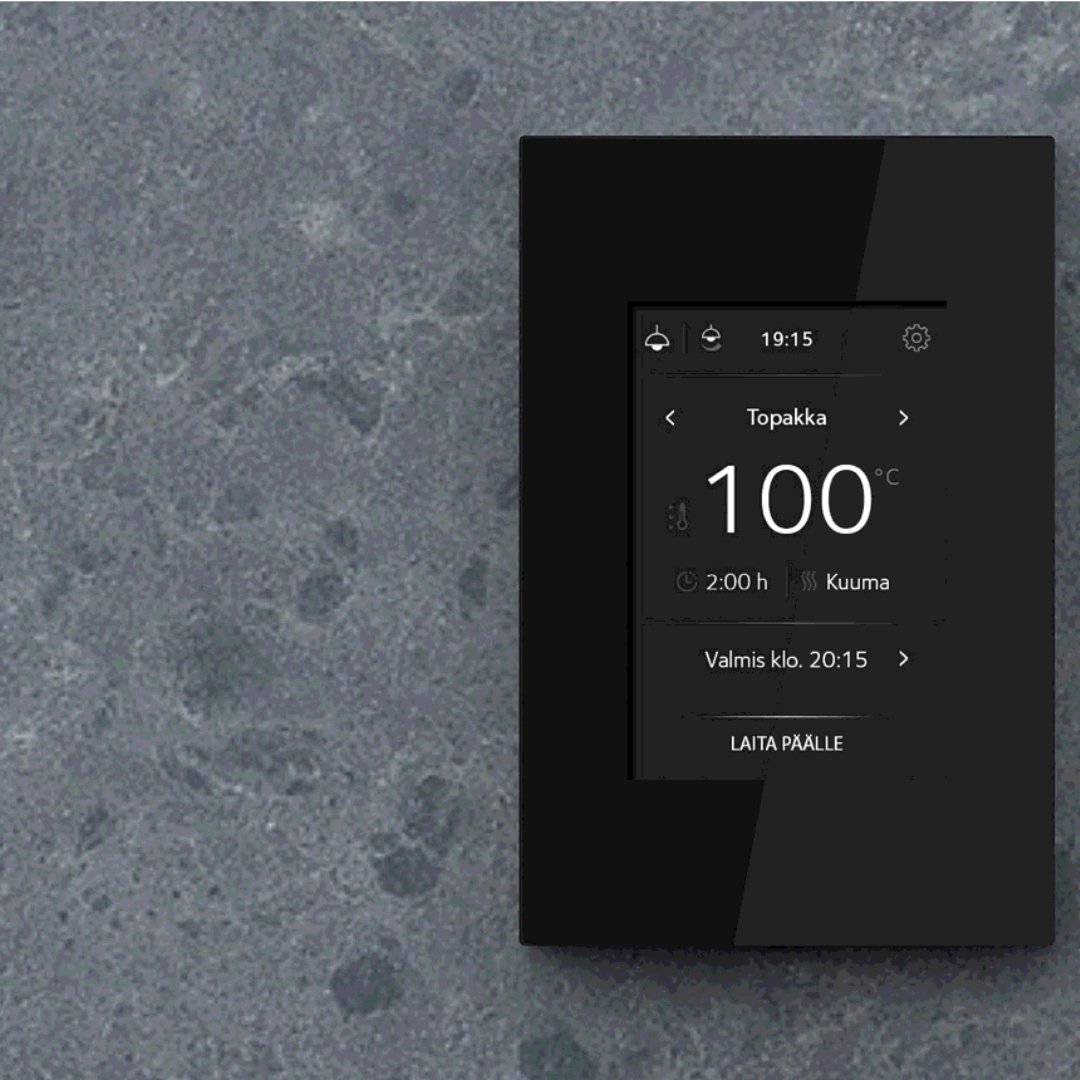

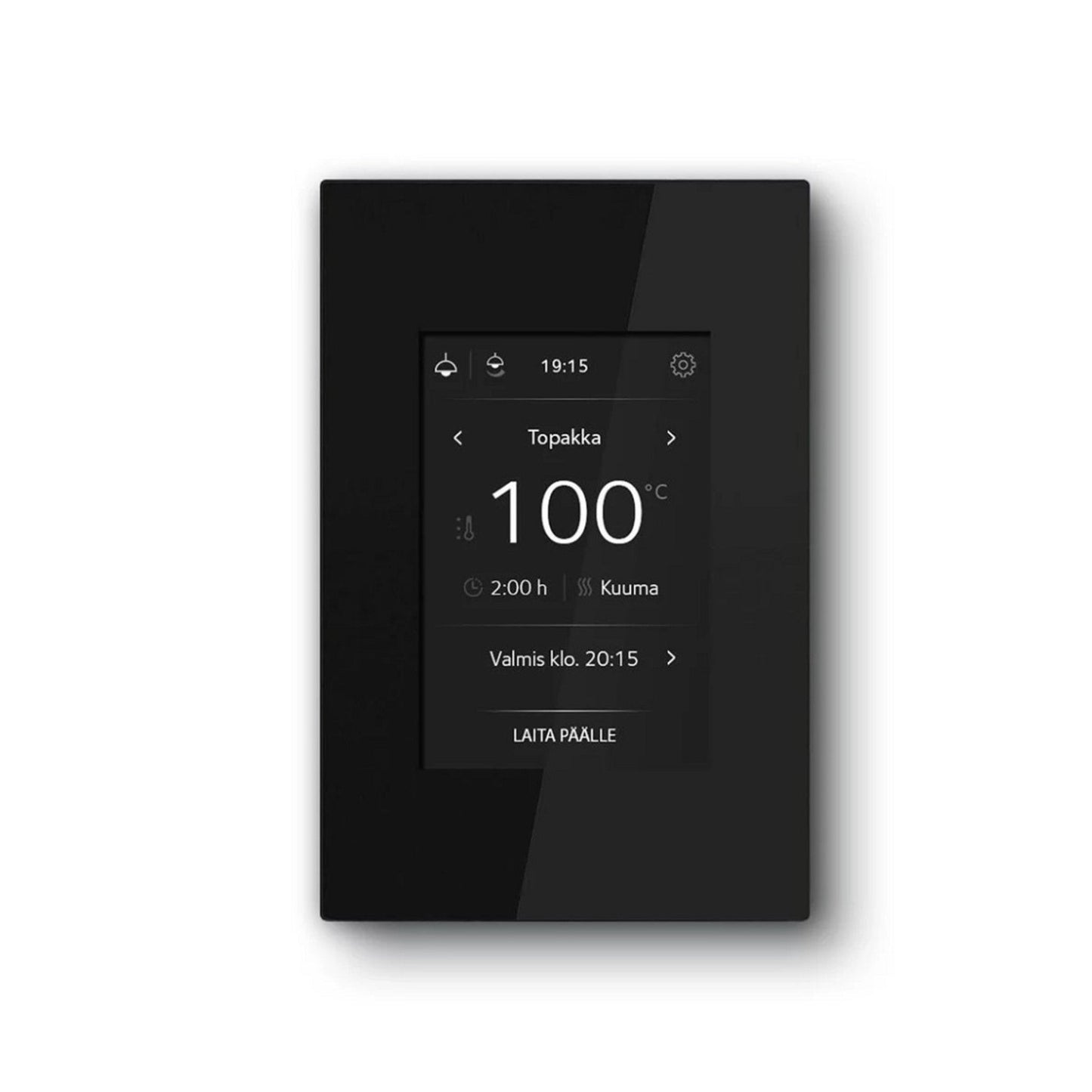

The Tulikivi Complete Wi-Fi Control System brings together everything needed to run a Tulikivi electric sauna heater remotely: the black Wi-Fi touch screen control panel (SS1607), a contactor box matched to your electricity supply, and the 15 m connection cable. The 3.5-inch panel sets the temperature between +40 and +110 °C to the degree, times the sauna up to 24 hours ahead and stores personal profiles, and with Wi-Fi connected the sauna can also be started and monitored from your phone through the Tulikivi Sauna app; with the Kevo collection heaters (Kaarna, Pyry and Usva) it also adjusts the quality and intensity of the steam. Choose the power unit to suit your installation: single-phase supply for 4.5–9 kW heaters, three-phase supply for 4.5–10.5 kW heaters, or the three-phase unit for Tulikivi’s L and XL heaters from 12 to 21 kW. The local-control version of the system is listed separately.
Features
Technical Specification
| All options | |
| Control panel | Tulikivi touch screen, black with Wi-Fi capability (SS1607) |
| Screen | 3.5-inch touch screen |
| Temperature range | +40 to +110 °C, set to the degree |
| Timer | Sauna ready time can be set up to 24 hours ahead |
| Run time limits | Private use up to 6 hours; public use up to 24 hours with a 6-hour break |
| Remote control | Tulikivi Sauna app over a wireless network |
| Steam control | Quality and intensity of the steam, with Tulikivi Kevo models Kaarna, Pyry and Usva |
| Connection cable | 15 m, included |
| Optional accessories | Bench sensor (SS1576), door switch package (SS288) |
| 1-Phase Supply (4.5–9 kW) | |
| Power unit | SS1814 |
| Suits heaters | 4.5–9 kW, single-phase supply |
| 3-Phase Supply (4.5–10.5 kW) | |
| Power unit | SS1630 |
| Suits heaters | 4.5–10.5 kW |
| Supply | 400 V 3N~ |
| Fuses | 4.5–6.8 kW: 3 × 10 A; 8.5–10.5 kW: 3 × 16 A |
| Heater supply cable (H07RN-F) | 4.5–6.8 kW: 5 × 1.5 mm²; 8.5–10.5 kW: 5 × 2.5 mm² |
| Temperature sensor | 10 m sensor (SS1392) |
| Control panel cable requirement | 4 × 0.5 mm², max. 20 m |
| 3-Phase Supply (for L & XL Heaters, 12–21 kW) | |
| Power unit | SS1618 |
| Suits heaters | Tulikivi L and XL heaters, 12–21 kW, three-phase supply |
Installation
The power unit is installed no more than 600 mm above the floor and at least 200 mm from the heater, with the control panel no more than 1 m above the floor. The heater is connected semi-permanently with H07RN-F rubber cable or equivalent (never PVC-insulated cable), the coupling box must be splash-proof and no more than 500 mm above the floor, and the heater’s power feed must not be connected through an earth leakage circuit breaker. A safety frame on the heater, or a door switch with reset button, is required if the heater is operated remotely or safe starting cannot otherwise be ensured. Installation and electrical connection must be carried out by a certified electrician, with the electricity supply isolated before any work begins, and the installation manuals in the Downloads tab must be followed.
Using the app
Remote use runs through the Tulikivi Sauna app, which is installed from the browser at tulikivi.web.app and verified with your phone number; the control panel and your phone each need a network connection, and the sauna is added to the app with the identification code shown in the panel settings.
Brand
Tulikivi is a Finnish specialist in soapstone and sauna heaters, based in Juuka, Finland.
Ordering note
Check your heater model, heater output and electricity supply before ordering so the right power unit option is selected, and confirm the controller generation where accessories are added. Electrical installation must be carried out by a certified electrician.
