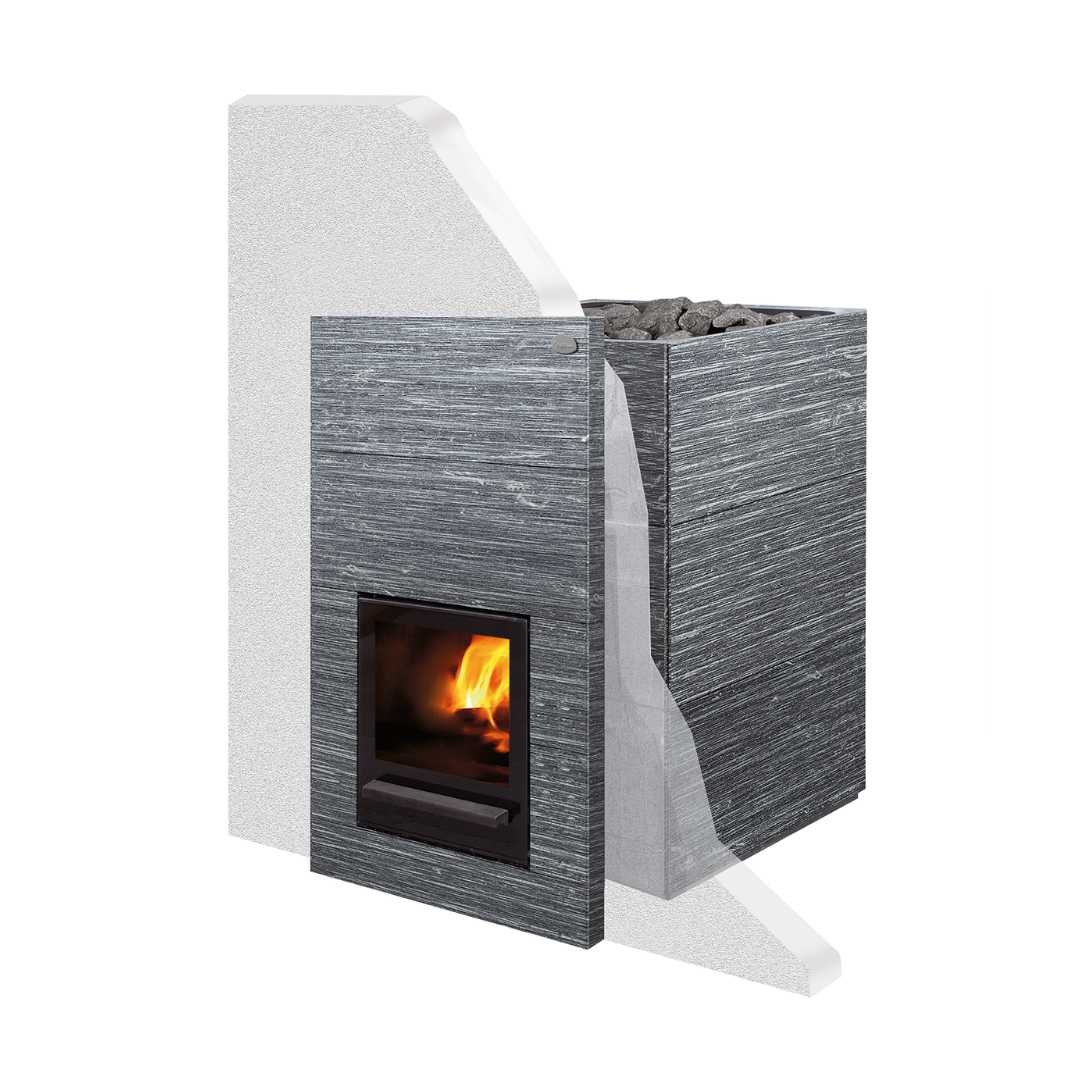

Tulikivi Kinos Grafia Wood Burning Sauna Heater
Tulikivi Kinos Grafia Wood Burning Sauna Heater
Available to purchase ā Special order lead times apply.*
Couldn't load pickup availability
Buy together with:
Description
About this Sauna Heater
Ā
The Kinos sauna stove provides a soft, comfortable sauna experience and an atmospheric fireplace for your home.
Kinos is fired through a door that opens into a room next to the sauna. This wood burning stove allows you to heat up the sauna from another room, whilst simultaneously serving as a fireplace. A soapstone frame can be installed around the large glass door of the heater, turning the firebox into a modern and stylish fireplace.Ā The soapstone sauna stove frame is to be purchased separately.Ā PleaseĀ get in touchĀ with our sauna specialists to enquire.Ā
TheĀ GrafiaĀ cladding is structured soapstone that has been roughened with a special technique. This creates a unique, sparkling effect to the surface of the stone. The photos don't do justice to this beautiful stove cladding!
*Stones and flue kit to be purchased separately*
This heater requires up to 60kg sauna stones.Ā We recommend using 3 x 20kg boxes of 10-15cm Olivine Diabase or VulcaniteĀ Sauna StonesĀ for optimal performance.
Ā
Key Features of the Tulikivi Kinos Grafia Wood Burning Sauna Heater
- Innovative Finnish Design and ProductionĀ
- High efficiency and low emissionsĀ Ā
- Large glass door and a simple but elegant handleĀ
- The height of the optional protective ring is adjustableĀ
- The large stone compartment provides a long lasting, humid and soft heatĀ
Technical SpecificationĀ
Dimensions:
|
WidthĀ |
500 mmĀ |
|
DepthĀ |
600 mmĀ |
|
HeightĀ |
900mmĀ |
|
WeightĀ |
300 kgĀ |
|
Firebox widthĀ |
400 mmĀ |
|
Firebox depthĀ |
400 mmĀ |
Ā
Heating Technology:
|
Heater outputĀ |
20 kWĀ |
|
Amount of woodĀ |
8 kg/hĀ |
|
Size of sauna roomĀ |
8-20 m3Ā |
|
Flue classĀ |
T600Ā |
|
Amount of stonesĀ |
60 kgĀ |
Ā
Safety Distances:Ā Ā
|
Side and backĀ |
200 mmĀ |
|
FrontĀ |
1000 mmĀ |
|
To the ceilingĀ |
1000 mmĀ |
|
To the floorĀ |
40 mmĀ |
Ā
Flue connection details:Ā Ā
|
Location of smoke outlet, Rear (from the floor to centre of the outlet)Ā |
770 mmĀ |
|
Location of smoke outlet, Top (from the rear edge to the middle of the outlet)Ā |
175 mmĀ |
|
Smoke outlet diameterĀ |
115 mmĀ |
Ā
Ā
