Tulikivi Tuisku XL Grafia Soapstone Cover
NOTE:
This product has a lead time, please get in touch for more specific timescales

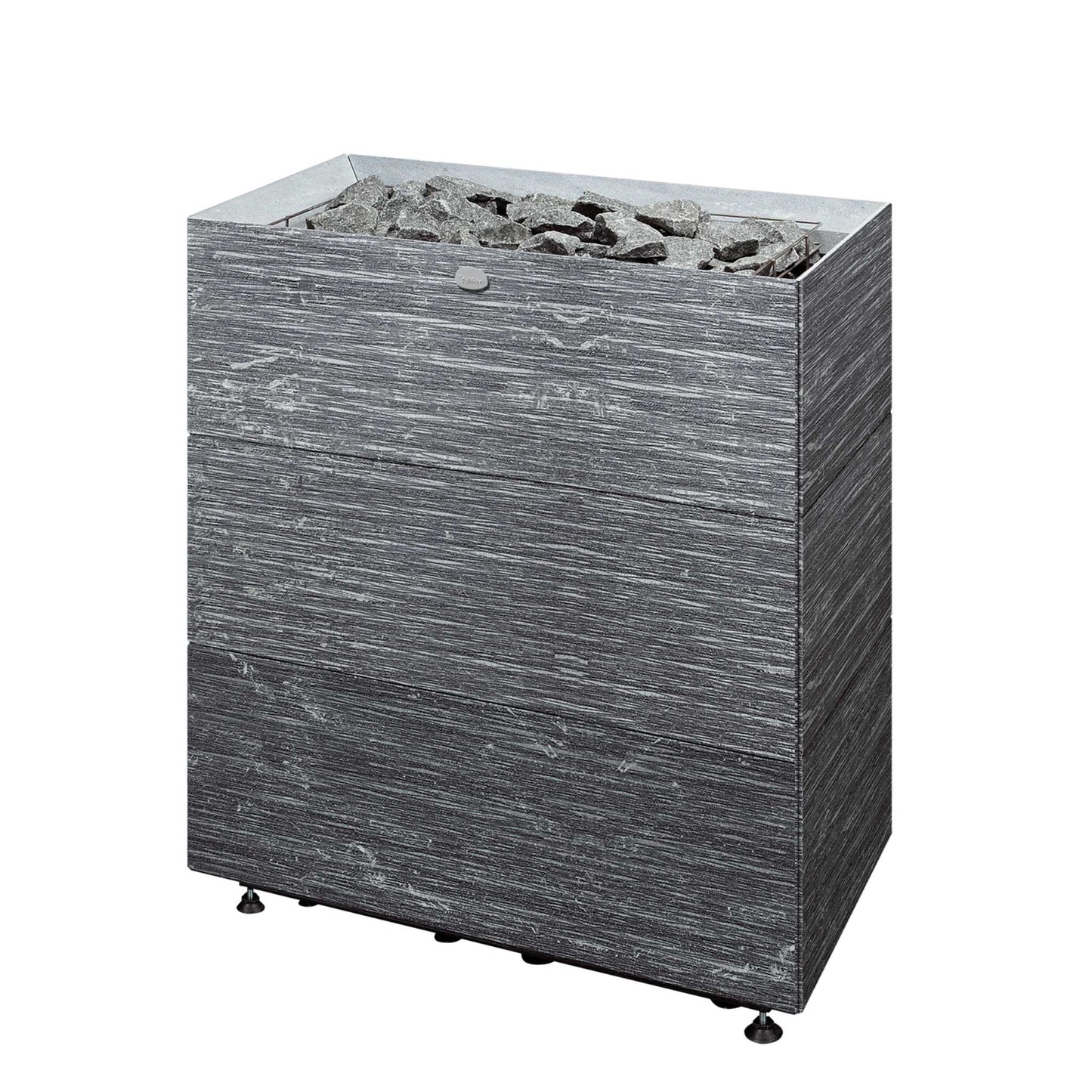

Tulikivi Tuisku XL Grafia Soapstone Cover
Product Description
Technical Specification
Downloadable Files
Product Description
The Tuisku XL electric sauna heater blends elegant design with advanced technology to deliver a soft and humid sauna experience. The heater's exterior is clad in Finnish soapstone, which not only enhances its luxurious appearance but it also retains heat effectively, ensuring the sauna dries efficiently after use. The robust XL is an excellent choice in larger saunas, spas and gyms.
Small Safety Distances - The Tuisku XL can be easily integrated into the sauna benches due to its small safety distances to combustible materials.
The Grafia cladding is a textured soapstone, skillfully roughened through precision water cutting to achieve a sparkling, unique finish.
Product Information
Soapstone cover: Grafia, + 120 kg of sauna stones (bought separately). NB! order 2 D-Bodies.
Weight: 300kg
Dimensions: WxDxH: 766 x 430 x 950
To be bought together with:
2x D-Body with heating elements, without PC board, 60 kg steam stones compartment in either a 6,8 kW, 9kW or 10,5 kW. This will create either a 13,6kW, 15,8 kW, 17,3kW, 18kW, 19,5kW or 21,0kW heater.
The heater can be controlled with the Tulikivi Contactor box, Touch Screen or KNX module system, which are to be bought separately.
For your information, this can also be controlled with other producers' controlling systems.
Sauna Stones: 120 kg of steam stones is required.
Technical Specification
Technical Specification Tuisku XL 13.6kW
|
Heater Power (kW) |
13.6 kW |
|
Sauna Room Size |
12-20 m3 |
|
Dimensions & Weight: |
|
|
Width |
766 mm |
|
Depth |
430 mm |
|
Height |
950 mm |
|
Weight Without Stones |
300 kg |
|
Max. Stone Capacity |
120 kg |
|
Adjustable Feet |
20 mm |
|
Material |
|
|
Frame |
Soapstone (Brushed, Rigata, Grafia or Nobile) |
|
Safety Distances |
|
|
To the side |
50 mm |
|
To the foot board in front |
20 mm |
|
To the ceiling |
950 mm |
|
To the floor |
50 mm |
|
Controller |
|
|
Controlling Options |
Tulikivi Sauna Control Panel |
|
Electrical Installation |
|
|
Security Rating |
IPX4 |
|
Three-Phase Supply Voltage |
400V |
|
Supply Cable (mm2) |
2 x 5 x 2.5 mm2 |
Technical Specification Tuisku XL 18kW
|
Heater Power (kW) |
18 kW |
|
Sauna Room Size |
18-30 m3 |
|
Dimensions & Weight: |
|
|
Width |
766 mm |
|
Depth |
430 mm |
|
Height |
950 mm |
|
Weight Without Stones |
300 kg |
|
Max. Stone Capacity |
120 kg |
|
Adjustable Feet |
20 mm |
|
Material |
|
|
Frame |
Soapstone (Brushed, Rigata, Grafia or Nobile) |
|
Safety Distances |
|
|
To the side |
50 mm |
|
To the foot board in front |
20 mm |
|
To the ceiling |
950 mm |
|
To the floor |
50 mm |
|
Controller |
|
|
Controlling Options |
Tulikivi Sauna Control Panel |
|
Electrical Installation |
|
|
Security Rating |
IPX4 |
|
Three-Phase Supply Voltage |
400V |
|
Supply Cable (mm2) |
2 x 5 x 2.5 mm2 |
Technical Specification Tuisku XL 21kW
|
Heater Power (kW) |
21 kW |
|
Sauna Room Size |
24-36 m3 |
|
Dimensions & Weight: |
|
|
Width |
766 mm |
|
Depth |
430 mm |
|
Height |
950 mm |
|
Weight Without Stones |
300 kg |
|
Max. Stone Capacity |
120 kg |
|
Adjustable Feet |
20 mm |
|
Material |
|
|
Frame |
Soapstone (Brushed, Rigata, Grafia or Nobile) |
|
Safety Distances |
|
|
To the side |
50 mm |
|
To the foot board in front |
20 mm |
|
To the ceiling |
950 mm |
|
To the floor |
50 mm |
|
Controller |
|
|
Controlling Options |
Tulikivi Sauna Control Panel |
|
Electrical Installation |
|
|
Security Rating |
IPX4 |
|
Three-Phase Supply Voltage |
400V |
|
Supply Cable (mm2) |
2 x 5 x 2.5 mm2 |
