HUUM

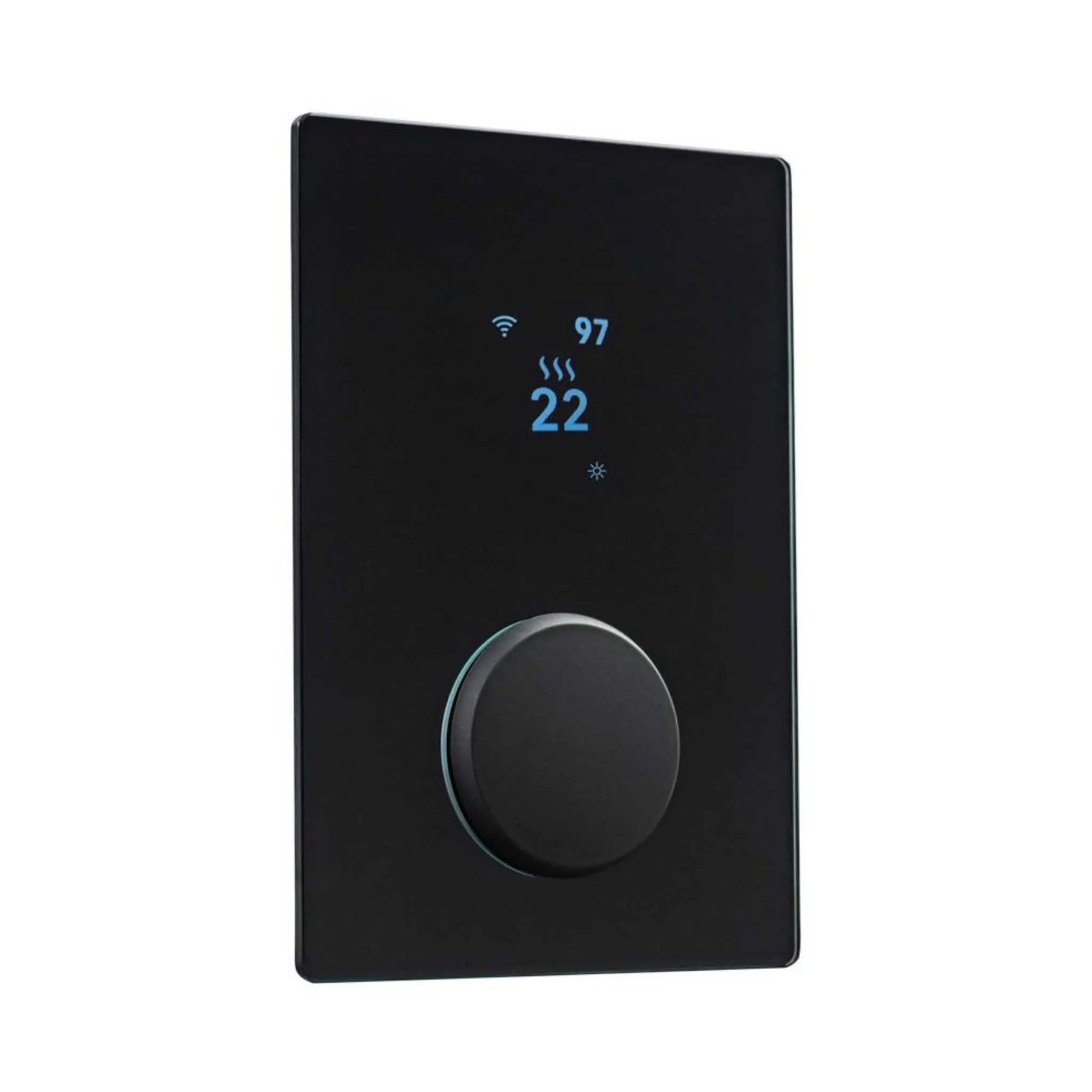

UKU Sauna Control Panel Cover - Glass (Panel Only)
UKU Sauna Control Panel Cover - Glass (Panel Only)
Couldn't load pickup availability
Description
Description
The UKU Sauna Control Panel Cover in Black Glass is supplied as the panel only and requires the UKU control system main module, sold separately, in order to function. Once connected it operates the electric sauna heater’s functions with a few clicks of a single button, with a child safety lock built in. Unlike the plastic version, the glass-cased panel may be installed inside the sauna room itself: it recesses into the wall, with its upper edge no higher than 1 m from the floor and at least 50 cm from any exhaust ventilation. Where recessing is not possible, HUUM’s surface mounting frame is available separately.
Features
Technical Specification
| Product type | Replacement control panel, black glass casing (panel only) |
| Required to function | HUUM UKU control system main module, sold separately |
| Controls | Single-button operation of the heater’s functions |
| Safety | Child safety lock |
| Wall recess for panel | 65 × 105 × 27 mm |
| Mounting position | May be installed inside the sauna room, upper edge no higher than 1 m from the floor and at least 50 cm from exhaust ventilation |
| Surface mounting | UKU surface frame (H310301), sold separately |
Installation
The glass panel recesses into a 65 × 105 × 27 mm opening; the glass front lifts off its magnets for fixing, and screw heads should be insulated where the wall contains conductive materials. The panel cable to the UKU main module must not exceed 20 m and must not be routed parallel to high-current cables. Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated at the fuse panel before any work begins. The installation manual in the Downloads tab and local wiring regulations must be followed.
Brand
HUUM is an Estonian maker of design-led sauna heaters and controls, whose DROP heater won the Red Dot Award for Product Design in 2015.
Warranty
The warranty card is available in the Downloads tab.
Ordering note
Before ordering, check your heater model, the heater’s rated power and your UKU controller generation (UKU 4.1 or 4.2), as panels and parts differ between generations. Electrical installation must be carried out by a certified electrician.
Downloads
Delivery & Returns
Delivery
We offer fast and reliable delivery to customers across the UK and beyond. For full details on shipping times and costs, please review our delivery policy.
Returns
We offer hassle-free returns within 30 days of purchase, so you can shop with complete confidence. For details, see our returns policy.
Warranty & Quality Promise
We are committed to delivering products of the highest quality, for details surrounding warranty please contact us.
Description
The UKU Sauna Control Panel Cover in Black Glass is supplied as the panel only and requires the UKU control system main module, sold separately, in order to function. Once connected it operates the electric sauna heater’s functions with a few clicks of a single button, with a child safety lock built in. Unlike the plastic version, the glass-cased panel may be installed inside the sauna room itself: it recesses into the wall, with its upper edge no higher than 1 m from the floor and at least 50 cm from any exhaust ventilation. Where recessing is not possible, HUUM’s surface mounting frame is available separately.
Features
| Product type | Replacement control panel, black glass casing (panel only) |
| Required to function | HUUM UKU control system main module, sold separately |
| Controls | Single-button operation of the heater’s functions |
| Safety | Child safety lock |
| Wall recess for panel | 65 × 105 × 27 mm |
| Mounting position | May be installed inside the sauna room, upper edge no higher than 1 m from the floor and at least 50 cm from exhaust ventilation |
| Surface mounting | UKU surface frame (H310301), sold separately |
Installation
The glass panel recesses into a 65 × 105 × 27 mm opening; the glass front lifts off its magnets for fixing, and screw heads should be insulated where the wall contains conductive materials. The panel cable to the UKU main module must not exceed 20 m and must not be routed parallel to high-current cables. Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated at the fuse panel before any work begins. The installation manual in the Downloads tab and local wiring regulations must be followed.
Brand
HUUM is an Estonian maker of design-led sauna heaters and controls, whose DROP heater won the Red Dot Award for Product Design in 2015.
Warranty
The warranty card is available in the Downloads tab.
Ordering note
Before ordering, check your heater model, the heater’s rated power and your UKU controller generation (UKU 4.1 or 4.2), as panels and parts differ between generations. Electrical installation must be carried out by a certified electrician.
