VipaBoard Insulated Construction Board
VipaBoard Insulated Construction Board
Couldn't load pickup availability
Description
Description

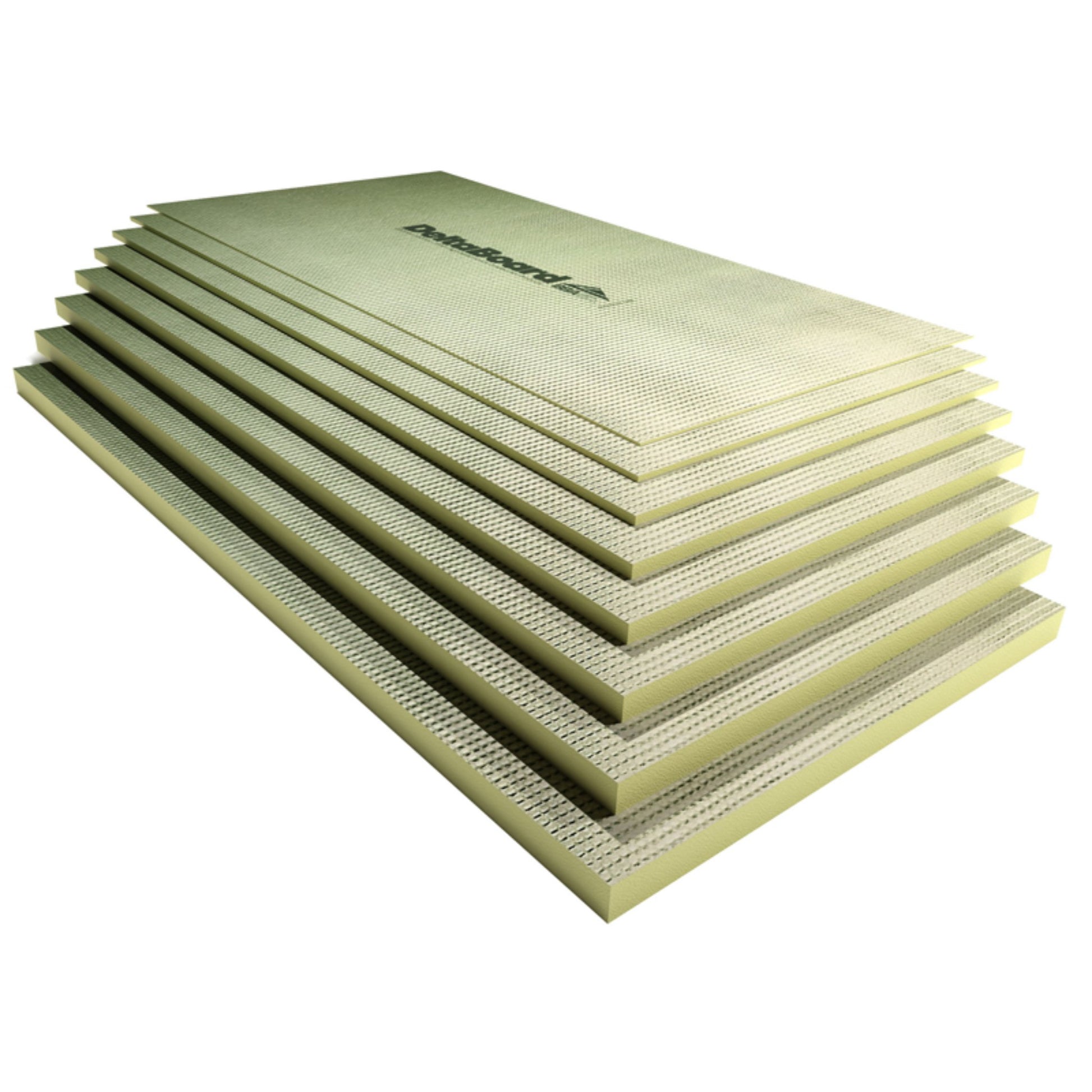

VipaBoard is a lightweight, insulated construction board designed as a base for all tile types, cement-based screeds and synthetic renders. Its core is high-density extruded polystyrene, which gives the board excellent insulating properties, while a factory-applied reinforced cement coating adds impact strength, sound reduction and fire resistance. The board is resistant to water, so it suits areas subject to prolonged or permanent immersion, and it enhances underfloor heating systems by reducing downward heat loss. It fixes with cement-based flexible tile adhesive or with dowels and washers; solvent-based or ready-mixed adhesives must not be used. Three sizes are available: 12.5 × 1200 × 600 mm, 30 × 1200 × 600 mm and 30 × 2400 × 600 mm.
Features
Technical Specification
| Specifications | |
| Core | High-density extruded polystyrene (XPS) |
| Coating | Factory-applied reinforced cement coating |
| Floor loading | Static loads up to 30 tons per m² when fixed over concrete and structurally stable floors (calculation based on a 1 × 1 m tile fixed over the board) |
| Wall loading | Up to 85 kg per m² vertical tile loading on masonry walls and stud framework |
| Suitable finishes | All tile types, cement-based screeds, synthetic renders, decorative plaster |
| Sizes and SKUs | |
| 12.5 × 1200 × 600 mm | V1206-12/B0030 |
| 30 × 1200 × 600 mm | V1206-30/B0050 |
| 30 × 2400 × 600 mm | V2406-30/B0150 |
Fixing

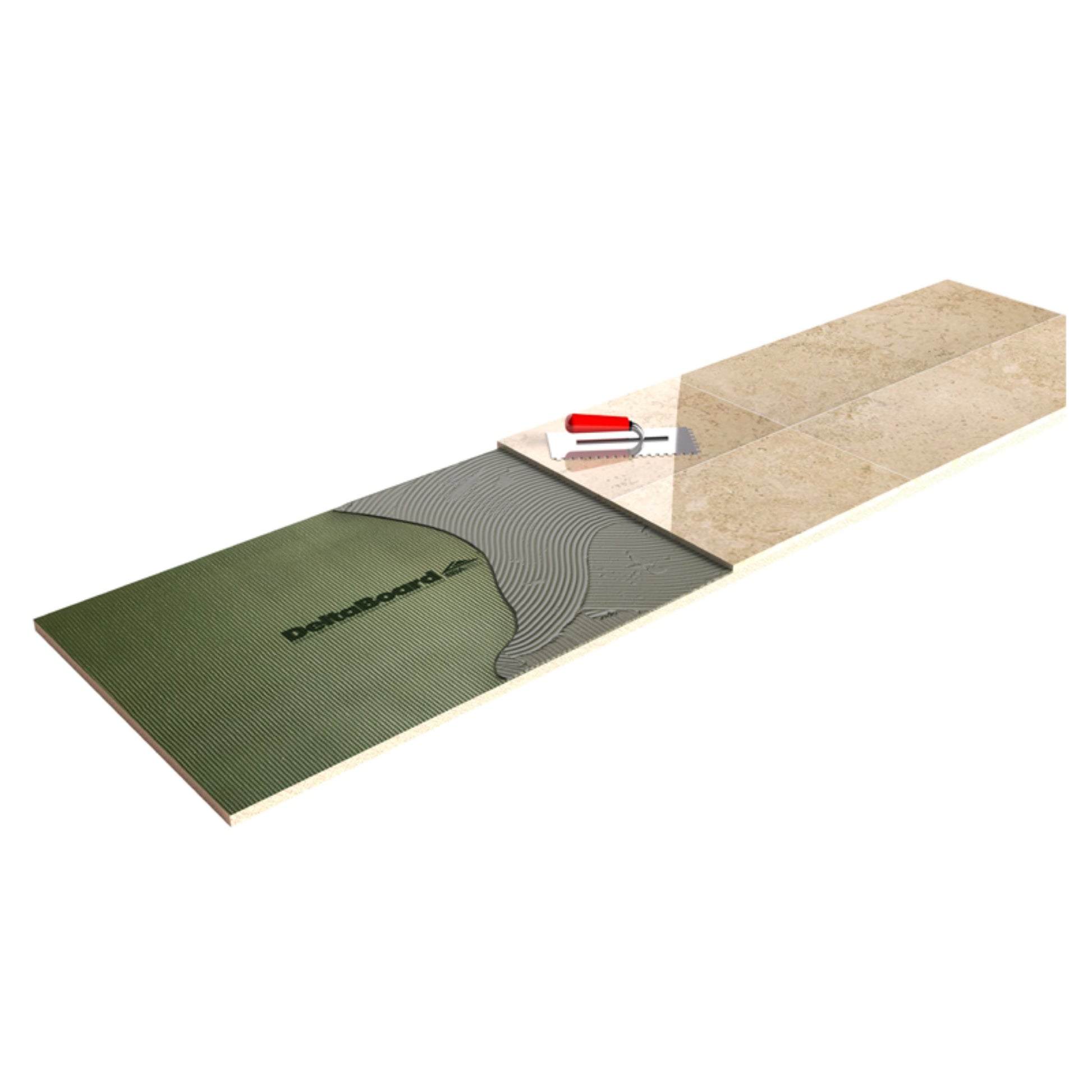

Fix VipaBoard using cement-based flexible tile adhesive; solvent-based or ready-mixed adhesives must not be used. Alternatively, the board can be fixed using dowels and washers. Once fixed, it provides a stable surface for tiles, synthetic renders and decorative plaster.
Notes
The trademarks DeltaBoard and VipaBoard can be used interchangeably for this product.
Brand
VipaBoard is supplied by PCS, who have been manufacturing spa room environments since 2006.
Ordering
If you are unsure which thickness or size suits your project, contact support@finnmarksauna.com before ordering.
