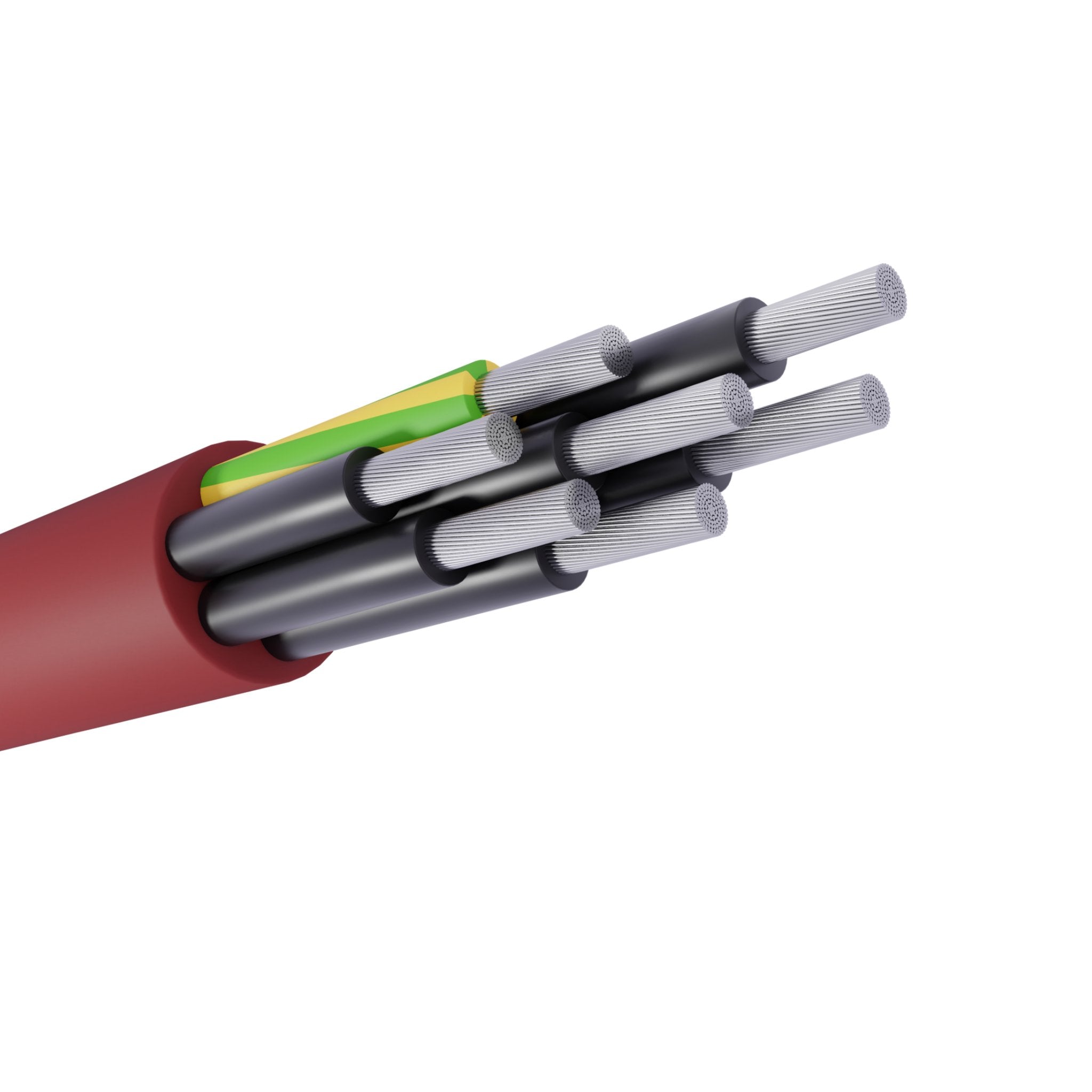

SiHF 7 Core Heat Resistant Rubber Cable - Red/Brown Cut to Size Per Metre

• 7 Core 2.5mm SiHF Cable
• Red/Brown Rubber Sheath
• Suitable for sauna connections
• All lengths available, the price per metre cut to size.

SiHF cables are used wherever cable insulation is exposed to high temperature fluctuations. Due to their excellent weather resistance, silicone cables can be used at both high and low temperatures down to -60°C. Due to the elastic properties of the core insulation, they are used as flexible connecting cables.

Diameters -

2.5mm squared

Safety

Must be used in accordance with all relevant regulations and installed by a skilled electrician.

Technical data:

Special silicone hose cable with increased heat resistance in accordance with DIN VDE 0250-1 and DIN VDE 0285-525-2-83/ DIN EN 50525-2-83
Temperature range -60°C to +180°C (briefly +220°C)
Limit temperature on the conductor, in operation +180°C
Nominal voltage U0/U 300/500 V
Test voltage 2000 V
Breakdown voltage min. 5000 V
Insulation resistance min. 200 MOhm x km
Current carrying capacity at ambient temperature up to +145°C in accordance with DIN VDE 0100 for higher temperatures applies: Ambient temperature of 150°C - load capacity 100% 155°C - load capacity 91% 160°C - load capacity 82% 165°C - load capacity 71% 170°C - load capacity 58% 175°C - load capacity 41%
Minimum bending radius moving 7.5x cable Ø not moving 4x cable Ø
Radiation resistance up to 20x106 cJ/kg (up to 20 Mrad)
