Description
About this Sauna Heater

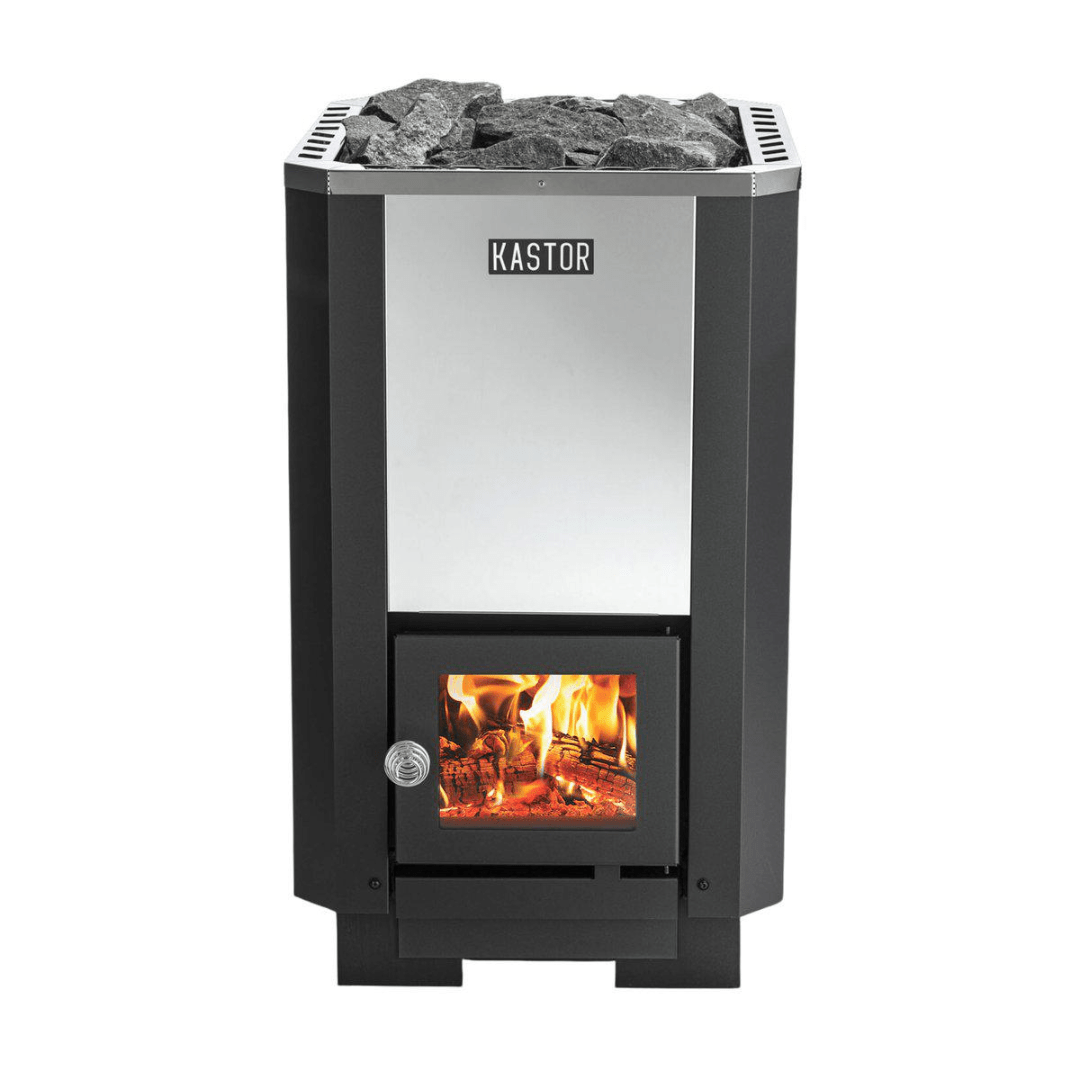

The atmospheric Kastor Karhu, “Bear”, wood burning stove creates a high-quality steam for an authentic, relaxing sauna experience. The simplistic design of the stove features stylish lines and a chrome front panel, making Kastor Karhu suitable for all interiors. The intelligent solutions of the stove produce maximum heating power with as little firewood as possible, whilst obtaining impressive heat retaining properties.
All Kastor Karhu models have adjustable legs and the inside diameter of the flue is 115mm. A protective wall and base are available to be purchased as accessories.
Kastor Karhu series has different models and sizes suitable for a range of sauna needs and rooms.
*Suitable amount of sauna stones, flue kit, front frame for tunnel model and heat shielding to be purchased separately.
Browse our sauna flue kits and chimney parts.
Kastor Karhu Series Models
The Kastor Karhu series from Helo has the following model options:
1. Karhu Home: A wood burning sauna heater with a sleek design and a chrome front panel. The Karhu Home complements any sauna interior with it innovative features that deliver optimal heating with minimal wood consumption. Perfect for 8-20 m3 saunas.
Please find the dimensions, recommended stone capacity and technical details in the downloadable files tab, p.32 in the Karhu Home Installation Manual.
2. Kastor Karhu: Classic wood burning sauna stove in three sizes: 22, 30 and 40. See the table below for the models and recommended sauna sizes.
|
Model: |
Recommended Sauna Size: |
|
Kastor Karhu 22 |
12-22m3 |
|
Kastor Karhu 30 |
20-30m3 |
|
Kastor Karhu 40 |
30-40m3 |
3. Kastor Karhu V: The classic Karhu wood burning stove with an integrated water tank. The water tank can be placed either on the left, right or at the front of the heater. Please get in touch regarding specific requests.
4. Kastor Karhu T: The tunnel model version of the Kastor Karhu. This model combines a sauna stove with a fireplace opening to the adjacent room. Front frame to be purchased separately.
5. Kastor Karhu Pata/Wood burning water tank: Wood burning water kettle Kastor Karhu Pata is designed to complement other stoves in the Karhu collection. It is a 60 Liter water tank based on the same energy-efficient design as the Kastor series wood burning sauna stoves.
*Please see the Technical Specification tab above for detailed dimensions of each model.
About our Supplier Helo
Helo has brought health and wellbeing to people all over the world for over 100 years. Founded in 1919, it was the first manufacturer of electric sauna heaters. With innovative technology, smart functionality and stylish design, Helo sauna products upgrade the everyday sauna experience.
Helo electric sauna heaters are made of high-quality materials and handcrafted in Hanko, Finland. True to their Finnish origin, the company is creating opportunities for everyone to experience the Nordic sauna no matter where you are in the world.
Helo is a part of the global Sauna360 group, creating top quality sauna products to be a part of everyday healthy living. The incorporated brands of Sauna360 represent traditional Nordic sauna, steam and infrared wellness experiences for a modern lifestyle.
If you want to browse our wider selection of the Helo Sauna Heaters, click on the following link: Helo Wood Burning Sauna Stoves Collection
Click on the technical specification tab to learn more about the Kastor Karhu models.
Technical Specification
Kastor Karhu Wood Burning Sauna Stove Specification
|
Model: |
Karhu 22 |
Karhu 30 |
Karhu 40 |
|
Power |
14kW |
17kW |
15kW |
|
Sauna room size (m3) |
12-22m3 |
20-30m3 |
30-40m3 |
|
Safety Distances: |
|
|
|
|
To the sides |
300mm |
300mm |
300mm |
|
To the front |
500mm |
500mm |
500mm |
|
To the back |
300mm |
300mm |
300mm |
|
Upwards |
1240mm |
1310mm |
1300mm |
|
Dimensions: |
|
|
|
|
Width |
450mm |
490mm |
580mm |
|
Height |
785mm |
915mm |
925mm |
|
Depth |
485mm |
485mm |
585mm |
|
Weight without stones |
61kg |
84kg |
125kg |
|
Stone capacity |
25-30kg |
35-40kg |
50-55kg |
Kastor Karhu V Wood Burning Sauna Stove with Integrated Water Tank Specification (Left & Right)
|
Model: |
Karhu 22 V |
Karhu 30 V |
Karhu 40 V |
|
Power |
14kW |
17kW |
15kW |
|
Sauna room size (m3) |
12-22m3 |
20-30m3 |
30-40m3 |
|
Safety Distances: |
|
|
|
|
To the sides |
300mm |
300mm |
300mm |
|
To the front |
500mm |
500mm |
500mm |
|
To the back |
300mm |
300mm |
300mm |
|
Upwards |
1240mm |
1310mm |
1300mm |
|
Dimensions: |
|
|
|
|
Width |
620mm |
660mm |
740mm |
|
Height |
785mm |
915mm |
925mm |
|
Depth |
485mm |
485mm |
585mm |
|
Weight without stones |
67kg |
90kg |
131kg |
|
Stone capacity |
25-30kg |
35-40kg |
50-55kg |
Kastor Karhu Pata Wood Burning Water Tank Specification
|
Model: |
Karhu Pata Water Tank 60 |
|
Power |
15kW |
|
Sauna room size (m3) |
- |
|
Safety Distances: |
|
|
To the sides |
500mm |
|
To the front |
500mm |
|
To the back |
500mm |
|
Upwards |
|
|
Dimensions: |
|
|
Width |
410mm |
|
Height |
775mm |
|
Depth |
570mm |
|
Weight without stones |
42kg |
|
Stone capacity |
- |
