Narvi Smooth Electric Sauna Heater

Translation missing: en.products.product.price.regular_price £ 734.00 GBP
Translation missing: en.products.product.price.sale_price £ 734.00 GBP Translation missing: en.products.product.price.regular_price £ 934.00 GBP
Tax included.

Learn more about finance
Product Description

Product Description

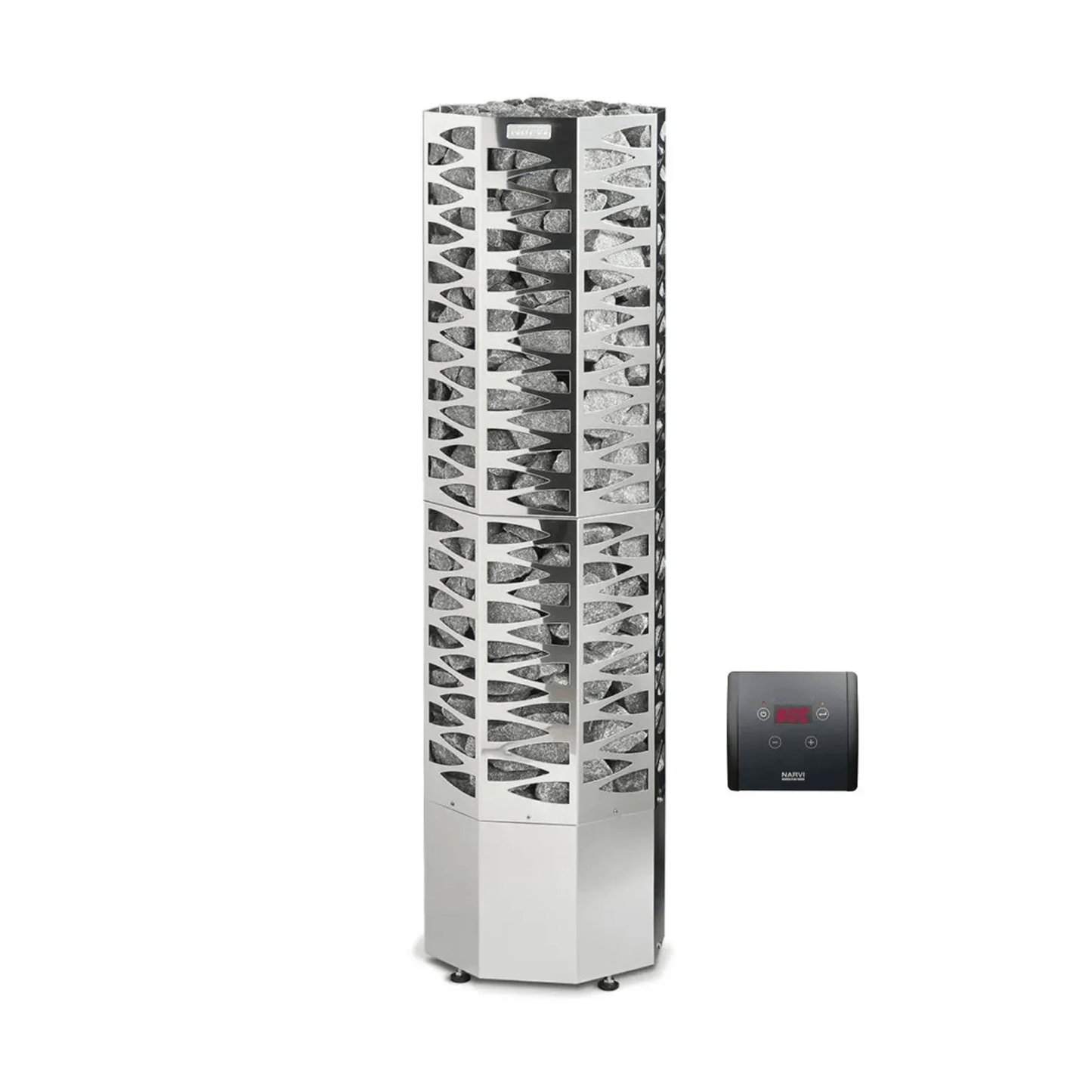

The Narvi Smooth electric sauna heater fuses the exemplary build quality of Narvi sauna equipment, with a stylish, understated Nordic design. This electrical tower sauna heater with it's large stone capacity provides a freestanding, tall column of sauna stones heated by three long heating elements that run the length of the heater. These elements efficiently heat the sauna stones, creating an excellent soft "löyly" when water is thrown over them.

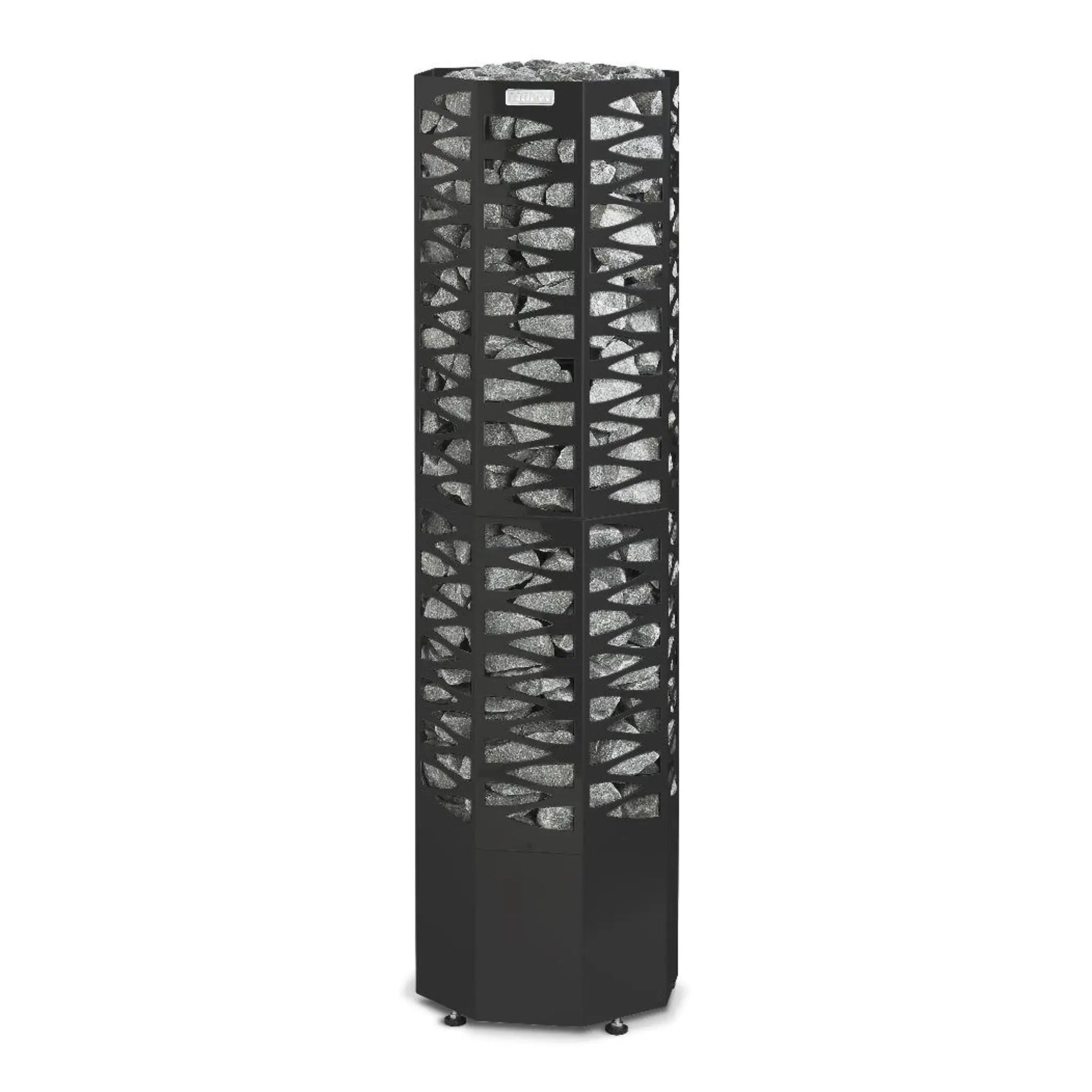

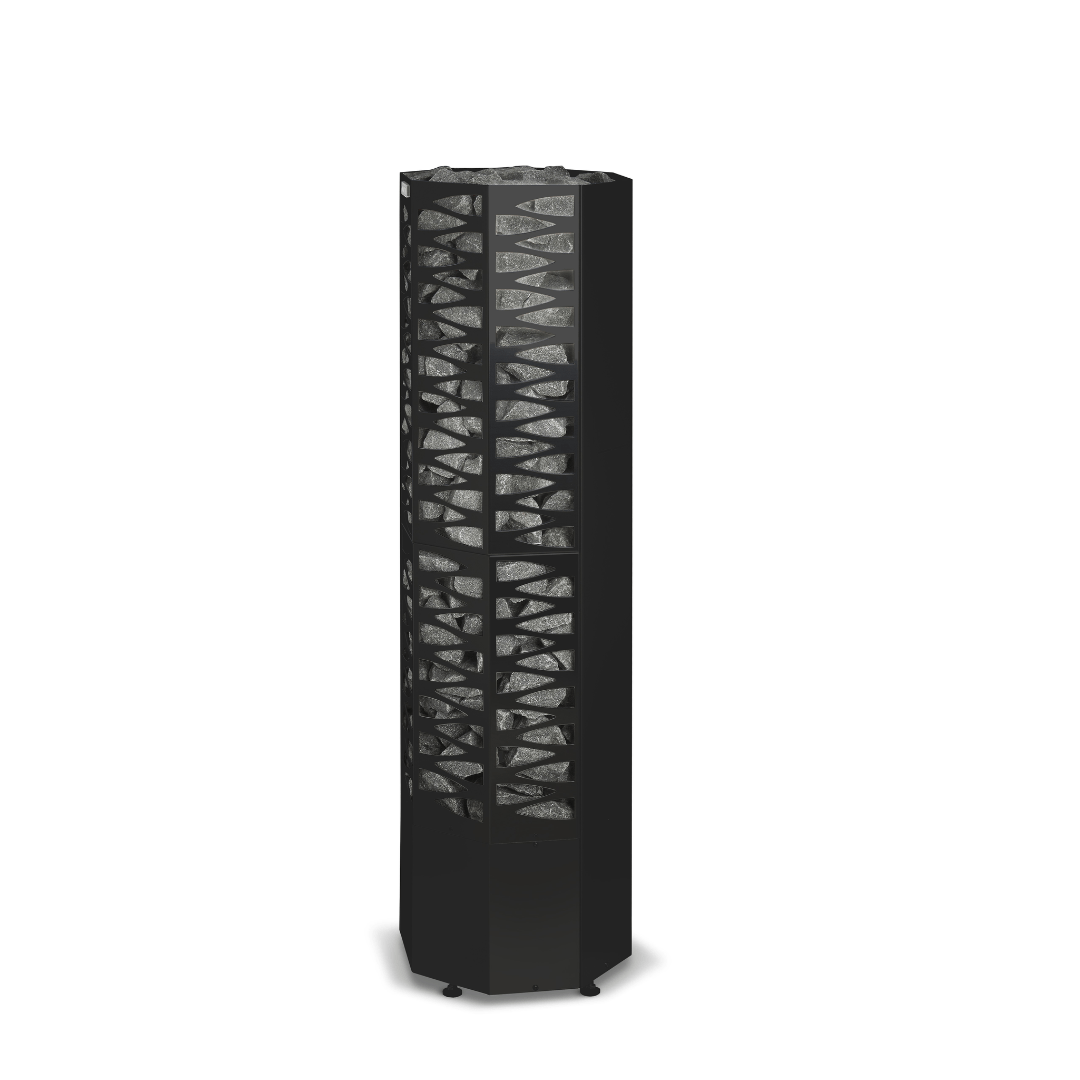

The market leading 8.5 mm thick heating elements warm the sauna very quickly and have an exceedingly long lifespan as well as low risk of overheating. The heater comes in two colour finishes, mirrored stainless steel and black and in three power ratings,  6.8kW, 9kW and 10.5kW variants depending on the size of your sauna. This heater can be easily installed on both single phase and three phase power supplies by a qualified electrician. To learn more about installing electrical heaters on domestic power supplies, see our "How to choose the right electric sauna heater" page.

Unlike most other tower sauna heaters, the Smooth boasts a simpler installation process, as the upper part of the heater can be removed to allow for easy placement of the lower stones within the heater. This is particularly useful as it reduces any risk of damaging the heater during installation and allows the stones to be more easily changed when required.

The small safety distances means the heater can be easily installed in more compact saunas, and the shape permits a corner installation to further save space. The Narvi Smooth and Narvi Softy both have the installation flange which can purchased as a sauna heater accessory to allow the heater to be installed within the benching. This is particularly useful in modern, stylised sauna installations.

Correct connection of your Narvi electrical sauna heater in the UK -

*Installation and maintenance must be done by a certified electrician

*Electricity supply must be isolated and/or switched off from the fuse panel prior to any installation or servicing work

*In accordance with European standard IEC 60364-7-703 part 703.412.5 an electrical sauna heater does not have to be connected through a Residual Current Device (RCD). This is also in accordance with BS7671:2018 part 703.411.3.3.

*For reliable operation, Narvi strongly recommends that the power supply should not be connected through a Residual Current Device (RCD)

*Other electrical devices in a sauna room should be connected through a Residual Current Device (RCD)

*The power supply cable must comply with BS7671:2018

*The instruction manual of the product and local electrical regulations must be followed



Product Specification

Model Smooth 6.8kW Smooth 9kW
Capacity of the sauna 5–8m³ 8–14m³
Power 6.8kW 9kW
Measurements and weight
Height 121cm 121cm
Width 32 cm 32 cm
Depth 32 cm 32 cm
Heater weight / Amount of stones 15 kg / 100 kg 15 kg / 100 kg
Fuse 3 x 10A 3 x 16A
Connecting cable 5 x 1.5 5 x 2.5
Encasing Stainless steel Stainless steel

Safety distances*


To the sides 100 mm 120 mm
In front 100 mm 120 mm
Upwards 700 mm 700 mm
To the rear 100 mm 120 mm
To the floor - 30 mm

*To combustible materials.


Single Phase 230V Power Supply Three Phase 400V Power Supply
Heater Power Rating
Recommended Cable Specification Recommended MCB specification Recommended Cable Specification Recommended MCB specification
3 Core Single Pole 5 Core Triple Pole
(kW) (mm²) (A) (mm²) (A)
4.5 2.5 20 1.5 10
6 6 32 1.5 10
6.8 6 32 1.5 10
9 10 40 2.5 16
10.5 N/A N/A 2.5 16


Warranty

The warranty on this Narvi Sauna Heater is 2 years in private use. The heating elements have a 12-month warranty.

About Narvi Oy

You can browse our wider Narvi collection here


Product Disclaimers

All Narvi sauna heaters are CE tested and bear the Finnish Key Flag Symbol. This is awarded to sauna heaters that are made and designed in Finland, where over 95% or more of the production must be within Finland itself. There are many brands that claim to be made in Finland but are actually made in the Far East or Russia and merely assembled or labelled in Finland. Watch out for these symbols as a mark of an authentic, Finnish-made, safe, quality product:

Finnish Key Flag and CE Marked

As part of Finnmark Sauna's Endurance Ethos, we only deal with products that are market leaders in quality. We commit ourselves to search exhaustively for the highest quality authentic Finnish sauna products.

Please note, we recommend that sauna heaters should be installed by a suitably qualified electrician/builder/fitter. Finnmark Limited accepts no liability for loss or injury caused by the incorrect installation or misuse of your sauna heater. Please Contact Us if you require information on our recommended fitters.
