Description
About This Electric Sauna Heater Cover

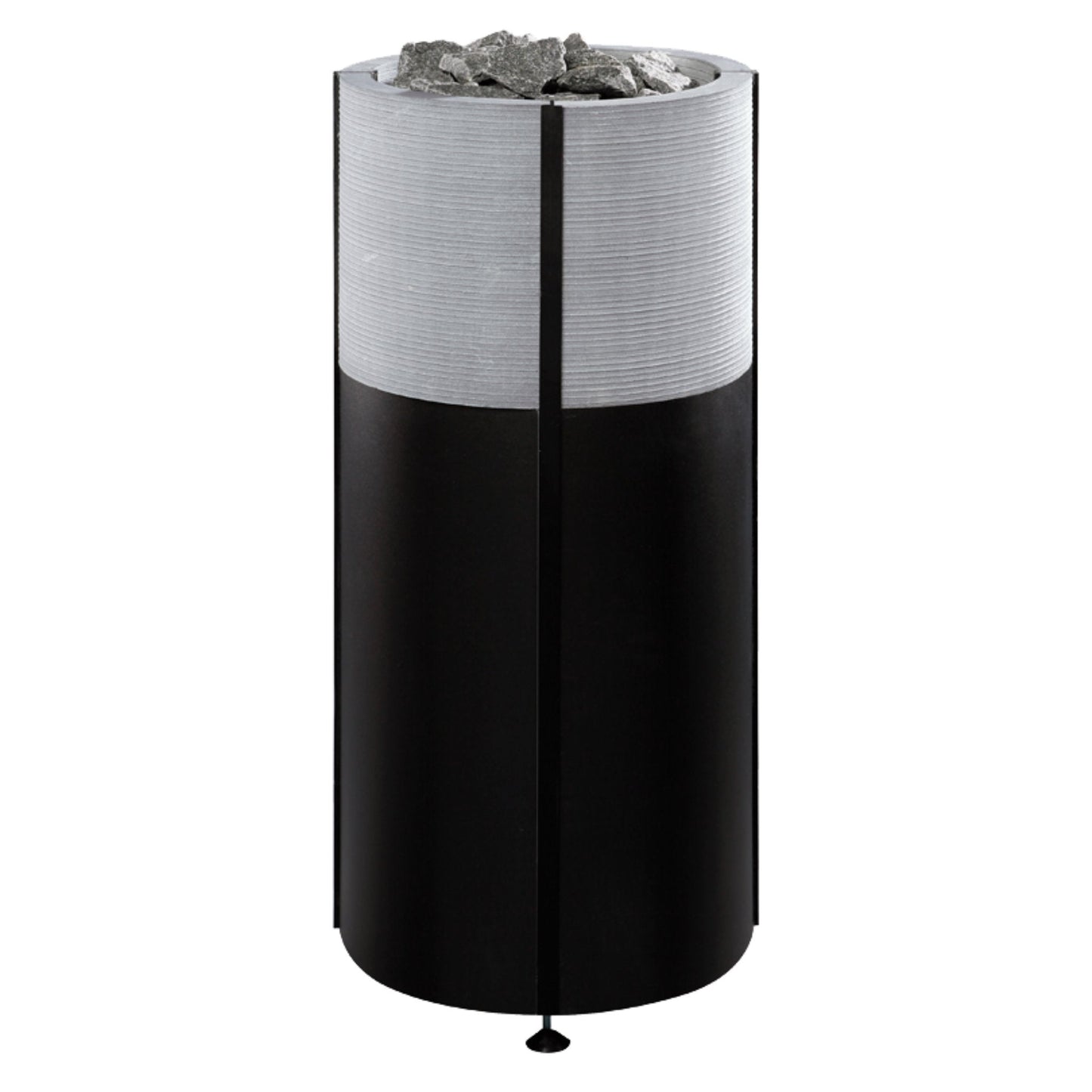

The round Naava Rigata integrated encasing together with the Tulikivi electric sauna heater body combines uncompromising design and Finnish soapstone with high technology. Intended for traditional sauna bathing, the Naava is made of beautiful, ribbed soapstone that retains heat effectively and releases it as a comfortably humid and an evenly soft heat.
The Rigata surface of the Naava heater is ribbed Finnish soapstone above. A matte painted steel on the bottom section will be hidden when integrated into the sauna benching. The heat retained by the soapstone cladding helps to dry the sauna efficiently after use.

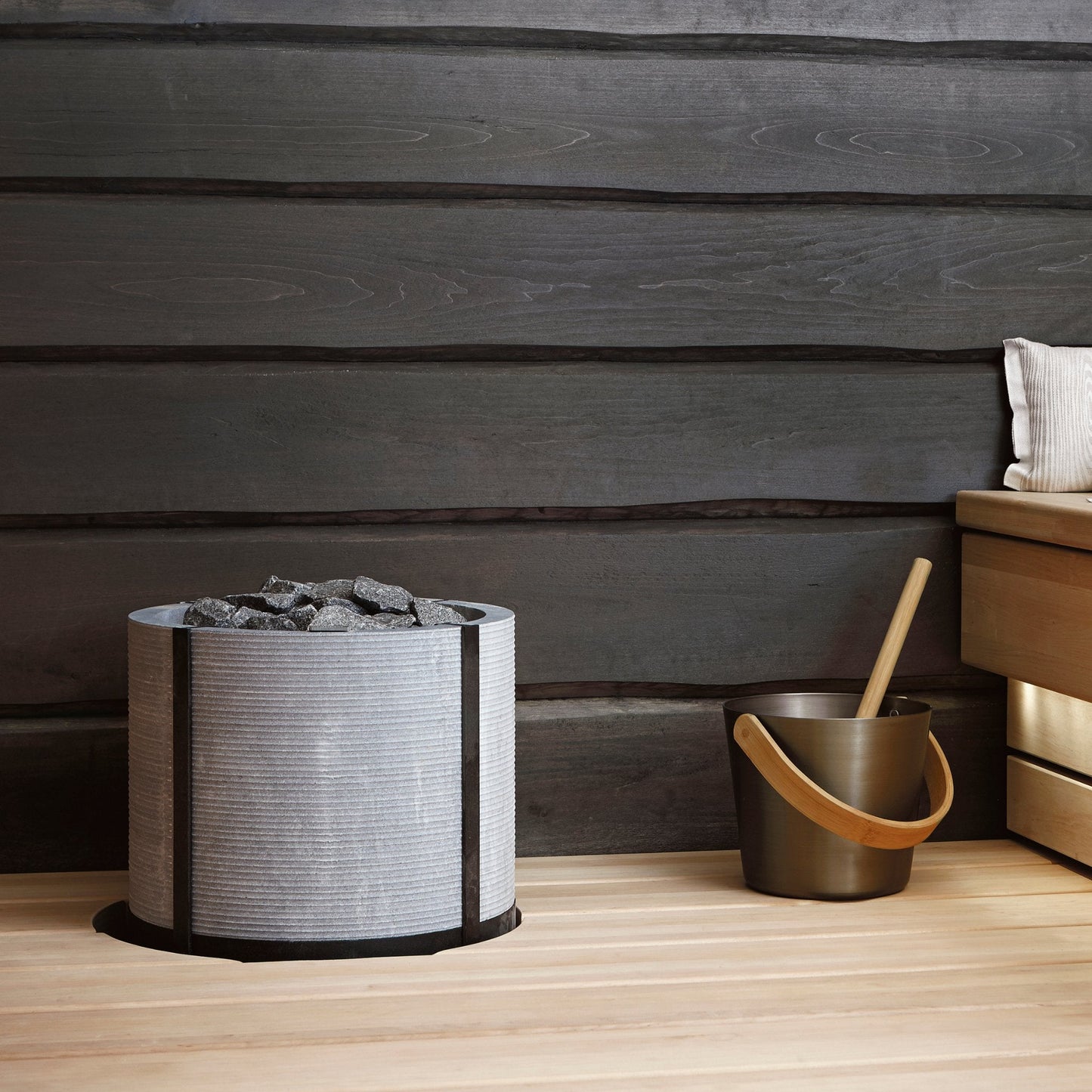

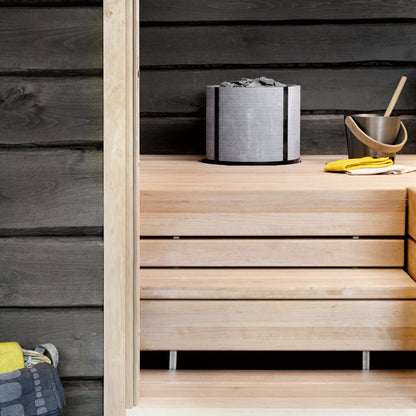

Crafted for lasting performance, the Naava Rigata brings a modern touch of Finnish bedrock to your sauna. Its sleek, compact design makes it ideal for small spaces, where it can be seamlessly integrated into the benches for a clean, built-in aesthetic.
To Be Bought Together With
Sauna Heater Body: Tulikivi D-Body with heating elements. Available in 6.8kW, 9kW or 10.5kW. Single-Phase connections for the 10.5kW are only possible using an UKU Controller.
Sauna Stones: 60kg ⌀ 5-10cm sauna stones (Olivine, Vulcanite or Rounded Olivine). The white cover stones can also be bought separately, but they are mainly decorative and should only make up the top layer.
Control Unit: Tulikivi Complete Wi-Fi Control System or the HUUM UKU Range. These heaters can also be integrated into a Smart-Home system with the optional KNX SIM Relay Card.
Product Specification
| Model | Naava 68 Integrated | Naava 90 Integrated | Naava 105 Integrated |
| Computational volume | 5–9 m³ | 8–13 m³ | 9–15 m³ |
| Effect | 6.8 kW | 9 kW | 10.5 kW |
| Cladding material / finish | Coated aluminium - Black & Soapstone - Rigata | Coated aluminium - Black & Soapstone - Rigata | Coated aluminium - Black & Soapstone - Rigata |
| Dimensions | |||
| Height | 950 mm | 950 mm | 950 mm |
| Width | 400 mm | 400 mm | 400 mm |
| Depth | 400 mm | 400 mm | 400 mm |
| Empty weight | 60 KG | 60 KG | 60 KG |
| Stone capacity | 60 KG | 60 KG | 60 KG |
| Electrical (3N~ 400V) | |||
| Front Fuse | 3 x 10 A | 3 x 16 A | 3 x 16 A |
| Cable Gauge |
5-core 1.5 mm² H07RN-F |
5-core 2.5 mm² H07RN-F |
5-core 2.5 mm² H07RN-F |
| Electrical (1N~ 230V) | Single-Phase connection methods differ for each controller model | ||
| Compatible Controllers | Tulikivi Wi-Fi Complete Set, Tulikivi KNX* or HUUM UKU Range | ||
| Safety distances** | |||
| To the sides (above 900 mm) | 50 mm | 50 mm | 50 mm |
| To the sides (below 900 mm) | 20 mm | 20 mm | 20 mm |
| To the wall | 50 mm | 50 mm | 50 mm |
| To the ceiling | 950 mm | 950 mm | 950 mm |
* The Tulikivi KNX SIM Relay Card for Smart-Home integration is an optional accessory and will require a Tulikivi Contactor Box, included with the Tulikivi Wi-Fi Complete Set.
** Minimum distances to combustible materials
Warranty
The warranty shall be valid for 24 months following the date of purchase of the product or the date of receiving it at the building site where the product is to be located, whichever is the later date.
For saunas in commercial or shared use the warranty is valid for 12 months.
Please note that the heating elements are not included in the warranty.
Please see the "Downloads" tab for full warranty details.
